Here you will find all available parts and drawings of the 'Hikoki CG51EA'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

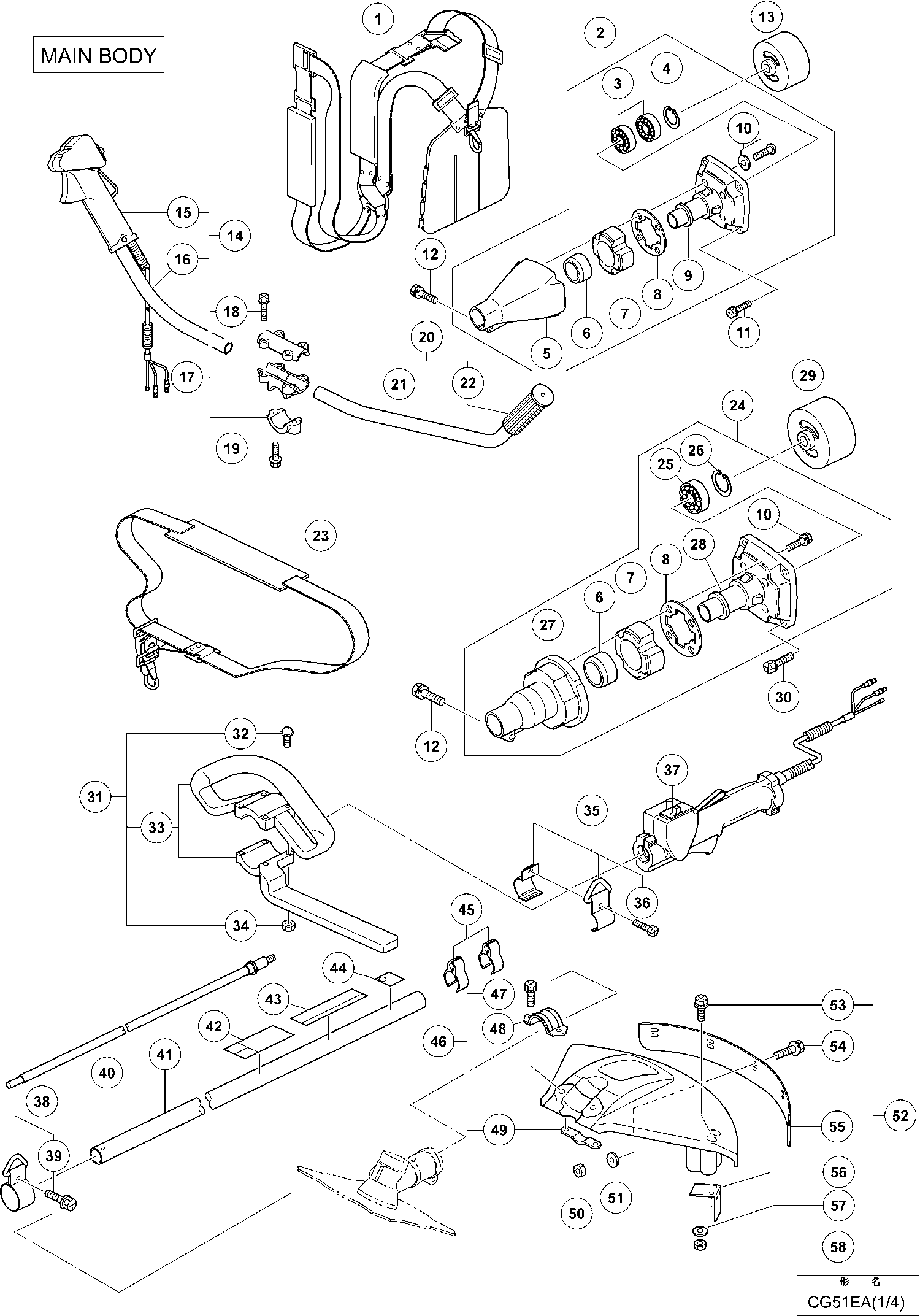

Technical drawing of model Hikoki CG51EA
Spare parts list of model Hikoki CG51EA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 683239 | |||
| Clutch Case Ass'y | ||||
| 2 | 683217 | 125.40 | 151.73 | |
| No information available, not orderable | ||||
| 3 | 683219 | |||
| No information available, not orderable | ||||
| 4 | 683220 | |||
| No information available, not orderable | ||||
| 5 | 683224 | |||
| Buffer (b) | ||||
| 6 | 683222 | 5.85 | 7.08 | |
| Buffer (a) | ||||
| 7 | 683221 | 12.15 | 14.70 | |
| Ring | ||||
| 8 | 683223 | 3.30 | 3.99 | |
| Bearing Case | ||||
| 9 | 683218 | 37.95 | 45.92 | |
| No information available, not orderable | ||||
| 10 | 683131 | |||
| Bolt (w/sp. Washer) M6 X 20 | ||||
| 11 | 683240 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 12 | 683225 | |||
| No information available, not orderable | ||||
| 13 | 683226 | |||
| Handle B Ass'y D19 R | ||||
| 14 | 683236 | 107.94 | 130.60 | |
| Throttle Trigger | ||||
| 15 | 683238 | 84.84 | 102.65 | |
| No information available, not orderable | ||||
| 16 | 683237 | |||
| Handle Bracket Ass'y | ||||
| 17 | 683230 | 23.65 | 28.62 | |
| No information available, not orderable | ||||
| 18 | 683231 | |||
| No information available, not orderable | ||||
| 19 | 683225 | |||
| Handle A Ass'y D19 L | ||||
| 20 | 683233 | 35.06 | 42.43 | |
| No longer available, no replacement | ||||
| 21 | 683234 | |||
| Handle Grip | ||||
| 22 | 683235 | 13.35 | 16.15 | |
| No information available, not orderable | ||||
| 23 | 683002 | |||
| No information available, not orderable | ||||
| 24 | 683244 | |||
| No information available, not orderable | ||||
| 25 | 683246 | |||
| SNAP RING | ||||
| 26 | 683170 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 27 | 683247 | |||
| No information available, not orderable | ||||
| 28 | 683245 | |||
| No information available, not orderable | ||||
| 29 | 683248 | |||
| No information available, not orderable | ||||
| 30 | 683254 | |||
| No information available, not orderable | ||||
| 31 | 683251 | |||
| No longer available, no replacement | ||||
| 32 | 682990 | |||
| No information available, not orderable | ||||
| 33 | 682988 | |||
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 34 | 949555 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 35 | 683250 | |||
| No information available, not orderable | ||||
| 36 | 682986 | |||
| Throttle Trigger | ||||
| 37 | 683249 | 49.64 | 60.06 | |
| Hanging Bracket Ass'y | ||||
| 38 | 683229 | 9.00 | 10.89 | |
| Bolt M5x15 | ||||
| 39 | 682999 | 1.65 | 2.00 | |
| Driveshaft Ass'y | ||||
| 40 | 683253 | 24.20 | 29.28 | |
| Drive Shaft Tube | ||||
| 41 | 683228 | 84.56 | 102.32 | |
| No information available, not orderable | ||||
| 44 | 683352 | |||
| Wire Guide | ||||
| 45 | 683232 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 46 | 683241 | |||
| No information available, not orderable | ||||
| 47 | 682994 | |||
| No information available, not orderable | ||||
| 48 | 683242 | |||
| Threaded Bracket | ||||
| 49 | 683243 | 6.45 | 7.80 | |
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 50 | 949555 | 1.05 | 1.27 | |
| Plane Washer M5 | ||||
| 51 | 683000 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 52 | 682995 | |||
| Bolt M5 X 25 W | ||||
| 53 | 682997 | 1.65 | 2.00 | |
| Bolt M5x15 | ||||
| 54 | 682999 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 55 | 682998 | |||
| No information available, not orderable | ||||
| 56 | 682996 | |||
| Spring Washer M5 (10 pieces) | ||||
| 57 | 949454 | 1.04 | 1.26 | |
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 58 | 949555 | 1.05 | 1.27 | |
| Bolt M6x12 (old 312785) | ||||
| 71 | 683268 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 72 | 683269 | |||
| Bolt M8 X 22 Wsw L.h. | ||||
| 73 | 683018 | 1.65 | 2.00 | |
| Stabilizer Except For Model (l) | ||||
| 74 | 683267 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 75 | 683266 | |||
| No information available, not orderable | ||||
| 76 | 683265 | |||
| Oil Seal | ||||
| 77 | 683261 | 4.80 | 5.81 | |
| Collar | ||||
| 78 | 683260 | 4.35 | 5.26 | |
| SNAP RING | ||||
| 79 | 683170 | 1.65 | 2.00 | |
| Ball Bearing | ||||
| 80 | 683259 | 6.45 | 7.80 | |
| Blade Shaft | ||||
| 81 | 683258 | 29.29 | 35.44 | |
| Ball Bearing (1) | ||||
| 82 | 683154 | 25.44 | 30.78 | |
| Bolt (1) | ||||
| 83 | 683271 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 84 | 683225 | |||
| Gear Cover | ||||
| 85 | 683256 | 67.10 | 81.19 | |
| Gear Cover | ||||
| 85 | 683270 | 46.75 | 56.57 | |
| Ball Bearing | ||||
| 86 | 683262 | 6.45 | 7.80 | |
| Ball Bearing | ||||
| 87 | 683263 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 88 | 683264 | |||
| Snap Ring H26 | ||||
| 89 | 683128 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 90 | 683257 | |||
| SCREW | ||||
| 123 | 683279 | 3.00 | 3.63 | |
| Muffler | ||||
| 124 | 683277 | 34.51 | 41.76 | |
| Gasket Complete | ||||
| 125 | 683278 | 11.70 | 14.16 | |
| No information available, not orderable | ||||
| 126 | 683033 | |||
| Top Cover Ass'y | ||||
| 127 | 683280 | 34.51 | 41.76 | |
| Knob (1) | ||||
| 128 | 683282 | 4.80 | 5.81 | |
| Warning Label (b) | ||||
| 129 | 683351 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 130 | 683281 | |||
| No information available, not orderable | ||||
| 131 | 683181 | |||
| No information available, not orderable | ||||
| 132 | 683283 | |||
| SNAP RING | ||||
| 133 | 683284 | 1.50 | 1.82 | |
| Spark Plug | ||||
| 134 | 683068 | 6.75 | 8.17 | |
| Plate | ||||
| 135 | 683276 | 3.30 | 3.99 | |
| INSULATOR | ||||
| 136 | 683275 | 8.70 | 10.53 | |
| SCREW | ||||
| 137 | 683029 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 138 | 683274 | |||
| Cylinder | ||||
| 139 | 683347 | 189.61 | 229.43 | |
| No information available, not orderable | ||||
| 140 | 683273 | |||
| No information available, not orderable | ||||
| 141 | 683349 | |||
| Clip Piston | ||||
| 142 | 683294 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 143 | 683292 | |||
| Piston | ||||
| 144 | 683348 | 32.18 | 38.93 | |
| No information available, not orderable | ||||
| 145 | 683303 | |||
| Ignition Coil Comp. | ||||
| 146 | 683305 | 105.05 | 127.11 | |
| Rotor | ||||
| 147 | 683304 | 67.10 | 81.19 | |
| No information available, not orderable | ||||
| 148 | 683307 | |||
| No information available, not orderable | ||||
| 149 | 683061 | |||
| Plug Cap | ||||
| 150 | 683060 | 4.35 | 5.26 | |
| No information available, not orderable | ||||
| 151 | 683308 | |||
| No information available, not orderable | ||||
| 152 | 683309 | |||
| No information available, not orderable | ||||
| 153 | 683062 | |||
| No information available, not orderable | ||||
| 154 | 683306 | |||
| SCREW | ||||
| 155 | 683067 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 156 | 683066 | |||
| No information available, not orderable | ||||
| 157 | 683310 | |||
| Oil Seal | ||||
| 158 | 683287 | 4.35 | 5.26 | |
| Crank Case | ||||
| 159 | 683285 | 84.84 | 102.65 | |
| No information available, not orderable | ||||
| 160 | 683220 | |||
| No information available, not orderable | ||||
| 161 | 683286 | |||
| Wood-ruff Key | ||||
| 162 | 683064 | 1.50 | 1.82 | |
| Needle-roller Bearing | ||||
| 163 | 683293 | 10.95 | 13.25 | |
| No information available, not orderable | ||||
| 164 | 683289 | |||
| No information available, not orderable | ||||
| 165 | 683328 | |||
| Crank Shaft | ||||
| 166 | 683295 | 183.70 | 222.28 | |
| Oil Seal | ||||
| 167 | 683288 | 3.30 | 3.99 | |
| LEAD | ||||
| 168 | 683311 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 169 | 683302 | |||
| No information available, not orderable | ||||
| 170 | 683087 | |||
| No information available, not orderable | ||||
| 171 | 683088 | |||
| Clutch Bolt | ||||
| 172 | 683301 | 4.80 | 5.81 | |
| Wave washer | ||||
| 173 | 683300 | 1.65 | 2.00 | |
| COMPLETE SLIP CLUTCH | ||||
| 174 | 683296 | 40.84 | 49.41 | |
| Spring Clutch | ||||
| 175 | 683298 | 6.45 | 7.80 | |
| Clutch Shoe Comp. | ||||
| 176 | 683297 | 16.64 | 20.13 | |
| Ring | ||||
| 177 | 683299 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 178 | 683312 | |||
| Starter Pawl Assembly | ||||
| 179 | 683322 | 22.83 | 27.62 | |
| E-RING | ||||
| 180 | 683326 | 1.65 | 2.00 | |
| Pulley | ||||
| 181 | 683325 | 15.54 | 18.80 | |
| No information available, not orderable | ||||
| 182 | 683324 | |||
| No information available, not orderable | ||||
| 183 | 683323 | |||
| No information available, not orderable | ||||
| 184 | 683313 | |||
| No information available, not orderable | ||||
| 185 | 683321 | |||
| Ring | ||||
| 186 | 683320 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 187 | 683319 | |||
| No information available, not orderable | ||||
| 188 | 683318 | |||
| Rope Ass'y | ||||
| 189 | 683314 | 14.25 | 17.24 | |
| No longer available, no replacement | ||||
| 190 | 683316 | |||
| Starter Knob | ||||
| 191 | 683315 | 5.85 | 7.08 | |
| Cap (1) | ||||
| 192 | 683317 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 193 | 683327 | |||
| SCREW | ||||
| 194 | 683163 | 1.50 | 1.82 | |
| Gasket | ||||
| 221 | 683346 | 1.50 | 1.82 | |
| Carburetor Set | ||||
| 222 | 683329 | 183.01 | 221.45 | |
| No information available, not orderable | ||||
| 223 | 683199 | |||
| Nut (1) | ||||
| 224 | 683083 | 1.65 | 2.00 | |
| Screw (1) | ||||
| 225 | 683197 | 5.85 | 7.08 | |
| No information available, not orderable | ||||
| 226 | 683198 | |||
| Swivel | ||||
| 227 | 683102 | 5.85 | 7.08 | |
| No information available, not orderable | ||||
| 228 | 683201 | |||
| Ring | ||||
| 229 | 683101 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 230 | 683200 | |||
| No information available, not orderable | ||||
| 231 | 683090 | |||
| Main Jet | ||||
| 232 | 683330 | 10.50 | 12.70 | |
| Gasket | ||||
| 233 | 683092 | 5.85 | 7.08 | |
| No information available, not orderable | ||||
| 234 | 683093 | |||
| No information available, not orderable | ||||
| 235 | 683094 | |||
| Gasket | ||||
| 236 | 683095 | 5.85 | 7.08 | |
| No information available, not orderable | ||||
| 237 | 683331 | |||
| No information available, not orderable | ||||
| 238 | 683097 | |||
| No information available, not orderable | ||||
| 239 | 683098 | |||
| Pump Cover | ||||
| 240 | 683099 | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| 241 | 683100 | |||
| Air Cleaner Ass'y | ||||
| 242 | 683332 | 64.21 | 77.70 | |
| Sleeve | ||||
| 243 | 683334 | 3.00 | 3.63 | |
| Air Cleaner Case | ||||
| 244 | 683333 | 11.55 | 13.98 | |
| Choke Valve | ||||
| 245 | 683208 | 7.95 | 9.62 | |
| Ring | ||||
| 246 | 683206 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 247 | 683335 | |||
| No information available, not orderable | ||||
| 248 | 683336 | |||
| No information available, not orderable | ||||
| 249 | 683337 | |||
| SCREW | ||||
| 250 | 683338 | 1.50 | 1.82 | |
| Clip | ||||
| 251 | 683122 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 252 | 683339 | |||
| No information available, not orderable | ||||
| 253 | 683341 | |||
| Pipe Assembly | ||||
| 254 | 683342 | 8.70 | 10.53 | |
| Fuel Pipe L220 | ||||
| 255 | 683343 | 3.00 | 3.63 | |
| GROMMET | ||||
| 256 | 683118 | 4.35 | 5.26 | |
| Return Pipe 3x6x85 | ||||
| 257 | 683120 | 1.50 | 1.82 | |
| Fuel filter | ||||
| 258 | 683344 | 9.60 | 11.62 | |
| Clip | ||||
| 259 | 683122 | 1.65 | 2.00 | |
| Breather | ||||
| 260 | 683115 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 261 | 683340 | |||
| Inner Cap (b) | ||||
| 262 | 683113 | 7.65 | 9.26 | |
| No information available, not orderable | ||||
| 263 | 683114 | |||
| No information available, not orderable | ||||
| 264 | 683216 | |||
| No information available, not orderable | ||||
| 265 | 683345 | |||
| No information available, not orderable | ||||
| 501 | 683155 | |||
| No information available, not orderable | ||||
| 502 | 683156 | |||
| No information available, not orderable | ||||
| 503 | 683020 | |||
| No information available, not orderable | ||||
| 504 | 683021 | |||
| No longer available, no replacement | ||||
| 505 | 683022 | |||
| No longer available, no replacement | ||||
| 506 | 683023 | |||
| No information available, not orderable | ||||
| 507 | 944459 | |||
| No information available, not orderable | ||||
| 601 | 682975 | |||
