Here you will find all available parts and drawings of the 'Hikoki CG40EYA'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

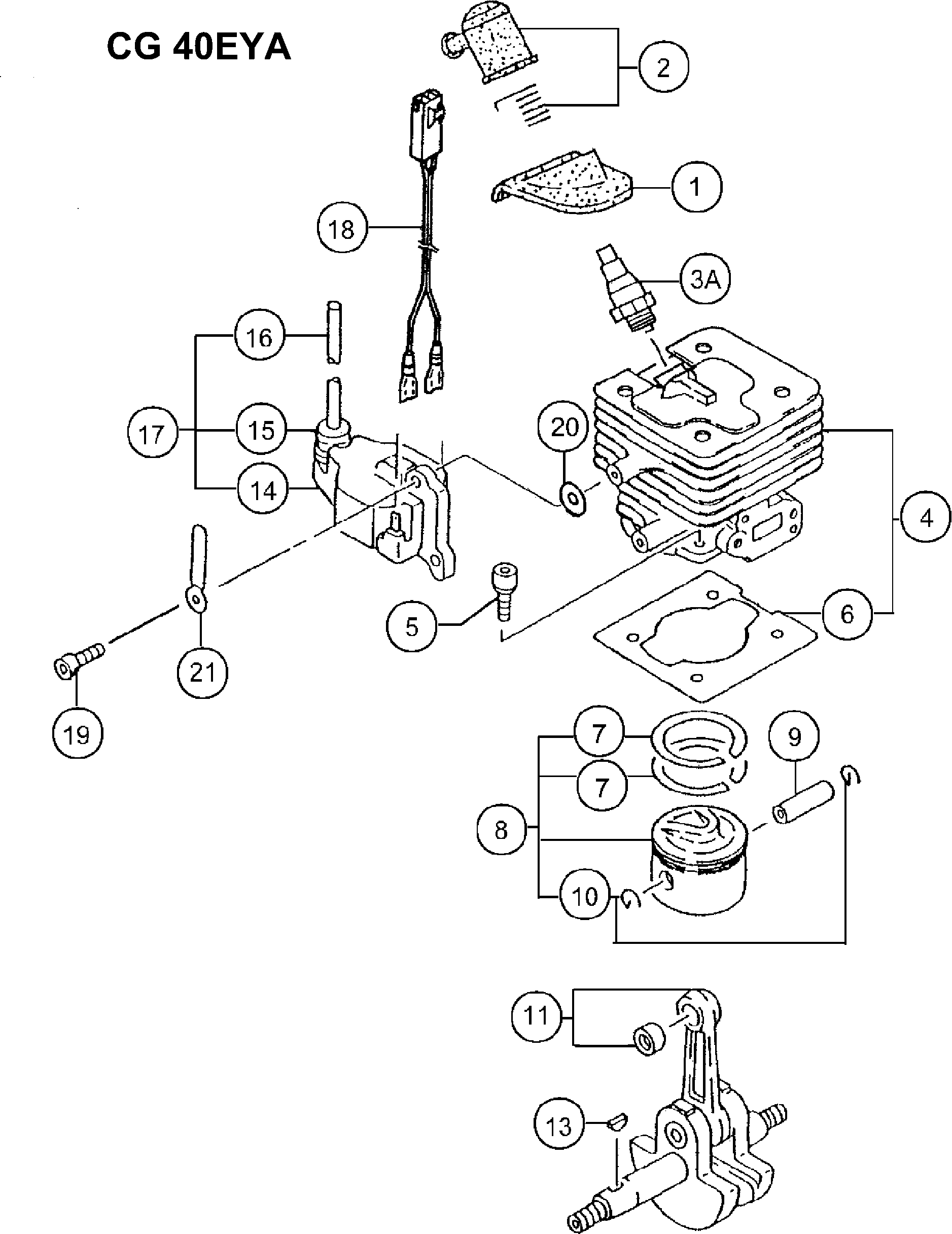

Technical drawing of model Hikoki CG40EYA

Spare parts list of model Hikoki CG40EYA

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Spark Plug Rubber Cover Till J032440
1 6688336 3.30 3.99
Spark Plug Cap Ass'y
2 6687479 2.31 2.80
Spark Plug Ass'y Rcj8y
3A 6699328 3.30 3.99
No information available, not orderable
4 6685476
No information available, not orderable
5 6684668
Cylinder Gasket
6 6685741 2.31 2.80
Piston Ring
7 6686123 4.45 5.38
No information available, not orderable
8 6685889
Piston Pin 10x30
9 6686007 2.31 2.80
Piston Pin Circlip
10 6686032 1.15 1.39
Crank Shaft Comp. (old 046-04400-80)
11 6686192 84.40 102.12
Wood-ruff Key 3x13x5
13 6686457 1.15 1.39
Ignition Coil Comp.
14 6687655 36.15 43.74
Rubber Cap
15 6684602 2.15 2.60
High Tension Cord
16 6687885 1.15 1.39
Ignition Coil Ass'y
17 6687657 30.25 36.60
Lead Wire Ass'y
18 6687970 4.45 5.38
Screw 4x18/ws (old 994-16040-183)
19 6695406 1.15 1.39
Washer T1.6
20 6684600 2.15 2.60
Cord Clamp Comp.
21 6688011 1.15 1.39
Crank Case Ass'y
41 6686559 50.21 60.76
Crank Case Gasket
42 6686715 1.15 1.39
Oil Seal
43 6695637 3.30 3.99
No information available, not orderable
44 6695557
Crank Shaft Shim 0.20
45 6686472 1.15 1.39
Crank Shaft Shim 0.30
45 6686473 1.15 1.39
Hex. Socket Hd. Bolt M5x30 S
46 6684786 2.15 2.60
Magneto Rotor Comp.
47 6687372 19.96 24.15
Ring
48 6695198 1.15 1.39
No information available, not orderable
49 6695138
Small Nut 10
50 6695139 1.05 1.27
Inlet Manifold Gasket
81 6689885 2.31 2.80
CARB.INSULATOR SET, SPARE (OLD 404-04300-90)
82 6689955 8.91 10.78
Carburetor Gasket
83 6689833 1.15 1.39
Collar
85 6690802 2.31 2.80
Cleaner Body Comp.
86 6690099 5.28 6.38
Choke Valve
87 6691258 1.15 1.39
Blow Over Check Board
88 6690843 1.15 1.39
Cleaner Element
89A 6690352 1.15 1.39
No information available, not orderable
90 6684658
Cleaner Cover
91 6690397 3.30 3.99
Special Screw
92 6689737 1.15 1.39
Screw M5x60
93 6684660 2.15 2.60
S.washer 5
94 6684662 2.15 2.60
Carburetor Set, Pn Since B039001
95 6690476 86.36 104.50
Carburetor Set Till B039000
95 6690477 84.40 102.12
Ring
96 6693248 1.15 1.39
No information available, not orderable
97 6695425
Tank Fixing Collar
98 6692182 2.31 2.80
Fuel Pipe Ass'y 3x5x230
99 6688166 4.29 5.19
Clip D6
100A 6685198 1.15 1.39
No information available, not orderable
101A 6684620
Tank Wht
102 6691539 11.88 14.37
Collar C
103 6684623 2.15 2.60
No information available, not orderable
104 6691714
Rubber Cap
105 6691369 2.31 2.80
Air Vent Valve Ass'y
106 6692172 4.95 5.99
Air Vent Pipe
107 6691394 3.30 3.99
No information available, not orderable
108 6691385
Hex.hole Bolt 5x20/ps
109 6684634 2.15 2.60
Engine Bed (old 940-04300-20)
110 6694785 4.95 5.99
Fuel Pipe 3x5x85
111 6684880 2.15 2.60
Clip 5.5
112 6692305 1.15 1.39
No longer available, no replacement
113 6688156
Hex. Socket Hd. Bolt M5x30 S
114 6684786 2.15 2.60
Washer M5 (black)
115 6684918 2.15 2.60
No information available, not orderable
117 6684625
Pump Filter Ass'y Till Tl044140
118 6601175 3.14 3.80
Muffler Protector
131 6692783 12.88 15.58
Hex.hole Bolt M5x12/s
132 6684667 2.15 2.60
Hex.hole Bolt 6x65 (old 990-51060-653)
134 6695067 1.15 1.39
Ring
135 6684639 2.15 2.60
Muffler Set,pn Since B039001
136 6692473 28.14 34.05
Washer M5 (black)
137 6684918 2.15 2.60
Tail Pipe
138 6692652 3.30 3.99
Ring
139 6685109 1.15 1.39
Muffler Arrestor (old 732-04400-20)
140 6692696 2.31 2.80
Muffler Gasket
141 6692741 1.15 1.39
Heat Shield
142 6687246 9.58 11.59
Grommet
144A 6688050 1.15 1.39
Hex. Hole Bolt M5x25/s
145 6684709 2.15 2.60
Washer M5 (black)
146 6684918 2.15 2.60
Ring
147 6689645 1.15 1.39
Clutch Arm Comp.
148 6688614 7.93 9.59
Clutch Spring
149 6689428 1.15 1.39
Washer
150 6695203 1.15 1.39
Clutch Step Bolt
151 6689632 3.30 3.99
No information available, not orderable
152 6699556
Recoil Starter Body Ass'y
171A 6697645 21.78 26.35
Recoil Starter Body Comp.
172 6693025 14.19 17.17
Recoil Starter Body Comp
172A 6697646 11.71 14.17
Starter Rope Reel
173 6693007 4.95 5.99
Starter Rope Reel
173A 6697647 4.13 4.99
Recoil Spring
174 6693114 9.08 10.98
No information available, not orderable
174A 6697648
Starter Rope (old 783-04270-20/6693164)
175 6693165 3.30 3.99
No information available, not orderable
175A 6697649
Starter Handle
176 6693607 2.31 2.80
Starter Handle
177 6693232 3.30 3.99
Starter Handle
177A 6697650 2.80 3.39
Set Screw
178 6693634 1.15 1.39
Starter Pawl
179 6693302 2.31 2.80
No information available, not orderable
179A 6697643
D4e Retaining Ring (old 993-55040-001)
180 6685101 1.15 1.39
Hex.hole Bolt 5x20/ps
181 6684634 2.15 2.60
Starter Pawl Spring
182 6693345 2.31 2.80
No information available, not orderable
182A 6697642
Starter Pulley
183 6693395 11.05 13.37
Starter Pulley Ass'y
183A 6697644 11.05 13.37
Throttle Set Screw
191 6684870 2.15 2.60
Cable Adjuster Stay
192 6684873 6.44 7.79
Swivel
193 6684697 6.44 7.79
Thrust Washer
194 6684874 2.15 2.60
Stop Ring
195 6684696 2.15 2.60
Cable Adjuster
196 6684871 4.29 5.19
O-RING (old 550-25100-20)
197 6684695 4.29 5.19
Main Jet, #44.5 (old 599-200bw-44/6691876)
198 6696131 6.44 7.79
Lock Nut M6
199 6684872 2.15 2.60
Pump Gasket (old 577-25100-20)
200 6691457 7.10 8.59
Pump Diaphragm
201 6684693 8.58 10.38
Inlet Screen
202 6684700 4.29 5.19
Pump Body Comp.
203 6684879 62.16 75.22
Diaphragm Gasket
204 6684691 8.58 10.38
Metering Diaphragm Comp. Till B027700
205 6690827 11.71 14.17
Diaphragm Cover
206 6684688 8.58 10.38
Set Screw
207 6684699 2.15 2.60
Cleaner Packing
208 6684875 4.29 5.19
Priming Pump Comp.
209 6684687 16.34 19.77
Priming Body
210 6684689 6.44 7.79
Clutch Shaft Comp.
241 6688585 19.51 23.61
Ball Bearing #6202zz
242 6695558 6.93 8.38
Stop Ring C-35, Inner
243 6695296 1.15 1.39
Stop Ring C-15, Outer
244 6695285 1.15 1.39
Protector
245 6688348 4.45 5.38
Hex.hole Bolt 5x20/ps
246 6684634 2.15 2.60
Hex.hole Bolt 6x25
247 6695093 1.15 1.39
Fan Housing
248 6686980 36.15 43.74
No information available, not orderable
249 6684668
Primary Cord Grommet
250 6688057 1.15 1.39
Ring
251 6685226 1.15 1.39
Drive Shaft, 1552l
271 6689476 17.70 21.42
Drive Shaft Pipe
272 6689403 36.15 43.74
Bushing Ass'y
273 6689515 3.30 3.99
Knob Bolt
274 6691207 4.79 5.79
Handle Bracket A (old 506-37861-20)
275 6691143 9.74 11.78
Handle Bracket B (old 507-37861-20)
276 6691159 10.23 12.37
Support Holder
277 6691237 5.28 6.38
Handle Support Comp.
278 6691232 34.19 41.37
Special Nut M6x1.0
279 6689102 8.41 10.18
Anti-vibe Rubber
280 6689165 2.31 2.80
Lock Nut 6 Ups-p
281 6695175 1.15 1.39
Hex. Hole Bolt 6x30
282 6695094 1.15 1.39
Cord Clamp
283 6688016 1.15 1.39
Handle Grip
284 6687627 4.45 5.38
Cord Clamp
285 6688025 1.15 1.39
Handle
286 6691079 36.15 43.74
Throttle Lever Ass'y 22
287 6693762 42.20 51.06
Protection Tube, 930l (old 164-07093-00)
288 6687547 2.31 2.80
Safety Lever (old 253-38400-20)
289 6684721 6.44 7.79
Return Spring
290 6684722 2.15 2.60
Throttle Lever
291 6684723 10.23 12.37
Screw M4x20 (black)
293 6684725 2.15 2.60
Screw 5x30 (black)
294 6684726 2.15 2.60
No information available, not orderable
295 6684727
Stop Switch Comp. Since D021301
296A 6687458 14.68 17.76
Throttle Wire, 4t
297 6694021 10.56 12.78
No information available, not orderable
298A 6693975
Gear Cover
311 6688801 108.45 131.22
Hex. Hole Bolt M5x25/s
312 6684709 2.15 2.60
Stop Ring C-28,inner
313 6684741 2.15 2.60
Stop Ring C-12 Outer
314 6684664 2.15 2.60
Ball Bearing #6001z
315 6695532 6.60 7.99
Ball Bearing 6001 C3
316 6684608 3.80 4.60
Gearcase, Silver
317 6688703 28.14 34.05
Spring Washer 5
318 6684834 2.15 2.60
Hex. Socket Hd. Bolt M5x12
319 6684829 2.15 2.60
Plus Head Bolt 8x10
320 6695437 1.15 1.39
No information available, not orderable
321 6695524
Gear Shaft 6x11x14
322 6688942 22.24 26.91
Ball Bearing #6203dd
323A 6695564 9.58 11.59
Stop Ring C-40, Inner
324 6695298 1.15 1.39
Cutter Holder (old 310-37100-22/6689020)
325 6689022 15.28 18.48
Cutter Holder Cap.6x11x14
326 6689052 4.45 5.38
Protection Cover A Comp.
327 6688982 4.45 5.38
Screw 5x16/ws
328 6695418 1.15 1.39
Cutter Fixing Nut,l/h
329 6689072 2.31 2.80
Ring
330 6689157 1.15 1.39
Gear-pinion Set, Spare
331 6688866 26.16 31.66
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
332 6684714 2.15 2.60
Cover Bracket 30 Since D113951
333 6690312 5.11 6.19
Blade Guard 30 Ce Till E047000
334 6690230 15.88 19.21
Blade Guard 30 Ce Since E047001
334A 6690264 18.15 21.96
Guard Holder
335 6684748 4.29 5.19
No longer available, no replacement
336 6690372
Blade Guard Since E047001
336A 6690376 9.40 11.37
Blade (old 797-37380-21/6693385)
337 6693386 4.45 5.38
Knife For Irl
337A 6684750 4.29 5.19
Screw 5x12/s Till E047000
338 6695334 1.15 1.39
Tapping Screw 4x14
338A 6684751 2.15 2.60
Nut M5
339 6684965 1.04 1.26
Tapping Screw 5x20 For Aus (sl)
340 6684753 2.15 2.60
Knife Since E047001
341 6684754 8.58 10.38
Guard Set Mbg-08 For Nor
342 6695794 18.75 22.69
Safety Guard, 8 In. For Nor
343 6690227 19.06 23.07
Special Bolt M5x50 (old 314-37151-20)
345 6689084 1.15 1.39
Spring Washer 5
346 6684834 2.15 2.60
No information available, not orderable
347 6685075
No information available, not orderable
501 6684813
No information available, not orderable
502 6693529
Cutter Cover Since Y254261 For Europe,aus,nzl
503 6692016 8.41 10.18
No information available, not orderable
504 6684764
No information available, not orderable
505A 875769
No information available, not orderable
506 6695792
Protection Cover B (old 308-37861-20)
507 6688994 2.31 2.80
No information available, not orderable
508 6695793
No information available, not orderable
509 6699555
Cutter Cover For (s)
509B 6684768 2.15 2.60
Winding Protector Cover For Tur
510 6688986 3.30 3.99
No information available, not orderable
511 6695781
Cutting Body Ass'y For (l)
512 6693271 16.34 19.77
Eyelet For Tur
513 6693328 5.78 6.99
Adjustment Base For Tur
514 6693247 1.15 1.39
Spring (silver) For Tur
515 6693377 1.15 1.39
Ring
516 6693362 1.15 1.39
Cord Reel Bk For Tur
517 6693292 13.86 16.77
Steel Ball
518 6692271 1.15 1.39
Take-up spool (old 790-33810-20)
519 6693358 1.15 1.39
Cutting Body Cap For Tur
520 6693338 11.05 13.37
Mounting Nut. L-m10x1.25 For Tur
521 6689098 6.44 7.79
No information available, not orderable
522 6697908
No information available, not orderable
523 6695797
Name Plate Cg40eya(tp)
601 6694352 1.05 1.27
Symbol Mark Hitachi
602 6694626 2.10 2.54
Symbol Mark
603 6694741 3.30 3.99

There are 0 items in your shopping basket.
