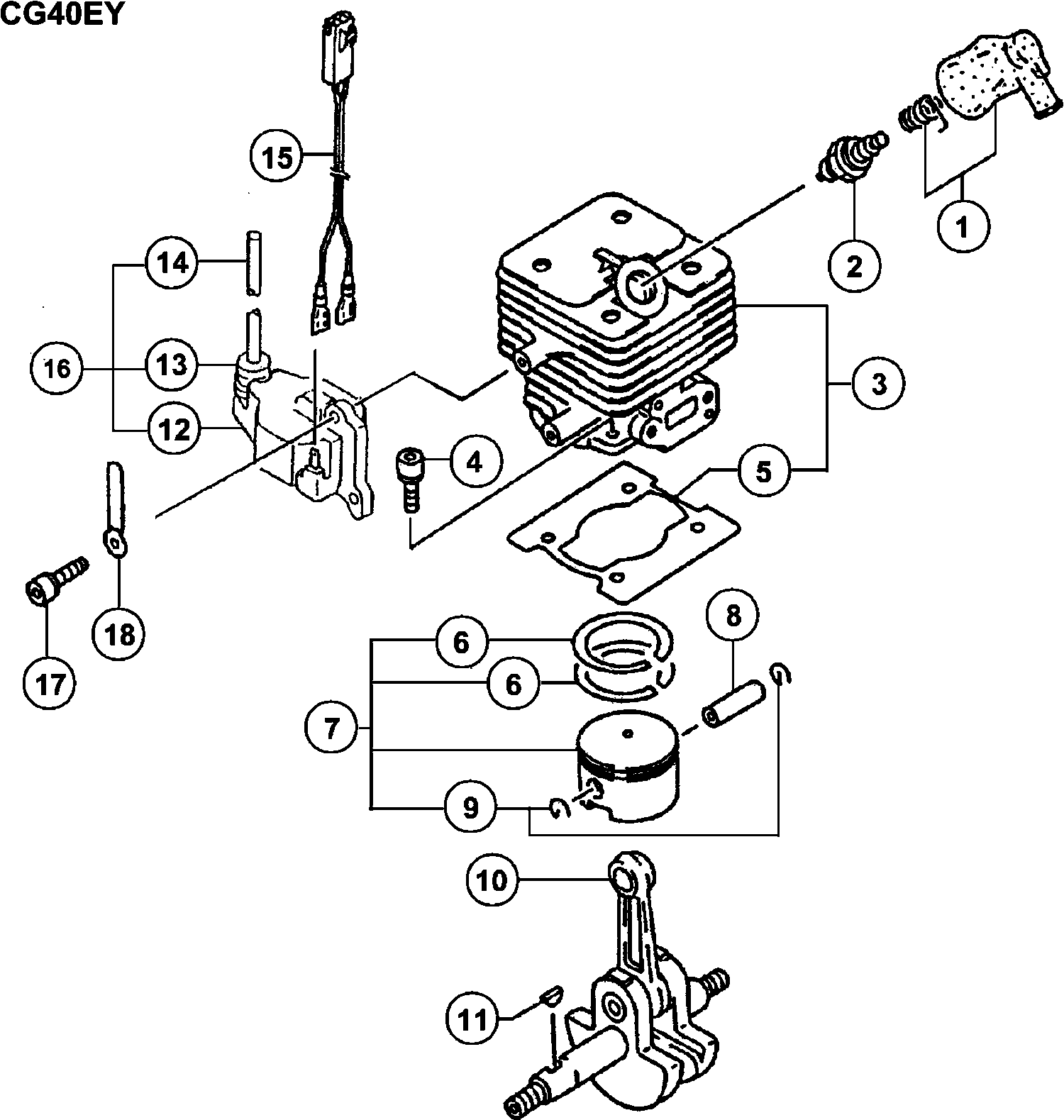

Technical drawing of model Hikoki CG40EY

Spare parts list of model Hikoki CG40EY

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Spark Plug Cap Ass'y Till G165840
1 6687468 2.31 2.80
Spark Plug Ass'y Bpmr6a
2 6699319 8.91 10.78
Cylinder Set
3 6685474 54.30 65.70
No information available, not orderable
4 6684668
Cylinder Gasket
5 6685740 2.31 2.80
Piston Ring
6 6686123 4.45 5.38
Piston Set
7 6685888 26.16 31.66
Piston Pin 10x30
8 6686007 2.31 2.80
Piston Pin Circlip
9 6686032 1.15 1.39
Crank Shaft Comp. (old 046-04300-80/790113)
10 6686191 84.40 102.12
Wood-ruff Key 3x13x5
11 6686457 1.15 1.39
Ignition Coil Comp.
12 6687655 36.15 43.74
Rubber Cap
13 6684602 2.15 2.60
High Tension Cord
14 6687885 1.15 1.39
Lead Wire Ass'y
15 6687970 4.45 5.38
Ignition Coil Ass'y
16 6687657 30.25 36.60
Hex. Hole Bolt M4x18/ws Till H124040
17 6684599 2.15 2.60
Cord Clamp Comp.
18 6688011 1.15 1.39
Small Nut 10
31 6695139 1.05 1.27
Crank Case Ass'y
32 6686556 58.39 70.65
No longer available, no replacement
33 6686714
Oil Seal
34 6695637 3.30 3.99
No information available, not orderable
35 6695557
Crank Shaft Shim 0.20
36 6686472 1.15 1.39
Crank Shaft Shim 0.30
36 6686473 1.15 1.39
Hex. Socket Hd. Bolt M5x30 S
37 6684786 2.15 2.60
Magneto Rotor Comp.
38 6687372 19.96 24.15
Ring
39 6695198 1.15 1.39
No information available, not orderable
40 6695138
Inlet Manifold Gasket
61 6689885 2.31 2.80
CARB.INSULATOR SET, SPARE (OLD 404-04300-90)
62 6689955 8.91 10.78
Carburetor Gasket
63 6689833 1.15 1.39
Collar
64 6690430 1.15 1.39
Collar
65 6690802 2.31 2.80
Cleaner Body Comp.
66 6690099 5.28 6.38
Choke Valve
67 6691258 1.15 1.39
Blow Over Check Board
68 6690843 1.15 1.39
Cleaner Element
69 6690352 1.15 1.39
No information available, not orderable
70 6684658
Cleaner Cover
71 6690397 3.30 3.99
Special Screw
72 6689737 1.15 1.39
Screw 5x57/s
73 6695353 1.15 1.39
Carburetor Set Wyj168
74 6690470 84.40 102.12
Carburetor Set Wyj389 For Europe,aus
74 6690474 72.30 87.48
Hex. Hole Bolt M5x25ws
75 6695515 1.15 1.39
Fuel Pipe Ass'y 3x5x230
76 6688166 4.29 5.19
Clip D6
77A 6685198 1.15 1.39
No information available, not orderable
78A 6684620
Tank
79 6691533 11.55 13.98
Collar C
80 6684623 2.15 2.60
Tank Cap D Ass'y, Black (old 595-06516-90 & 669171
81 6691763 7.59 9.18
Hex.hole Bolt 5x20/ps
82 6684634 2.15 2.60
Fuel Pipe 3x5x85
83 6684880 2.15 2.60
No longer available, no replacement
84 6688156
No information available, not orderable
85 6684625
Engine Bed (old 940-04300-20)
86 6694785 4.95 5.99
Washer M5 (black)
87 6684918 2.15 2.60
Hex. Hole Bolt 5x22/s
88 6695492 1.15 1.39
Pump Filter Ass'y Till Tl044140
90 6601175 3.14 3.80
Muffler Protector
101 6692780 11.55 13.98
Washer M5 (black)
102 6684918 2.15 2.60
Hex.hole Bolt M5x12/s
103 6684667 2.15 2.60
Hex. Hole Bolt 5x15 Ws
104 6695512 1.15 1.39
Hex.hole Bolt 6x65 (old 990-51060-653)
105 6695067 1.15 1.39
Ring
106 6684639 2.15 2.60
No information available, not orderable
107 6692468
Muffler Gasket
108 6692741 1.15 1.39
Heat Shield
109 6687243 3.30 3.99
Ring
113 6689645 1.15 1.39
Clutch Arm Comp.
114 6688614 7.93 9.59
Clutch Spring
115 6689428 1.15 1.39
Washer
116 6695203 1.15 1.39
Clutch Step Bolt
117 6689632 3.30 3.99
No information available, not orderable
118 6699556
Recoil Starter Body Ass'y
131A 6697645 21.78 26.35
Recoil Starter Body Comp.
132 6693025 14.19 17.17
Recoil Starter Body Comp
132A 6697646 11.71 14.17
Starter Rope Reel
133 6693007 4.95 5.99
Starter Rope Reel
133A 6697647 4.13 4.99
Recoil Spring
134 6693114 9.08 10.98
No information available, not orderable
134A 6697648
Starter Rope (old 783-04270-20/6693164)
135 6693165 3.30 3.99
No information available, not orderable
135A 6697649
Starter Handle
136 6693607 2.31 2.80
Starter Handle
137 6693232 3.30 3.99
Starter Handle
137A 6697650 2.80 3.39
Set Screw
138 6693634 1.15 1.39
Starter Pawl
139 6693302 2.31 2.80
No information available, not orderable
139A 6697643
D4e Retaining Ring (old 993-55040-001)
140 6685101 1.15 1.39
Hex.hole Bolt 5x20/ps
141 6684634 2.15 2.60
Starter Pawl Spring
142 6693345 2.31 2.80
No information available, not orderable
142A 6697642
Starter Pulley
143 6693395 11.05 13.37
Starter Pulley Ass'y
143A 6697644 11.05 13.37
Pump Body Comp.
161 6684879 62.16 75.22
Priming Pump Comp.
162 6684687 16.34 19.77
Diaphragm Cover
163 6684688 8.58 10.38
Priming Body
164 6684689 6.44 7.79
Metering Diaphragm Comp. Till B027700
165 6690827 11.71 14.17
Diaphragm Gasket
166 6684691 8.58 10.38
Pump Diaphragm
167 6684693 8.58 10.38
Pump Gasket (old 577-25100-20)
168 6691457 7.10 8.59
Main Jet #51
169 6696382 9.58 11.59
O-RING (old 550-25100-20)
170 6684695 4.29 5.19
Stop Ring
171 6684696 2.15 2.60
Swivel
172 6684697 6.44 7.79
Throttle Valve Comp.
173 6690944 24.20 29.28
Throttle Set Screw
174 6684870 2.15 2.60
Cable Adjuster Stay
175 6684873 6.44 7.79
Lock Nut M6
176 6684872 2.15 2.60
Cable Adjuster
177 6684871 4.29 5.19
Cleaner Packing
178 6684875 4.29 5.19
Set Screw
179 6684699 2.15 2.60
Thrust Washer
180 6684874 2.15 2.60
Inlet Screen
181 6684700 4.29 5.19
Clutch Shaft Comp.
201 6688585 19.51 23.61
Ball Bearing #6202zz
202 6695558 6.93 8.38
Stop Ring C-35, Inner
203 6695296 1.15 1.39
Stop Ring C-15, Outer
204 6695285 1.15 1.39
Spark Plug Cover
205 6688346 3.30 3.99
Hex.hole Bolt 5x20/ps
206 6684634 2.15 2.60
Hex.hole Bolt 6x25
207 6695093 1.15 1.39
Fan Housing
208 6686980 36.15 43.74
No information available, not orderable
209 6684668
Primary Cord Grommet
210 6688057 1.15 1.39
Ring
211 6685226 1.15 1.39
Drive Shaft, 1552l
231 6689476 17.70 21.42
Drive Shaft Pipe
232 6689403 36.15 43.74
Bushing Ass'y
233 6689515 3.30 3.99
Knob Bolt
234 6691207 4.79 5.79
Handle Bracket A (old 506-37861-20)
235 6691143 9.74 11.78
Handle Bracket B (old 507-37861-20)
236 6691159 10.23 12.37
Support Holder
237 6691237 5.28 6.38
Handle Support Comp.
238 6691232 34.19 41.37
Special Nut M6x1.0
239 6689102 8.41 10.18
Anti-vibe Rubber
240 6689165 2.31 2.80
Lock Nut 6 Ups-p
241 6695175 1.15 1.39
Hex. Hole Bolt 6x30
242 6695094 1.15 1.39
Cord Clamp
243 6688016 1.15 1.39
Handle Grip
244 6687627 4.45 5.38
Cord Clamp
245 6688025 1.15 1.39
Handle
247 6691079 36.15 43.74
Throttle Lever Ass'y 22
301 6693762 42.20 51.06
Protection Tube, 930l (old 164-07093-00)
302 6687547 2.31 2.80
Safety Lever (old 253-38400-20)
303 6684721 6.44 7.79
Return Spring
304 6684722 2.15 2.60
Throttle Lever
305 6684723 10.23 12.37
Screw M4x20 (black)
307 6684725 2.15 2.60
Screw 5x30 (black)
308 6684726 2.15 2.60
No information available, not orderable
309 6684727
Stop Switch Comp. Since D021301
310 6687458 14.68 17.76
Throttle Wire, 4t
311 6694021 10.56 12.78
No information available, not orderable
312 6693975
Gear Cover
331 6688801 108.45 131.22
Hex. Hole Bolt M5x25/s
332 6684709 2.15 2.60
Stop Ring C-28,inner
333 6684741 2.15 2.60
Stop Ring C-12 Outer
334 6684664 2.15 2.60
Ball Bearing #6001z
335 6695532 6.60 7.99
Ball Bearing 6001 C3
336 6684608 3.80 4.60
Gearcase, Silver
337 6688703 28.14 34.05
Hex. Socket Hd. Bolt M5x12
338 6684829 2.15 2.60
Plus Head Bolt 8x10
339 6695437 1.15 1.39
No information available, not orderable
340 6695524
Gear Shaft 6x11x14
341 6688942 22.24 26.91
Ball Bearing #6203dd
342A 6695564 9.58 11.59
Stop Ring C-40, Inner
343 6695298 1.15 1.39
Cutter Holder (old 310-37100-22/6689020)
344 6689022 15.28 18.48
Cutter Holder Cap.6x11x14
345 6689052 4.45 5.38
Cutter Fixing Nut,l/h
346 6689072 2.31 2.80
Ring
347 6689157 1.15 1.39
Protection Cover A Comp.
349 6688982 4.45 5.38
Screw 5x16/ws
350 6695418 1.15 1.39
Gear-pinion Set, Spare
351 6688866 26.16 31.66
Spring Washer 5
352 6684834 2.15 2.60
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
361 6684714 2.15 2.60
Cover Bracket 30 Since D113951
362 6690312 5.11 6.19
Blade Guard 30 Ce Till E047000
363 6690230 15.88 19.21
Blade Guard 30 Ce Since E047001
363A 6690264 18.15 21.96
Guard Holder
364 6684748 4.29 5.19
No longer available, no replacement
365 6690372
Blade Guard Since E047001
365A 6690376 9.40 11.37
Blade (old 797-37380-21/6693385)
366 6693386 4.45 5.38
Knife For Irl
366A 6684750 4.29 5.19
Screw 5x12/s Till E047000
367 6695334 1.15 1.39
Tapping Screw 4x14
367A 6684751 2.15 2.60
Nut M5
368 6684965 1.04 1.26
Tapping Screw 5x20 For Aus (sl)
369 6684753 2.15 2.60
Knife Since E047001
370 6684754 8.58 10.38
No information available, not orderable
501 6684764
No information available, not orderable
502 6693529
Cutter Cover Since Y254261 For Europe,aus,nzl
503 6692016 8.41 10.18
No information available, not orderable
504 6695792
No information available, not orderable
505 6695797
No information available, not orderable
506A 875769
No information available, not orderable
507 6684813
Protection Cover B (old 308-37861-20)
511 6688994 2.31 2.80
Symbol Mark Cg40ey(t)
601 6694620 1.15 1.39
Name Plate Cg40ey(t)
602 6694151 2.10 2.54
