Here you will find all available parts and drawings of the 'Hikoki CG36DTA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

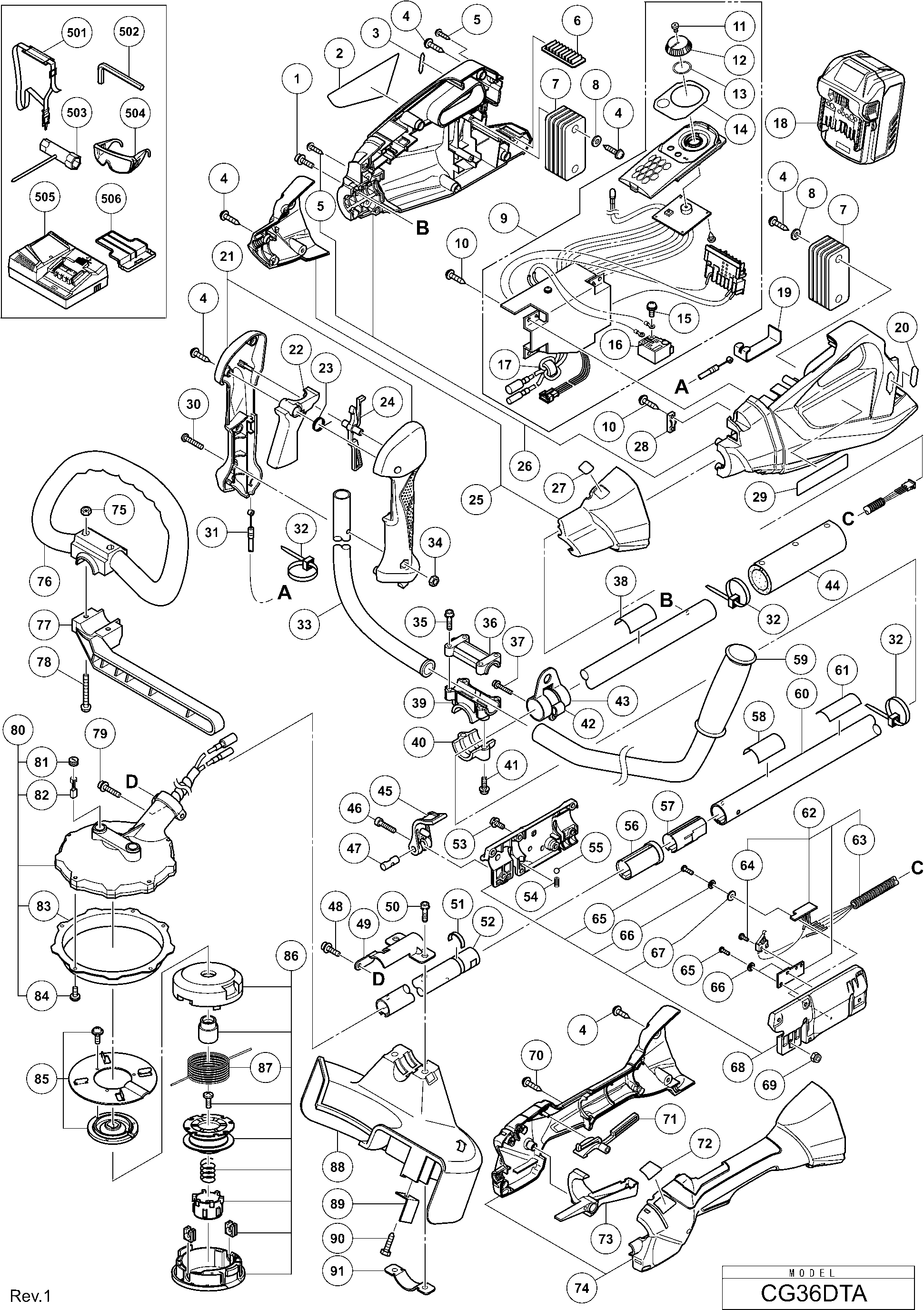

Technical drawing of model Hikoki CG36DTA
Spare parts list of model Hikoki CG36DTA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cable Tie | ||||
| *32 | 988054 | 1.04 | 1.26 | |
| Sensor Ass'y Includ.63,64 | ||||
| *62 | 335754 | 16.91 | 20.46 | |
| Sensor Ass'y Includ.63,64 For Model (l) | ||||
| *62 | 335755 | 16.91 | 20.46 | |
| No information available, not orderable | ||||
| *63 | 335766 | |||
| Controller | ||||
| *9 | 373121 | 93.36 | 112.97 | |
| Controller | ||||
| *9 | 373122 | 93.36 | 112.97 | |
| Hex. Socket Hd. Bolt (w/washers) M5x16 | ||||
| 1 | 996728 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 4 | 301653 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 5 | 313687 | 1.04 | 1.26 | |
| Battery Rubber (b) | ||||
| 6 | 370328 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 7 | 335748 | |||
| No information available, not orderable | ||||
| 8 | 329140 | |||
| Controller | ||||
| 9 | 373122 | 93.36 | 112.97 | |
| Controller | ||||
| 9 | 373121 | 93.36 | 112.97 | |
| No information available, not orderable | ||||
| 10 | 984750 | |||
| Machine Screw M1.7x3.5 | ||||
| 11 | 333162 | 1.80 | 2.18 | |
| Dial | ||||
| 12 | 332550 | 5.10 | 6.17 | |
| O-ring (s-16) | ||||
| 13 | 876031 | 1.65 | 2.00 | |
| Machine Screw (w/washer) M3.5x5 | ||||
| 15 | 980060 | 1.05 | 1.27 | |
| Switch | ||||
| 16 | 332552 | 10.65 | 12.89 | |
| Ferrite Core Except For Sin,mal,uae | ||||
| 17 | 334379 | 4.65 | 5.63 | |
| No information available, not orderable | ||||
| 18 | 371750 | |||
| Plate | ||||
| 19 | 330771 | 4.20 | 5.08 | |
| Handle (a).(b) Set | ||||
| 21 | 334541 | 15.95 | 19.30 | |
| HANDGREEP (A+B) (OUD 334541) | ||||
| 21A | 381649 | 4.32 | 5.23 | |
| No information available, not orderable | ||||
| 22 | 334544 | |||
| HENDEL (OUD 334544) | ||||
| 22A | 381650 | 1.38 | 1.67 | |
| No information available, not orderable | ||||
| 23 | 332557 | |||
| Lock Lever | ||||
| 24 | 6696490 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 25 | 335230 | |||
| HOUSING SET (A+B) NEW | ||||
| 26 | 373124 | 42.08 | 50.91 | |
| Casing Box DUO 110 - Set | ||||
| 26A | 373123 | 42.08 | 50.91 | |
| Cord Clip | ||||
| 28 | 937631 | 1.04 | 1.26 | |
| Machine Screw M5x30 (black) | ||||
| 30 | 323041 | 1.05 | 1.27 | |
| Wire | ||||
| 31 | 335749 | 1.65 | 2.00 | |
| Cable Tie | ||||
| 32 | 988054 | 1.04 | 1.26 | |
| Handle Right For Rus | ||||
| 33 | 335750 | 5.70 | 6.90 | |
| Nut M5 (black) | ||||
| 34 | 302012 | 1.05 | 1.27 | |
| Hex. Hole Bolt M5x25/s | ||||
| 35 | 6684709 | 2.15 | 2.60 | |
| Handle Bracket (a) Except For Model (l) | ||||
| 36 | 334554 | 9.45 | 11.43 | |
| Hex. Hole Bolt M5x25ws | ||||
| 37 | 6695515 | 1.15 | 1.39 | |
| Bow | ||||
| 39 | 334555 | 10.05 | 12.16 | |
| Bow | ||||
| 40 | 334556 | 9.00 | 10.89 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 41 | 6684714 | 2.15 | 2.60 | |
| Hanger Fixing Bracket (old 337-37857-80) | ||||
| 42 | 6689293 | 2.31 | 2.80 | |
| Hanger | ||||
| 43 | 6689278 | 12.88 | 15.58 | |
| No information available, not orderable | ||||
| 44 | 334847 | |||
| Holder Lever | ||||
| 45 | 334550 | 13.65 | 16.52 | |
| Hex. Socket Hd. Bolt M5x30 (10 Pcs.) | ||||
| 46 | 949664 | 3.75 | 4.54 | |
| Holder Shaft | ||||
| 47 | 334560 | 10.05 | 12.16 | |
| No information available, not orderable | ||||
| 48 | 6699176 | |||
| Cover Bracket | ||||
| 49 | 333321 | 2.10 | 2.54 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 50 | 6684714 | 2.15 | 2.60 | |
| RETAINER | ||||
| 51 | 373145 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 52 | 334547 | |||
| Hex. Socket Hd. Bolt (w/washers) M5x20 | ||||
| 53 | 316107 | 1.80 | 2.18 | |
| Spring (b) | ||||
| 54 | 334562 | 5.10 | 6.17 | |
| Steel Ball D6.35 (10 pieces) | ||||
| 55 | 959150 | 1.35 | 1.63 | |
| Sleeve (b) | ||||
| 56 | 334553 | 10.05 | 12.16 | |
| Sleeve (a) | ||||
| 57 | 336612 | 4.05 | 4.90 | |
| Handle (left) For (s) | ||||
| 59 | 6698638 | 22.83 | 27.62 | |
| Main Pipe (a) | ||||
| 60 | 334546 | 45.79 | 55.40 | |
| Sensor Ass'y Includ.63,64 For Model (l) | ||||
| 62 | 335755 | 16.91 | 20.46 | |
| Sensor Ass'y Includ.63,64 | ||||
| 62 | 335754 | 16.91 | 20.46 | |
| No information available, not orderable | ||||
| 63 | 335766 | |||
| Machine Screw (w/washers) M3x10 | ||||
| 64 | 306622 | 1.05 | 1.27 | |
| Machine Screw M3x8 (10 Pcs.) Since 9.2012 For Eur | ||||
| 65 | 949203 | 1.05 | 1.27 | |
| Spring Washer M3 (10 pieces) | ||||
| 66 | 949451 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 67 | 336394 | |||
| No information available, not orderable | ||||
| 68 | 335753 | |||
| Nylon Nut M5 | ||||
| 69 | 877371 | 1.05 | 1.27 | |
| Tapping Screw D3x12 (black) | ||||
| 70 | 334333 | 1.80 | 2.18 | |
| Lock Lever | ||||
| 71 | 335752 | 1.04 | 1.26 | |
| Lever For Model (l) | ||||
| 73 | 335239 | 1.20 | 1.45 | |
| Handle (a).(b) Set | ||||
| 74 | 335232 | 11.10 | 13.43 | |
| Tpe (sl),kor (sl) | ||||
| 75 | 949556 | 1.05 | 1.27 | |
| Loop Handle For Model (l) | ||||
| 76 | 6699030 | 4.50 | 5.44 | |
| Barrier For Model (l) | ||||
| 77 | 6699032 | 2.10 | 2.54 | |
| Bolt (black) M6 | ||||
| 78 | 6696974 | 1.68 | 2.03 | |
| Hex.hole Bolt M5x30/ws | ||||
| 79 | 6684973 | 2.15 | 2.60 | |
| Disc Motor Ass'y Includ.81-84 | ||||
| 80 | 335741 | 278.58 | 337.08 | |
| Brush Cap | ||||
| 81 | 334294 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 82 | 999016 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 83 | 334297 | |||
| Machine Screw (black) M4x16 | ||||
| 84 | 333163 | 1.80 | 2.18 | |
| Flange (1) | ||||
| 85 | 335758 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 86 | 335234 | |||
| No information available, not orderable | ||||
| 87 | 335235 | |||
| Cover | ||||
| 88 | 333899 | 10.65 | 12.89 | |
| Knife Since E047001 | ||||
| 89 | 6684754 | 8.58 | 10.38 | |
| Tapping Screw 5x20 For Aus (sl) | ||||
| 90 | 6684753 | 2.15 | 2.60 | |
| Guard Holder For Europe | ||||
| 91 | 6696951 | 3.33 | 4.02 | |
| No information available, not orderable | ||||
| 501 | 330787 | |||
| No information available, not orderable | ||||
| 502 | 6684813 | |||
| No information available, not orderable | ||||
| 503 | 6684764 | |||
| No information available, not orderable | ||||
| 504 | 875769 | |||
| Battery Cover | ||||
| 506 | 329897 | 1.80 | 2.18 | |
