Here you will find all available parts and drawings of the 'Hikoki CG28EJ'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

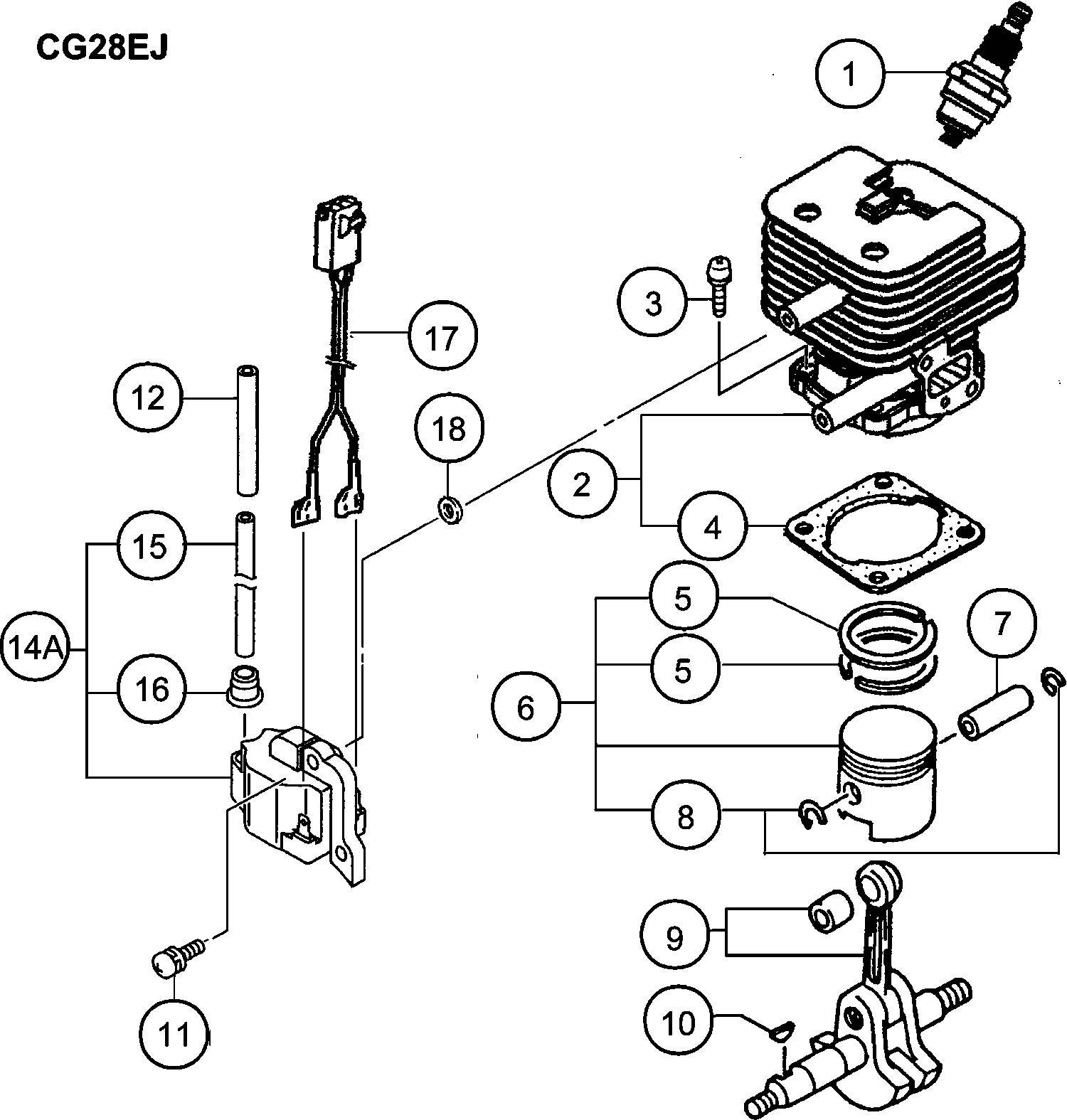

Technical drawing of model Hikoki CG28EJ
Spare parts list of model Hikoki CG28EJ
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Ass'y Rcj6y For Europe,aus | ||||
| 1 | 6699326 | 3.30 | 3.99 | |
| Cylinder Set (old 001-07020-90) | ||||
| 2 | 6685484 | 56.26 | 68.08 | |
| Hex. Hole Bolt M5x16/s | ||||
| 3 | 6684903 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 4 | 6685746 | 1.15 | 1.39 | |
| Piston Ring 34.5 | ||||
| 5 | 6686130 | 4.45 | 5.38 | |
| Piston Set | ||||
| 6 | 6685896 | 26.16 | 31.66 | |
| Piston Pin | ||||
| 7 | 6686016 | 2.31 | 2.80 | |
| Circlip | ||||
| 8 | 6685078 | 1.15 | 1.39 | |
| Crank Shaft Comp | ||||
| 9 | 6696499 | 67.00 | 81.07 | |
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 10 | 6684899 | 2.15 | 2.60 | |
| High Tension Screw 4x18ws Since H124041 | ||||
| 11 | 6695407 | 1.15 | 1.39 | |
| Insulator Tube, 110l | ||||
| 12 | 6688319 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 14A | 6699772 | |||
| High Tension Cord 140l Till G165840 | ||||
| 15 | 6687888 | 2.31 | 2.80 | |
| Rubber Cap | ||||
| 16 | 6684602 | 2.15 | 2.60 | |
| Lead Wire Ass'y | ||||
| 17 | 6697836 | 5.45 | 6.59 | |
| Washer T1.6 | ||||
| 18 | 6684600 | 2.15 | 2.60 | |
| Crank Case Ass'y | ||||
| 31 | 6686580 | 38.26 | 46.30 | |
| Oil Seal | ||||
| 32 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 33 | 6684608 | 3.80 | 4.60 | |
| Crank Case Gasket | ||||
| 34 | 6686721 | 1.15 | 1.39 | |
| Gear Shaft Shim 0.20 | ||||
| 35 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 35 | 6684605 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 36 | 6687374 | 24.20 | 29.28 | |
| Hex. Nut M8 | ||||
| 37 | 6684612 | 2.15 | 2.60 | |
| Ring | ||||
| 38 | 6695184 | 1.15 | 1.39 | |
| Hex. Hole Bolt M5x16/s | ||||
| 39 | 6684903 | 2.15 | 2.60 | |
| Inlet Manifold Gasket | ||||
| 51 | 6689895 | 1.15 | 1.39 | |
| Insulator Set | ||||
| 52 | 6689972 | 6.28 | 7.59 | |
| Hex. Hole Bolt M5x25ws | ||||
| 53 | 6695515 | 1.15 | 1.39 | |
| Carburetor Packing | ||||
| 54 | 6684616 | 2.15 | 2.60 | |
| Carburetor Set Wyj392 | ||||
| 55 | 6690500 | 82.43 | 99.73 | |
| Choke Plate 1.0 | ||||
| 56 | 6691278 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 57 | 6690120 | |||
| Cleaner Sponge | ||||
| 58 | 6690365 | 1.15 | 1.39 | |
| Cleaner Cover | ||||
| 59 | 6690421 | 13.86 | 16.77 | |
| Cover Fixing Bolt Comp. | ||||
| 60 | 6698730 | 3.15 | 3.81 | |
| Screw M5x55 | ||||
| 61 | 6694914 | 1.15 | 1.39 | |
| Small Washer 5 | ||||
| 62 | 6684864 | 2.15 | 2.60 | |
| Choke Control Lever | ||||
| 63 | 6691239 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 64 | 6691588 | |||
| Collar C | ||||
| 65 | 6684623 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 66 | 6688156 | |||
| No longer available, no replacement | ||||
| 67 | 6684880 | |||
| No information available, not orderable | ||||
| 68 | 6684620 | |||
| Clip D6 | ||||
| 69 | 6685198 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 70 | 6688169 | |||
| Hex. Hole Bolt 5x20ps Till J019590 | ||||
| 71 | 6695506 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 72 | 6685049 | |||
| No information available, not orderable | ||||
| 73 | 6684625 | |||
| Stand | ||||
| 74 | 6694793 | 3.30 | 3.99 | |
| Tap Screw 4x14 P | ||||
| 75 | 6695280 | 1.15 | 1.39 | |
| Ring | ||||
| 76 | 6685070 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 77 | 6684662 | 2.15 | 2.60 | |
| Clutch Shoe Comp.,t-16 Till F113050 | ||||
| 91 | 6688616 | 7.59 | 9.18 | |
| Clutch Spring Till F113050 | ||||
| 92 | 6689430 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 93 | 6684642 | |||
| Clutch Plate A 0.5 | ||||
| 94 | 6684645 | 2.15 | 2.60 | |
| Step Bolt Till F113050 | ||||
| 95 | 6689627 | 1.15 | 1.39 | |
| Clutch Set Assy | ||||
| 96 | 6688484 | 14.53 | 17.58 | |
| Fan Housing | ||||
| 97 | 6687019 | 11.05 | 13.37 | |
| Hex. Hole Bolt 5x15 Ws | ||||
| 98 | 6695512 | 1.15 | 1.39 | |
| Anti-vibe Rubber | ||||
| 99 | 6691838 | 3.30 | 3.99 | |
| Tapping Screw D5x14 Since C026901 Till F024130 | ||||
| 100 | 6685275 | 1.15 | 1.39 | |
| Pipe Holder | ||||
| 101 | 6689656 | 8.91 | 10.78 | |
| Stop Ring C-12 Outer | ||||
| 102 | 6684664 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x25/s | ||||
| 103 | 6684709 | 2.15 | 2.60 | |
| Hex. Hole Bolt 4x12ws Till C026900 | ||||
| 104A | 6695507 | 1.15 | 1.39 | |
| Clutch Shaft Comp | ||||
| 105 | 6688597 | 13.20 | 15.97 | |
| Stop Ring R-32 Inner (old 993-53032-002) | ||||
| 106 | 6695304 | 1.15 | 1.39 | |
| Bearing Case (old 088-07020-20) | ||||
| 107 | 6686667 | 7.75 | 9.38 | |
| Ball Bearing #6201zz | ||||
| 108 | 6695553 | 6.28 | 7.59 | |
| Primary Cord Grommet | ||||
| 109 | 6688057 | 1.15 | 1.39 | |
| Muffler Protector | ||||
| 110 | 6692803 | 7.75 | 9.38 | |
| Spark Plug Cap Ass'y Till G165840 | ||||
| 111 | 6687468 | 2.31 | 2.80 | |
| Tapping Screw D4.5x12 | ||||
| 112 | 6684637 | 2.15 | 2.60 | |
| Muffler Gasket | ||||
| 113 | 6692732 | 1.15 | 1.39 | |
| Heat Shield | ||||
| 114 | 6687260 | 3.30 | 3.99 | |
| Muffler Set | ||||
| 115 | 6692489 | 22.24 | 26.91 | |
| Hex. Hole Bolt M6x55 | ||||
| 116 | 6684638 | 2.15 | 2.60 | |
| Ring | ||||
| 117 | 6684639 | 2.15 | 2.60 | |
| Muffler Special Gasket For Aus | ||||
| 118 | 6692887 | 1.15 | 1.39 | |
| Tail Pipe Set For Europe | ||||
| 119 | 6692669 | 4.45 | 5.38 | |
| Screw 4x8/s | ||||
| 120 | 6695325 | 1.15 | 1.39 | |
| Ring | ||||
| 123 | 6684648 | 2.15 | 2.60 | |
| Recoil Starter Ass'y | ||||
| 151 | 6692969 | 22.24 | 26.91 | |
| Starter Handle | ||||
| 152 | 6693227 | 3.30 | 3.99 | |
| Rope Guide | ||||
| 153 | 6693135 | 3.30 | 3.99 | |
| Recoil Starter Body (old 772-06150-21/6693035) | ||||
| 154 | 6693036 | 10.23 | 12.37 | |
| Recoil Spring | ||||
| 155 | 6693111 | 7.93 | 9.59 | |
| Rope 3.5x890 | ||||
| 156 | 6693157 | 2.31 | 2.80 | |
| Starter Rope Reel (old 774-0162v-20) | ||||
| 157 | 6693057 | 4.45 | 5.38 | |
| Ring | ||||
| 158 | 6693419 | 1.15 | 1.39 | |
| Set Screw | ||||
| 159 | 6693632 | 1.15 | 1.39 | |
| Hex.hole Bolt 4x18ps | ||||
| 160 | 6695502 | 1.15 | 1.39 | |
| Starter Pulley Ass'y | ||||
| 161 | 6693394 | 7.59 | 9.18 | |
| Starter Pawl | ||||
| 162 | 6693299 | 2.31 | 2.80 | |
| Starter Pawl Spring | ||||
| 163 | 6693345 | 2.31 | 2.80 | |
| Ring | ||||
| 164 | 6689645 | 1.15 | 1.39 | |
| Recoil Starter Ass'y Till C237091 Replaced Part | ||||
| 171 | 6692992 | 50.21 | 60.76 | |
| No longer available, no replacement | ||||
| 171A | 6692991 | |||
| Starter Handle | ||||
| 172 | 6693240 | 14.35 | 17.36 | |
| Recoil Starter Body Comp Till C026900 | ||||
| 173 | 6693038 | 30.25 | 36.60 | |
| Rope Till 7.2014 | ||||
| 174 | 6693168 | 2.31 | 2.80 | |
| Recoil Spring Till C026900 | ||||
| 175 | 6693138 | 9.90 | 11.98 | |
| Spring Case Ass'y Till C026900 | ||||
| 176 | 6693101 | 32.21 | 38.98 | |
| Starter Pulley Till C237091 | ||||
| 178 | 6693075 | 6.44 | 7.79 | |
| Ring | ||||
| 179 | 6687947 | 2.31 | 2.80 | |
| Tapping Screw D5x14 Since C026901 Till F024130 | ||||
| 180 | 6685275 | 1.15 | 1.39 | |
| Hex. Nut M8 | ||||
| 181 | 6684612 | 2.15 | 2.60 | |
| Hex. Hole Bolt 4x18ws Till H124040 | ||||
| 182 | 6695508 | 1.15 | 1.39 | |
| Starter Base (old 806-07027-20) | ||||
| 183 | 6693468 | 9.74 | 11.78 | |
| Tapping Screw D4.5x14 Till C026900 | ||||
| 184 | 6685153 | 1.15 | 1.39 | |
| Starter Pulley Assembly (old 798-07085-90) | ||||
| 185 | 6693408 | 32.21 | 38.98 | |
| Spring Plate Till Z029400 | ||||
| 186 | 6693252 | 14.68 | 17.76 | |
| No information available, not orderable | ||||
| 187 | 6693099 | |||
| Starter Bush Till Z029400 | ||||
| 188 | 6689170 | 12.05 | 14.58 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 189 | 6684681 | 13.20 | 15.97 | |
| Hex. Hole Bolt 4x20 Ps Since C237092 | ||||
| 190 | 6695503 | 1.15 | 1.39 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 191 | 6685101 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 192 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl | ||||
| 193 | 6684685 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 194 | 6693040 | |||
| Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo | ||||
| 195 | 6684674 | 4.29 | 5.19 | |
| Recoil Spring Till 7.2014 | ||||
| 196 | 6684675 | 11.55 | 13.98 | |
| No longer available, no replacement | ||||
| 197 | 6693081 | |||
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 198 | 6684677 | 8.58 | 10.38 | |
| No information available, not orderable | ||||
| 199 | 6692938 | |||
| Set Screw (old 839-03045-20) | ||||
| 200 | 6684679 | 2.15 | 2.60 | |
| Starter Handle | ||||
| 201 | 6684680 | 2.15 | 2.60 | |
| Ring | ||||
| 202 | 6689645 | 1.15 | 1.39 | |
| Pump Body Comp. | ||||
| 221 | 6684879 | 62.16 | 75.22 | |
| Priming Pump Comp. | ||||
| 222 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover | ||||
| 223 | 6684688 | 8.58 | 10.38 | |
| Priming Body | ||||
| 224 | 6684689 | 6.44 | 7.79 | |
| No longer available, no replacement | ||||
| 225 | 6690827 | |||
| Diaphragm Gasket | ||||
| 226 | 6684691 | 8.58 | 10.38 | |
| Pump Diaphragm | ||||
| 227 | 6684693 | 8.58 | 10.38 | |
| Pump Gasket (old 577-25100-20) | ||||
| 228 | 6691457 | 7.10 | 8.59 | |
| Stop Ring | ||||
| 229 | 6684696 | 2.15 | 2.60 | |
| Swivel | ||||
| 230 | 6684697 | 6.44 | 7.79 | |
| Throttle Set Screw | ||||
| 231 | 6684870 | 2.15 | 2.60 | |
| Cable Adjuster Stay | ||||
| 232 | 6684873 | 6.44 | 7.79 | |
| Lock Nut M6 | ||||
| 233 | 6684872 | 2.15 | 2.60 | |
| Cable Adjuster | ||||
| 234 | 6684871 | 4.29 | 5.19 | |
| Cleaner Packing | ||||
| 235 | 6684875 | 4.29 | 5.19 | |
| Set Screw | ||||
| 236 | 6684699 | 2.15 | 2.60 | |
| Thrust Washer | ||||
| 237 | 6684874 | 2.15 | 2.60 | |
| Inlet Screen | ||||
| 238 | 6684700 | 4.29 | 5.19 | |
| O-RING (old 550-25100-20) | ||||
| 239 | 6684695 | 4.29 | 5.19 | |
| Main Jet #43 | ||||
| 240 | 6691848 | 4.45 | 5.38 | |
| Drive Shaft 1533l | ||||
| 261 | 6689478 | 14.98 | 18.12 | |
| No information available, not orderable | ||||
| 262 | 6689407 | |||
| Bushing Ass'y | ||||
| 263 | 6697866 | 1.98 | 2.39 | |
| Lifting Metal, 90 Dgr Swivel Till J034790 | ||||
| 264 | 6689274 | 2.31 | 2.80 | |
| Lifting Metal Collar 26 Till J034790 | ||||
| 265 | 6689258 | 2.31 | 2.80 | |
| Hex. Hole Bolt 5x30.p | ||||
| 266 | 6695501 | 1.15 | 1.39 | |
| Special Nut | ||||
| 267 | 6689100 | 1.15 | 1.39 | |
| Handle Grip | ||||
| 268 | 6684708 | 6.44 | 7.79 | |
| Hex. Hole Bolt M5x25/s | ||||
| 269 | 6684709 | 2.15 | 2.60 | |
| Handle Bracket A | ||||
| 270 | 6684710 | 13.20 | 15.97 | |
| Handle Bracket B | ||||
| 271 | 6684711 | 18.00 | 21.78 | |
| Cushion Rubber (old 510-37352-20) | ||||
| 272 | 6691187 | 2.31 | 2.80 | |
| Handle Bracket C | ||||
| 273 | 6684713 | 12.38 | 14.97 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 274 | 6684714 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 275 | 6689291 | |||
| Clamp B. (old 460-33111-20) | ||||
| 276 | 6684715 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 277 | 6696093 | |||
| Right Handle For Europe,aus,south America | ||||
| 278 | 6691080 | 13.53 | 16.37 | |
| No information available, not orderable | ||||
| 279 | 6693766 | |||
| No longer available, no replacement | ||||
| 280 | 6684721 | |||
| Return Spring | ||||
| 281 | 6684722 | 2.15 | 2.60 | |
| Throttle Lever | ||||
| 282 | 6684723 | 10.23 | 12.37 | |
| Screw M4x20 (black) | ||||
| 284 | 6684725 | 2.15 | 2.60 | |
| Screw 5x30 (black) | ||||
| 285 | 6684726 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 286 | 6684727 | |||
| Stop Switch Since C294401 | ||||
| 287 | 6687461 | 13.86 | 16.77 | |
| Throttle Wire | ||||
| 288 | 6694023 | 12.54 | 15.17 | |
| Protection Tube (old 164-07086-50) | ||||
| 289 | 6687546 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 290 | 6693980 | |||
| No information available, not orderable | ||||
| 291 | 6689275 | |||
| Drive Shaft 1533l | ||||
| 301 | 6689478 | 14.98 | 18.12 | |
| No information available, not orderable | ||||
| 302 | 6689407 | |||
| Bushing Ass'y | ||||
| 303 | 6697866 | 1.98 | 2.39 | |
| Hex.nut 6 | ||||
| 304 | 6684835 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 305 | 6691049 | |||
| Barrier, 26 Dia, Black | ||||
| 306 | 6691231 | 5.61 | 6.79 | |
| Bolt 6x43/p (black) | ||||
| 307 | 6684838 | 2.15 | 2.60 | |
| Tapping Screw 5x20 | ||||
| 308 | 6695255 | 1.15 | 1.39 | |
| Ring | ||||
| 309 | 6689681 | 1.15 | 1.39 | |
| Handle Grip (old 503-3738e-20) | ||||
| 310 | 6691098 | 6.44 | 7.79 | |
| No information available, not orderable | ||||
| 311 | 6689275 | |||
| Throttle Lever Ass'y, 26 Dia. | ||||
| 312 | 6693748 | 40.24 | 48.69 | |
| Throttle Wire Comp. | ||||
| 313 | 6693978 | 19.51 | 23.61 | |
| Throttle Wire | ||||
| 314 | 6694022 | 8.25 | 9.98 | |
| Stop Switch Comp. | ||||
| 315 | 6687459 | 13.91 | 16.83 | |
| No information available, not orderable | ||||
| 316 | 6687526 | |||
| No longer available, no replacement | ||||
| 317 | 6684721 | |||
| Return Spring | ||||
| 318 | 6684722 | 2.15 | 2.60 | |
| Screw M5x20 | ||||
| 319 | 6684803 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 320 | 6684727 | |||
| Screw M4x20 (black) | ||||
| 321 | 6684725 | 2.15 | 2.60 | |
| Throttle Lever | ||||
| 322 | 6684804 | 8.58 | 10.38 | |
| Gear Case Set Pn For Aus | ||||
| 351 | 6696497 | 60.35 | 73.02 | |
| No information available, not orderable | ||||
| 351B | 6601215 | |||
| Hex. Hole Bolt M5x25/s | ||||
| 352 | 6684709 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x12 | ||||
| 352A | 6684829 | 2.15 | 2.60 | |
| Spring Washer 5 | ||||
| 353 | 6684834 | 2.15 | 2.60 | |
| STOP RING C-26, INNER (OLD 993-51026-002) | ||||
| 354 | 6695294 | 1.15 | 1.39 | |
| Stop Ring Outer 10 | ||||
| 355 | 6695315 | 1.15 | 1.39 | |
| Stop Ring C-10,outer | ||||
| 355A | 6684821 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 356 | 6695526 | |||
| No information available, not orderable | ||||
| 357 | 6695524 | |||
| Gear Case 26 Dia For Aus | ||||
| 358 | 6688770 | 15.88 | 19.21 | |
| Gear Case (1) | ||||
| 358A | 6697738 | 12.88 | 15.58 | |
| Hex.hole Bolt M5x12/s | ||||
| 359 | 6684667 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 359A | 6684786 | 2.15 | 2.60 | |
| Oiling Bolt | ||||
| 360 | 6689109 | 1.15 | 1.39 | |
| Bolt (w/plus) M6x8 | ||||
| 360A | 6684737 | 2.15 | 2.60 | |
| Ball Bearing 609 | ||||
| 361 | 6684734 | 8.58 | 10.38 | |
| Gear Shaft For Aus | ||||
| 362 | 6688924 | 18.15 | 21.96 | |
| No information available, not orderable | ||||
| 362A | 6697739 | |||
| No information available, not orderable | ||||
| 363 | 6695554 | |||
| Ball Bearing #6201dd | ||||
| 363A | 6695555 | 7.10 | 8.59 | |
| Stop Ring inside C-32 old part no. 993-51032-00 | ||||
| 364 | 6695295 | 1.15 | 1.39 | |
| Cutter Holder | ||||
| 365 | 6689032 | 11.71 | 14.17 | |
| No information available, not orderable | ||||
| 365B | 6601216 | |||
| Cutter Holder Cap For Aus | ||||
| 366 | 6689055 | 5.11 | 6.19 | |
| Cutter Holder Cap Since J032081 For Europe | ||||
| 366A | 6699009 | 3.80 | 4.60 | |
| Nut Cover Since J032081 For Europe | ||||
| 367 | 6697792 | 2.80 | 3.39 | |
| Fixing Nut M10x1.25 Till 9.2015 | ||||
| 368 | 6689073 | 4.63 | 5.60 | |
| No information available, not orderable | ||||
| 368A | 6698658 | |||
| Ring | ||||
| 369 | 6689159 | 1.15 | 1.39 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 370 | 6684714 | 2.15 | 2.60 | |
| Cover Bracket 26 Since D085851 For Europe | ||||
| 371 | 6690315 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 371A | 6697867 | |||
| Blade Guard 26 Ce Till D168500 For Europe | ||||
| 372 | 6690242 | 16.64 | 20.13 | |
| Blade Guard 26ce Since D168501 For Europe | ||||
| 372A | 6690276 | 17.55 | 21.24 | |
| Guard Holder | ||||
| 373 | 6684748 | 4.29 | 5.19 | |
| No longer available, no replacement | ||||
| 374 | 6690372 | |||
| Blade Guard Since E047001 | ||||
| 374A | 6690376 | 9.40 | 11.37 | |
| Blade (old 797-37380-21/6693385) | ||||
| 375 | 6693386 | 4.45 | 5.38 | |
| Knife For Irl | ||||
| 375A | 6684750 | 4.29 | 5.19 | |
| Screw 5x12/s Till E047000 | ||||
| 376 | 6695334 | 1.15 | 1.39 | |
| Tapping Screw 4x14 | ||||
| 376A | 6684751 | 2.15 | 2.60 | |
| Gear/pinion Set, Spare For Aus | ||||
| 377 | 6688875 | 22.24 | 26.91 | |
| Gear Pinion Set,spare Since J032081 For Europe | ||||
| 377A | 6697741 | 20.11 | 24.34 | |
| Nut M5 | ||||
| 378 | 6684965 | 1.04 | 1.26 | |
| Tapping Screw 5x20 For Aus (sl) | ||||
| 379 | 6684753 | 2.15 | 2.60 | |
| Knife Since E047001 | ||||
| 380 | 6684754 | 8.58 | 10.38 | |
| No information available, not orderable | ||||
| 501 | 6684813 | |||
| No information available, not orderable | ||||
| 502 | 6684764 | |||
| No information available, not orderable | ||||
| 503 | 6699555 | |||
| Cutter Cover For (s) | ||||
| 503B | 6684768 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 505 | 6693520 | |||
| No information available, not orderable | ||||
| 506 | 6695791 | |||
| No information available, not orderable | ||||
| 507 | 6695795 | |||
| Protection Cover B (old 308-38150-20 & 6688993) | ||||
| 508 | 6688995 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 509 | 6695796 | |||
| No information available, not orderable | ||||
| 510 | 6695784 | |||
| Mounting Nut L-m10x1.25 Till Tl060520 | ||||
| 511 | 6684756 | 9.08 | 10.98 | |
| Mounting Nut L-m8x1.25 (old 356-3383e-20) | ||||
| 512 | 6689624 | 7.75 | 9.38 | |
| Cutting Body Till Tl060520 | ||||
| 513 | 6684757 | 22.69 | 27.45 | |
| Special Nut Till Tl060520 | ||||
| 514 | 6684758 | 9.40 | 11.37 | |
| Reel Spring Till Tl060520 | ||||
| 515 | 6684759 | 4.29 | 5.19 | |
| Spool Till Tl060520 | ||||
| 516 | 6684760 | 15.58 | 18.85 | |
| Cutting Body Cap Till Tl060520 | ||||
| 517 | 6684761 | 36.15 | 43.74 | |
| Eyelet Till Tl060520 | ||||
| 518 | 6684762 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 519 | 6697805 | |||
| Winding Protector Till Tl043660 | ||||
| 520 | 6684763 | 4.29 | 5.19 | |
| Nylon Cord Cutter Since Tl060521 | ||||
| 521 | 6601148 | 19.21 | 23.25 | |
| Case Since Tl060521 | ||||
| 522 | 6601149 | 10.73 | 12.98 | |
| Nut (1) | ||||
| 523 | 6601150 | 6.93 | 8.38 | |
| Reel Spring Since Tl060521 | ||||
| 524 | 6693380 | 3.30 | 3.99 | |
| Line Holder Since Tl060521 | ||||
| 525 | 6601151 | 7.59 | 9.18 | |
| Cover | ||||
| 526 | 6601152 | 7.75 | 9.38 | |
| Eyelet Since Tl060521 | ||||
| 527 | 6684810 | 2.15 | 2.60 | |
| Name Plate Cg28ej (old 906-07219-20) New | ||||
| 601 | 6694232 | 1.05 | 1.27 | |
| Symbol Mark Cg28ej For (28ej) | ||||
| 602 | 6694659 | 1.05 | 1.27 | |
| Name Plate Cg28ej(l) (old 906-54400-20) New | ||||
| 603 | 6694390 | 1.05 | 1.27 | |
| Symbol Cg28ej(l) For (l) | ||||
| 604 | 6694756 | 1.05 | 1.27 | |
| Symbol Mark Cg28ej(sl) For (sl) | ||||
| 606 | 6694658 | 1.05 | 1.27 | |
