Here you will find all available parts and drawings of the 'Hikoki CG27EBD'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

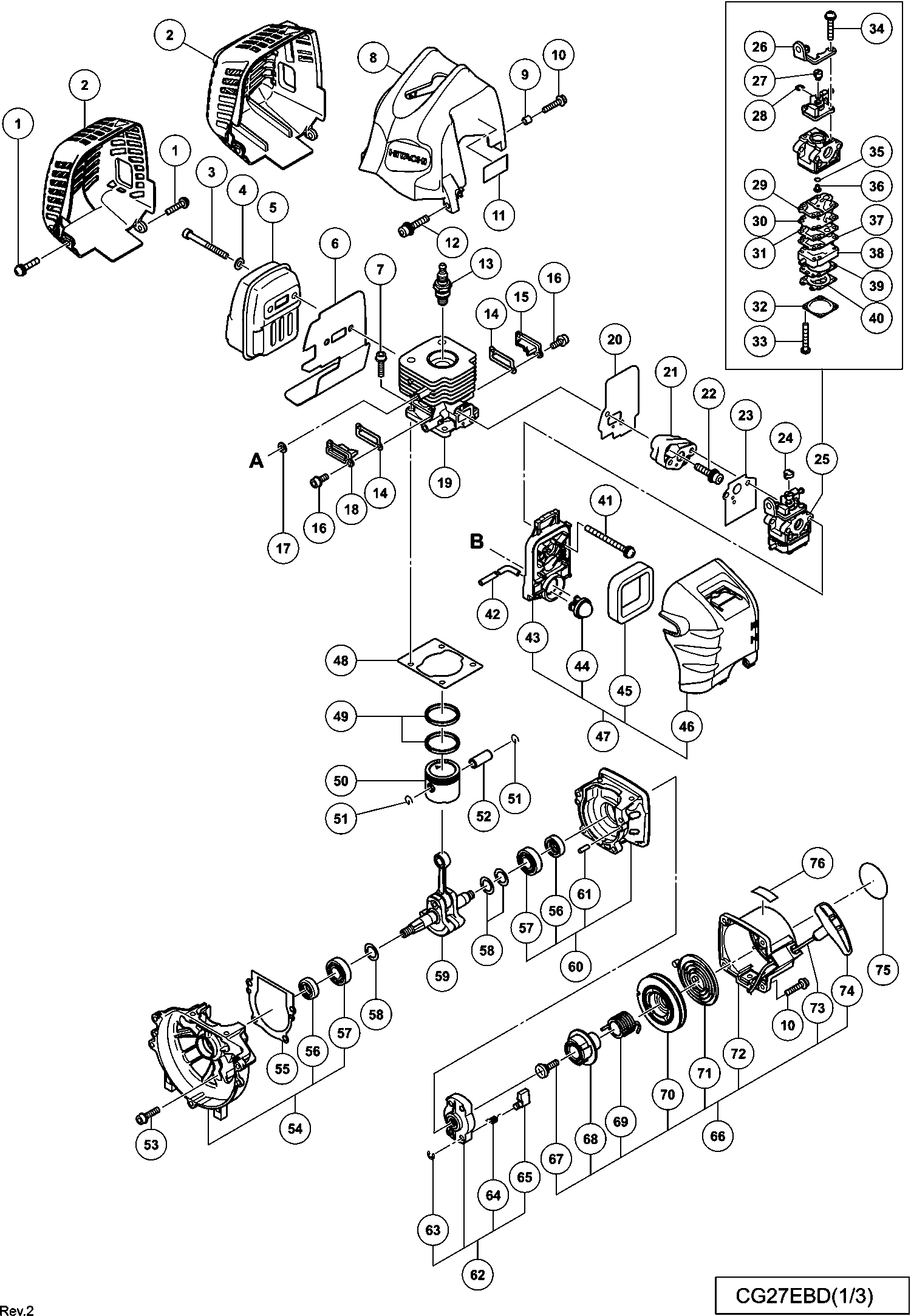

Technical drawing of model Hikoki CG27EBD

Spare parts list of model Hikoki CG27EBD

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No information available, not orderable
1 887021
Muffler Cover
2 6600322 6.90 8.35
Muffler Cover
2 6698493 4.20 5.08
Hex. Socket Hd. Bolt M6x65
3 6698384 1.05 1.27
Bolt Washer M6 (10 Pcs.)
4 949432 1.05 1.27
Muffler
5 6698477 11.85 14.34
Muffler (b) For Europe
5 6600461 7.50 9.08
Heat Protection Panel Since 11.2013
6 6600324 1.35 1.63
Hex. Socket Bolt M5x20
7 6696958 2.10 2.54
Cylinder Cover
8 6699430 7.05 8.53
Collar (b)
9 6600008 1.04 1.26
Hex. Socket Hd. Bolt (w/flange) M4x18
10 6696326 1.20 1.45
Seal Lock Hex. Socket Hd. Bolt M5x30
12 6698950 1.20 1.45
Spark Plug Ass'y Bmr7a
13 6699316 8.91 10.78
Spark Plug Ass'y Cj6 Except For Aus,nzl
13 6699322 2.48 2.99
Cover Packing
14 6698365 1.05 1.27
Scavenging Cover (a)
15 6698484 2.10 2.54
Hex. Socket Hd. Bolt M4x12
16 6698385 1.05 1.27
No longer available, no replacement
17 6698700
Scavenging Cover (b)
18 6698485 2.10 2.54
Cylinder
19 6698480 45.65 55.24
Gasket
20 6699437 1.04 1.26
Carburetor Insulator
21 6698387 3.15 3.81
Seal Lock Hex. Socket Bolt (w/washers)m5
22 6698844 1.20 1.45
Carburetor Packing
23 6698405 2.10 2.54
Swivel Cap Since C026901
24 6691337 1.15 1.39
Carburetor Ass'y Wyc-37 Includ.26-40
25 6600326 29.84 36.10
Cable Adjust Stay
26 6699287 4.13 4.99
Swivel
27 6696830 4.45 5.38
Stop Ring
28 6684696 2.15 2.60
Pump Gasket
29 6684692 29.19 35.32
Pump Diaphragm
30 6684693 8.58 10.38
Pump Plate
31 6691242 2.31 2.80
Diaphragm Cover-metering
32 6685222 4.45 5.38
Set Screw
33 6691312 1.15 1.39
Set Screw M3x12
34 6696829 1.04 1.26
O-RING (old 550-25100-20)
35 6684695 4.29 5.19
Circuit Plate
37 6691234 3.30 3.99
Pump Body Comp.
38 6696828 13.36 16.17
No longer available, no replacement
39 6685220
Metering Diaphragm
40 6684690 18.00 21.78
Machine Screw with Washers M5x60 (Black)
41 307224 1.05 1.27
Fuel Pipe 2.5x4x80
42B 6692347 1.15 1.39
No information available, not orderable
43 6696832
Priming Pump Comp.
44 6685139 5.94 7.18
Cleaner Element
45 6690347 4.45 5.38
Cleaner Cover
46 6699185 7.20 8.71
No information available, not orderable
47 6699132
Cylinder Packing
48 6698366 1.05 1.27
Piston Ring
49 6686121 4.45 5.38
Piston
50 6699432 8.10 9.80
Cir Clip
51 6684590 2.15 2.60
Piston Pin
52 6684591 4.29 5.19
No information available, not orderable
53 6698386
Crank Case (b) Ass'y Includ.52,55
54 6698370 15.68 18.97
Crank Case Packing
55 6698371 1.05 1.27
Oil Seal
56 6684607 4.29 5.19
Ball Bearing 6001 C3
57 6684608 3.80 4.60
No information available, not orderable
58 6698490
Crank Shaft
59 6699438 34.10 41.26
Crank Case (a) Ass'y Includ.52,55,57
60 6698369 13.35 16.15
Knock Pin 4x12
61 6696947 1.05 1.27
Starter Pulley Ass'y For (s) Type Since 7.2012 Fo
62 6684681 13.20 15.97
D4e Retaining Ring (old 993-55040-001)
63 6685101 1.15 1.39
Starter Pawl Spring
64 6684684 4.29 5.19
Starter Pawl
65 6684685 4.29 5.19
No information available, not orderable
66 6699995
Set Screw (old 839-03045-20)
67 6684679 2.15 2.60
Cam Plate For (s) Type Since 9.2013 For Aus
68 6699996 2.55 3.09
Damper Spring For (s) Type Since 7.2012 For Aus
69 6684677 8.58 10.38
Starter Rope Reel For (s) Type Since 9.2013 For A
70 6699997 8.41 10.18
Recoil Spring Till 7.2014
71 6684675 11.55 13.98
Recoil Starter Body Comp. For (s) Type Since 7.20
72 6684673 19.06 23.07
Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo
73 6684674 4.29 5.19
Starter Handle
74 6684680 2.15 2.60
Tank Mark Label (50:1)
76 6698921 1.20 1.45
Tank Mark Label (25:1) For Asia,tpe,kor
76 6698922 1.20 1.45
Machine Screw M5x20 (black) For (sl)
91 6699195 1.20 1.45
P Tite Screw D4x20 (black) For (sl)
92 6699194 1.20 1.45
Switch Wire Set For (sl)
93 6699197 10.20 12.34
Nut M5
94 6699196 1.04 1.26
Stop Lever For (sl)
95 6699192 1.65 2.00
Long Lever For (sl)
96 6699191 2.55 3.09
Return Spring
97 6699193 1.04 1.26
Stay Set For (sl)
98 6699190 16.36 19.80
Throttle Lever (a) Ass'y Includ.91-98 For (sl)
99 6699133 21.18 25.62
Hex. Socket Hd. Bolt (w/sp.washer) M5x12
100 6699176 1.04 1.26
Hex. Hole Bolt 5x22/s
101 6695492 1.15 1.39
Anti Vibe Rubber (a)
102 6696963 3.33 4.02
Pipe Holder (a)
103 6698643 2.10 2.54
Pipe Holder (b)
104 6698644 2.10 2.54
Anti Vibe Rubber (b)
105 6696964 3.33 4.02
Spring Washer D12 (10 pieces)
106 939542 1.50 1.82
Fan Housing
107 6699433 14.99 18.13
BALL BEARING 6301ZZC3
108 6699435 2.55 3.09
Spring Washer 37MM
109 322813 1.65 2.00
CLUTCH SHAFT
110 6699434 7.20 8.71
Step Bolt
111 6696469 1.04 1.26
Ring
112 6684648 2.15 2.60
Clutch Plate (a)
113 6696546 1.05 1.27
No information available, not orderable
114 6699130
Washer (b)
115 6699131 1.04 1.26
Nut
116 6685337 1.05 1.27
Bolt Washer M8 (black)
117 323212 1.05 1.27
Hex. Socket Hd. Bolt (w/washers) M4x18
118 6698388 1.05 1.27
Ignition Coil Comp.
119 6699436 26.40 31.94
No information available, not orderable
120A 6601421
Metal Fitting Of Plug Cap
121 6699933 1.65 2.00
Cord
122 6696544 1.05 1.27
Earth Cord
123 6696545 1.05 1.27
Magneto Rotor Comp.
124 6698396 8.70 10.53
Fuel Pipe
125 6698716 3.45 4.17
Fuel Pipe L70
126A 6699014 1.65 2.00
Return Grommet Till 7.2014
127 6697846 1.04 1.26
No longer available, no replacement
128 6698402
Tank Cap Chain
129 6698732 1.20 1.45
No longer available, no replacement
130 6698931
Fuel Grommet Since 8.2014
130A 6600358 1.04 1.26
Spacer (1)
131 6699558 1.04 1.26
Tank
132 6600317 7.95 9.62
Tank (c) Since 8.2014
132A 6600354 3.45 4.17
Pump Filter
133A 6600351 2.70 3.27
Clip
134 6696949 1.68 2.03
Stand
135 6694787 3.30 3.99
Flange Bolt
136 6696557 1.05 1.27
Bolt (w/flange) L27.8
137 6698991 1.20 1.45
Hex. Bolt 6x50
151 6684824 2.15 2.60
Handle Knob
152 6684823 4.29 5.19
Ring
153 6684822 2.15 2.60
Hex. Socket Hd. Bolt M5x12
154 6684829 2.15 2.60
Spring Washer M5
155 6698884 1.80 2.18
Hex. Socket Hd. Bolt (w/button) M6
156 6684825 2.15 2.60
Spring Washer M6 (old 949455z, 10 pcs)
157 949455 1.05 1.27
Washer M6 (10 Pcs.)
158 949425 1.05 1.27
Spacer 1.6
159 6689139 1.15 1.39
Spacer
160 6684819 4.29 5.19
Ring
161 6684820 2.15 2.60
Spring Washer D10 (10 pieces)
162 939540 1.95 2.36
Main Pipe (a)
163 6699460 14.16 17.14
Level Mark
164 6684852 2.15 2.60
Drive Shaft (a)
165 6699462 17.88 21.63
Hanger For Irl
166A 6600504 1.20 1.45
Loop Handle (w/barrier) For Europe (sl)
167 6699448 10.80 13.07
No information available, not orderable
168 6699449
Cap Nut 6
169 6684828 2.15 2.60
Joint Case
170 6684817 38.58 46.68
Gear Cover
171 6699439 46.61 56.40
Hex. Socket Hd. Bolt M5x30 (10 Pcs.)
172 949664 3.75 4.54
Screw 5x12/w.s
173 6695414 1.15 1.39
Cap (1)
174 6600005 2.70 3.27
Spring
175 6600006 3.60 4.36
Bolt (w/plus) M6x8
176 6684737 2.15 2.60
Lock Pin
177 6600007 11.25 13.61
Cutter Holder (a) For Europe
178 6699441 8.25 9.98
Cutter Holder (b) For Europe
179 6698659 13.04 15.78
No information available, not orderable
180 6699188
U-nut (left Hand) M10 For Irl
181 335759 1.04 1.26
Cover
182 6698937 16.78 20.30
Set Screw
184 6698795 1.35 1.63
Reel
185 6698939 7.35 8.89
Return Spring
186 6698941 1.95 2.36
Button (1)
187 6698940 5.55 6.72
Cord Guide
188 6698942 3.75 4.54
Case
189 6698938 13.65 16.52
No information available, not orderable
190 6698639
Hex. Socket Hd. Bolt (w/button) M6x20 (old 990-530
191 6685064 1.15 1.39
Spring Washer M6 (old 949455z, 10 pcs)
192 949455 1.05 1.27
Uae (s),(sl),pan (sl)
193 6696978 2.10 2.54
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
194 6684714 2.15 2.60
No information available, not orderable
195 6699444
Bushing For (sl)
196 6684833 2.15 2.60
Caution Mark
198 6697625 1.98 2.39
Level Mark
199 6684851 2.15 2.60
Main Pipe (a) For (sl)
200 6699461 14.16 17.14
Drive Shaft B 783l For (sl)
201 6684832 20.73 25.08
Nut M4 (10 Pieces)
202 949554 1.05 1.27
Uae (s),(sl),pan (sl)
203 6696584 2.10 2.54
Cover Holder
204 6698813 2.10 2.54
Guard (1)
205 6696981 7.35 8.89
Bolt Washer M4 (black) For 220v-240v
206 323210 1.05 1.27
Ring
207 6685068 1.15 1.39
COVER ASS'Y
208 6697880 17.88 21.63
Guard 24 Dia. For Aus (sl)
209 6690272 13.20 15.97
Blade (old 797-38150-20)
210 6693388 6.28 7.59
Tapping Screw 5x20 For Aus (sl)
211 6684753 2.15 2.60
Machine Screw M5x10 (10 Pcs.) For Irl
212 949236 1.05 1.27
No information available, not orderable
501 6684764
No information available, not orderable
502 944458
No information available, not orderable
503 875769
No information available, not orderable
504 6695795
No information available, not orderable
504A 6601420
