Here you will find all available parts and drawings of the 'Hikoki CG27EA2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

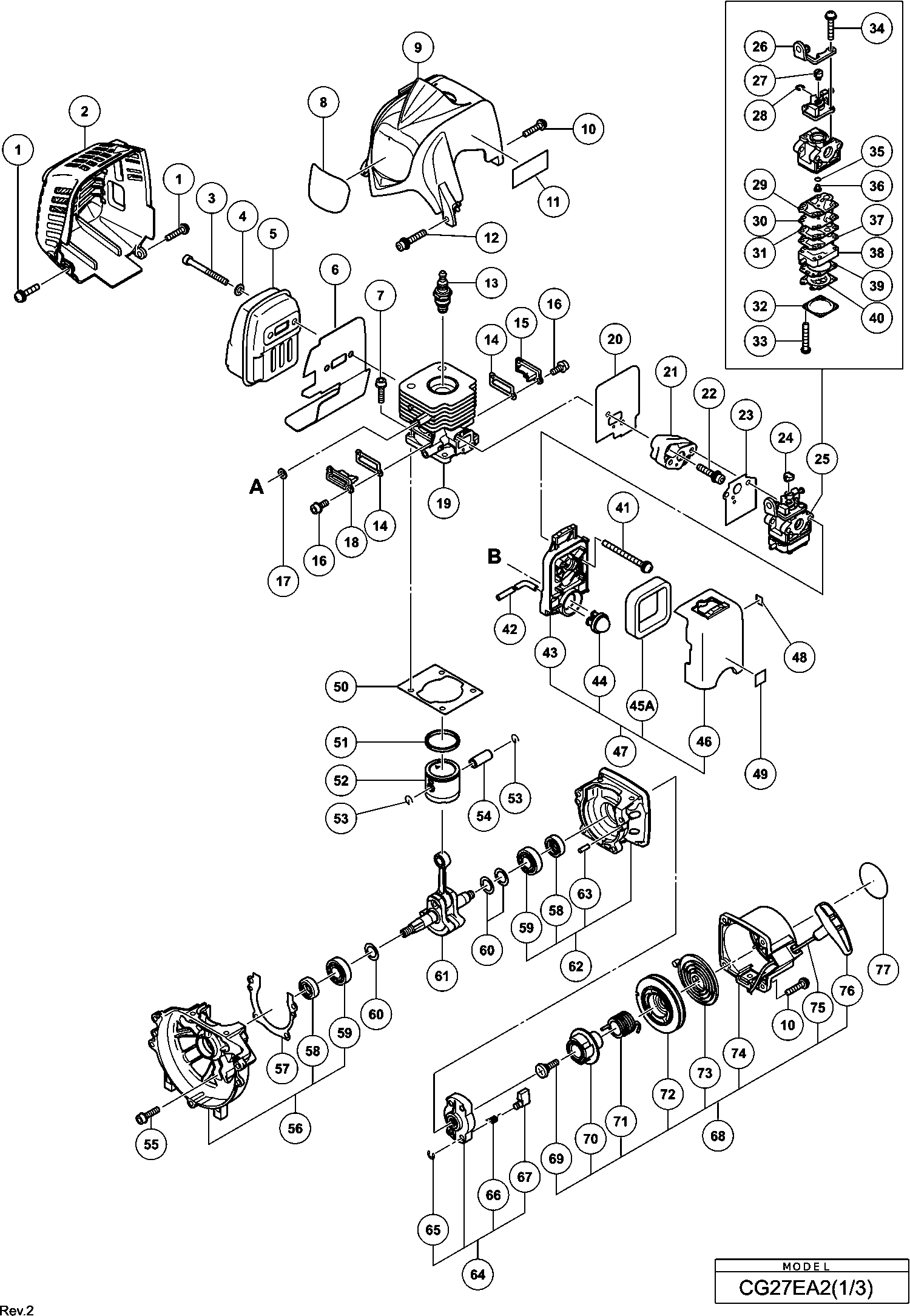

Technical drawing of model Hikoki CG27EA2
Spare parts list of model Hikoki CG27EA2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 887021 | |||
| Muffler Cover | ||||
| 2 | 6600322 | 6.90 | 8.35 | |
| Hex. Socket Hd. Bolt M6x65 | ||||
| 3 | 6698384 | 1.05 | 1.27 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 4 | 949432 | 1.05 | 1.27 | |
| Muffler (b) For Europe | ||||
| 5 | 6600461 | 7.50 | 9.08 | |
| Heat Protection Panel Since 11.2013 | ||||
| 6 | 6600324 | 1.35 | 1.63 | |
| Hex. Socket Bolt M5x20 | ||||
| 7 | 6696958 | 2.10 | 2.54 | |
| Cylinder Cover | ||||
| 9 | 6697921 | 6.10 | 7.38 | |
| Machine Screw (w/washers) M4x20 (black) | ||||
| 10 | 307606 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 12 | 6698950 | 1.20 | 1.45 | |
| Spark Plug Ass'y Bmr7a | ||||
| 13 | 6699316 | 8.91 | 10.78 | |
| Cover Packing | ||||
| 14 | 6697684 | 1.04 | 1.26 | |
| Scavenging Cover (a) | ||||
| 15 | 6698484 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 16 | 6698385 | |||
| No longer available, no replacement | ||||
| 17 | 6698700 | |||
| Scavenging Cover (b) | ||||
| 18 | 6698485 | 2.10 | 2.54 | |
| Cylinder | ||||
| 19 | 6698480 | 45.65 | 55.24 | |
| Gasket | ||||
| 20 | 6698473 | 1.05 | 1.27 | |
| Carburetor Insulator | ||||
| 21 | 6698387 | 3.15 | 3.81 | |
| Seal Lock Hex. Socket Bolt (w/washers)m5 | ||||
| 22 | 6698844 | 1.20 | 1.45 | |
| Carburetor Packing | ||||
| 23 | 6698405 | 2.10 | 2.54 | |
| No longer available, no replacement | ||||
| 24 | 6691337 | |||
| Carburetor Ass'y Wyc-29 Includ.25-39 | ||||
| 25 | 6698489 | 58.93 | 71.30 | |
| Cable Adjust Stay | ||||
| 26 | 6699287 | 4.13 | 4.99 | |
| Swivel | ||||
| 27 | 6696830 | 4.45 | 5.38 | |
| Stop Ring | ||||
| 28 | 6684696 | 2.15 | 2.60 | |
| Pump Gasket | ||||
| 29 | 6684692 | 29.19 | 35.32 | |
| Pump Diaphragm | ||||
| 30 | 6684693 | 8.58 | 10.38 | |
| Pump Plate | ||||
| 31 | 6691242 | 2.31 | 2.80 | |
| Diaphragm Cover-metering | ||||
| 32 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 33 | 6691312 | 1.15 | 1.39 | |
| Set Screw M3x12 | ||||
| 34 | 6696829 | 1.04 | 1.26 | |
| O-RING (old 550-25100-20) | ||||
| 35 | 6684695 | 4.29 | 5.19 | |
| Circuit Plate | ||||
| 37 | 6691234 | 3.30 | 3.99 | |
| Pump Body Comp. | ||||
| 38 | 6696828 | 13.36 | 16.17 | |
| No longer available, no replacement | ||||
| 39 | 6685220 | |||
| No longer available, no replacement | ||||
| 40 | 6684690 | |||
| Machine Screw with Washers M5x60 (Black) | ||||
| 41 | 307224 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 42B | 6601444 | |||
| No information available, not orderable | ||||
| 43 | 6696832 | |||
| Priming Pump Comp. | ||||
| 44 | 6685139 | 5.94 | 7.18 | |
| No longer available, no replacement | ||||
| 45A | 6600704 | |||
| No information available, not orderable | ||||
| 46 | 6696831 | |||
| Air Cleaner Ass'y Includ.34-37 | ||||
| 47 | 6696549 | 9.13 | 11.04 | |
| Mark Plate (t) Since 11.2013 For Europe | ||||
| 48 | 6600327 | 1.04 | 1.26 | |
| Primer Label Since 11.2013 For Europe | ||||
| 49 | 6699000 | 1.04 | 1.26 | |
| Cylinder Packing | ||||
| 50 | 6698366 | 1.05 | 1.27 | |
| Piston Ring | ||||
| 51 | 6686121 | 4.45 | 5.38 | |
| Piston | ||||
| 52 | 6698483 | 8.70 | 10.53 | |
| Cir Clip | ||||
| 53 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 54 | 6684591 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 55 | 6698386 | |||
| No information available, not orderable | ||||
| 56 | 6698370 | |||
| Crank Case Packing | ||||
| 57 | 6697688 | 1.04 | 1.26 | |
| Oil Seal | ||||
| 58 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 59 | 6684608 | 3.80 | 4.60 | |
| No information available, not orderable | ||||
| 60 | 6698490 | |||
| Crank Shaft | ||||
| 61 | 6698488 | 55.14 | 66.72 | |
| Crank Case (a) Ass'y Includ.52,55,57 | ||||
| 62 | 6698369 | 13.35 | 16.15 | |
| Knock Pin 4x12 | ||||
| 63 | 6696947 | 1.05 | 1.27 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 64 | 6684681 | 13.20 | 15.97 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 65 | 6685101 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 66 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl | ||||
| 67 | 6684685 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 68 | 6699995 | |||
| RECOIL STARTER BODY ASS'Y NEW | ||||
| 68A | 6601570 | 15.81 | 19.13 | |
| Set Screw (old 839-03045-20) | ||||
| 69 | 6684679 | 2.15 | 2.60 | |
| Cam Plate For (s) Type Since 9.2013 For Aus | ||||
| 70 | 6699996 | 2.55 | 3.09 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 71 | 6684677 | 8.58 | 10.38 | |
| Starter Rope Reel For (s) Type Since 9.2013 For A | ||||
| 72 | 6699997 | 8.41 | 10.18 | |
| Recoil Spring Till 7.2014 | ||||
| 73 | 6684675 | 11.55 | 13.98 | |
| No information available, not orderable | ||||
| 74 | 6684673 | |||
| Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo | ||||
| 75 | 6684674 | 4.29 | 5.19 | |
| Starter Handle | ||||
| 76 | 6684680 | 2.15 | 2.60 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 91 | 305812 | 1.04 | 1.26 | |
| Handle (b) | ||||
| 92 | 6696487 | 3.45 | 4.17 | |
| Lock Lever | ||||
| 93 | 6696490 | 1.04 | 1.26 | |
| Lever (1) | ||||
| 94 | 6696488 | 1.04 | 1.26 | |
| Spring (a) | ||||
| 95 | 6696489 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 96A | 6601275 | |||
| Stop Switch Cord | ||||
| 97 | 6696491 | 1.80 | 2.18 | |
| Protection Tube | ||||
| 98 | 6696967 | 1.05 | 1.27 | |
| Throttle Wire Comp. | ||||
| 99 | 6696560 | 4.18 | 5.05 | |
| No information available, not orderable | ||||
| 100 | 6696486 | |||
| No information available, not orderable | ||||
| 101 | 6699176 | |||
| Hex. Hole Bolt 5x22/s | ||||
| 102 | 6695492 | 1.15 | 1.39 | |
| Anti Vibe Rubber (a) | ||||
| 103 | 6696963 | 3.33 | 4.02 | |
| Pipe Holder (a) | ||||
| 104 | 6698643 | 2.10 | 2.54 | |
| Pipe Holder (b) | ||||
| 105 | 6698644 | 2.10 | 2.54 | |
| Anti Vibe Rubber (b) | ||||
| 106 | 6696964 | 3.33 | 4.02 | |
| Spring Washer D12 (10 pieces) | ||||
| 107 | 939542 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 108 | 6697922 | |||
| Clutch Shaft | ||||
| 109 | 6699400 | 8.85 | 10.71 | |
| No information available, not orderable | ||||
| 110 | 6696469 | |||
| Ring | ||||
| 111 | 6684648 | 2.15 | 2.60 | |
| Clutch Plate (a) | ||||
| 112 | 6696546 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 113 | 6696948 | |||
| Washer (b) | ||||
| 114 | 6696547 | 1.05 | 1.27 | |
| Nut | ||||
| 115 | 6685337 | 1.05 | 1.27 | |
| Bolt Washer M8 (black) | ||||
| 116 | 323212 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt (w/washers) M4x18 | ||||
| 117 | 6698388 | 1.05 | 1.27 | |
| Ignition Coil Comp. | ||||
| 118 | 6698492 | 22.83 | 27.62 | |
| Cord | ||||
| 119 | 6698495 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 120A | 6601421 | |||
| No information available, not orderable | ||||
| 121 | 6699186 | |||
| Earth Cord | ||||
| 122 | 6696545 | 1.05 | 1.27 | |
| Magneto Rotor Comp. | ||||
| 123 | 6698396 | 8.70 | 10.53 | |
| Spacer (1) | ||||
| 124 | 6699558 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 125 | 6698931 | |||
| No longer available, no replacement | ||||
| 125A | 6600358 | |||
| Fuel Pipe | ||||
| 126 | 6698716 | 3.45 | 4.17 | |
| Fuel Pipe L70 | ||||
| 127A | 6699014 | 1.65 | 2.00 | |
| Return Grommet Till 7.2014 | ||||
| 128 | 6697846 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 129 | 6698402 | |||
| Tank Cap Chain | ||||
| 130 | 6698732 | 1.20 | 1.45 | |
| Tank | ||||
| 131 | 6600317 | 7.95 | 9.62 | |
| Tank (c) Since 8.2014 | ||||
| 131A | 6600354 | 3.45 | 4.17 | |
| Pump Filter | ||||
| 132 | 6600351 | 2.70 | 3.27 | |
| No longer available, no replacement | ||||
| 133 | 6696949 | |||
| Stand | ||||
| 134 | 6694787 | 3.30 | 3.99 | |
| Flange Bolt | ||||
| 135 | 6696557 | 1.05 | 1.27 | |
| Bolt (w/flange) L27.8 | ||||
| 136 | 6698991 | 1.20 | 1.45 | |
| Tpe (sl),kor (sl) | ||||
| 151 | 6696975 | 8.98 | 10.86 | |
| Tpe (sl),kor (sl) | ||||
| 152 | 949556 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 153 | 6600446 | |||
| Level Mark | ||||
| 154 | 6684851 | 2.15 | 2.60 | |
| Main Pipe Comp. | ||||
| 155 | 6696558 | 17.69 | 21.40 | |
| Drive Shaft | ||||
| 156 | 6698514 | 15.60 | 18.88 | |
| Hanger For Irl | ||||
| 157A | 6600504 | 1.20 | 1.45 | |
| Cap (a) | ||||
| 158 | 6698515 | 2.10 | 2.54 | |
| Bolt (black) M6 | ||||
| 159 | 6696974 | 1.68 | 2.03 | |
| Barrier | ||||
| 160 | 6696973 | 3.33 | 4.02 | |
| Gear Cover | ||||
| 161 | 6699402 | 50.33 | 60.89 | |
| Bolt (w/plus) M6x8 | ||||
| 162 | 6684737 | 2.15 | 2.60 | |
| Cutter Holder (a) | ||||
| 163 | 6696977 | 13.33 | 16.12 | |
| Cutter Holder (b) For Europe | ||||
| 164 | 6698659 | 13.04 | 15.78 | |
| NUT COVER | ||||
| 165 | 6699188 | 6.60 | 7.99 | |
| U-nut (left Hand) M10 For Irl | ||||
| 166 | 335759 | 1.04 | 1.26 | |
| Screw 5x12/w.s | ||||
| 167 | 6695414 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 (10 Pcs.) | ||||
| 168 | 949664 | 3.75 | 4.54 | |
| Cover | ||||
| 169 | 6698794 | 9.30 | 11.25 | |
| Set Screw | ||||
| 171 | 6698795 | 1.35 | 1.63 | |
| Reel | ||||
| 172 | 6698796 | 2.40 | 2.90 | |
| Return Spring | ||||
| 173 | 6698797 | 1.05 | 1.27 | |
| Button (1) | ||||
| 174 | 6698798 | 1.20 | 1.45 | |
| Cord Guide | ||||
| 175 | 6698799 | 1.20 | 1.45 | |
| Case | ||||
| 176 | 6698800 | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 177 | 6696454 | |||
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 178 | 6684714 | 2.15 | 2.60 | |
| Cover Bracket For Europe | ||||
| 179 | 6696494 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 180 | 6600447 | |||
| No information available, not orderable | ||||
| 181 | 6696980 | |||
| Guard Holder For Europe | ||||
| 182 | 6696951 | 3.33 | 4.02 | |
| No information available, not orderable | ||||
| 183 | 6696950 | |||
| Tapping Screw 4x14 | ||||
| 184 | 6684751 | 2.15 | 2.60 | |
| Knife For Irl | ||||
| 185 | 6684750 | 4.29 | 5.19 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 186 | 949236 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 6684764 | |||
| No information available, not orderable | ||||
| 502 | 6696596 | |||
| No information available, not orderable | ||||
| 503 | 944458 | |||
| No information available, not orderable | ||||
| 504 | 875769 | |||
| No information available, not orderable | ||||
| 505A | 6601420 | |||
