Here you will find all available parts and drawings of the 'Hikoki CG25EUP2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

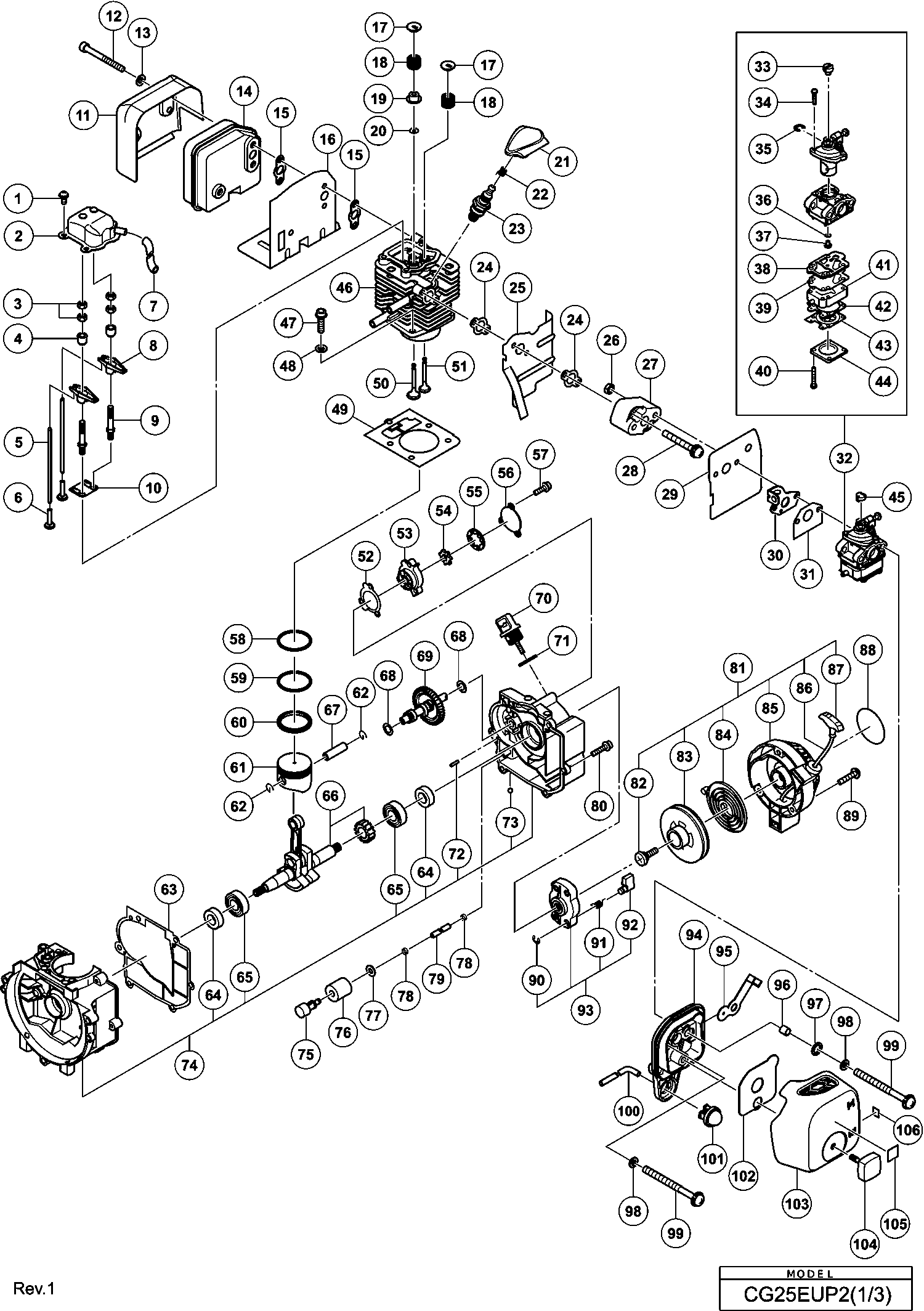

Technical drawing of model Hikoki CG25EUP2
Spare parts list of model Hikoki CG25EUP2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Machine Screw (w/sp. Washer) M4x10 | ||||
| 1 | 307635 | 1.05 | 1.27 | |
| Cylinder Head Cover | ||||
| 2 | 6696440 | 1.80 | 2.18 | |
| Lock Nut M5 (10 Pcs.) | ||||
| 3 | 949566 | 1.04 | 1.26 | |
| Pivot Rocker Arm | ||||
| 4 | 6696438 | 1.04 | 1.26 | |
| Push Rod | ||||
| 5 | 6696437 | 1.80 | 2.18 | |
| Tappet | ||||
| 6 | 6696432 | 3.75 | 4.54 | |
| Breather Pipe | ||||
| 7 | 6696442 | 41.25 | 49.91 | |
| No information available, not orderable | ||||
| 8 | 6696439 | |||
| Shaft Bolt | ||||
| 9 | 6696415 | 1.04 | 1.26 | |
| Push Rod Guide | ||||
| 10 | 6696414 | 1.04 | 1.26 | |
| Muffler Heat Cover | ||||
| 11 | 6600329 | 4.80 | 5.81 | |
| Hex. Socket Hd. Bolt M5 | ||||
| 12 | 6685409 | 1.05 | 1.27 | |
| Ring | ||||
| 13 | 6685408 | 1.05 | 1.27 | |
| Muffler | ||||
| 14 | 6696462 | 6.45 | 7.80 | |
| Muffler Gasket (a) | ||||
| 15 | 6696460 | 1.04 | 1.26 | |
| Wind Guide Plate (b) | ||||
| 16 | 6696461 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 17 | 6696421 | |||
| Valve Spring | ||||
| 18 | 6696420 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 19 | 6696418 | |||
| No information available, not orderable | ||||
| 20 | 6696419 | |||
| No information available, not orderable | ||||
| 21 | 6696465 | |||
| No information available, not orderable | ||||
| 22 | 6696996 | |||
| Spark Plug Ass'y Cmr5h | ||||
| 23 | 6699310 | 17.40 | 21.05 | |
| No information available, not orderable | ||||
| 24 | 6696450 | |||
| Wind Guide Plate (a) | ||||
| 25 | 6696451 | 2.55 | 3.09 | |
| Lock Nut M5 (10 Pcs.) | ||||
| 26 | 949566 | 1.04 | 1.26 | |
| Insulator | ||||
| 27 | 6696452 | 3.45 | 4.17 | |
| Machine Screw (w/washers) M5x30 | ||||
| 28 | 880561 | 1.05 | 1.27 | |
| Carburetor Gasket | ||||
| 29 | 6696954 | 1.05 | 1.27 | |
| Throttle Wire Fixing Plate | ||||
| 30 | 6684629 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 31 | 6696956 | |||
| Carburetor Includ.33-44 | ||||
| 32 | 6696957 | 76.04 | 92.01 | |
| No longer available, no replacement | ||||
| 45 | 6691337 | |||
| Cylinder (a) | ||||
| 46 | 6696413 | 66.96 | 81.02 | |
| Hex. Socket Bolt M5x20 | ||||
| 47 | 6696958 | 2.10 | 2.54 | |
| Ring | ||||
| 48 | 6685408 | 1.05 | 1.27 | |
| Cylinder Gasket | ||||
| 49 | 6696436 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 50 | 6696417 | |||
| No information available, not orderable | ||||
| 51 | 6696416 | |||
| Pump Gasket | ||||
| 52 | 6696444 | 1.04 | 1.26 | |
| Base Pump | ||||
| 53 | 6696443 | 4.05 | 4.90 | |
| Inner Rotor | ||||
| 54 | 6696445 | 1.80 | 2.18 | |
| Outer Rotor | ||||
| 55 | 6696446 | 1.80 | 2.18 | |
| Cover Pump | ||||
| 56 | 6696447 | 1.04 | 1.26 | |
| Hex. Hole Bolt 4x15/ps | ||||
| 57 | 6684682 | 2.15 | 2.60 | |
| First ring | ||||
| 58 | 6696429 | 8.85 | 10.71 | |
| 2nd Ring | ||||
| 59 | 6696430 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 60 | 6696431 | |||
| Piston | ||||
| 61 | 6696427 | 7.65 | 9.26 | |
| Cir Clip | ||||
| 62 | 6684590 | 2.15 | 2.60 | |
| Crank Case Gasket | ||||
| 63 | 6696425 | 1.04 | 1.26 | |
| Oil Seal | ||||
| 64 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 65 | 6684608 | 3.80 | 4.60 | |
| Crank Shaft | ||||
| 66 | 6696426 | 51.29 | 62.06 | |
| Piston Pin | ||||
| 67 | 6684591 | 4.29 | 5.19 | |
| Shim | ||||
| 68 | 6696434 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 69 | 6696433 | |||
| Oil Cap | ||||
| 70 | 6696449 | 1.04 | 1.26 | |
| O-ring (i.d 13.8) | ||||
| 71 | 6696959 | 1.05 | 1.27 | |
| Needle Roller D3 | ||||
| 72 | 6685391 | 1.05 | 1.27 | |
| Steel Ball D4 (10 Pcs.) | ||||
| 73 | 321905 | 4.80 | 5.81 | |
| Crank Case Ass'y (b) Includ.64,65,72,73 | ||||
| 74 | 6696960 | 66.55 | 80.53 | |
| Oil Filter Body | ||||
| 75 | 6685310 | 1.05 | 1.27 | |
| Oil Filter | ||||
| 76 | 6690919 | 1.15 | 1.39 | |
| Ring | ||||
| 77 | 6685407 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 78 | 6685311 | |||
| Fuel Pipe | ||||
| 79 | 6696435 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt (w/washers) M4x18 | ||||
| 80 | 6698388 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 81 | 6696470 | |||
| Rope Till 7.2014 | ||||
| 86 | 6693168 | 2.31 | 2.80 | |
| Seal Lock Screw M4 | ||||
| 89 | 6696472 | 1.04 | 1.26 | |
| Starter Pulley Ass'y Till 7.2014 | ||||
| 93 | 6696471 | 5.10 | 6.17 | |
| Cleaner Body | ||||
| 94 | 6696455 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 95 | 6697368 | |||
| Collar 8 | ||||
| 96 | 6684659 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 97 | 6684658 | |||
| Ring | ||||
| 98 | 6685407 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 99 | 6696961 | |||
| Fuel Pipe L70 | ||||
| 100 | 6699014 | 1.65 | 2.00 | |
| Priming Pump Comp. | ||||
| 101 | 6685139 | 5.94 | 7.18 | |
| No longer available, no replacement | ||||
| 102 | 6696459 | |||
| Cleaner Cover | ||||
| 103 | 6696458 | 2.55 | 3.09 | |
| Bolt | ||||
| 104 | 6684655 | 6.44 | 7.79 | |
| Primer Label Since 11.2013 For Europe | ||||
| 105 | 6699000 | 1.04 | 1.26 | |
| Mark Plate (t) Since 11.2013 For Europe | ||||
| 106 | 6600327 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 121 | 6699176 | |||
| No information available, not orderable | ||||
| 122 | 305583 | |||
| Anti Vibe Rubber (a) | ||||
| 123 | 6696963 | 3.33 | 4.02 | |
| Pipe Holder (a) | ||||
| 124 | 6698643 | 2.10 | 2.54 | |
| Pipe Holder (b) | ||||
| 125 | 6698644 | 2.10 | 2.54 | |
| Anti Vibe Rubber (b) | ||||
| 126 | 6696964 | 3.33 | 4.02 | |
| Tapping Screw D4.5x16 | ||||
| 128 | 6698878 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 129 | 6600421 | |||
| No information available, not orderable | ||||
| 131 | 6696469 | |||
| Ring | ||||
| 132 | 6684648 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 133 | 6696965 | |||
| No information available, not orderable | ||||
| 134 | 6696948 | |||
| No information available, not orderable | ||||
| 135 | 6684642 | |||
| Nut | ||||
| 136 | 6685337 | 1.05 | 1.27 | |
| Ring | ||||
| 137 | 6685410 | 1.05 | 1.27 | |
| Magnet Rotor | ||||
| 138 | 6696464 | 14.40 | 17.42 | |
| Hex. Socket Hd. Bolt (w/washers) M4x18 | ||||
| 139 | 6698388 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 140 | 6696463 | |||
| Stop Cord | ||||
| 141 | 6696467 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 142 | 6696966 | |||
| No information available, not orderable | ||||
| 143 | 6696466 | |||
| Spring Washer D12 (10 pieces) | ||||
| 144 | 939542 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 146 | 305583 | |||
| Ring | ||||
| 147 | 6685408 | 1.05 | 1.27 | |
| Fan Case (a) W/aluminum Tape | ||||
| 148 | 6600330 | 14.71 | 17.80 | |
| Clutch Shaft | ||||
| 149 | 6698793 | 10.20 | 12.34 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 150 | 305812 | 1.04 | 1.26 | |
| Handle (b) | ||||
| 151 | 6696487 | 3.45 | 4.17 | |
| Lock Lever | ||||
| 152 | 6696490 | 1.04 | 1.26 | |
| Lever (1) | ||||
| 153 | 6696488 | 1.04 | 1.26 | |
| Spring (a) | ||||
| 154 | 6696489 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 155 | 6696486 | |||
| No longer available, no replacement | ||||
| 156A | 6601275 | |||
| Stop Switch Cord | ||||
| 157 | 6696491 | 1.80 | 2.18 | |
| Protection Tube | ||||
| 158 | 6696967 | 1.05 | 1.27 | |
| Throttle Wire (eu) For (l) | ||||
| 159 | 6696492 | 6.45 | 7.80 | |
| No longer available, no replacement | ||||
| 160 | 6696474 | |||
| Pump Filter Body | ||||
| 161 | 6685199 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 162 | 6696477 | |||
| Collar | ||||
| 163 | 6696478 | 1.04 | 1.26 | |
| Ring | ||||
| 164 | 6685408 | 1.05 | 1.27 | |
| Hex. Hole Bolt M5x25/s | ||||
| 165 | 6684709 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 166 | 6685311 | |||
| No longer available, no replacement | ||||
| 167 | 6698717 | |||
| Fuel Pipe L70 | ||||
| 168A | 6699014 | 1.65 | 2.00 | |
| Return Grommet Till 7.2014 | ||||
| 169 | 6697846 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 170 | 6698931 | |||
| No information available, not orderable | ||||
| 171 | 6696479 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 191 | 302086 | 1.05 | 1.27 | |
| Tapping Screw (w/Flange) D4x30 for Europe (s) | ||||
| 192 | 323837 | 1.68 | 2.03 | |
| Handle (b) For Europe (s) | ||||
| 193 | 6696590 | 3.13 | 3.78 | |
| Machine Screw M5x30 (black) | ||||
| 194 | 323041 | 1.05 | 1.27 | |
| Stop Switch Cord For (s) | ||||
| 195 | 6696592 | 2.10 | 2.54 | |
| Throttle Wire Comp. | ||||
| 196 | 6696593 | 5.10 | 6.17 | |
| Protection Tube For (s) | ||||
| 197 | 6696594 | 2.10 | 2.54 | |
| Handle Right For Europe (s) | ||||
| 198 | 6698637 | 19.11 | 23.13 | |
| Handle Holder (b) Since 7.2015 For (s) | ||||
| 199 | 6600501 | 7.20 | 8.71 | |
| Handle Holder (c) For (s) | ||||
| 200 | 6696578 | 2.10 | 2.54 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 201 | 6684714 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x25/s | ||||
| 202 | 6684709 | 2.15 | 2.60 | |
| Handle Holder (a) Since 7.2015 For (s) | ||||
| 203 | 6600500 | 4.20 | 5.08 | |
| Handle (a) For Europe (s) | ||||
| 204 | 6696588 | 2.10 | 2.54 | |
| Nut M5 (black) | ||||
| 205 | 302012 | 1.05 | 1.27 | |
| Handle (left) For (s) | ||||
| 206 | 6698638 | 22.83 | 27.62 | |
| Barrier | ||||
| 207 | 6696973 | 3.33 | 4.02 | |
| Bolt (black) M6 | ||||
| 208 | 6696974 | 1.68 | 2.03 | |
| Lock Nut M5 (10 Pcs.) | ||||
| 209 | 949566 | 1.04 | 1.26 | |
| Tpe (sl),kor (sl) | ||||
| 210 | 6696975 | 8.98 | 10.86 | |
| Gear Cover | ||||
| 211 | 6699402 | 50.33 | 60.89 | |
| Bolt (w/plus) M6x8 | ||||
| 212 | 6684737 | 2.15 | 2.60 | |
| Cutter Holder (a) | ||||
| 213 | 6696977 | 13.33 | 16.12 | |
| Cutter Holder (b) For Europe | ||||
| 214 | 6698659 | 13.04 | 15.78 | |
| NUT COVER | ||||
| 215 | 6699188 | 6.60 | 7.99 | |
| U-nut (left Hand) M10 For Irl | ||||
| 216 | 335759 | 1.04 | 1.26 | |
| Screw 5x12/w.s | ||||
| 217 | 6695414 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 (10 Pcs.) | ||||
| 218 | 949664 | 3.75 | 4.54 | |
| Cover Bracket For Europe | ||||
| 219 | 6696494 | 1.80 | 2.18 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 220 | 6684714 | 2.15 | 2.60 | |
| Caution Label (hedge) For Europe | ||||
| 221 | 6600328 | 1.04 | 1.26 | |
| Caution Mark | ||||
| 222 | 6600450 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 223 | 6600446 | |||
| Level Mark | ||||
| 224 | 6684851 | 2.15 | 2.60 | |
| Main Pipe Comp. | ||||
| 225 | 6696558 | 17.69 | 21.40 | |
| Drive Shaft | ||||
| 226 | 6698514 | 15.60 | 18.88 | |
| Hanger For Irl | ||||
| 227A | 6600504 | 1.20 | 1.45 | |
| Cap (a) | ||||
| 228 | 6698515 | 2.10 | 2.54 | |
| Cover | ||||
| 229 | 6698794 | 9.30 | 11.25 | |
| Set Screw | ||||
| 231 | 6698795 | 1.35 | 1.63 | |
| Reel | ||||
| 232 | 6698796 | 2.40 | 2.90 | |
| Return Spring | ||||
| 233 | 6698797 | 1.05 | 1.27 | |
| Button (1) | ||||
| 234 | 6698798 | 1.20 | 1.45 | |
| Cord Guide | ||||
| 235 | 6698799 | 1.20 | 1.45 | |
| Case | ||||
| 236 | 6698800 | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 237 | 6696454 | |||
| No information available, not orderable | ||||
| 238 | 6696950 | |||
| Tapping Screw 4x14 | ||||
| 239 | 6684751 | 2.15 | 2.60 | |
| Knife For Irl | ||||
| 240 | 6684750 | 4.29 | 5.19 | |
| Guard Holder For Europe | ||||
| 241 | 6696951 | 3.33 | 4.02 | |
| No information available, not orderable | ||||
| 242 | 6696980 | |||
| Handle Holder (a).(b) Set Includ.155a,158a Till 6 | ||||
| 243 | 6600499 | 10.65 | 12.89 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 244 | 949236 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 6696457 | |||
| No information available, not orderable | ||||
| 502 | 6696596 | |||
| No information available, not orderable | ||||
| 503 | 944458 | |||
| Cutter Cover For (s) | ||||
| 504A | 6684768 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 505 | 875769 | |||
| No information available, not orderable | ||||
| 506A | 6601420 | |||
| No information available, not orderable | ||||
| 507 | 6698711 | |||
