Here you will find all available parts and drawings of the 'Hikoki CG24EKS'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

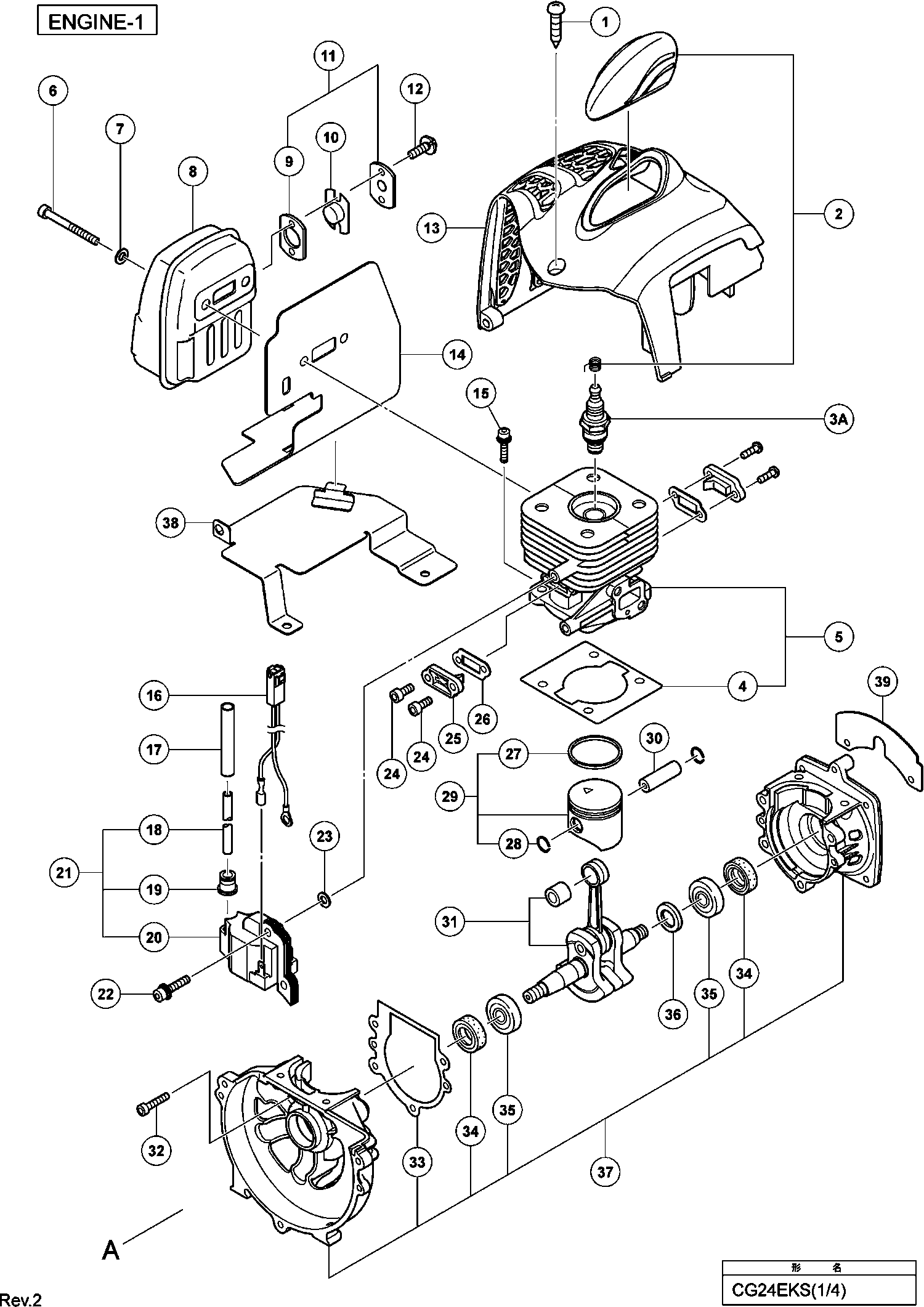

Technical drawing of model Hikoki CG24EKS

Spare parts list of model Hikoki CG24EKS

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Tapping Screw D4.5x12
1 6684637 2.15 2.60
Spark Plug Cap Ass'y
2 6684583 9.40 11.37
Spark Plug Ass'y Bmr7a
3A 6699316 8.91 10.78
Cylinder Gasket
4 6684587 2.15 2.60
Cylinder Set Includ.4
5 6684585 66.10 79.98
Hex. Hole Bolt M6x55
6 6684638 2.15 2.60
Ring
7 6684639 2.15 2.60
Muffler Comp.
8 6684640 29.95 36.24
Muffler Special Gasket For Aus (sl,s),nzl (sl,s)
9 6684650 2.15 2.60
Spark Arrestor For Aus (sl,s),nzl (sl,s)
10 6684652 4.29 5.19
No information available, not orderable
11 6684843
Screw M4x8/ws
12 6684651 2.15 2.60
Muffler Protector
13 6684635 12.38 14.97
Heat Shield
14 6684641 8.58 10.38
Hex.hole Bolt M5x18/s
15 6684586 2.15 2.60
No information available, not orderable
16 6684603
Insulator Tube 50l
17 6684597 2.15 2.60
High Tension Cord
18 6684596 4.29 5.19
Rubber Cap
19 6684602 2.15 2.60
Hex. Hole Bolt M4x18/ws Till H124040
22 6684599 2.15 2.60
Washer T1.6
23 6684600 2.15 2.60
Hex. Socket Hd. Bolt (w/sp.washer) M4x12
24 6684595 2.15 2.60
Intake Cover
25 6684594 2.15 2.60
Cover Packing
26 6684593 2.15 2.60
Piston Ring
27 6684588 8.58 10.38
Cir Clip
28 6684590 2.15 2.60
Piston Set Includ.27,28
29 6684589 34.19 41.37
Piston Pin
30 6684591 4.29 5.19
Crank Shaft
31 6684592 46.74 56.55
Hex.hole Bolt M5x18/s
32 6684586 2.15 2.60
Crank Case Gasket
33 6684609 2.15 2.60
Oil Seal
34 6684607 4.29 5.19
Ball Bearing 6001 C3
35 6684608 3.80 4.60
Gear Shaft Shim 0.20
36 6684604 2.15 2.60
Gear Shaft Shim 0.30
36 6684605 2.15 2.60
Crank Case Ass'y Includ.54-56,59
37 6684606 54.45 65.88
Heat Shield
38 6684844 8.58 10.38
Partition Plate
39 6684845 2.15 2.60
No information available, not orderable
51 6684668
Hex.hole Bolt M5x12/s
52 6684667 2.15 2.60
Anti-vibe Rubber (a)
53 6684666 4.29 5.19
Pipe Holder (a)
54A 6698643 2.10 2.54
Pipe Holder (b)
55A 6698644 2.10 2.54
Anti-vibe Rubber (b)
56 6684665 4.29 5.19
No information available, not orderable
57 6684846
Tapping Screw D4.5x16
58 6684636 2.15 2.60
Hex. Hole Bolt M5x18/ws
59 6684647 2.15 2.60
Fan Housing
60 6684669 25.16 30.45
Clutch Shaft
61A 6698793 10.20 12.34
Step Bolt
62 6684646 2.15 2.60
Ring
63 6684648 2.15 2.60
Clutch Plate A 0.5
64 6684645 2.15 2.60
Clutch Spring
65 6684644 2.15 2.60
Clutch Shoe Comp.
66 6684643 11.55 13.98
Ring
67 6684642 2.15 2.60
Hex. Nut M8
68 6684612 2.15 2.60
Bolt Washer M8
69 6684611 2.15 2.60
Stop Ring C-12 Outer
71 6684664 2.15 2.60
D4e Retaining Ring (old 993-55040-001)
81 6685101 1.15 1.39
Starter Pawl Spring
82 6684684 4.29 5.19
Starter Pawl
83 6684685 4.29 5.19
Starter Pulley Ass'y For (s) Type Since 7.2012 Fo
84 6684681 13.20 15.97
Set Screw (old 839-03045-20)
85 6684679 2.15 2.60
Cam Plate
86 6684678 6.44 7.79
Damper Spring For (s) Type Since 7.2012 For Aus
87 6684677 8.58 10.38
Recoil Spring Till 7.2014
89 6684675 11.55 13.98
Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo
90 6684674 4.29 5.19
Recoil Starter Body Comp. For (s) Type Since 7.20
91 6684673 19.06 23.07
Hex. Hole Bolt 4x15/ps
92 6684682 2.15 2.60
Starter Handle
93 6684680 2.15 2.60
No information available, not orderable
111 6684720
Clamp B. (old 460-33111-20)
113 6684715 2.15 2.60
Drive Shaft Pipe Comp. 1500l Includ.148 For (sl)
116 6684702 69.88 84.55
Bushing For (sl) Type
117 6684703 4.29 5.19
Handle Bracket B
118 6684711 18.00 21.78
Handle Bracket A
119 6684710 13.20 15.97
Hex. Hole Bolt M5x25/s
120 6684709 2.15 2.60
Handle Grip
121 6684708 6.44 7.79
Handle Bracket Rubber
122 6684712 4.29 5.19
Handle Bracket C
123 6684713 12.38 14.97
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
124 6684714 2.15 2.60
Left Handle (old 502-37415-21)
125 6684716 29.19 35.32
Hanger
126 6684705 8.58 10.38
Hanger Collar
127 6684704 4.29 5.19
Hanger Fixing Bracket
128 6684706 6.44 7.79
Hex. Hole Bolt M5x25/s
129 6684709 2.15 2.60
Screw M4x20 (black)
130 6684725 2.15 2.60
Screw 5x30 (black)
131 6684726 2.15 2.60
Safety Lever (old 253-38400-20)
132 6684721 6.44 7.79
No information available, not orderable
133 6684730
Stop Button Comp. For (s) Type
134 6684728 28.14 34.05
Throttle Wire For (s) Type
135 6684729 15.58 18.85
Protection Tube 7x870l (old 164-07087-00)
136 6684717 6.44 7.79
Throttle Lever
137 6684723 10.23 12.37
Blind Plug
138 6684724 2.15 2.60
Return Spring
139 6684722 2.15 2.60
No information available, not orderable
140 6684727
No information available, not orderable
141 6684836
Hex.nut 6
142 6684835 2.15 2.60
Barrier(black) For Europe,aus,irl
145 6684837 9.40 11.37
Bolt 6x43/p (black)
146 6684838 2.15 2.60
Hanger
147 6684705 8.58 10.38
Bushing For (sl) Type
148 6684703 4.29 5.19
Drive Shaft Pipe Comp. 1500l Includ.148 For (sl)
149 6684702 69.88 84.55
Hanger Collar
150 6684704 4.29 5.19
Hanger Fixing Bracket
151 6684706 6.44 7.79
Hex. Hole Bolt M5x25/s
152 6684709 2.15 2.60
Throttle Lever Ass'y Includ.154-156,160-164 For (
153 6684790 66.10 79.98
Screw M5x20
154 6684803 2.15 2.60
Screw M4x20 (black)
155 6684725 2.15 2.60
Throttle Wire Comp.
156 6684797 46.74 56.55
Stop Button Comp. For (sl) Type
157 6684799 20.73 25.08
Throttle Wire 4t For (sl) Type
158 6684798 12.38 14.97
Protection Tube 7x185l For (sl) Type
159 6684800 2.15 2.60
Safety Lever (old 253-38400-20)
160 6684721 6.44 7.79
Throttle Lever
161 6684804 8.58 10.38
Blind Plug
162 6684724 2.15 2.60
Return Spring
163 6684722 2.15 2.60
No information available, not orderable
164 6684727
Level Mark
167 6684851 2.15 2.60
Level Mark
168 6684852 2.15 2.60
Level Mark
169 6684851 2.15 2.60
Gear Cover
181 6684731 128.11 155.02
No information available, not orderable
182 6684745
Protection Cover Since 5.2009
183 6684743 6.44 7.79
Cutter Holder Cap Since 5.2009
184 6684744 8.58 10.38
Cutter Holder Since 5.2009
185 6684742 25.71 31.11
Stop Ring C-28,inner
186 6684741 2.15 2.60
No information available, not orderable
187 6684740
Gear Shaft Since 5.2009
188 6684739 24.05 29.10
Gear Pinion Set Since 5.2009
189 6684752 33.43 40.44
Ball Bearing #608
190 6684738 8.58 10.38
Bolt (w/plus) M6x8
191 6684737 2.15 2.60
Hex.hole Bolt M5x30/ws
192 6684973 2.15 2.60
Hex.hole Bolt M5x12/s
193 6684667 2.15 2.60
Gear Case 24 Since 5.2009
194 6684736 42.80 51.79
Ball Bearing 609
195 6684734 8.58 10.38
Ball Bearing 609z St
196 6684735 8.58 10.38
Stop Ring 9 Since 5.2009
197 6684733 2.15 2.60
Stop Ring C-24,inner
198 6684732 2.15 2.60
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
199 6684714 2.15 2.60
Cover Bracket
200 6684746 4.29 5.19
Blade Guard 24 Ce Since D240051 For Europe,aus,ir
201 6684747 30.70 37.15
Guard Holder
202 6684748 4.29 5.19
Knife Since E047001
203 6684754 8.58 10.38
Tapping Screw 5x20 For Aus (sl)
204 6684753 2.15 2.60
Cover Guard Since D240051 For Europe,aus,irl
205 6684749 14.98 18.12
Tapping Screw 4x14
206 6684751 2.15 2.60
Knife For Irl
207 6684750 4.29 5.19
Insulator Gasket
221 6684613 2.15 2.60
Insulator Set Includ.221
222 6684840 10.23 12.37
Carburetor Packing
223 6684616 2.15 2.60
Throttle Wire Fixing Plate
224 6684629 4.29 5.19
Carburetor Gasket (old 402-0602K-21/6689836)
225 6684615 2.15 2.60
Carburetor Set Wyl-259 Includ.225,229-239,241-243
226 6684624 128.11 155.02
No information available, not orderable
227 6684628
Hex. Hole Bolt 5x25/ws
228 6684617 2.15 2.60
Swivel
229 6684697 6.44 7.79
Throttle Set Screw
230 6684698 4.29 5.19
Stop Ring
231 6684696 2.15 2.60
O-RING (old 550-25100-20)
232 6684695 4.29 5.19
No information available, not orderable
233 6684854
Pump Body Comp. Include.240
234 6684686 36.15 43.74
Metering Diaphragm
235 6684690 18.00 21.78
Priming Body
236 6684689 6.44 7.79
Diaphragm Cover
237 6684688 8.58 10.38
Pump Diaphragm
238 6684693 8.58 10.38
Pump Gasket
239 6684692 29.19 35.32
Inlet Screen
240 6684700 4.29 5.19
Diaphragm Gasket
241 6684691 8.58 10.38
Priming Pump Comp.
242 6684687 16.34 19.77
Set Screw
243 6684699 2.15 2.60
Cleaner Body Comp.
244 6684656 8.58 10.38
Choke Valve
245 6684657 4.29 5.19
No information available, not orderable
246 6684658
Collar 8
247 6684659 2.15 2.60
Cleaner Element
248 6684654 2.15 2.60
Cleaner Cover
249 6684653 6.44 7.79
Ring
250 6684661 2.15 2.60
S.washer 5
251 6684662 2.15 2.60
Screw M5x60
252 6684660 2.15 2.60
Bolt
253 6684655 6.44 7.79
No information available, not orderable
254 6684853
Tank (white)
271 6684621 19.06 23.07
Collar C
272 6684623 2.15 2.60
Shield Tube 3x5x180
273 6684618 4.29 5.19
Clip,6.3 Dia.
274 6684619 2.15 2.60
No information available, not orderable
275 6684620
Fuel Pipe 3x5x65
276 6684626 2.15 2.60
Return Grommet Till 7.2014
277A 6697846 1.04 1.26
Tank Cap Chain
278A 6698732 1.20 1.45
No longer available, no replacement
279A 6698402
Ring
280 6684632 2.15 2.60
Ring
281 6684633 2.15 2.60
No information available, not orderable
282 6684631
Stand
283 6684630 6.44 7.79
Hex. Hole Bolt 5x25/ws
284 6684617 2.15 2.60
Hex.hole Bolt 5x20/ps
285 6684634 2.15 2.60
No longer available, no replacement
287 6698931
Spool Till Tl060520
302 6684760 15.58 18.85
Eyelet Till Tl060520
303 6684762 4.29 5.19
Cutting Body Cap Till Tl060520
304 6684761 36.15 43.74
Mounting Nut L-m10x1.25 Till Tl060520
305 6684756 9.08 10.98
Cutting Body Till Tl060520
306 6684757 22.69 27.45
Special Nut Till Tl060520
307 6684758 9.40 11.37
Reel Spring Till Tl060520
308 6684759 4.29 5.19
No information available, not orderable
309 6684755
Winding Protector Till Tl043660
310 6684763 4.29 5.19
No information available, not orderable
501 6684764
No information available, not orderable
502A 875769
No information available, not orderable
503 6684766
No information available, not orderable
504 6684767
Cutter Cover For (s)
505B 6684768 2.15 2.60
No information available, not orderable
506 6684813
No information available, not orderable
507 6684855
