Here you will find all available parts and drawings of the 'Hikoki CG24EKB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

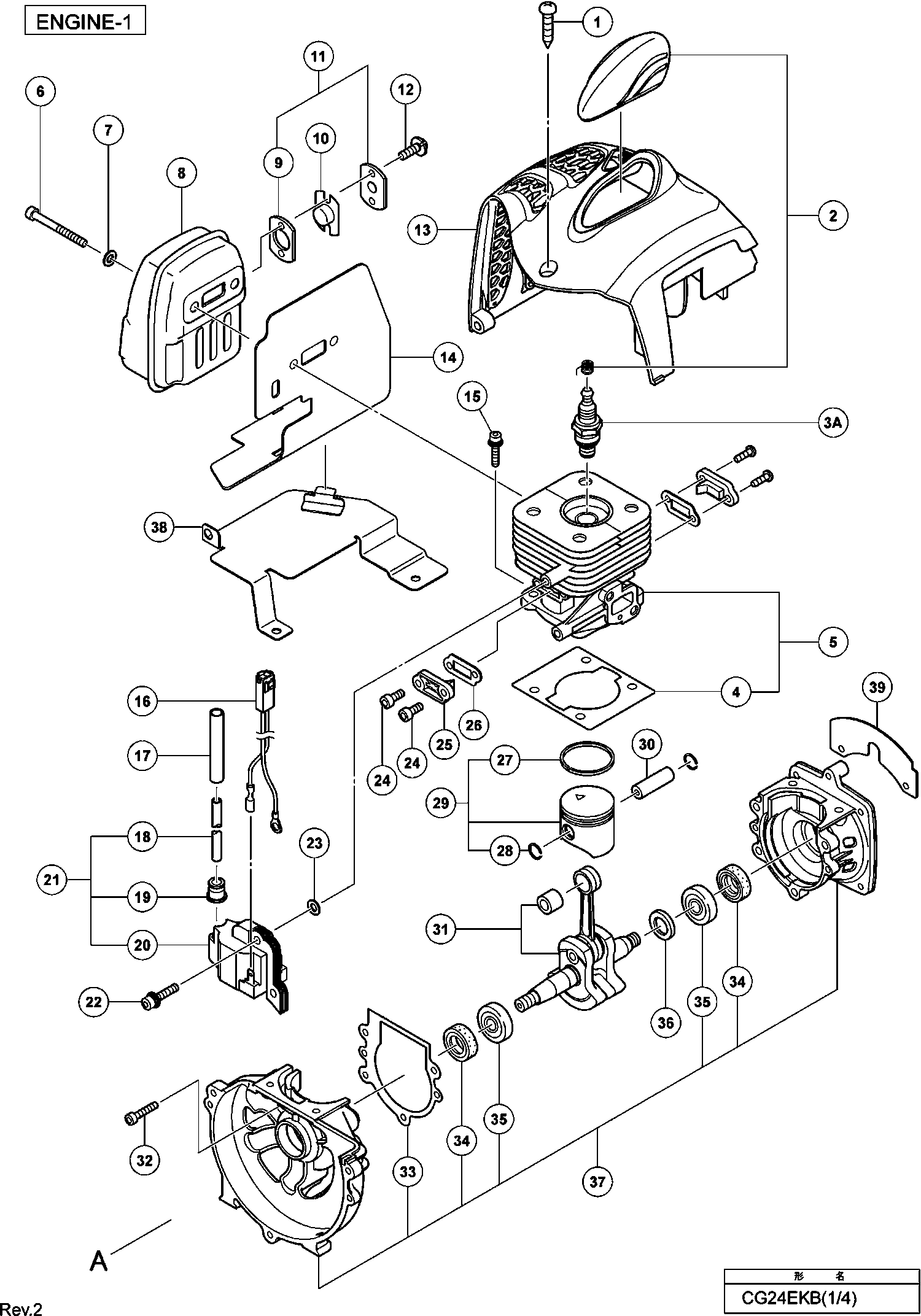

Technical drawing of model Hikoki CG24EKB
Spare parts list of model Hikoki CG24EKB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw D4.5x12 | ||||
| 1 | 6684637 | 2.15 | 2.60 | |
| Spark Plug Cap Ass'y | ||||
| 2 | 6684583 | 9.40 | 11.37 | |
| Spark Plug Ass'y Bmr7a | ||||
| 3A | 6699316 | 8.91 | 10.78 | |
| Cylinder Gasket | ||||
| 4 | 6684587 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 5 | 6684585 | |||
| Hex. Hole Bolt M6x55 | ||||
| 6 | 6684638 | 2.15 | 2.60 | |
| Ring | ||||
| 7 | 6684639 | 2.15 | 2.60 | |
| Muffler Comp. | ||||
| 8 | 6684640 | 29.95 | 36.24 | |
| Muffler Special Gasket For Aus (sl,s),nzl (sl,s) | ||||
| 9 | 6684650 | 2.15 | 2.60 | |
| Spark Arrestor For Aus (sl,s),nzl (sl,s) | ||||
| 10 | 6684652 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 11 | 6684843 | |||
| Screw M4x8/ws | ||||
| 12 | 6684651 | 2.15 | 2.60 | |
| Muffler Protector | ||||
| 13 | 6684635 | 12.38 | 14.97 | |
| Heat Shield | ||||
| 14 | 6684641 | 8.58 | 10.38 | |
| Hex.hole Bolt M5x18/s | ||||
| 15 | 6684586 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 16 | 6684603 | |||
| Insulator Tube 50l | ||||
| 17 | 6684597 | 2.15 | 2.60 | |
| High Tension Cord | ||||
| 18 | 6684596 | 4.29 | 5.19 | |
| Rubber Cap | ||||
| 19 | 6684602 | 2.15 | 2.60 | |
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 22 | 6684599 | 2.15 | 2.60 | |
| Washer T1.6 | ||||
| 23 | 6684600 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M4x12 | ||||
| 24 | 6684595 | 2.15 | 2.60 | |
| Intake Cover | ||||
| 25 | 6684594 | 2.15 | 2.60 | |
| Cover Packing | ||||
| 26 | 6684593 | 2.15 | 2.60 | |
| Piston Ring | ||||
| 27 | 6684588 | 8.58 | 10.38 | |
| Cir Clip | ||||
| 28 | 6684590 | 2.15 | 2.60 | |
| Piston Set Includ.27,28 | ||||
| 29 | 6684589 | 34.19 | 41.37 | |
| Piston Pin | ||||
| 30 | 6684591 | 4.29 | 5.19 | |
| Crank Shaft | ||||
| 31 | 6684592 | 46.74 | 56.55 | |
| Hex.hole Bolt M5x18/s | ||||
| 32 | 6684586 | 2.15 | 2.60 | |
| Crank Case Gasket | ||||
| 33 | 6684609 | 2.15 | 2.60 | |
| Oil Seal | ||||
| 34 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 35 | 6684608 | 3.80 | 4.60 | |
| Gear Shaft Shim 0.20 | ||||
| 36 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 36 | 6684605 | 2.15 | 2.60 | |
| Crank Case Ass'y Includ.54-56,59 | ||||
| 37 | 6684606 | 54.45 | 65.88 | |
| Heat Shield | ||||
| 38 | 6684844 | 8.58 | 10.38 | |
| Partition Plate | ||||
| 39 | 6684845 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 51 | 6684668 | |||
| Hex.hole Bolt M5x12/s | ||||
| 52 | 6684667 | 2.15 | 2.60 | |
| Anti-vibe Rubber (a) | ||||
| 53 | 6684666 | 4.29 | 5.19 | |
| Pipe Holder (a) | ||||
| 54A | 6698643 | 2.10 | 2.54 | |
| Pipe Holder (b) | ||||
| 55A | 6698644 | 2.10 | 2.54 | |
| Anti-vibe Rubber (b) | ||||
| 56 | 6684665 | 4.29 | 5.19 | |
| SYMBOL MARK HITACHI (OLD 929-52211-20) | ||||
| 57 | 6684846 | 4.02 | 4.86 | |
| Tapping Screw D4.5x16 | ||||
| 58 | 6684636 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x18/ws | ||||
| 59 | 6684647 | 2.15 | 2.60 | |
| Fan Housing | ||||
| 60 | 6684669 | 25.16 | 30.45 | |
| Clutch Shaft Comp. | ||||
| 61 | 6684949 | 11.23 | 13.58 | |
| Step Bolt | ||||
| 62 | 6684646 | 2.15 | 2.60 | |
| Ring | ||||
| 63 | 6684648 | 2.15 | 2.60 | |
| Clutch Plate A 0.5 | ||||
| 64 | 6684645 | 2.15 | 2.60 | |
| Clutch Spring | ||||
| 65 | 6684644 | 2.15 | 2.60 | |
| Clutch Shoe Comp. | ||||
| 66 | 6684643 | 11.55 | 13.98 | |
| No information available, not orderable | ||||
| 67 | 6684642 | |||
| Hex. Nut M8 | ||||
| 68 | 6684612 | 2.15 | 2.60 | |
| Bolt Washer M8 | ||||
| 69 | 6684611 | 2.15 | 2.60 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 81 | 6685101 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 82 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl | ||||
| 83 | 6684685 | 4.29 | 5.19 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 84 | 6684681 | 13.20 | 15.97 | |
| Set Screw (old 839-03045-20) | ||||
| 85 | 6684679 | 2.15 | 2.60 | |
| Cam Plate | ||||
| 86 | 6684678 | 6.44 | 7.79 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 87 | 6684677 | 8.58 | 10.38 | |
| Recoil Spring Till 7.2014 | ||||
| 89 | 6684675 | 11.55 | 13.98 | |
| Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo | ||||
| 90 | 6684674 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 91 | 6684673 | |||
| Hex. Hole Bolt 4x15/ps | ||||
| 92 | 6684682 | 2.15 | 2.60 | |
| Starter Handle | ||||
| 93 | 6684680 | 2.15 | 2.60 | |
| Main Pipe Set Includ.112-114,130 | ||||
| 111 | 6684769 | 93.18 | 112.74 | |
| Flexible Shaft | ||||
| 112 | 6684773 | 24.95 | 30.19 | |
| Flexible Liner | ||||
| 113 | 6684772 | 16.34 | 19.77 | |
| No information available, not orderable | ||||
| 114 | 6684771 | |||
| No information available, not orderable | ||||
| 115 | 6684792 | |||
| Loop Handle | ||||
| 116 | 6684791 | 12.38 | 14.97 | |
| No information available, not orderable | ||||
| 117 | 6684794 | |||
| Screw M5x20 | ||||
| 118 | 6684803 | 2.15 | 2.60 | |
| Screw M4x20 (black) | ||||
| 119 | 6684725 | 2.15 | 2.60 | |
| Throttle Wire Comp. | ||||
| 120 | 6684797 | 46.74 | 56.55 | |
| Stop Button Comp. For (sl) Type | ||||
| 121 | 6684799 | 20.73 | 25.08 | |
| Throttle Wire 4t For (sl) Type | ||||
| 122 | 6684798 | 12.38 | 14.97 | |
| Protection Tube 7x185l For (sl) Type | ||||
| 123 | 6684800 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 124 | 6684721 | |||
| Throttle Lever | ||||
| 125 | 6684804 | 8.58 | 10.38 | |
| Blind Plug | ||||
| 126 | 6684724 | 2.15 | 2.60 | |
| Return Spring | ||||
| 127 | 6684722 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 128 | 6684727 | |||
| Throttle Lever Ass'y Includ.154-156,160-164 For ( | ||||
| 129 | 6684790 | 66.10 | 79.98 | |
| Spacer | ||||
| 130 | 6684789 | 2.15 | 2.60 | |
| Holder Pipe | ||||
| 131 | 6684788 | 4.29 | 5.19 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 132 | 6684786 | 2.15 | 2.60 | |
| Cover Bracket22 Since D085851 | ||||
| 133 | 6684784 | 8.58 | 10.38 | |
| Cutter Case Ass'y | ||||
| 135 | 6684770 | 50.51 | 61.12 | |
| Cutter Shaft | ||||
| 136 | 6684774 | 14.19 | 17.17 | |
| No information available, not orderable | ||||
| 137 | 6684775 | |||
| No information available, not orderable | ||||
| 138 | 6684776 | |||
| Stop Ring R-22,inner | ||||
| 139 | 6684781 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 140 | 6684779 | |||
| Cutter Case | ||||
| 141 | 6684778 | 12.38 | 14.97 | |
| Machine Screw M5x10 | ||||
| 142 | 6684777 | 2.15 | 2.60 | |
| Special Nut | ||||
| 143 | 6684780 | 4.29 | 5.19 | |
| Cutter Holder | ||||
| 144 | 6684782 | 4.29 | 5.19 | |
| Knife Since E047001 | ||||
| 145 | 6684754 | 8.58 | 10.38 | |
| Tapping Screw 5x20 For Aus (sl) | ||||
| 146 | 6684753 | 2.15 | 2.60 | |
| Guard Holder Since D085851 | ||||
| 147 | 6684785 | 4.29 | 5.19 | |
| Guard Since D085851 | ||||
| 148 | 6684783 | 20.73 | 25.08 | |
| Handle Bracket (a) | ||||
| 149 | 6684793 | 4.29 | 5.19 | |
| Ring | ||||
| 150 | 6684639 | 2.15 | 2.60 | |
| Plus Bolt 6x40 For Aus | ||||
| 151 | 6684795 | 1.95 | 2.36 | |
| Level Mark | ||||
| 153 | 6684852 | 2.15 | 2.60 | |
| Level Mark | ||||
| 154 | 6684851 | 2.15 | 2.60 | |
| Nut M5 | ||||
| 155 | 6684965 | 1.04 | 1.26 | |
| Hanger For Aus | ||||
| 156 | 6684966 | 1.65 | 2.00 | |
| Screw | ||||
| 157 | 6684967 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 158 | 6684968 | |||
| Flange | ||||
| 159 | 6684969 | 2.15 | 2.60 | |
| Bolt Washer M8 | ||||
| 160 | 6684611 | 2.15 | 2.60 | |
| Ring | ||||
| 161 | 6684971 | 1.04 | 1.26 | |
| Hex. Nut M8 | ||||
| 162 | 6684612 | 2.15 | 2.60 | |
| Insulator Gasket | ||||
| 221 | 6684613 | 2.15 | 2.60 | |
| Insulator Set Includ.221 | ||||
| 222 | 6684840 | 10.23 | 12.37 | |
| Carburetor Packing | ||||
| 223 | 6684616 | 2.15 | 2.60 | |
| Throttle Wire Fixing Plate | ||||
| 224 | 6684629 | 4.29 | 5.19 | |
| Carburetor Gasket (old 402-0602K-21/6689836) | ||||
| 225 | 6684615 | 2.15 | 2.60 | |
| Carburetor Set Wyl-259 Includ.225,229-239,241-243 | ||||
| 226 | 6684624 | 128.11 | 155.02 | |
| No information available, not orderable | ||||
| 227 | 6684628 | |||
| Hex. Hole Bolt 5x25/ws | ||||
| 228 | 6684617 | 2.15 | 2.60 | |
| Swivel | ||||
| 229 | 6684697 | 6.44 | 7.79 | |
| Throttle Set Screw | ||||
| 230 | 6684698 | 4.29 | 5.19 | |
| Stop Ring | ||||
| 231 | 6684696 | 2.15 | 2.60 | |
| O-RING (old 550-25100-20) | ||||
| 232 | 6684695 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 233 | 6684854 | |||
| Pump Body Comp. Include.240 | ||||
| 234 | 6684686 | 36.15 | 43.74 | |
| No longer available, no replacement | ||||
| 235 | 6684690 | |||
| Priming Body | ||||
| 236 | 6684689 | 6.44 | 7.79 | |
| Diaphragm Cover | ||||
| 237 | 6684688 | 8.58 | 10.38 | |
| Pump Diaphragm | ||||
| 238 | 6684693 | 8.58 | 10.38 | |
| Pump Gasket | ||||
| 239 | 6684692 | 29.19 | 35.32 | |
| Inlet Screen | ||||
| 240 | 6684700 | 4.29 | 5.19 | |
| Diaphragm Gasket | ||||
| 241 | 6684691 | 8.58 | 10.38 | |
| Priming Pump Comp. | ||||
| 242 | 6684687 | 16.34 | 19.77 | |
| Set Screw | ||||
| 243 | 6684699 | 2.15 | 2.60 | |
| Cleaner Body Comp. | ||||
| 244 | 6684656 | 8.58 | 10.38 | |
| Choke Valve | ||||
| 245 | 6684657 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 246 | 6684658 | |||
| Collar 8 | ||||
| 247 | 6684659 | 2.15 | 2.60 | |
| Cleaner Element | ||||
| 248 | 6684654 | 2.15 | 2.60 | |
| Cleaner Cover | ||||
| 249 | 6684653 | 6.44 | 7.79 | |
| Ring | ||||
| 250 | 6684661 | 2.15 | 2.60 | |
| S.washer 5 | ||||
| 251 | 6684662 | 2.15 | 2.60 | |
| Screw M5x60 | ||||
| 252 | 6684660 | 2.15 | 2.60 | |
| Bolt | ||||
| 253 | 6684655 | 6.44 | 7.79 | |
| No information available, not orderable | ||||
| 254 | 6684853 | |||
| Tank (white) | ||||
| 271 | 6684621 | 19.06 | 23.07 | |
| Collar C | ||||
| 272 | 6684623 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 273 | 6684618 | |||
| Clip,6.3 Dia. | ||||
| 274 | 6684619 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 275 | 6684620 | |||
| No longer available, no replacement | ||||
| 276 | 6684626 | |||
| Return Grommet Till 7.2014 | ||||
| 277A | 6697846 | 1.04 | 1.26 | |
| Tank Cap Chain | ||||
| 278A | 6698732 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 279A | 6698402 | |||
| Ring | ||||
| 280 | 6684632 | 2.15 | 2.60 | |
| Ring | ||||
| 281 | 6684633 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 282 | 6684631 | |||
| Stand | ||||
| 283 | 6684630 | 6.44 | 7.79 | |
| Hex. Hole Bolt 5x25/ws | ||||
| 284 | 6684617 | 2.15 | 2.60 | |
| Hex.hole Bolt 5x20/ps | ||||
| 285 | 6684634 | 2.15 | 2.60 | |
| Cutting Body For Europe | ||||
| 301 | 6684807 | 18.75 | 22.69 | |
| Reel Spring For Europe | ||||
| 302 | 6684809 | 6.44 | 7.79 | |
| Eyelet Since Tl060521 | ||||
| 303 | 6684810 | 2.15 | 2.60 | |
| Spool For Europe | ||||
| 304 | 6684811 | 12.38 | 14.97 | |
| Ring | ||||
| 306 | 6684806 | 4.29 | 5.19 | |
| Mounting Nut M8x1.25f For Europe | ||||
| 307 | 6684808 | 9.40 | 11.37 | |
| Nylon Cord Cap For Europe | ||||
| 308 | 6684812 | 12.38 | 14.97 | |
| No information available, not orderable | ||||
| 309 | 6684805 | |||
| Combi Box Spanner 13x19 Plus | ||||
| 501 | 6684979 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 502A | 875769 | |||
| No information available, not orderable | ||||
| 503 | 6684766 | |||
| No information available, not orderable | ||||
| 506 | 6684813 | |||
| No information available, not orderable | ||||
| 507 | 6684855 | |||
