Here you will find all available parts and drawings of the 'Hikoki CG24EASP'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

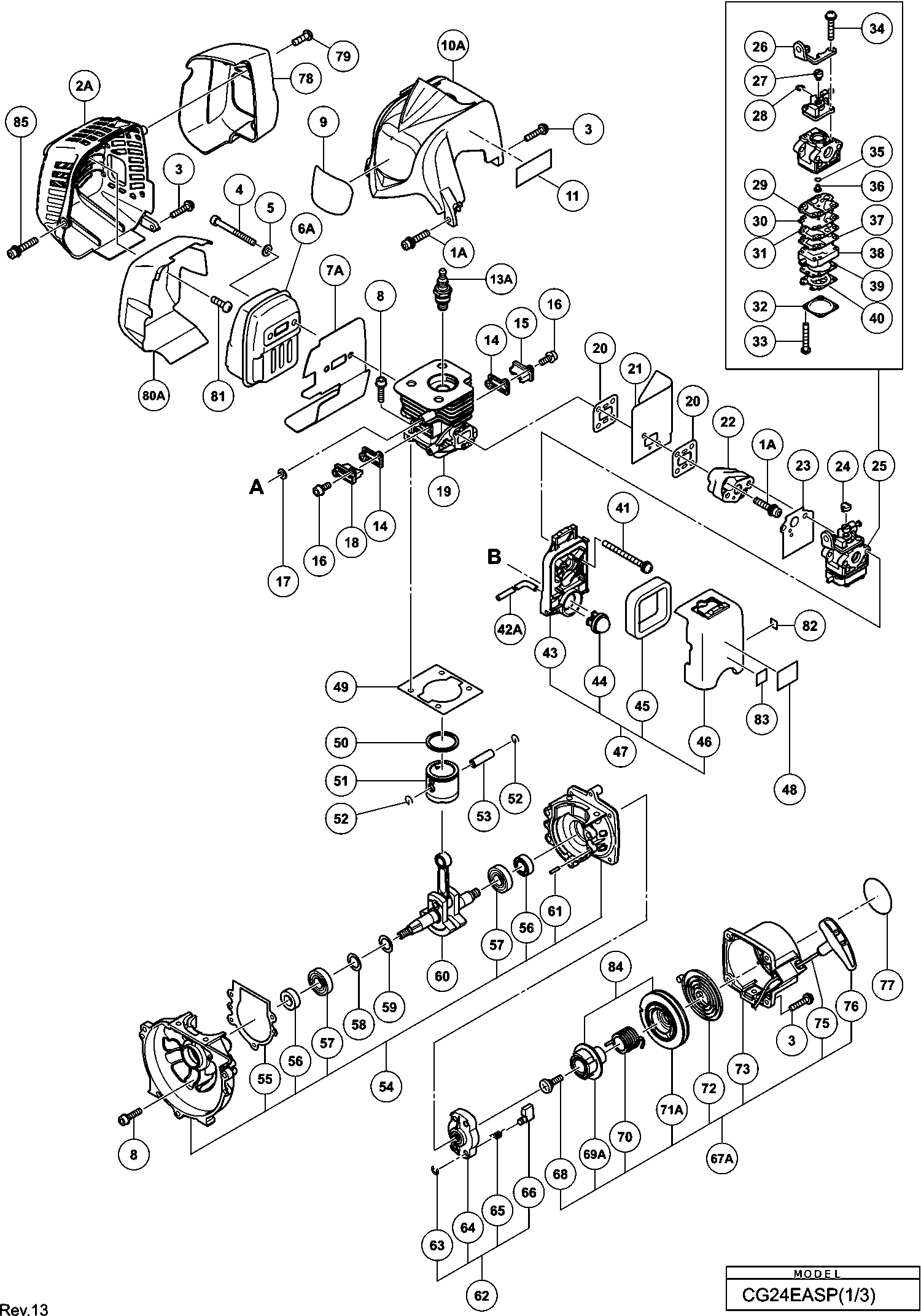

Technical drawing of model Hikoki CG24EASP
Spare parts list of model Hikoki CG24EASP
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Ass'y Bmr7a | ||||
| *13A | 6699316 | 8.91 | 10.78 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| *164 | 6684714 | 2.15 | 2.60 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| *91 | 305812 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Bolt (w/washers)m5 | ||||
| 1A | 6698844 | 1.20 | 1.45 | |
| Muffler Cover Since 11.2013 | ||||
| 2A | 6600334 | 5.85 | 7.08 | |
| Machine Screw (w/washers) M4x20 (black) | ||||
| 3 | 307606 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M6x65 | ||||
| 4 | 6698384 | 1.05 | 1.27 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 5 | 949432 | 1.05 | 1.27 | |
| Muffler (b) | ||||
| 6A | 6600004 | 25.85 | 31.28 | |
| Heat Protection Panel Since 11.2013 | ||||
| 7A | 6600320 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 8 | 6698386 | |||
| Cylinder Cover | ||||
| 10A | 6699128 | 4.35 | 5.26 | |
| Spark Plug Ass'y Bmr7a | ||||
| 13A | 6699316 | 8.91 | 10.78 | |
| Cover Packing | ||||
| 14 | 6698468 | 1.05 | 1.27 | |
| Scavenging Cover (a) | ||||
| 15 | 6698469 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 16 | 6698385 | |||
| Washer T1.6 | ||||
| 17 | 6684600 | 2.15 | 2.60 | |
| Scavenging Cover (b) | ||||
| 18 | 6698470 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 19 | 6698465 | |||
| No information available, not orderable | ||||
| 20 | 6684865 | |||
| Flash Pan | ||||
| 21 | 6698516 | 1.05 | 1.27 | |
| Carburetor Insulator | ||||
| 22 | 6698387 | 3.15 | 3.81 | |
| Carburetor Packing | ||||
| 23 | 6698405 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 24 | 6684628 | |||
| Carburetor Ass'y Wyc-28 Includ.26-40 | ||||
| 25 | 6698474 | 55.14 | 66.72 | |
| Cable Adjust Stay | ||||
| 26 | 6699287 | 4.13 | 4.99 | |
| Swivel | ||||
| 27 | 6696830 | 4.45 | 5.38 | |
| Stop Ring | ||||
| 28 | 6684696 | 2.15 | 2.60 | |
| Pump Gasket | ||||
| 29 | 6684692 | 29.19 | 35.32 | |
| Pump Diaphragm | ||||
| 30 | 6684693 | 8.58 | 10.38 | |
| Pump Plate | ||||
| 31 | 6691242 | 2.31 | 2.80 | |
| Diaphragm Cover-metering | ||||
| 32 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 33 | 6691312 | 1.15 | 1.39 | |
| Set Screw M3x12 | ||||
| 34 | 6696829 | 1.04 | 1.26 | |
| O-RING (old 550-25100-20) | ||||
| 36 | 6684695 | 4.29 | 5.19 | |
| Circuit Plate | ||||
| 37 | 6691234 | 3.30 | 3.99 | |
| Pump Body Comp. | ||||
| 38 | 6696828 | 13.36 | 16.17 | |
| No longer available, no replacement | ||||
| 39 | 6685220 | |||
| No longer available, no replacement | ||||
| 40 | 6684690 | |||
| Machine Screw with Washers M5x60 (Black) | ||||
| 41 | 307224 | 1.05 | 1.27 | |
| Fuel Pipe | ||||
| 42A | 6698720 | 3.45 | 4.17 | |
| Priming Pump Comp. | ||||
| 44 | 6685139 | 5.94 | 7.18 | |
| Cleaner Element | ||||
| 45 | 6690347 | 4.45 | 5.38 | |
| Air Cleaner Ass'y Includ.34-37 | ||||
| 47 | 6696549 | 9.13 | 11.04 | |
| Cylinder Gasket | ||||
| 49 | 6684587 | 2.15 | 2.60 | |
| Piston Ring | ||||
| 50 | 6698404 | 4.20 | 5.08 | |
| Piston | ||||
| 51 | 6698368 | 7.28 | 8.80 | |
| Cir Clip | ||||
| 52 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 53 | 6684591 | 4.29 | 5.19 | |
| Crank Case Ass'y Includ.54-56,59 | ||||
| 54 | 6684606 | 54.45 | 65.88 | |
| Crank Case Gasket | ||||
| 55 | 6684609 | 2.15 | 2.60 | |
| Oil Seal | ||||
| 56 | 6684607 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 57 | 6695535 | |||
| No information available, not orderable | ||||
| 58 | 6696946 | |||
| Shim T0.3 | ||||
| 59 | 6696945 | 1.68 | 2.03 | |
| Crank Shaft | ||||
| 60 | 6696533 | 32.31 | 39.10 | |
| Knock Pin 4x12 | ||||
| 61 | 6696947 | 1.05 | 1.27 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 62 | 6684681 | 13.20 | 15.97 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 63 | 6685101 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 65 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl | ||||
| 66 | 6684685 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 67A | 6699995 | |||
| RECOIL STARTER BODY ASS'Y NEW | ||||
| 67B | 6601570 | 15.81 | 19.13 | |
| Set Screw (old 839-03045-20) | ||||
| 68 | 6684679 | 2.15 | 2.60 | |
| Cam Plate For (s) Type Since 9.2013 For Aus | ||||
| 69A | 6699996 | 2.55 | 3.09 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 70 | 6684677 | 8.58 | 10.38 | |
| Starter Rope Reel For (s) Type Since 9.2013 For A | ||||
| 71A | 6699997 | 8.41 | 10.18 | |
| Recoil Spring Till 7.2014 | ||||
| 72 | 6684675 | 11.55 | 13.98 | |
| No information available, not orderable | ||||
| 73 | 6684673 | |||
| Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo | ||||
| 75 | 6684674 | 4.29 | 5.19 | |
| Starter Handle | ||||
| 76 | 6684680 | 2.15 | 2.60 | |
| Muffler Rear Cover Since 11.2013 | ||||
| 78 | 6600335 | 8.55 | 10.35 | |
| Tapping Screw D4 Since 11.2013 | ||||
| 79 | 6600332 | 1.04 | 1.26 | |
| Muffler Heat Cover Since 11.2013 | ||||
| 80A | 6600422 | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 81 | 6695245 | |||
| Mark Plate (t) Since 11.2013 For Europe | ||||
| 82 | 6600327 | 1.04 | 1.26 | |
| Primer Label Since 11.2013 For Europe | ||||
| 83 | 6699000 | 1.04 | 1.26 | |
| Till 8.2013 For Aus | ||||
| 84 | 6699691 | 6.10 | 7.38 | |
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 85 | 6698950 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 91 | 305812 | 1.04 | 1.26 | |
| Handle (b) | ||||
| 92 | 6696487 | 3.45 | 4.17 | |
| Lock Lever | ||||
| 93 | 6696490 | 1.04 | 1.26 | |
| Lever (1) | ||||
| 94 | 6696488 | 1.04 | 1.26 | |
| Spring (a) | ||||
| 95 | 6696489 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 96A | 6601275 | |||
| Stop Switch Cord For (s) | ||||
| 97 | 6696592 | 2.10 | 2.54 | |
| Stop Switch Cord | ||||
| 97 | 6696491 | 1.80 | 2.18 | |
| Protection Tube For (s) | ||||
| 98 | 6696594 | 2.10 | 2.54 | |
| Protection Tube | ||||
| 98 | 6696967 | 1.05 | 1.27 | |
| Throttle Wire Comp. | ||||
| 99 | 6696593 | 5.10 | 6.17 | |
| Throttle Wire Comp. | ||||
| 99 | 6696560 | 4.18 | 5.05 | |
| No information available, not orderable | ||||
| 100 | 6696486 | |||
| Hex.hole Bolt M5x12/s | ||||
| 101 | 6684667 | 2.15 | 2.60 | |
| Hex. Hole Bolt 5x22/s | ||||
| 102 | 6695492 | 1.15 | 1.39 | |
| Anti Vibe Rubber (a) | ||||
| 103 | 6696963 | 3.33 | 4.02 | |
| Pipe Holder (a) | ||||
| 104A | 6698643 | 2.10 | 2.54 | |
| Pipe Holder (b) | ||||
| 106A | 6698644 | 2.10 | 2.54 | |
| Anti Vibe Rubber (b) | ||||
| 107 | 6696964 | 3.33 | 4.02 | |
| Spring Washer D12 (10 pieces) | ||||
| 108 | 939542 | 1.50 | 1.82 | |
| Fan Housing | ||||
| 109A | 6699129 | 8.25 | 9.98 | |
| Clutch Shaft | ||||
| 110B | 6699400 | 8.85 | 10.71 | |
| No information available, not orderable | ||||
| 111 | 6696469 | |||
| Ring | ||||
| 112 | 6684648 | 2.15 | 2.60 | |
| Clutch Plate (a) | ||||
| 113 | 6696546 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 114 | 6696948 | |||
| Washer (b) | ||||
| 115 | 6696547 | 1.05 | 1.27 | |
| Nut | ||||
| 116 | 6685337 | 1.05 | 1.27 | |
| Bolt Washer M8 (black) | ||||
| 117 | 323212 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt (w/washers) M4x18 | ||||
| 118 | 6698388 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 119B | 6699464 | |||
| No information available, not orderable | ||||
| 120C | 6601421 | |||
| No information available, not orderable | ||||
| 121A | 6699186 | |||
| Cord | ||||
| 122 | 6696544 | 1.05 | 1.27 | |
| Bolt (w/flange) L27.8 | ||||
| 122A | 6698991 | 1.20 | 1.45 | |
| Earth Cord | ||||
| 123 | 6696545 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 124 | 6696928 | |||
| Magneto Rotor Comp. | ||||
| 124A | 6699289 | 25.71 | 31.11 | |
| Spacer (1) | ||||
| 125 | 6698496 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 126B | 6601525 | |||
| Fuel Pipe L70 | ||||
| 127A | 6699014 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 129 | 6698402 | |||
| Tank | ||||
| 131A | 6600317 | 7.95 | 9.62 | |
| Tank (c) Since 8.2014 | ||||
| 131B | 6600354 | 3.45 | 4.17 | |
| Pump Filter | ||||
| 132A | 6600351 | 2.70 | 3.27 | |
| No longer available, no replacement | ||||
| 133 | 6696949 | |||
| Stand | ||||
| 134 | 6694787 | 3.30 | 3.99 | |
| Bolt (w/flange) L27.8 | ||||
| 135A | 6698991 | 1.20 | 1.45 | |
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 136 | 6684899 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 137 | 6699463 | |||
| Tapping Screw (w/Flange) D4x30 for Europe (s) | ||||
| 151 | 323837 | 1.68 | 2.03 | |
| Machine Screw M5x30 (black) | ||||
| 152 | 323041 | 1.05 | 1.27 | |
| Handle Right For Europe (s) | ||||
| 153 | 6698637 | 19.11 | 23.13 | |
| Handle (b) For Europe (s) | ||||
| 154 | 6696590 | 3.13 | 3.78 | |
| Handle (a) For Europe (s) | ||||
| 155 | 6696588 | 2.10 | 2.54 | |
| Nut M5 (black) | ||||
| 156 | 302012 | 1.05 | 1.27 | |
| Barrier | ||||
| 159 | 6696973 | 3.33 | 4.02 | |
| Handle Holder (b) Since 7.2015 For (s) | ||||
| 162A | 6600501 | 7.20 | 8.71 | |
| Handle Holder (c) For (s) | ||||
| 163 | 6696578 | 2.10 | 2.54 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 164 | 6684714 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x25/s | ||||
| 165 | 6684709 | 2.15 | 2.60 | |
| Handle Holder (a) Since 7.2015 For (s) | ||||
| 166A | 6600500 | 4.20 | 5.08 | |
| Handle (left) For (s) | ||||
| 167 | 6698638 | 22.83 | 27.62 | |
| Gear Cover | ||||
| 168A | 6699402 | 50.33 | 60.89 | |
| Bolt (black) M6 | ||||
| 169 | 6696974 | 1.68 | 2.03 | |
| Cutter Holder (a) | ||||
| 176 | 6696977 | 13.33 | 16.12 | |
| Cutter Holder (b) For Europe | ||||
| 177 | 6698659 | 13.04 | 15.78 | |
| NUT COVER | ||||
| 178A | 6699188 | 6.60 | 7.99 | |
| U-nut (left Hand) M10 For Irl | ||||
| 179A | 335759 | 1.04 | 1.26 | |
| Screw 5x12/w.s | ||||
| 180 | 6695414 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 (10 Pcs.) | ||||
| 181 | 949664 | 3.75 | 4.54 | |
| Cover Bracket For Europe | ||||
| 186 | 6696494 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 187 | 6696454 | |||
| Cover | ||||
| 188 | 6698794 | 9.30 | 11.25 | |
| Set Screw | ||||
| 190 | 6698795 | 1.35 | 1.63 | |
| Reel | ||||
| 191 | 6698796 | 2.40 | 2.90 | |
| Return Spring | ||||
| 192 | 6698797 | 1.05 | 1.27 | |
| Button (1) | ||||
| 193 | 6698798 | 1.20 | 1.45 | |
| Cord Guide | ||||
| 194 | 6698799 | 1.20 | 1.45 | |
| Case | ||||
| 195 | 6698800 | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 196 | 6696980 | |||
| Guard Holder For Europe | ||||
| 197 | 6696951 | 3.33 | 4.02 | |
| No information available, not orderable | ||||
| 198 | 6696950 | |||
| Tapping Screw 4x14 | ||||
| 199 | 6684751 | 2.15 | 2.60 | |
| Knife For Irl | ||||
| 200 | 6684750 | 4.29 | 5.19 | |
| Level Mark | ||||
| 207 | 6684851 | 2.15 | 2.60 | |
| Main Pipe Comp. | ||||
| 208 | 6696558 | 17.69 | 21.40 | |
| Drive Shaft | ||||
| 209 | 6698514 | 15.60 | 18.88 | |
| Hanger For Irl | ||||
| 210A | 6600504 | 1.20 | 1.45 | |
| Cap (a) | ||||
| 211 | 6698515 | 2.10 | 2.54 | |
| No longer available, no replacement | ||||
| 217B | 6600358 | |||
| Caution Label (hedge) For Europe | ||||
| 218 | 6600328 | 1.04 | 1.26 | |
| Handle Holder (a).(b) Set Includ.155a,158a Till 6 | ||||
| 240 | 6600499 | 10.65 | 12.89 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 241 | 949236 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 6684764 | |||
| No information available, not orderable | ||||
| 502 | 6696596 | |||
| No information available, not orderable | ||||
| 503 | 944458 | |||
| Cutter Cover For (s) | ||||
| 504B | 6684768 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 505 | 6698711 | |||
| No information available, not orderable | ||||
| 506 | 875769 | |||
| No information available, not orderable | ||||
| 507 | 6696184 | |||
| No information available, not orderable | ||||
| 507A | 6601420 | |||
| Repair kit | ||||
| 601 | 6600030 | 40.84 | 49.41 | |
| Repair kit | ||||
| 601 | 6600028 | 36.44 | 44.09 | |
| Repair kit | ||||
| 601 | 6600029 | 34.79 | 42.09 | |
