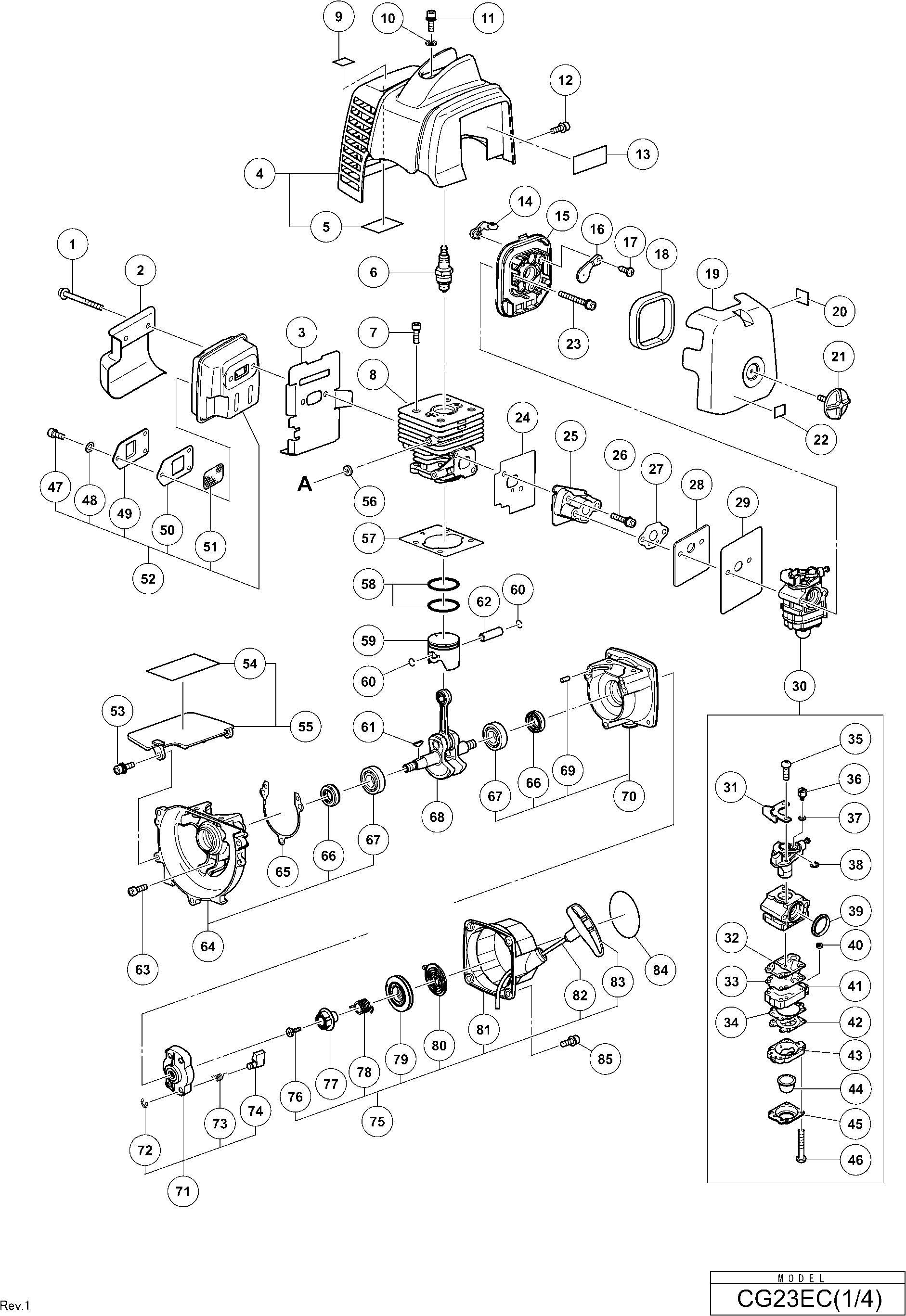

Technical drawing of model Hikoki CG23EC

Spare parts list of model Hikoki CG23EC

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Hex.socket Bolt M5x55
1 6600706 1.04 1.26
Heat Shield
2 6600707 6.44 7.79
Muffler Packing
3 6600710 5.28 6.38
Top Cover
4 6601288 9.74 11.78
No information available, not orderable
5 6600714
No information available, not orderable
6 6600713
Hex. Socket Hd. Bolt M5x16
7 6600712 1.04 1.26
Cylinder
8 6600711 35.24 42.64
Caution Label (hot)
9 6698864 1.20 1.45
No information available, not orderable
10 6600715
Hex. Socket Hd. Bolt (w/washers) M5x18
11 6600716 1.04 1.26
No information available, not orderable
12 6600720
Choke Lever
14 6600721 1.04 1.26
Cleaner Base
15 6600722 2.64 3.19
Choke Plate
16 6600723 1.04 1.26
Tapping Screw St 4.2x9.5
17 6600724 1.04 1.26
Air Filter Element
18 6600725 1.04 1.26
Cleaner Cover
19 6600726 1.98 2.39
Primer Label Since 11.2013 For Europe
20 6699000 1.04 1.26
Cleaner Knob
21 6600727 1.04 1.26
Mark Plate (t) Since 11.2013 For Europe
22 6600327 1.04 1.26
Hex. Socket Hd. Bolt (w/washers) M5x60
23 6600728 1.04 1.26
Intake Packing
24 6600729 1.65 2.00
Carburetor Insulator
25 6600730 5.94 7.18
No information available, not orderable
26 6600731
Carburetor Packing (a)
27 6600732 1.04 1.26
Heat Insulation Plate
28 6600733 2.48 2.99
Carburetor Packing (b)
29 6600734 1.81 2.19
Carburetor Ass'y (wyk-483) Includ.32-47
30 6600735 90.90 109.99
Cable Adjust Stay
31 6601292 12.05 14.58
Pump Gasket
32 6684692 29.19 35.32
Pump Diaphragm
33 6684693 8.58 10.38
Diaphragm Gasket
34 6684691 8.58 10.38
Throttle Set Screw
35 6684870 2.15 2.60
Swivel
36 6601293 10.23 12.37
Thrust Washer
37 6684874 2.15 2.60
Stop Ring
38 6684696 2.15 2.60
Cleaner Packing
39 6684875 4.29 5.19
Inlet Screen
40 6684700 4.29 5.19
Pump Body
41 6601294 76.99 93.15
No longer available, no replacement
42 6684690
Priming Pump Comp.
43 6684687 16.34 19.77
Priming Body
44 6684689 6.44 7.79
Diaphragm Cover
45 6684688 8.58 10.38
Set Screw
46 6684699 2.15 2.60
No information available, not orderable
47 6600755
No information available, not orderable
48 6600756
No information available, not orderable
49 6600757
Exhaust Packing
50 6600758 4.95 5.99
Spark Arrester
51 6600759 1.04 1.26
Muffler
52 6600709 45.38 54.90
No information available, not orderable
53 6600742
No information available, not orderable
54 6600744
No information available, not orderable
55 6601291
Ignition Coil Spacer
56 6600660 1.04 1.26
Cylinder Packing
57 6600738 10.73 12.98
Piston Ring
58 6600739 3.96 4.79
Piston
59 6600740 11.55 13.98
Circlip (1)
60 6600736 1.04 1.26
Woodruff Key
61 6600741 1.04 1.26
Piston Pin
62 6600737 1.33 1.60
Hex. Socket Hd. Bolt M5x16
63 6600712 1.04 1.26
Crank Case (a) Ass'y Includ.67,68
64 6600745 14.68 17.76
Crank Case Packing
65 6600746 1.15 1.39
Oil Seal
66 6600747 1.33 1.60
Ball Bearing (1)
67 6600594 5.28 6.38
Crank Shaft
68 6600748 46.89 56.73
No information available, not orderable
69 6600749
Crank Case (b) Ass'y Includ.67,68,70
70 6600750 12.54 15.17
Pulley (1)
71 6600752 4.45 5.38
Retaining Ring (1)
72 6601321 1.04 1.26
Starter Pawl Spring
73 6601322 1.04 1.26
Starter Pawl
74 6601323 1.15 1.39
Recoil Starter Ass'y (s) Includ.77-84
75 6600753 19.51 23.61
Set Screw
76 6601307 1.04 1.26
Cam (s)
77 6601309 2.31 2.80
Damper Spring (s)
78 6601311 3.46 4.19
Reel (s)
79 6601313 3.30 3.99
Spiral Spring (s)
80 6601315 7.26 8.79
Starter Case (s)
81 6601317 7.59 9.18
Stater Rope (s)
82 6601319 1.81 2.19
Starter Handle
83 6601320 1.98 2.39
No information available, not orderable
85 6600720
No information available, not orderable
111 6600760
No information available, not orderable
112 6600731
Holder (a)
113 6600761 1.65 2.00
Holder (b)
114 6600762 1.65 2.00
Anti Vibration Rubber
115 6600763 2.31 2.80
Fan Case
116 6600764 10.73 12.98
Hex. Socket Hd. Bolt (w/washers) M5x18
117 6600716 1.04 1.26
Ignition Coil Ass'y Includ.119-121
118 6600765 21.18 25.62
No information available, not orderable
119 6600766
Plug Cap
120 6600767 1.81 2.19
No information available, not orderable
121 6600768
Cord
122 6601296 2.15 2.60
No information available, not orderable
123 6600775
No information available, not orderable
124 6600770
Clutch Shaft (s) For (sl)
125 6600771 11.55 13.98
Clutch Shaft (f) For (lb)
125 6600772 11.55 13.98
Step Bolt
126 6600661 1.15 1.39
Bent Washer 8
127 6600662 1.04 1.26
Clutch
128 6600773 7.26 8.79
Clutch Washer (b)
129 6600664 1.04 1.26
No information available, not orderable
130 6600658
Magneto Rotor
131 6600774 21.18 25.62
Fuel Pipe Since 9.2016
132A 6601401 1.04 1.26
Fuel Pipe Since 9.2016
133A 6601400 1.04 1.26
Fuel Grommet Since 9.2016
134A 6600671 1.04 1.26
No information available, not orderable
135 6600782
Tank Cap Retainer Holder
136 6600781 1.04 1.26
Tank Cap Packing
137 6600780 1.04 1.26
No information available, not orderable
138 6600779
No information available, not orderable
139 6600778
No information available, not orderable
140 6600777
Tank Cap Ass'y Includ.135-140,148
141A 6600776 2.31 2.80
Tank
142 6600788 12.05 14.58
Pump Filter Body
143A 6685199 4.45 5.38
Clip
144 6601295 1.04 1.26
Stand
145 6600791 2.80 3.39
Hex. Socket Hd. Bolt (w/washers) M5x18
146 6600716 1.04 1.26
Tank Mark Label (25:1) For Asia,tpe,kor
147 6698922 1.20 1.45
Filter Element
148 6601396 1.04 1.26
Fuel Pipe Set Includ.132a-134a Till 8.2016
149 6601403 1.98 2.39
Throttle Lever Ass'y Includ.162-172 Except For (l
161 6600824 19.51 23.61
No information available, not orderable
162 6600832
Handle (b) Except For (l)
163 6600831 1.98 2.39
No information available, not orderable
164 6600833
Spring (b) Except For (l)
165 6600830 1.04 1.26
Throttle Lever Except For (l)
166 6600829 1.15 1.39
Handle (a) Except For (l)
167 6600826 1.81 2.19
No information available, not orderable
168 6600834
Trigger Lockout Except For (l)
169 6600828 1.04 1.26
Spring (a)
170 6600827 1.04 1.26
Throttle Wire Comp. Except For (l)
171 6600835 2.80 3.39
Nut M5
172 6600825 1.04 1.26
Bike Handle Except For (l)
175 6600836 33.58 40.63
Hex. Socket Hd. Bolt (w/sp.washer) M5x35
176 6600873 1.04 1.26
Loop Handle
177 6600800 7.59 9.18
Barrier For Europe
178 6600802 3.30 3.99
Gear Case Ass'y (s) Includ.166-172
179 6600803 56.56 68.44
No information available, not orderable
180 6600856
Hex. Socket Hd. Bolt M5x12
181 6600855 1.04 1.26
Holder (a)
182 6600857 4.13 4.99
Holder (b) For Europe
183 6600858 1.98 2.39
Nut Cover For Europe
184 6600859 4.79 5.79
U-nut (left Hand) M10 For Europe
185 6600860 1.65 2.00
No information available, not orderable
186 6600854
No information available, not orderable
191 6600570
No longer available, no replacement
192 6600806
No information available, not orderable
193 6600809
No information available, not orderable
194 6600808
No information available, not orderable
195 6600807
No information available, not orderable
196 6600810
No longer available, no replacement
197 6600811
Throttle Lever Ass'y Includ.181-197
198 6600822 23.45 28.37
Grip
199 6600852 1.98 2.39
Throttle Collar
200 6601306 2.31 2.80
Nut M5
201 6600825 1.04 1.26
No information available, not orderable
202 6600853
Screw (w/washers) M5x25
203 6600839 1.04 1.26
Handle (b)
204 6600850 2.31 2.80
Stop Switch Comp.
205 6600851 4.95 5.99
Handle Clamp
206 6600843 1.04 1.26
No longer available, no replacement
207 6600841
Spring (c)
208 6600842 1.04 1.26
Connection Lever
209 6600849 1.04 1.26
Spring (d)
210 6600847 1.04 1.26
Trigger Lockout
211 6600846 1.04 1.26
Spring (e)
212 6600848 1.04 1.26
Throttle Wire Comp.
213 6600840 2.80 3.39
No information available, not orderable
214 6600845
Screw (w/washers) M5x30
215 6600844 1.04 1.26
Loop Handle Rubber
216 6600821 1.81 2.19
Hanger Ass'y Includ.201,202 For Europe
217 6600818 4.79 5.79
No information available, not orderable
218 6600838
Hanger For Europe
219 6600837 1.98 2.39
Hex. Hole Button Bolt M6x25 For Europe
220 6600813 1.04 1.26
Cover Bracket For Europe
221 6600812 5.11 6.19
Caution Mark
222 6600450 1.80 2.18
Level Mark (a)
223 6601305 2.48 2.99
Main Pipe
224 6600816 40.84 49.41
Drive Shaft
225 6600817 9.90 11.98
Guard (1)
226 6601299 8.91 10.78
Cover Guard (eu) For Europe
227 6601333 11.88 14.37
No longer available, no replacement
228 6601301
Tapping Screw 4x14
228A 6684751 2.15 2.60
Knife For Europe
229 6601302 1.15 1.39
Hex. Hole Bolt M5x25/s
230 6684709 2.15 2.60
Handle Holder (a) Since 7.2015 For (s)
231 6600500 4.20 5.08
Handle Holder (b) Since 7.2015 For (s)
232 6600501 7.20 8.71
Handle Holder (c) For (s)
233 6696578 2.10 2.54
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
234 6684714 2.15 2.60
Handle Holder Set Includ.241-245 Except For (l)
235 6601521 14.03 16.97
Flexible Shaft For (lb)
251 6698325 13.80 16.70
Main Pipe Ass'y Includ.231,233 For (lb)
252 6601405 187.25 226.57
Cutter Case Includ.234,235,238 For (lb)
253 6600494 25.44 30.78
No information available, not orderable
254 6698331
Hex. Socket Hd. Bolt M5x10 (10 Pcs.)
255 949819 2.55 3.09
Bolt M6 For (lb)
256 6698334 3.15 3.81
Guard Bracket For (lb)
257 6698335 3.15 3.81
Hex. Socket Hd. Bolt M5x25 (10 Pcs.)
258 949662 2.10 2.54
Guard For (lb)
259 6698809 18.56 22.46
Machine Screw M5X14 (10 pieces)
260 949238 1.05 1.27
Washer M5 (10 Pcs.)
261 949424 1.05 1.27
Knife For (lb)
262 6698333 6.45 7.80
Spring Washer M5 (10 pieces)
263 949454 1.04 1.26
Nut M5 (10 Pieces) (OLD 949555Z)
264 949555 1.05 1.27
No information available, not orderable
265 6601376
No information available, not orderable
266 6601375
No information available, not orderable
501 6600574
No information available, not orderable
502 944458
Cutter Cover Except For (l)
503 6600578 3.14 3.80
No information available, not orderable
504 6600577
No information available, not orderable
505 6600863
No information available, not orderable
506 6600576
No information available, not orderable
507 6600579
No information available, not orderable
508 6600580
