Here you will find all available parts and drawings of the 'Hikoki CG22EJ'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

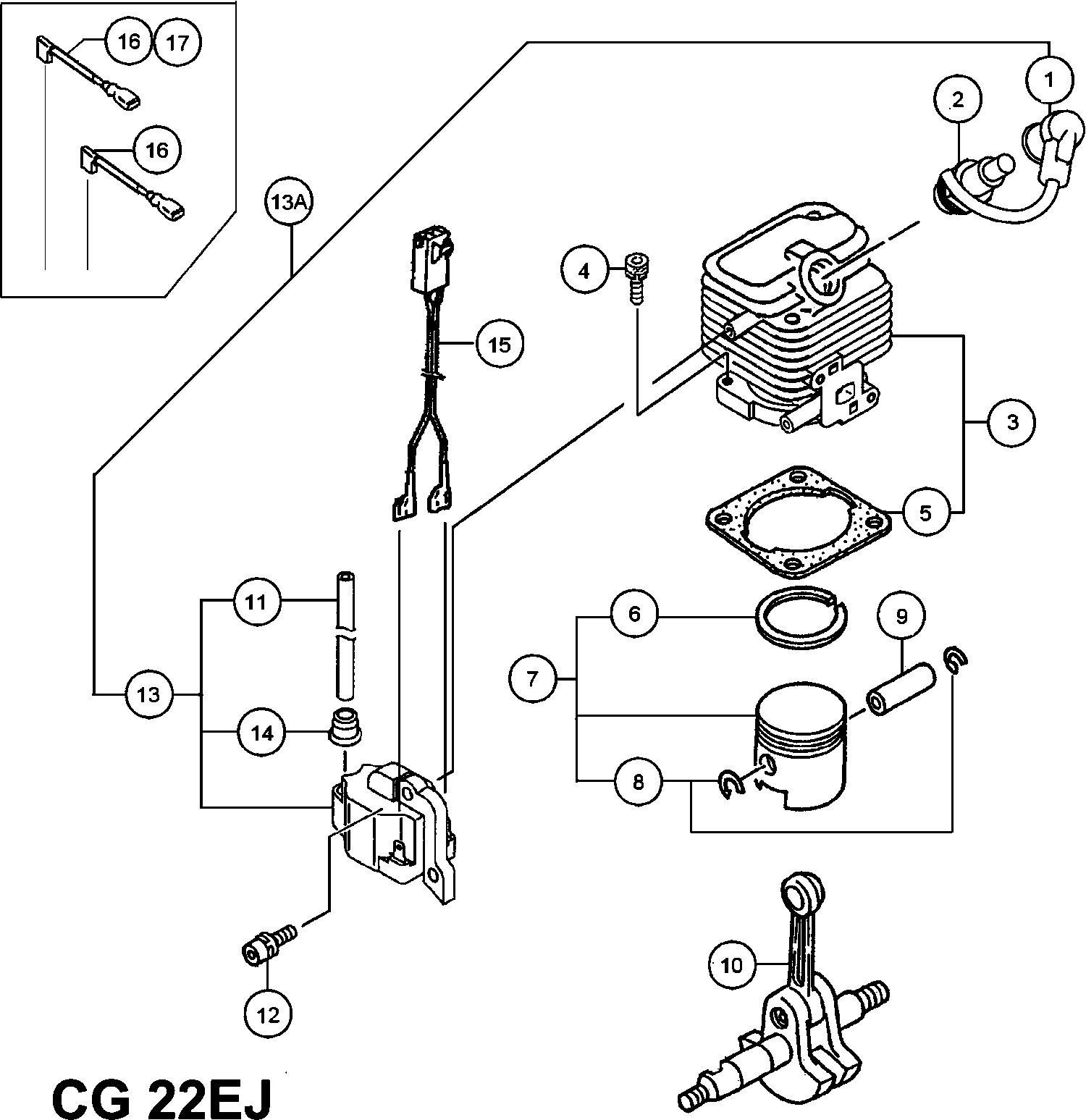

Technical drawing of model Hikoki CG22EJ

Spare parts list of model Hikoki CG22EJ

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Spark Plug Cap Ass'y Till G165840
1 6687468 2.31 2.80
Spark Plug Ass'y Bpm6a
2 6699317 6.76 8.18
Spark Plug Ass'y Rcj8y
2 6699328 3.30 3.99
Cylinder Set (old 001-07130-91)
3 6685489 34.19 41.37
Hex.hole Bolt M5x18/s
4 6684586 2.15 2.60
Cylinder Gasket
5 6685709 1.15 1.39
Piston Ring
6 6686118 4.45 5.38
Piston Ass'y
7 6685869 15.58 18.85
Cir Clip
8 6684590 2.15 2.60
Piston Pin
9 6696944 3.33 4.02
Crank Shaft Comp.
10 6686217 42.20 51.06
High Tension Cord 140l Till G165840
11 6687888 2.31 2.80
Hex. Hole Bolt 4x15/ps
12 6684682 2.15 2.60
Ignition Coil Ass'y Till G165840
13 6699772 17.85 21.60
No information available, not orderable
13A 6697638
Rubber Cap
14 6684602 2.15 2.60
Lead Wire Ass'y
15 6697836 5.45 6.59
Stop Cord Comp. (old 178-0136m-80)
16 6687826 2.31 2.80
Cord B 28 For (st)
17 6687875 2.10 2.54
Gear Shaft Shim 0.20
21 6684604 2.15 2.60
Gear Shaft Shim 0.30
21 6684605 2.15 2.60
Crank Case Ass'y
22 6686585 36.15 43.74
Oil Seal
23 6684607 4.29 5.19
Ball Bearing 6001 C3
24 6684608 3.80 4.60
Crank Case Gasket
25 6686719 1.15 1.39
Hex.hole Bolt M5x18/s
26 6684586 2.15 2.60
Magneto Rotor Comp.
27 6601171 22.99 27.81
No information available, not orderable
27A 6696928
Bolt Washer M8
28 6684611 2.15 2.60
Hex. Nut M8
29 6684612 2.15 2.60
Inlet Manifold Gasket
31 6689890 1.15 1.39
Carb Insulator Set
32 6689914 5.94 7.18
Carburetor Gasket (old 402-0602K-21/6689836)
33 6684615 2.15 2.60
Hex.hole Bolt 5x22/ws
34 6695514 1.15 1.39
Screw 5x60/s
35 6695354 1.15 1.39
Ring
36 6684661 2.15 2.60
Shield Tube
37 6688174 2.31 2.80
Clip D6
38 6685198 1.15 1.39
No information available, not orderable
39 6684620
Tank, White (old 591-07120-21/6691593/6691594)
40 6691592 9.58 11.59
No information available, not orderable
41 6685049
Collar 5.8 Till G103930
42 6692244 1.15 1.39
Carburetor Set Wyl182 Since B023801
43 6690512 66.40 80.34
Swivel Cap Since C026901
44 6691337 1.15 1.39
Hex. Hole Bolt 5x16/ps
45 6695504 1.15 1.39
Bolt (w/flange) L17.8 Since G103931
45A 6696574 1.05 1.27
Screw 5x20ws Till G103930
46 6695516 1.15 1.39
Bolt (w/flange) L17.8 Since G103931
46A 6696574 1.05 1.27
Bolt (w/flange) L 17.8
46A 6698511 1.05 1.27
No information available, not orderable
47 6684625
Fuel Pipe 3x5x85
48 6684880 2.15 2.60
Return Grommet Till 7.2014
49 6697846 1.04 1.26
O-ring P-15
50 6698966 1.04 1.26
Tank Cap D Ass'y Since K032881
51 6691748 7.59 9.18
Carburetor Set Wyl-177 For Irl
52 6690510 70.33 85.09
Screw 5x60/s
53 6695354 1.15 1.39
Plus Screw 5x60ws Till Z315900
53A 6695431 1.15 1.39
Screw 5x60/s
53B 6695354 1.15 1.39
Ring
54 6684661 2.15 2.60
Carburetor Set Wyl182 Since B023801
55 6690512 66.40 80.34
Carburetor Set Wyl-177 For Irl
55A 6690510 70.33 85.09
Carburetor Set Wyl182 Since B023801
55B 6690512 66.40 80.34
Plus Screw 5x60ws Till Z315900
56 6695431 1.15 1.39
Muffler Protector Black (old 738-07162-20)
61 6692809 5.11 6.19
Screw 4x15ps
62 6695373 1.15 1.39
Tapping Screw D4.5x12
63 6684637 2.15 2.60
Hex. Socket Hd. Bolt M5x50
64 6685114 1.15 1.39
Washer M5 (black)
65 6684918 2.15 2.60
Muffler Set
66 6692487 11.88 14.37
Muffler Gasket
67 6692745 1.15 1.39
Heat Shield
68 6687253 2.31 2.80
Clutch Set Assy
69 6688484 14.53 17.58
No information available, not orderable
69A 6696932
No information available, not orderable
70 6697619
Clutch Shoe Comp.,t-16 Till F113050
71 6688616 7.59 9.18
CLUTCH ARM COMP 54 NEW
71A 6697161 6.90 8.35
Clutch Spring Till F113050
72 6689430 2.31 2.80
No information available, not orderable
72A 6697618
Clutch Plate (a)
73 6689528 1.15 1.39
Step Bolt Till F113050
74 6689627 1.15 1.39
Step Bolt
74A 6684646 2.15 2.60
Hex. Hole Bolt M5x18/ws
75 6684647 2.15 2.60
Ring
76 6684648 2.15 2.60
Hex.hole Bolt M5x30/ws
77 6684973 2.15 2.60
Cord Clamp Comp.
78 6688011 1.15 1.39
No information available, not orderable
79 6687737
Stop Button Bracket For(st)
80 6692137 1.05 1.27
Ring
81 6684971 1.04 1.26
Stop Button Fixing Nut
82 6687935 1.15 1.39
Clutch Shoe Comp.,t-16 Till F113050
83 6688616 7.59 9.18
CLUTCH ARM COMP 54 NEW
83A 6697161 6.90 8.35
CLUTCH ARM COMP 54 NEW
83B 6697161 6.90 8.35
Clutch Spring Till F113050
84 6689430 2.31 2.80
Clutch Spring
84A 6684644 2.15 2.60
No information available, not orderable
84B 6697618
Step Bolt Till F113050
85 6689627 1.15 1.39
Step Bolt
85A 6684646 2.15 2.60
Clutch Set Assy
86 6688484 14.53 17.58
No information available, not orderable
86A 6696932
Recoil Starter Body Ass'y Includ.183-190 Till Eo9
91 6684938 23.45 28.37
Recoil Starter Body Comp. Since En90001(till 10.2
92 6684944 17.24 20.86
Starter Rope Reel Since En90001(till 10.2012 For
93 6684941 6.44 7.79
Recoil Spring Till Eo99999
94 6684942 9.40 11.37
Swing Arm Till Eo99999
95 6684940 2.15 2.60
Set Screw (old 839-03045-20)
96 6684679 2.15 2.60
Pulley Stay Till Eo99999
97 6684939 2.15 2.60
Rope 3.0x800 Till Eo99999
98 6684943 4.29 5.19
Starter Handle
99 6684680 2.15 2.60
No longer available, no replacement
100 6685000
Starter Pulley Till Eo99999
101 6684937 6.44 7.79
Hex. Hole Bolt 4x15/ps
102 6684682 2.15 2.60
Recoil Starter Body Ass'y (old 762-07130-91)
111 6692988 42.20 51.06
No information available, not orderable
111A 6699995
Starter Handle
112 6693240 14.35 17.36
Recoil Starter Body Comp. Since C026901 Till F024
113 6693039 24.20 29.28
Rope 2.6x830 Since C026901 Till F024130
114 6693175 6.44 7.79
Recoil Spring Since C026901 Till F024130
115 6693139 9.74 11.78
Spring Case Ass'y Since C026901 Till F024130
116 6693102 30.25 36.60
Starter Rope Reel Since C026901 Till F024130
117 6693080 6.44 7.79
Ring
118 6687947 2.31 2.80
Tapping Screw D5x14 Since C026901 Till F024130
119 6685275 1.15 1.39
Hex. Hole Bolt 4x18ws Till H124040
120 6695508 1.15 1.39
Starter Pulley Assembly (old 798-07085-90)
121 6693408 32.21 38.98
Flunge Nut 5 Since C026901 Till F024130
122 6695169 1.15 1.39
Starter Pulley Ass'y For (s) Type Since 7.2012 Fo
123 6684681 13.20 15.97
D4e Retaining Ring (old 993-55040-001)
124 6685101 1.15 1.39
Starter Pawl Spring
125 6684684 4.29 5.19
Starter Pawl
126 6684685 4.29 5.19
Recoil Starter Body Comp. For (s) Type Since 7.20
127 6684673 19.06 23.07
Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo
128 6684674 4.29 5.19
Recoil Spring Till 7.2014
129 6684675 11.55 13.98
Starter Rope Reel For (s) Type Since 9.2013 For A
130A 6699997 8.41 10.18
Damper Spring For (s) Type Since 7.2012 For Aus
131 6684677 8.58 10.38
Cam Plate For (s) Type Since 9.2013 For Aus
132A 6699996 2.55 3.09
Set Screw (old 839-03045-20)
133 6684679 2.15 2.60
Starter Handle
134 6684680 2.15 2.60
Till 8.2013 For Aus
135 6699691 6.10 7.38
Cleaner Assy
141 6690048 9.58 11.59
Cleaner Cover
142 6690391 4.45 5.38
Cleaner Element
143 6684654 2.15 2.60
Special Screw
144 6689737 1.15 1.39
Cleaner Body Comp.
145 6684656 8.58 10.38
Choke Valve
146 6684657 4.29 5.19
No information available, not orderable
147 6684658
Collar 8
148 6684659 2.15 2.60
Cleaner Ass'y For Irl
151 6690006 10.40 12.58
Cleaner Cap Till E319999 For Rus(slb)
152 6690140 10.56 12.78
Cleaner Element
153 6690347 4.45 5.38
Collar
154 6690801 2.31 2.80
Aircleaner Body For Irl
155 6690086 6.44 7.79
Cleaner Assy
161 6690048 9.58 11.59
Cleaner Ass'y For Irl
161A 6690006 10.40 12.58
Cleaner Assy
161B 6690048 9.58 11.59
Cleaner Cover
162 6690391 4.45 5.38
Cleaner Cap Till E319999 For Rus(slb)
162A 6690140 10.56 12.78
Cleaner Cover
162B 6690391 4.45 5.38
Cleaner Element
163 6684654 2.15 2.60
Cleaner Element
163A 6690347 4.45 5.38
Cleaner Element
163B 6684654 2.15 2.60
Special Screw
164 6689737 1.15 1.39
Cleaner Body Comp.
165 6684656 8.58 10.38
Aircleaner Body For Irl
165A 6690086 6.44 7.79
Cleaner Body Comp.
165B 6684656 8.58 10.38
Choke Valve
166 6684657 4.29 5.19
Set Screw
166 6684699 2.15 2.60
Thrust Washer
167 6684874 2.15 2.60
Inlet Screen
168 6684700 4.29 5.19
Collar 8
168 6684659 2.15 2.60
Collar
169 6690801 2.31 2.80
Lock Nut M6
169 6684872 2.15 2.60
Pump Body Comp.
171 6684879 62.16 75.22
Priming Pump Comp.
172 6684687 16.34 19.77
Diaphragm Cover
173 6684688 8.58 10.38
Priming Body
174 6684689 6.44 7.79
Metering Diaphragm Comp.
175 6690830 11.88 14.37
Diaphragm Gasket
176 6684691 8.58 10.38
Pump Diaphragm
177 6684693 8.58 10.38
Pump Gasket (old 577-25100-20)
178 6691457 7.10 8.59
Main Jet #38 Since B023801
179 6691844 4.45 5.38
O-RING (old 550-25100-20)
180 6684695 4.29 5.19
Stop Ring
181 6684696 2.15 2.60
Swivel
182 6684697 6.44 7.79
Throttle Set Screw
183 6684698 4.29 5.19
Set Screw
184 6684699 2.15 2.60
Inlet Screen
185 6684700 4.29 5.19
Throttle Valve Comp. For(st)
186 6690950 36.15 43.74
Clutch Shaft Comp.
191 6695969 15.73 19.03
Clutch Shaft Comp.
191 6688602 9.90 11.98
Stop Ring C-12 Outer
192 6684664 2.15 2.60
Anti-vibe Rubber
193 6691839 3.30 3.99
Hex. Hole Bolt 5x16
194 6695046 1.15 1.39
Hex. Hole Bolt M5x25/s
195 6684709 2.15 2.60
Fan Housing
196 6687029 15.13 18.30
Pipe Holder, TPE
197 6689651 5.94 7.18
Washer M5 (black)
198 6684918 2.15 2.60
Ring
199 6689159 1.15 1.39
Metal Fitting
200 6689664 3.30 3.99
Clutch Shaft Comp.
201 6688602 9.90 11.98
Clutch Drum Comp (old 6688603)
201A 6697713 11.05 13.37
Clutch Shaft Comp.
201B 6688602 9.90 11.98
Anti-vibe Rubber
203 6691839 3.30 3.99
Hex. Hole Bolt 5x16
204 6695046 1.15 1.39
Hex. Hole Bolt M5x25/s
205 6684709 2.15 2.60
Fan Housing
206 6687029 15.13 18.30
Fan Housing
206A 6687031 14.53 17.58
Fan Housing
206B 6687029 15.13 18.30
Pipe Holder, TPE
207 6689651 5.94 7.18
Washer M5 (black)
208 6684918 2.15 2.60
Ring
209 6689159 1.15 1.39
Metal Fitting
210 6689664 3.30 3.99
Tapping Screw 4.5x16 Since En80001 For Rus(slb)
211 6695113 1.05 1.27
Hex.hole Bolt M5x30/ws
212 6684973 2.15 2.60
Square Nut 5 Till C026900
213 6695176 1.15 1.39
Spacer
214 6688311 1.05 1.27
Drive Shaft 1480l
221 6696009 13.53 16.37
Drive Shaft Pipe Comp.
222 6689386 32.21 38.98
No information available, not orderable
223 6684831
Hanger Collar For Europe,aus,irl
224 6689260 1.15 1.39
Hanger For Europe,aus,irl
225 6689281 12.88 15.58
Hanger Fixing Bracket (old 337-38360-80) For Usa
226 6689294 1.15 1.39
Machine Screw (w/washers) M5x25 (black)
227 6696988 1.04 1.26
Handle Grip
228 6684708 6.44 7.79
Hex. Hole Bolt M5x25/s
229 6684709 2.15 2.60
Handle Bracket A
230 6684710 13.20 15.97
Handle Bracket B
231 6684711 18.00 21.78
Handle Bracket Rubber
232 6684712 4.29 5.19
Handle Bracket C
233 6684713 12.38 14.97
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
234 6684714 2.15 2.60
Clamp B. (old 460-33111-20)
235 6684715 2.15 2.60
Left Handle
236 6696093 13.76 16.65
No longer available, no replacement
237 6687543
Right Handle For Europe,aus,south America
238 6691080 13.53 16.37
Throttle Lever Ass'y (old 870-38445-90)
239 6693768 38.26 46.30
Safety Lever (old 253-38400-20)
240 6684721 6.44 7.79
Return Spring
241 6684722 2.15 2.60
Throttle Lever
242 6684723 10.23 12.37
Blind Plug
243 6684724 2.15 2.60
Screw M4x20 (black)
244 6684725 2.15 2.60
Screw 5x30 (black)
245 6684726 2.15 2.60
No information available, not orderable
246 6684727
Stop Button Comp.
247 6687453 14.38 17.39
Throttle Wire
248 6694024 10.40 12.58
Throttle Wire Comp.
249 6693981 24.20 29.28
Drive Shaft 1480l
251 6696009 13.53 16.37
Drive Shaft Pipe Comp.1450l
252 6689410 24.20 29.28
No information available, not orderable
253 6684831
No information available, not orderable
254 6699593
Flange Bolt 8x30 For(st)
255 6695479 1.05 1.27
No information available, not orderable
256 6601169
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
260 6684714 2.15 2.60
Hanger Collar For Europe,aus,irl
261 6689260 1.15 1.39
Hanger For Europe,aus,irl
262 6689281 12.88 15.58
Hanger Fixing Bracket (old 337-38360-80) For Usa
263 6689294 1.15 1.39
Machine Screw (w/washers) M5x25 (black)
264 6696988 1.04 1.26
Throttle Wire Comp.
265 6693923 4.05 4.90
Throttle Lever, 19 Dia. (old 870-00110-94) New
266 6693672 4.05 4.90
Cushion Pad (old 336-38360-20)
267 6689292 3.30 3.99
Wire Clamp (old 903-38360-20) New
268 6694058 1.05 1.27
Drive Shaft 1480l
271 6696009 13.53 16.37
Drive Shaft Pipe Comp.1450l
272 6689410 24.20 29.28
No information available, not orderable
273 6684831
Hex.nut 6
274 6684835 2.15 2.60
No information available, not orderable
275 6684836
Barrier(black) For Europe,aus,irl
276 6684837 9.40 11.37
Bolt 6x43/p (black)
277 6684838 2.15 2.60
Hanger Collar For Europe,aus,irl
278 6689260 1.15 1.39
Hanger For Europe,aus,irl
279 6689281 12.88 15.58
Hanger Fixing Bracket (old 337-38360-80) For Usa
280 6689294 1.15 1.39
Machine Screw (w/washers) M5x25 (black)
281 6696988 1.04 1.26
Throttle Lever Ass'y (old 870-38449-90)
282 6693769 36.15 43.74
Throttle Wire Comp.
283 6693982 19.96 24.15
Throttle Wire 4t
284 6694025 8.41 10.18
Stop Button Comp.
285 6687452 13.91 16.83
Protection Tube 7x145l
286 6687523 1.05 1.27
Safety Lever (old 253-38400-20)
287 6684721 6.44 7.79
Return Spring
288 6684722 2.15 2.60
Blind Plug
289 6684724 2.15 2.60
Screw M5x20
290 6684803 2.15 2.60
No information available, not orderable
291 6684727
Screw M4x20 (black)
292 6684725 2.15 2.60
Throttle Lever
293 6684804 8.58 10.38
Drive Shaft A
294 6684814 39.03 47.22
Drive Shaft Comp
295 6697838 20.11 24.34
Bush Ass'y
296 6697839 4.29 5.19
Joint Case
297 6684817 38.58 46.68
Spacer 1.6
298 6689139 1.15 1.39
Spacer
299 6684819 4.29 5.19
Ring
300 6684820 2.15 2.60
Stop Ring C-10,outer
301 6684821 2.15 2.60
Ring
302 6684822 2.15 2.60
Handle Knob
303 6684823 4.29 5.19
Hex. Bolt 6x50
304 6684824 2.15 2.60
Hex. Socket Hd. Bolt (w/button) M6
305 6684825 2.15 2.60
Ring
306 6684826 2.15 2.60
Small Washer 6 Black
307 6684827 2.15 2.60
Cap Nut 6
308 6684828 2.15 2.60
Hex. Socket Hd. Bolt M5x12
309 6684829 2.15 2.60
Spring Washer 5
310 6684834 2.15 2.60
Drive Shaft Comp
311 6697838 20.11 24.34
Bush Ass'y
312 6697839 4.29 5.19
Drive Shaft B 783l For (sl)
313 6684832 20.73 25.08
Bushing For (sl)
314 6684833 2.15 2.60
Drive Shaft Pipe Ass'y
321 6689372 72.30 87.48
Cutter Case Ass'y
322 6684770 50.51 61.12
Main Pipe
323 6689369 19.36 23.43
Flexible Liner
324 6684772 16.34 19.77
Flexible Shaft
325 6684773 24.95 30.19
Cutter Shaft
326 6684774 14.19 17.17
No information available, not orderable
327 6684775
No information available, not orderable
328 6684776
Screw 5x12
329 6694885 1.15 1.39
Cutter Case
330 6684778 12.38 14.97
Ring
331 6684779 2.15 2.60
Special Nut
332 6684780 4.29 5.19
Stop Ring R-22,inner
333 6684781 2.15 2.60
Cutter Holder
334 6684782 4.29 5.19
Guard Since D085851
335 6684783 20.73 25.08
Cover Bracket22 Since D085851
336 6684784 8.58 10.38
Guard Holder Since D085851
337 6684785 4.29 5.19
Hex. Socket Hd. Bolt M5x30 S
338 6684786 2.15 2.60
Knife Since E047001
339 6684754 8.58 10.38
Tapping Screw 5x20 For Aus (sl)
340 6684753 2.15 2.60
Holder, Pipe Blk
341 6689501 2.31 2.80
No information available, not orderable
342 6697837
Spacer
343 6684789 2.15 2.60
Throttle Wire Comp.
344 6693819 4.45 5.38
Loop Handle
345 6684791 12.38 14.97
No information available, not orderable
346 6684792
Handle Bracket (a)
347 6684793 4.29 5.19
Ring
348 6684639 2.15 2.60
Plus Bolt 6x40 For Aus
349 6684795 1.95 2.36
Stop Cord, B430m
350 6687915 2.31 2.80
Protection Tube 10x170l (old 164-10017-01)
351 6687562 1.05 1.27
Throttle Lever Ass'y For Europe (till D089600 For
352 6693755 15.88 19.21
Stop Switch For Europe
353 6687515 2.31 2.80
Tapping Screw 3x8 (old 993-42030-081)
354 6695274 1.15 1.39
Stop Switch Base For Europe
355 6688374 2.31 2.80
Stop Switch Spring For Europe
356 6688385 2.31 2.80
Earth Terminal B
357 6687805 2.31 2.80
Earth Terminal A
358 6687801 2.31 2.80
No longer available, no replacement
359 6685000
Stop Ring E-6
360 6695311 1.15 1.39
Return Spring (old 832-37101-20)
361 6693601 1.15 1.39
Throttle Arm
362 6693804 3.30 3.99
Screw 5x20 (old 994-31050-201) New
363 6695453 1.15 1.39
Lock Button Shaft
365 6693653 1.15 1.39
Lock Button Spring (old 958-37101-20)
366 6694834 1.15 1.39
Lock Button
367 6694829 2.31 2.80
Drive Shaft Pipe Ass'y
371 6689372 72.30 87.48
Main Pipe Set For Irl
371A 6689610 88.33 106.87
Drive Shaft Pipe Ass'y
371B 6689372 72.30 87.48
Cutter Case Ass'y
372 6684770 50.51 61.12
Cutter Case Ass'y For Irl
372A 6685044 58.39 70.65
Cutter Case Ass'y
372B 6684770 50.51 61.12
Main Pipe
373 6689369 19.36 23.43
Main Pipe For Irl
373A 6689413 50.21 60.76
Main Pipe
373B 6689369 19.36 23.43
Flexible Liner
374 6684772 16.34 19.77
Flexible Liner For Irl
374A 6685037 17.70 21.42
Flexible Liner
374B 6684772 16.34 19.77
Flexible Shaft
375 6684773 24.95 30.19
Flexible Shaft (a)
375A 6685038 17.70 21.42
Flexible Shaft
375B 6684773 24.95 30.19
Cutter Shaft
376 6684774 14.19 17.17
No information available, not orderable
376A 6698339
Cutter Shaft
376B 6684774 14.19 17.17
No information available, not orderable
377 6684775
Ball Bearing 608 Zz C3
377A 6695547 3.30 3.99
No information available, not orderable
377B 6684775
No information available, not orderable
378 6684776
Collar (a)
378A 6685014 2.10 2.54
No information available, not orderable
378B 6684776
Screw 5x12
379 6694885 1.15 1.39
Bolt M5x10 For Irl
379A 6684994 1.15 1.39
Screw 5x12
379B 6694885 1.15 1.39
Cutter Case
380 6684778 12.38 14.97
Cutter Case For Irl
380A 6685042 24.20 29.28
Cutter Case
380B 6684778 12.38 14.97
Ring
381 6684779 2.15 2.60
Hex. Bolt M5x30 For Irl
381A 6684996 1.15 1.39
Ring
381B 6684779 2.15 2.60
Guard Holder Since D085851
382 6684785 4.29 5.19
Ring
383 6685001 1.15 1.39
Special Nut
384 6684780 4.29 5.19
Cutter Holder
385 6684782 4.29 5.19
Cutter Holder (a)
385A 6685073 4.45 5.38
Cutter Holder
385B 6684782 4.29 5.19
No information available, not orderable
386 6685016
Stop Ring R-22,inner
387 6684781 2.15 2.60
Guard Since D085851
388 6684783 20.73 25.08
Guard For Irl
388A 6685030 12.05 14.58
Guard Since D085851
388B 6684783 20.73 25.08
Cover Bracket22 Since D085851
389 6684784 8.58 10.38
Ring
390 6684639 2.15 2.60
No information available, not orderable
391 6684792
Plus Bolt M6x45
392 6684995 1.15 1.39
Ring
393 6684971 1.04 1.26
Hex. Socket Hd. Bolt M5x30 S
394 6684786 2.15 2.60
Knife Since E047001
395 6684754 8.58 10.38
Knife
395A 6685015 2.31 2.80
Knife Since E047001
395B 6684754 8.58 10.38
Tapping Screw 5x20 For Aus (sl)
396 6684753 2.15 2.60
Tapping Screw D5x16
396A 6685074 1.15 1.39
Tapping Screw 5x20 For Aus (sl)
396B 6684753 2.15 2.60
Holder, Pipe Blk
397 6689501 2.31 2.80
No information available, not orderable
398 6697837
Shaft Grip For Irl
398A 6685032 14.68 17.76
No information available, not orderable
398B 6697837
Spacer
399 6684789 2.15 2.60
Throttle Wire Comp.
400 6693819 4.45 5.38
Throttle Wire (old 885-38451-81)
400A 6693983 3.30 3.99
Throttle Wire Comp.
400B 6693819 4.45 5.38
No information available, not orderable
401 6684792
Loop Handle
402 6684791 12.38 14.97
Handle Bracket (a)
403 6684793 4.29 5.19
Ring
404 6684639 2.15 2.60
Plus Bolt 6x40 For Aus
405 6684795 1.95 2.36
Stop Cord, B430m
406 6687915 2.31 2.80
Protection Tube 10x170l (old 164-10017-01)
407 6687562 1.05 1.27
Protection Tube D7x170
407A 6685007 2.31 2.80
Protection Tube 10x170l (old 164-10017-01)
407B 6687562 1.05 1.27
Throttle Lever Ass'y For Europe (till D089600 For
408 6693755 15.88 19.21
Throttle Lever Assy 22 For Irl
408A 6693772 30.25 36.60
Throttle Lever Ass'y For Europe (till D089600 For
408B 6693755 15.88 19.21
Stop Switch For Europe
409 6687515 2.31 2.80
Tapping Screw 3x8 (old 993-42030-081)
410 6695274 1.15 1.39
Stop Switch Base For Europe
411 6688374 2.31 2.80
Stop Switch Spring For Europe
412 6688385 2.31 2.80
Earth Terminal B
413 6687805 2.31 2.80
Earth Terminal A
414 6687801 2.31 2.80
No longer available, no replacement
415 6685000
Stop Ring E-6
416 6695311 1.15 1.39
Return Spring (old 832-37101-20)
417 6693601 1.15 1.39
Throttle Arm
418 6693804 3.30 3.99
Screw 5x20 (old 994-31050-201) New
419 6695453 1.15 1.39
Lock Button Shaft
420 6693653 1.15 1.39
Lock Button Spring (old 958-37101-20)
421 6694834 1.15 1.39
Lock Button
422 6694829 2.31 2.80
Throttle Lever
424 6685006 1.15 1.39
Stop Switch Comp.
425 6687462 9.40 11.37
Machine Screw M5x30
426 6685076 1.15 1.39
Nut M5
427 6684965 1.04 1.26
Tapping Screw D5x14 Since C026901 Till F024130
428 6685275 1.15 1.39
Return Spring
429 6684998 1.15 1.39
Stop Switch
430 6685009 2.31 2.80
Switch Mark
431 6685003 1.15 1.39
Hex. Hole Bolt M5x25/s
432 6684709 2.15 2.60
Stop Ring C-24,inner
433 6684732 2.15 2.60
Stop Ring C-9, Outer
434 6695281 1.15 1.39
Ball Bearing 609z St
435 6684735 8.58 10.38
Gear Case 24
436 6688815 12.38 14.97
Screw 5x12/w.s
437 6695414 1.15 1.39
Oiling Bolt
438 6689109 1.15 1.39
Ball Bearing 626
439 6695567 4.45 5.38
Gear Shaft For Europe,aus,irl
440 6688948 9.74 11.78
Ball Bearing 6000d
441 6695527 6.60 7.99
STOP RING C-26, INNER (OLD 993-51026-002)
442 6695294 1.15 1.39
Cutter Holder
443 6689033 6.44 7.79
Cutter Holder Cap For Europe,aus,irl
444 6689056 3.30 3.99
Protection Cover (old 308-38360-20)
445 6688996 3.30 3.99
Fixing Nut L/h For Europe,aus,irl
446 6689075 1.15 1.39
Gear/pinion Set
447 6688883 13.91 16.83
Gear Case Cover (old 303-38360-20)
448 6688917 2.31 2.80
Screw 5x12/w.s
449 6695414 1.15 1.39
Gear Cover
450 6688817 66.40 80.34
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
451 6684714 2.15 2.60
Cover Bracket 24 Till D240050 For Europe,aus,irl
452 6690317 3.30 3.99
Cover Bracket Since D240051 For Europe,aus,irl
452A 6690318 5.11 6.19
Blade Guard 26 Ce Till D168500 For Europe
453 6690242 16.64 20.13
Blade Guard 24 Ce Since D240051 For Europe,aus,ir
453A 6684747 30.70 37.15
Guard Holder
454 6684748 4.29 5.19
No longer available, no replacement
455 6690372
Cover Guard Since D240051 For Europe,aus,irl
455A 6684749 14.98 18.12
Blade (old 797-37380-21/6693385)
456 6693386 4.45 5.38
Knife For Irl
456A 6684750 4.29 5.19
Screw 5x12/s Till E047000
457 6695334 1.15 1.39
Tapping Screw 4x14
457A 6684751 2.15 2.60
Nut M5
458 6684965 1.04 1.26
Bracket Spacer Till D240050 For Europe,aus,irl
459 6690332 1.15 1.39
Tapping Screw 5x20 For Aus (sl)
460 6684753 2.15 2.60
Knife Since E047001
461 6684754 8.58 10.38
Gear Cover
471 6688818 62.31 75.40
Hex. Hole Bolt M5x25/s
472 6684709 2.15 2.60
Stop Ring C-24,inner
473 6684732 2.15 2.60
Stop Ring C-9, Outer
474 6695281 1.15 1.39
Ball Bearing 609z St
476 6684735 8.58 10.38
Gear Case 24
477 6688815 12.38 14.97
Screw 5x12/w.s
478 6695414 1.15 1.39
Oiling Bolt
479 6689109 1.15 1.39
Ball Bearing 626
480 6695567 4.45 5.38
Gear Shaft For Europe,aus,irl
481 6688948 9.74 11.78
Ball Bearing 6000d
482 6695527 6.60 7.99
STOP RING C-26, INNER (OLD 993-51026-002)
483 6695294 1.15 1.39
Cutter Holder
484 6689033 6.44 7.79
Cutter Holder For(st)
485 6689057 4.45 5.38
Fixing Nut L/h For Europe,aus,irl
486 6689075 1.15 1.39
Gear/pinion Set
487 6688883 13.91 16.83
Gear Case Cover (old 303-38360-20)
488 6688917 2.31 2.80
Screw 5x12/w.s
489 6695414 1.15 1.39
Hex. Hole Bolt M5x25/s
490 6684709 2.15 2.60
Cover Bracket, 23.9 Dia. For(st)
491 6690308 2.10 2.54
Blade Guard Red For(st)
492 6690233 6.00 7.26
Guard Holder Since D085851
493 6684785 4.29 5.19
No information available, not orderable
501 6684813
No information available, not orderable
502A 875769
Combi Box Spanner 13x19
503 6693588 3.30 3.99
No information available, not orderable
504 6699555
Cutter Cover For (s)
504B 6684768 2.15 2.60
No information available, not orderable
505 66A2697
No information available, not orderable
506 6695789
No longer available, no replacement
508 6691297
No information available, not orderable
509 6695795
No information available, not orderable
510 6695796
No information available, not orderable
511 6695783
Cutting Body For Europe (till C133700 For Aus)
512 6693273 17.55 21.24
Special Nut For Europe (till C133700 For Aus)
513 6689103 9.74 11.78
Reel Spring Since Tl060521
514 6693380 3.30 3.99
Eyelet Since Tl060521
515 6684810 2.15 2.60
Spool For Europe (till C133700 For Aus)
516 6693294 11.05 13.37
No longer available, no replacement
517 6693340
No information available, not orderable
518 6697932
No information available, not orderable
521 6695782
Ring
522 6684806 4.29 5.19
Cutting Body For Europe
523 6684807 18.75 22.69
Mounting Nut M8x1.25f For Europe
524 6684808 9.40 11.37
Reel Spring For Europe
525 6684809 6.44 7.79
Eyelet Since Tl060521
526 6684810 2.15 2.60
Spool For Europe
527 6684811 12.38 14.97
Nylon Cord Cap For Europe
528 6684812 12.38 14.97
No information available, not orderable
529 071000
No information available, not orderable
531 6695782
N/h Nb4 Rm8x1.25 (old 783-38474-90)
531A 6695726 28.14 34.05
No information available, not orderable
531B 6695782
Ring
532 6684806 4.29 5.19
Cutting Body For Europe
533 6684807 18.75 22.69
Mounting Nut M8x1.25f For Europe
534 6684808 9.40 11.37
Reel Spring For Europe
535 6684809 6.44 7.79
Eyelet Since Tl060521
536 6684810 2.15 2.60
Spool For Europe
537 6684811 12.38 14.97
Nylon Cord Cap For Europe
538 6684812 12.38 14.97
No information available, not orderable
539 071000
No information available, not orderable
540 6693274
Mounting Nut R/h For Irl
541 6689626 2.31 2.80
Code Reel For Irl
542 6693293 9.08 10.98
Reel Spring For Irl
543 6693379 1.15 1.39
Reel Slider For Irl
544 6689852 2.31 2.80
Eyelet For Irl
545 6693329 1.15 1.39
Body Cap For Irl
546 6693339 4.45 5.38
Disk For Irl
547 6689906 1.15 1.39
Screw 5x14/s For Irl
548 6695336 1.15 1.39
Name Plate Cg22ej (old 906-07186-20) New
601 6694226 1.05 1.27
Symbol Mark CG22EJ (old 929-07186-20) New
602 6694652 1.05 1.27
Symbol Mark CG22EJ(S) (old 929-07187-20) New
604 6694653 1.05 1.27
No information available, not orderable
605 6694225
Symbol Mark CG22EJ(L) (old 929-07185-20) New
606 6694651 1.05 1.27
Symbol Mark Cg22ej(slb) For Europe(slb)
607 6694654 1.15 1.39
Name Plate Cg22ej(lb) (old 906-07183-20) New
608 6694224 1.05 1.27
Symbol Mark CG22EJ(LB) (old 929-07183-20) New
609 6694650 1.05 1.27
Symbol Mark Cg22ej(sld) For (sld)
610 6694655 1.05 1.27
No information available, not orderable
611 6694656

There are 0 items in your shopping basket.
