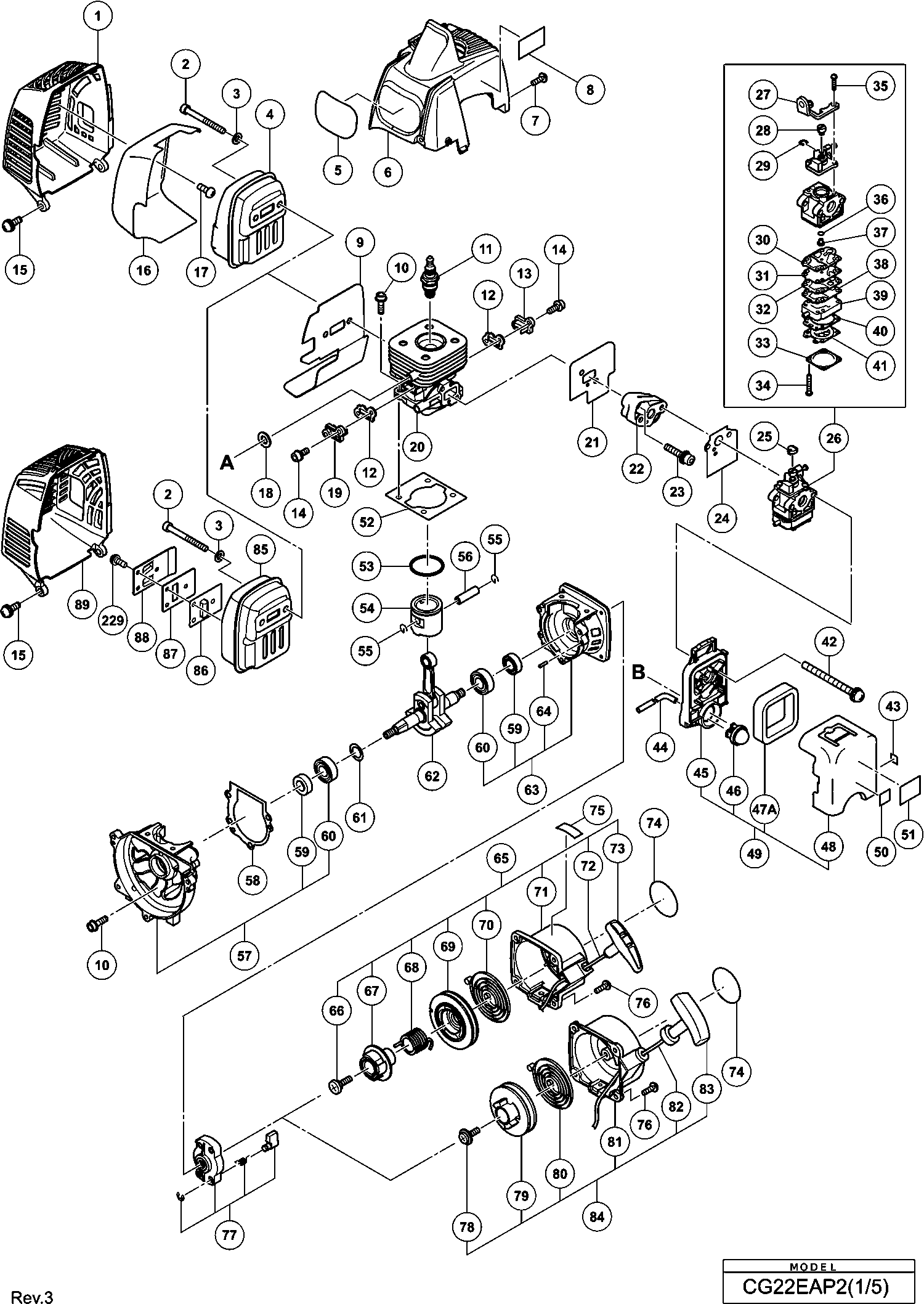

Technical drawing of model Hikoki CG22EAP2
Spare parts list of model Hikoki CG22EAP2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Ass'y Bmr7a | ||||
| *11 | 6699316 | 8.91 | 10.78 | |
| Tank | ||||
| *137 | 6696569 | 4.59 | 5.55 | |
| Fuel Pipe | ||||
| *142 | 6698716 | 3.45 | 4.17 | |
| Gear Cover | ||||
| *190 | 6699402 | 50.33 | 60.89 | |
| Level Mark | ||||
| *215 | 6684851 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 2 | 6696819 | |||
| Bolt Washer M6 (10 Pcs.) | ||||
| 3 | 949432 | 1.05 | 1.27 | |
| Cylinder Cover | ||||
| 6 | 6600424 | 3.15 | 3.81 | |
| Machine Screw (w/washers) M4x20 (black) | ||||
| 7 | 307606 | 1.05 | 1.27 | |
| Heat Protection Panel Since 11.2013 | ||||
| 9 | 6600320 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 10 | 6698386 | |||
| Spark Plug Ass'y Bmr7a | ||||
| 11 | 6699316 | 8.91 | 10.78 | |
| Cover Packing | ||||
| 12 | 6696534 | 1.05 | 1.27 | |
| Intake Cover (a) | ||||
| 13 | 6696535 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 14 | 6698385 | |||
| No information available, not orderable | ||||
| 15 | 887021 | |||
| Muffer Heat Cover Since 11.2013 | ||||
| 16 | 6600340 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 18 | 6698700 | |||
| Intake Cover (b) | ||||
| 19 | 6696536 | 1.05 | 1.27 | |
| Cylinder | ||||
| 20 | 6696527 | 24.70 | 29.89 | |
| Gasket | ||||
| 21 | 6696548 | 1.05 | 1.27 | |
| Carburetor Insulator | ||||
| 22 | 6698387 | 3.15 | 3.81 | |
| Seal Lock Hex. Socket Bolt (w/washers)m5 | ||||
| 23 | 6698844 | 1.20 | 1.45 | |
| Carburetor Packing | ||||
| 24 | 6698405 | 2.10 | 2.54 | |
| No longer available, no replacement | ||||
| 25 | 6691337 | |||
| Carburetor Wyc-22 | ||||
| 26 | 6696550 | 45.63 | 55.21 | |
| Cable Adjust Stay | ||||
| 27 | 6699287 | 4.13 | 4.99 | |
| Swivel | ||||
| 28 | 6696830 | 4.45 | 5.38 | |
| Stop Ring | ||||
| 29 | 6684696 | 2.15 | 2.60 | |
| Pump Gasket | ||||
| 30 | 6684692 | 29.19 | 35.32 | |
| Pump Diaphragm | ||||
| 31 | 6684693 | 8.58 | 10.38 | |
| Pump Plate | ||||
| 32 | 6691242 | 2.31 | 2.80 | |
| Diaphragm Cover-metering | ||||
| 33 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 34 | 6691312 | 1.15 | 1.39 | |
| Set Screw M3x12 | ||||
| 35 | 6696829 | 1.04 | 1.26 | |
| O-RING (old 550-25100-20) | ||||
| 36 | 6684695 | 4.29 | 5.19 | |
| Main Jet | ||||
| 37 | 6697947 | 5.11 | 6.19 | |
| Circuit Plate | ||||
| 38 | 6691234 | 3.30 | 3.99 | |
| Pump Body Comp. | ||||
| 39 | 6696828 | 13.36 | 16.17 | |
| No longer available, no replacement | ||||
| 40 | 6685220 | |||
| No longer available, no replacement | ||||
| 41 | 6684690 | |||
| Machine Screw with Washers M5x60 (Black) | ||||
| 42 | 307224 | 1.05 | 1.27 | |
| Fuel Pipe L70 | ||||
| 44B | 6699014 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 45 | 6696832 | |||
| Priming Pump Comp. | ||||
| 46 | 6685139 | 5.94 | 7.18 | |
| No longer available, no replacement | ||||
| 47A | 6600704 | |||
| No information available, not orderable | ||||
| 48 | 6696831 | |||
| Air Cleaner Ass'y Includ.34-37 | ||||
| 49 | 6696549 | 9.13 | 11.04 | |
| Cylinder Packing | ||||
| 52 | 6696530 | 1.05 | 1.27 | |
| Piston Ring | ||||
| 53 | 6696532 | 2.10 | 2.54 | |
| Piston | ||||
| 54 | 6696531 | 6.88 | 8.32 | |
| Cir Clip | ||||
| 55 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 56 | 6696944 | 3.33 | 4.02 | |
| Crank Case (b) Comp Includ.55,56 | ||||
| 57 | 6696538 | 13.26 | 16.05 | |
| Crank Case Packing | ||||
| 58 | 6696539 | 1.05 | 1.27 | |
| Oil Seal | ||||
| 59 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 60 | 6684608 | 3.80 | 4.60 | |
| Shim T0.3 | ||||
| 61 | 6696945 | 1.68 | 2.03 | |
| Crank Shaft | ||||
| 62 | 6696533 | 32.31 | 39.10 | |
| Crank Case (a) Ass'y Includ.55,56,61 | ||||
| 63 | 6696537 | 13.68 | 16.55 | |
| Knock Pin 4x12 | ||||
| 64 | 6696947 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 65 | 6699995 | |||
| RECOIL STARTER BODY ASS'Y NEW | ||||
| 65A | 6601570 | 15.81 | 19.13 | |
| Set Screw (old 839-03045-20) | ||||
| 66 | 6684679 | 2.15 | 2.60 | |
| Cam Plate For (s) Type Since 9.2013 For Aus | ||||
| 67 | 6699996 | 2.55 | 3.09 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 68 | 6684677 | 8.58 | 10.38 | |
| Starter Rope Reel For (s) Type Since 9.2013 For A | ||||
| 69 | 6699997 | 8.41 | 10.18 | |
| Recoil Spring Till 7.2014 | ||||
| 70 | 6684675 | 11.55 | 13.98 | |
| No information available, not orderable | ||||
| 71 | 6684673 | |||
| Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo | ||||
| 72 | 6684674 | 4.29 | 5.19 | |
| Starter Handle | ||||
| 73 | 6684680 | 2.15 | 2.60 | |
| Screw (w/washers) M4x16 | ||||
| 76 | 6698398 | 1.05 | 1.27 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 77 | 6684681 | 13.20 | 15.97 | |
| Starter Pulley Ass'y Till 7.2014 | ||||
| 77 | 6696471 | 5.10 | 6.17 | |
| Set Screw Till 7.2014 | ||||
| 78 | 6693633 | 1.15 | 1.39 | |
| Recoil Spring Till 7.2014 | ||||
| 80 | 6684675 | 11.55 | 13.98 | |
| Rope Till 7.2014 | ||||
| 82 | 6693168 | 2.31 | 2.80 | |
| Starter Handle | ||||
| 83 | 6693227 | 3.30 | 3.99 | |
| Recoil Starter Body Ass'y Includ.60-63 Till 7.201 | ||||
| 84 | 6696572 | 10.20 | 12.34 | |
| Anti Vibe Rubber (a) | ||||
| 101 | 6696963 | 3.33 | 4.02 | |
| Pipe Holder (a) | ||||
| 102 | 6696542 | 1.05 | 1.27 | |
| Nut M5 (black) | ||||
| 103 | 302012 | 1.05 | 1.27 | |
| Pipe Holder (b) | ||||
| 104 | 6696543 | 1.05 | 1.27 | |
| Anti Vibe Rubber (b) | ||||
| 105 | 6696964 | 3.33 | 4.02 | |
| No information available, not orderable | ||||
| 106 | 6699176 | |||
| Hex. Hole Bolt 5x22/s | ||||
| 107 | 6695492 | 1.15 | 1.39 | |
| Fan Case (vermilion) | ||||
| 108 | 6699159 | 9.15 | 11.07 | |
| Clutch Shaft COMP | ||||
| 109A | 6696541 | 8.41 | 10.18 | |
| No information available, not orderable | ||||
| 110 | 6696469 | |||
| Ring | ||||
| 111 | 6684648 | 2.15 | 2.60 | |
| Clutch Plate (a) | ||||
| 112 | 6696546 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 113 | 6696948 | |||
| Washer (b) | ||||
| 114 | 6696547 | 1.05 | 1.27 | |
| Nut | ||||
| 115 | 6685337 | 1.05 | 1.27 | |
| Bolt Washer M8 (black) | ||||
| 116 | 323212 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 117 | 6699464 | |||
| Hex. Socket Hd. Bolt (w/washers) M4x18 | ||||
| 118 | 6698388 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 119A | 6601421 | |||
| No information available, not orderable | ||||
| 120 | 6699186 | |||
| Cord | ||||
| 121 | 6696544 | 1.05 | 1.27 | |
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 122 | 6684899 | 2.15 | 2.60 | |
| Earth Cord | ||||
| 123 | 6696545 | 1.05 | 1.27 | |
| Magneto Rotor Comp. | ||||
| 124 | 6699289 | 25.71 | 31.11 | |
| Spring Washer D12 (10 pieces) | ||||
| 125 | 939542 | 1.50 | 1.82 | |
| Tapping Screw D4.5x16 | ||||
| 126 | 6698878 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 127 | 305812 | 1.04 | 1.26 | |
| Lock Lever | ||||
| 129 | 6696490 | 1.04 | 1.26 | |
| Lever (1) | ||||
| 130 | 6696488 | 1.04 | 1.26 | |
| Spring (a) | ||||
| 131 | 6696489 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 132A | 6601275 | |||
| Stop Switch Cord For (s) | ||||
| 133 | 6696592 | 2.10 | 2.54 | |
| Stop Switch Cord | ||||
| 133 | 6696491 | 1.80 | 2.18 | |
| Protection Tube For (s) | ||||
| 134 | 6696594 | 2.10 | 2.54 | |
| Protection Tube | ||||
| 134 | 6696967 | 1.05 | 1.27 | |
| Throttle Wire Comp. | ||||
| 135 | 6696560 | 4.18 | 5.05 | |
| Tank | ||||
| 137 | 6696569 | 4.59 | 5.55 | |
| Bolt (w/flange) L17.8 Since G103931 | ||||
| 139 | 6696574 | 1.05 | 1.27 | |
| Pump Filter | ||||
| 140 | 6600351 | 2.70 | 3.27 | |
| No longer available, no replacement | ||||
| 141 | 6696949 | |||
| Fuel Pipe | ||||
| 142 | 6698716 | 3.45 | 4.17 | |
| Fuel Pipe L70 | ||||
| 143A | 6699014 | 1.65 | 2.00 | |
| Return Grommet Till 7.2014 | ||||
| 144 | 6697846 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 145 | 6698931 | |||
| No longer available, no replacement | ||||
| 146 | 6698402 | |||
| Tank Cap Chain | ||||
| 147 | 6698732 | 1.20 | 1.45 | |
| Tapping Screw (w/Flange) D4x30 for Europe (s) | ||||
| 171 | 323837 | 1.68 | 2.03 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 172 | 302086 | 1.05 | 1.27 | |
| Handle (b) For Europe (s) | ||||
| 173 | 6696590 | 3.13 | 3.78 | |
| Machine Screw M5x30 (black) | ||||
| 174 | 323041 | 1.05 | 1.27 | |
| Throttle Wire Comp. | ||||
| 175 | 6696593 | 5.10 | 6.17 | |
| Kor (s) | ||||
| 176 | 6696585 | 6.45 | 7.80 | |
| Handle Holder (b) Since 7.2015 For (s) | ||||
| 177A | 6600501 | 7.20 | 8.71 | |
| Handle Holder (c) For (s) | ||||
| 178 | 6696578 | 2.10 | 2.54 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 179 | 6684714 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x25/s | ||||
| 180 | 6684709 | 2.15 | 2.60 | |
| Handle Holder (a) Since 7.2015 For (s) | ||||
| 181A | 6600500 | 4.20 | 5.08 | |
| Handle (a) For Europe (s) | ||||
| 182 | 6696588 | 2.10 | 2.54 | |
| Nut M5 (black) | ||||
| 183 | 302012 | 1.05 | 1.27 | |
| Kor (s) | ||||
| 184 | 6696595 | 13.26 | 16.05 | |
| Bolt (black) M6 | ||||
| 187 | 6696974 | 1.68 | 2.03 | |
| Tpe (sl),kor (sl) | ||||
| 188 | 949556 | 1.05 | 1.27 | |
| Tpe (sl),kor (sl) | ||||
| 189 | 6696975 | 8.98 | 10.86 | |
| Gear Cover | ||||
| 190 | 6699402 | 50.33 | 60.89 | |
| Set Screw | ||||
| 200 | 6698795 | 1.35 | 1.63 | |
| Reel | ||||
| 201 | 6698796 | 2.40 | 2.90 | |
| Return Spring | ||||
| 202 | 6698797 | 1.05 | 1.27 | |
| Button (1) | ||||
| 203 | 6698798 | 1.20 | 1.45 | |
| Cord Guide | ||||
| 204 | 6698799 | 1.20 | 1.45 | |
| Case | ||||
| 205 | 6698800 | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 206 | 6696454 | |||
| Caution Mark | ||||
| 213 | 6600450 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 214 | 6600446 | |||
| Level Mark | ||||
| 215 | 6684851 | 2.15 | 2.60 | |
| Cap (a) | ||||
| 219 | 6698515 | 2.10 | 2.54 | |
| Ring | ||||
| 229 | 6685068 | 1.15 | 1.39 | |
| Flexible Shaft For (lb) | ||||
| 281 | 6698325 | 13.80 | 16.70 | |
| Main Pipe Ass'y Includ.281,283 For Europe (lb) | ||||
| 282 | 6696580 | 51.84 | 62.72 | |
| Cutter Case Includ.234,235,238 For (lb) | ||||
| 283A | 6600494 | 25.44 | 30.78 | |
| No information available, not orderable | ||||
| 284 | 6698331 | |||
| Hex. Socket Hd. Bolt M5x10 (10 Pcs.) | ||||
| 285 | 949819 | 2.55 | 3.09 | |
| Bolt M6 For (lb) | ||||
| 286 | 6698334 | 3.15 | 3.81 | |
| Guard Bracket For (lb) | ||||
| 287 | 6698335 | 3.15 | 3.81 | |
| Hex. Socket Hd. Bolt M5x25 (10 Pcs.) | ||||
| 288 | 949662 | 2.10 | 2.54 | |
| Guard For (lb) | ||||
| 289 | 6698809 | 18.56 | 22.46 | |
| Machine Screw M5X14 (10 pieces) | ||||
| 290 | 949238 | 1.05 | 1.27 | |
| Washer M5 (10 Pcs.) | ||||
| 291 | 949424 | 1.05 | 1.27 | |
| Knife For (lb) | ||||
| 292 | 6698333 | 6.45 | 7.80 | |
| Spring Washer M5 (10 pieces) | ||||
| 293 | 949454 | 1.04 | 1.26 | |
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 294 | 949555 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 311 | 6696597 | |||
| Handle Holder (a).(b) Set Includ.155a,158a Till 6 | ||||
| 312 | 6600499 | 10.65 | 12.89 | |
| No information available, not orderable | ||||
| 501 | 6684764 | |||
| No information available, not orderable | ||||
| 502 | 6696596 | |||
| No information available, not orderable | ||||
| 503 | 944458 | |||
| Cutter Cover For (s) | ||||
| 504A | 6684768 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 505 | 875769 | |||
| No information available, not orderable | ||||
| 507 | 6684767 | |||
