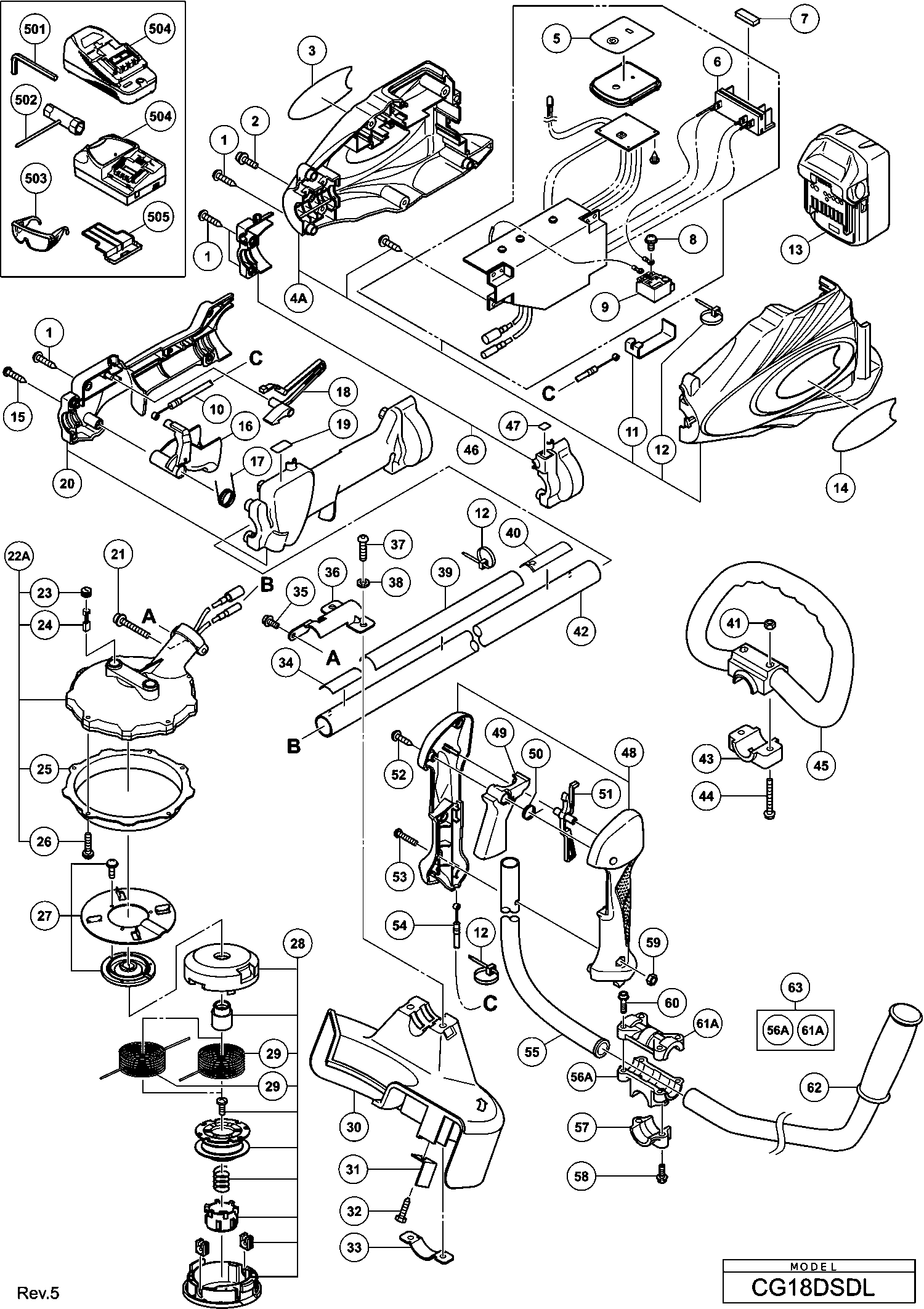

Technical drawing of model Hikoki CG18DSDL
Spare parts list of model Hikoki CG18DSDL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| *1 | 302086 | 1.05 | 1.27 | |
| Cable Tie | ||||
| *12 | 988054 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *13 | 330068 | |||
| Disc Motor Ass'y Includ.23-26 | ||||
| *22A | 334506 | 239.39 | 289.66 | |
| No longer available, no replacement | ||||
| *28 | 333903 | |||
| No information available, not orderable | ||||
| *29 | 333923 | |||
| Housing | ||||
| *4A | 334293 | 129.25 | 156.39 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 1 | 302086 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt (w/washers) M5x16 | ||||
| 2 | 996728 | 1.05 | 1.27 | |
| Housing | ||||
| 4A | 334293 | 129.25 | 156.39 | |
| Panel Sheet | ||||
| 5 | 334296 | 2.10 | 2.54 | |
| Battery Terminal | ||||
| 6 | 331399 | 2.10 | 2.54 | |
| Gasket | ||||
| 7 | 333902 | 1.20 | 1.45 | |
| Machine Screw (w/washer) M3.5x5 | ||||
| 8 | 980060 | 1.05 | 1.27 | |
| Switch | ||||
| 9 | 332552 | 10.65 | 12.89 | |
| No information available, not orderable | ||||
| 10 | 330772 | |||
| Plate | ||||
| 11 | 330771 | 4.20 | 5.08 | |
| Cable Tie | ||||
| 12 | 988054 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 13 | 330068 | |||
| Tapping Screw D4x20 | ||||
| 15 | 956384 | 1.05 | 1.27 | |
| Lever Except For Rus | ||||
| 16 | 330778 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 17 | 330780 | |||
| No information available, not orderable | ||||
| 18 | 330779 | |||
| No information available, not orderable | ||||
| 20 | 330800 | |||
| Hex.hole Bolt M5x30/ws | ||||
| 21 | 6684973 | 2.15 | 2.60 | |
| Disc Motor Ass'y Includ.23-26 | ||||
| 22A | 334506 | 239.39 | 289.66 | |
| DISC MOTOR | ||||
| 22A | 333901 | 196.68 | 237.98 | |
| Brush Cap | ||||
| 23 | 334294 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 24 | 999016 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 25 | 334297 | |||
| Machine Screw (black) M4x16 | ||||
| 26 | 333163 | 1.80 | 2.18 | |
| Flange (1) | ||||
| 27 | 333904 | 20.90 | 25.29 | |
| No longer available, no replacement | ||||
| 28 | 333903 | |||
| No information available, not orderable | ||||
| 29 | 334128 | |||
| Cover | ||||
| 30 | 333899 | 10.65 | 12.89 | |
| Knife Since E047001 | ||||
| 31 | 6684754 | 8.58 | 10.38 | |
| Tapping Screw 5x20 For Aus (sl) | ||||
| 32 | 6684753 | 2.15 | 2.60 | |
| Guard Holder For Europe | ||||
| 33 | 6696951 | 3.33 | 4.02 | |
| Hex.hole Bolt M5x12/s | ||||
| 35 | 6684667 | 2.15 | 2.60 | |
| Cover Bracket | ||||
| 36 | 333321 | 2.10 | 2.54 | |
| Hex. Socket Hd. Bolt (w/button) M6x25 | ||||
| 37 | 330799 | 1.05 | 1.27 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 38 | 949455 | 1.05 | 1.27 | |
| Tpe (sl),kor (sl) | ||||
| 41 | 949556 | 1.05 | 1.27 | |
| Main Pipe | ||||
| 42 | 333900 | 18.15 | 21.96 | |
| Kor (sl) | ||||
| 43 | 6696972 | 1.20 | 1.45 | |
| Bolt (black) M6 | ||||
| 44 | 6696974 | 1.68 | 2.03 | |
| Tpe (sl),kor (sl) | ||||
| 45 | 6696975 | 8.98 | 10.86 | |
| Cover (a).(b) Set For Rus | ||||
| 46 | 332548 | 5.10 | 6.17 | |
| Handle (a).(b) Set | ||||
| 48 | 334541 | 15.95 | 19.30 | |
| HANDGREEP (A+B) (OUD 334541) | ||||
| 48A | 381649 | 4.32 | 5.23 | |
| No information available, not orderable | ||||
| 49 | 334544 | |||
| HENDEL (OUD 334544) | ||||
| 49A | 381650 | 1.38 | 1.67 | |
| No information available, not orderable | ||||
| 50 | 332557 | |||
| Lock Lever | ||||
| 51 | 6696490 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 52 | 301653 | 1.04 | 1.26 | |
| Machine Screw M5x30 (black) | ||||
| 53 | 323041 | 1.05 | 1.27 | |
| Wire | ||||
| 54 | 335749 | 1.65 | 2.00 | |
| Handle Right For Rus | ||||
| 55 | 335750 | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 56 | 6696577 | |||
| Handle Holder (b) Since 7.2015 For (s) | ||||
| 56A | 6600501 | 7.20 | 8.71 | |
| Handle Holder (c) For (s) | ||||
| 57 | 6696578 | 2.10 | 2.54 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 58 | 6684714 | 2.15 | 2.60 | |
| Nut M5 (black) | ||||
| 59 | 302012 | 1.05 | 1.27 | |
| Hex. Hole Bolt M5x25/s | ||||
| 60 | 6684709 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 61 | 6696576 | |||
| Handle Holder (a) Since 7.2015 For (s) | ||||
| 61A | 6600500 | 4.20 | 5.08 | |
| Handle (left) For (s) | ||||
| 62 | 6698638 | 22.83 | 27.62 | |
| Handle Holder (a).(b) Set Includ.155a,158a Till 6 | ||||
| 63 | 6600499 | 10.65 | 12.89 | |
| No information available, not orderable | ||||
| 501 | 6684813 | |||
| No information available, not orderable | ||||
| 502 | 6684764 | |||
| No information available, not orderable | ||||
| 503 | 875769 | |||
| Battery Cover | ||||
| 505 | 329897 | 1.80 | 2.18 | |
