Here you will find all available parts and drawings of the 'Hikoki CG14DSDL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

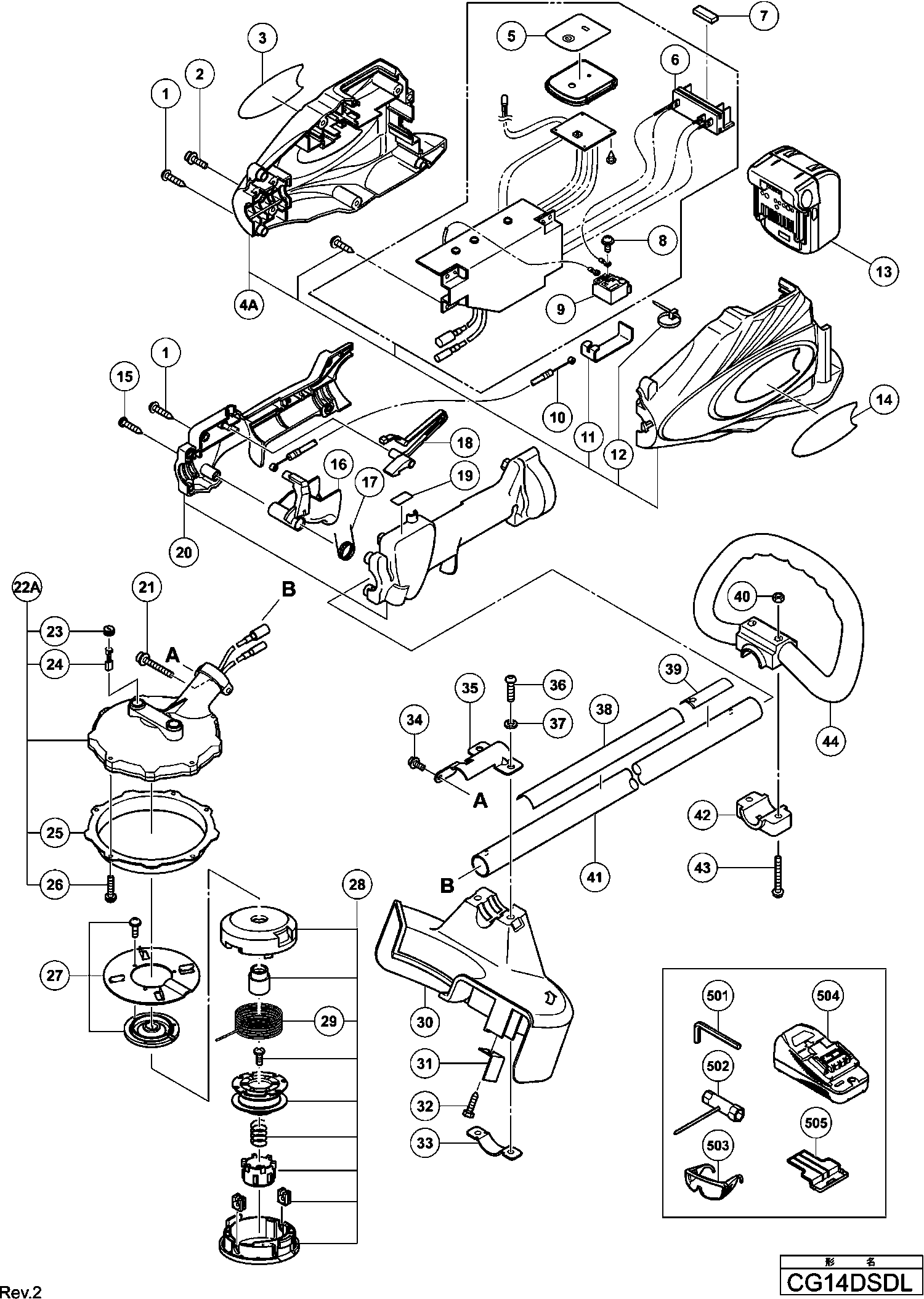

Technical drawing of model Hikoki CG14DSDL
Spare parts list of model Hikoki CG14DSDL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 1 | 302086 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt (w/washers) M5x16 | ||||
| 2 | 996728 | 1.05 | 1.27 | |
| Housing | ||||
| 4A | 334293 | 129.25 | 156.39 | |
| Panel Sheet | ||||
| 5 | 334296 | 2.10 | 2.54 | |
| Battery Terminal | ||||
| 6 | 331399 | 2.10 | 2.54 | |
| Gasket | ||||
| 7 | 333902 | 1.20 | 1.45 | |
| Machine Screw (w/washer) M3.5x5 | ||||
| 8 | 980060 | 1.05 | 1.27 | |
| Switch | ||||
| 9 | 332552 | 10.65 | 12.89 | |
| No information available, not orderable | ||||
| 10 | 330772 | |||
| Plate | ||||
| 11 | 330771 | 4.20 | 5.08 | |
| Cable Tie | ||||
| 12 | 988054 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 13 | 334419 | |||
| Tapping Screw D4x20 | ||||
| 15 | 956384 | 1.05 | 1.27 | |
| Lever Except For Rus | ||||
| 16 | 330778 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 17 | 330780 | |||
| No information available, not orderable | ||||
| 18 | 330779 | |||
| No information available, not orderable | ||||
| 20 | 330800 | |||
| Hex.hole Bolt M5x30/ws | ||||
| 21 | 6684973 | 2.15 | 2.60 | |
| Disc Motor Ass'y Includ.23-26 | ||||
| 22A | 334506 | 239.39 | 289.66 | |
| Brush Cap | ||||
| 23 | 334294 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 24 | 999016 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 25 | 334297 | |||
| Machine Screw (black) M4x16 | ||||
| 26 | 333163 | 1.80 | 2.18 | |
| Flange (1) | ||||
| 27 | 333904 | 20.90 | 25.29 | |
| No longer available, no replacement | ||||
| 28 | 333903 | |||
| No information available, not orderable | ||||
| 29 | 333923 | |||
| Cover | ||||
| 30 | 333899 | 10.65 | 12.89 | |
| Knife Since E047001 | ||||
| 31 | 6684754 | 8.58 | 10.38 | |
| Tapping Screw 5x20 For Aus (sl) | ||||
| 32 | 6684753 | 2.15 | 2.60 | |
| Guard Holder For Europe | ||||
| 33 | 6696951 | 3.33 | 4.02 | |
| Hex.hole Bolt M5x12/s | ||||
| 34 | 6684667 | 2.15 | 2.60 | |
| Cover Bracket | ||||
| 35 | 333321 | 2.10 | 2.54 | |
| Hex. Socket Hd. Bolt (w/button) M6x25 | ||||
| 36 | 330799 | 1.05 | 1.27 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 37 | 949455 | 1.05 | 1.27 | |
| Tpe (sl),kor (sl) | ||||
| 40 | 949556 | 1.05 | 1.27 | |
| Main Pipe | ||||
| 41 | 333900 | 18.15 | 21.96 | |
| Kor (sl) | ||||
| 42 | 6696972 | 1.20 | 1.45 | |
| Bolt (black) M6 | ||||
| 43 | 6696974 | 1.68 | 2.03 | |
| Tpe (sl),kor (sl) | ||||
| 44 | 6696975 | 8.98 | 10.86 | |
| No information available, not orderable | ||||
| 501 | 6684813 | |||
| No information available, not orderable | ||||
| 502 | 6684764 | |||
| No information available, not orderable | ||||
| 503 | 875769 | |||
| Battery Cover | ||||
| 505 | 329897 | 1.80 | 2.18 | |
