Here you will find all available parts and drawings of the 'Hikoki CE16SA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

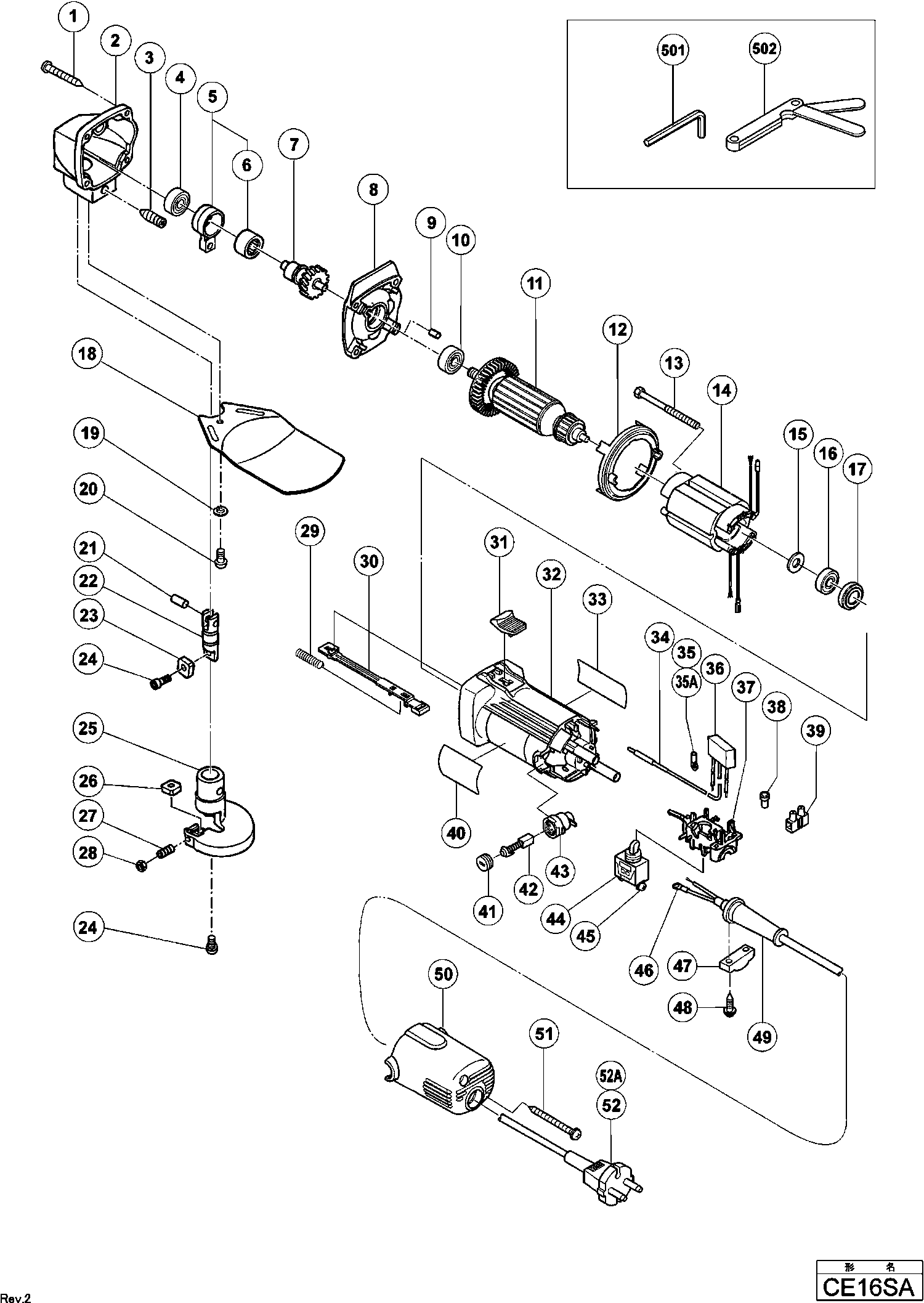

Technical drawing of model Hikoki CE16SA
Spare parts list of model Hikoki CE16SA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature 240v | ||||
| *11 | 360622F | 77.00 | 93.17 | |
| Armature 220v-230v | ||||
| *11 | 360622E | 73.01 | 88.35 | |
| Stator 240v | ||||
| *14 | 340567F | 58.58 | 70.88 | |
| Stator 220v-230v | ||||
| *14 | 340567E | 55.41 | 67.05 | |
| Cord Armor D10.1 | ||||
| *49 | 938051 | 1.04 | 1.26 | |
| Cord | ||||
| *52 | 930051 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| *52A | 500248Z | |||
| Tapping Screw D5x30 | ||||
| 1 | 957580 | 1.05 | 1.27 | |
| Gear Cover | ||||
| 2 | 998003 | 37.95 | 45.92 | |
| Hex. Socket Set Screw M8x20 | ||||
| 3 | 998008 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 4 | 608VVM | 5.70 | 6.90 | |
| Connecting Rod | ||||
| 5 | 998004 | 35.06 | 42.43 | |
| Needle Bearing (m152112) | ||||
| 6 | 993163 | 6.75 | 8.17 | |
| Spindle Ass'y | ||||
| 7 | 998006 | 40.84 | 49.41 | |
| Inner Cover | ||||
| 8 | 998002 | 21.86 | 26.45 | |
| RUBBER PEN | ||||
| 9 | 931701 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 10 | 608VVM | 5.70 | 6.90 | |
| Armature 240v | ||||
| 11 | 360622F | 77.00 | 93.17 | |
| Armature 220v-230v | ||||
| 11 | 360622E | 73.01 | 88.35 | |
| Fan Guide | ||||
| 12 | 306840 | 1.80 | 2.18 | |
| Hex. Hd. Tapping Screw D4x70 | ||||
| 13 | 982021 | 1.04 | 1.26 | |
| Stator 240v | ||||
| 14 | 340567F | 58.58 | 70.88 | |
| Stator 220v-230v | ||||
| 14 | 340567E | 55.41 | 67.05 | |
| Ring | ||||
| 15 | 942204 | 1.05 | 1.27 | |
| Ball Bearing 626vvc2ps2l | ||||
| 16 | 626VVM | 5.70 | 6.90 | |
| Rubber Ring | ||||
| 17 | 309929 | 1.04 | 1.26 | |
| Protector | ||||
| 18 | 998010 | 6.75 | 8.17 | |
| Spring Washer M5 (10 pieces) | ||||
| 19 | 949454 | 1.04 | 1.26 | |
| Machine Screw M5x12 (10 Pcs.) | ||||
| 20 | 949237 | 1.05 | 1.27 | |
| Pin | ||||
| 21 | 993546 | 1.05 | 1.27 | |
| Piston | ||||
| 22 | 998005 | 40.84 | 49.41 | |
| No information available, not orderable | ||||
| 23 | 998000 | |||
| Hex. Socket Hd. Bolt M4x10 (10 Pcs.) Till 12.2017 | ||||
| 24 | 949812 | 2.40 | 2.90 | |
| Blade Holder | ||||
| 25 | 998007 | 125.40 | 151.73 | |
| No information available, not orderable | ||||
| 26 | 998001 | |||
| Slotted Hd. Set Screw M4x14 | ||||
| 27 | 998009 | 1.05 | 1.27 | |
| Lock Nut M4 (10 Pcs.) | ||||
| 28 | 949565 | 1.05 | 1.27 | |
| Spring | ||||
| 29 | 314429 | 1.04 | 1.26 | |
| Slide Bar | ||||
| 30 | 314427 | 1.05 | 1.27 | |
| Slide Knob | ||||
| 31 | 314428 | 1.04 | 1.26 | |
| Housing | ||||
| 32 | 314438 | 6.21 | 7.52 | |
| Earth Terminal For Tpe | ||||
| 34 | 314854 | 1.50 | 1.82 | |
| Terminal | ||||
| 35 | 311741 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| 36 | 994273 | 4.29 | 5.19 | |
| Switch Holder | ||||
| 37 | 314432 | 2.10 | 2.54 | |
| Connector 50091 (10 Pcs.) | ||||
| 38 | 959140 | 3.30 | 3.99 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 39 | 938307 | 2.13 | 2.57 | |
| Brush Cap | ||||
| 41 | 936551 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 42 | 999021 | |||
| Brush Holder | ||||
| 43 | 313777 | 1.50 | 1.82 | |
| SCHAKELAAR | ||||
| 44 | 314603 | 11.88 | 14.37 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 45 | 305499 | 1.05 | 1.27 | |
| connecting terminal | ||||
| 46 | 980063 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 47 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 48 | 984750 | |||
| Cord Armor D10.1 | ||||
| 49 | 938051 | 1.04 | 1.26 | |
| Tail Cover | ||||
| 50 | 314433 | 5.18 | 6.26 | |
| Tapping Screw (w/flange) D4x45 (black) | ||||
| 51 | 301815 | 1.05 | 1.27 | |
| Cord | ||||
| 52 | 930051 | 14.30 | 17.30 | |
| Cord (cord Armor D8.8) For Saf | ||||
| 52 | 500237Z | 11.40 | 13.79 | |
| Cord (cord Armor D8.8) | ||||
| 52A | 500450Z | 31.63 | 38.27 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 52A | 500247Z | 6.18 | 7.48 | |
| CORD (CORD ARMOR D10.7) | ||||
| 52B | 500492Z | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 501 | 943277 | |||
| No information available, not orderable | ||||
| 502 | 949128 | |||
| Wing bolt set | ||||
| 601 | 302355 | 4.95 | 5.99 | |
