Here you will find all available parts and drawings of the 'Hikoki CD7SA'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

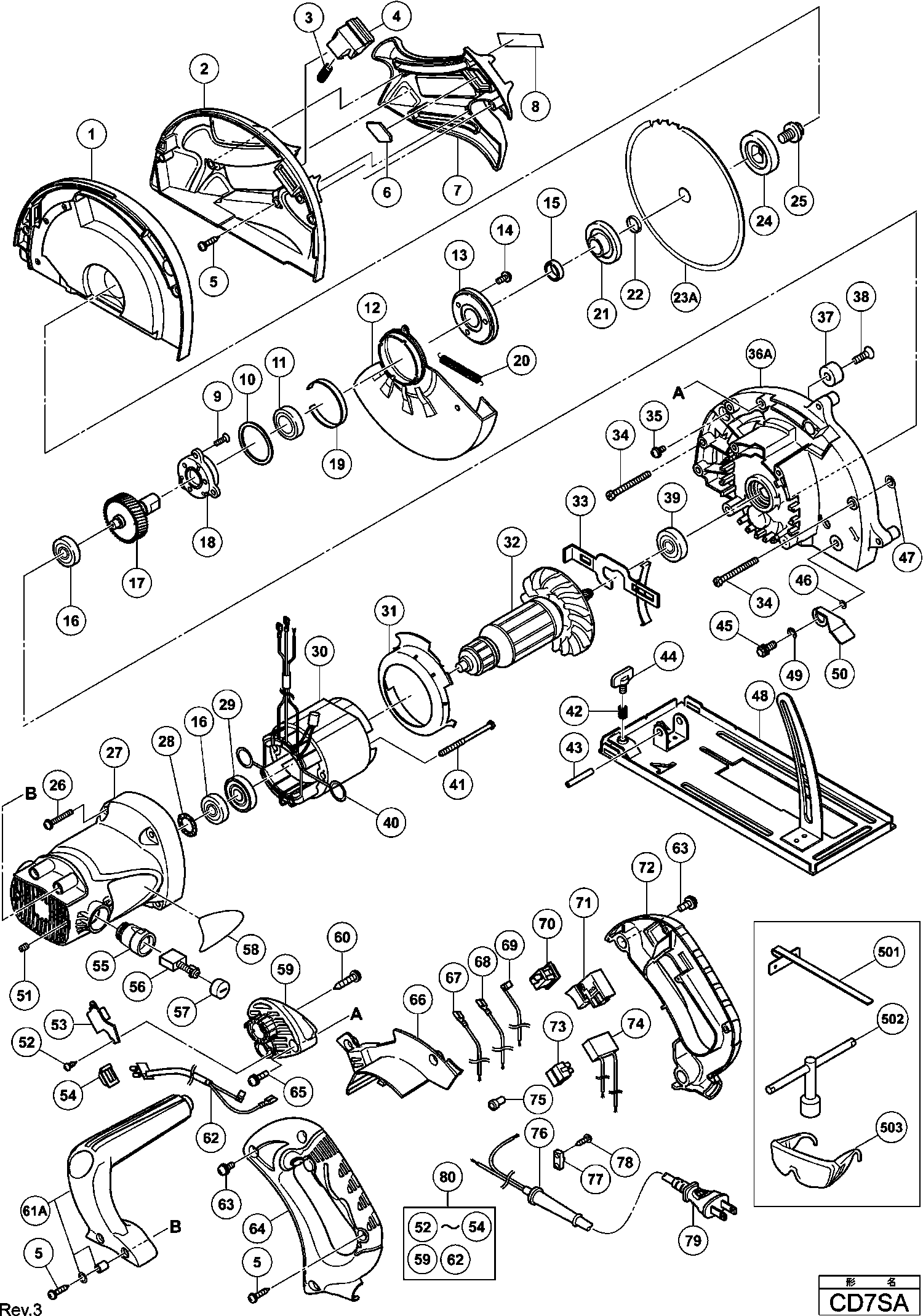

Technical drawing of model Hikoki CD7SA
Spare parts list of model Hikoki CD7SA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spindle And Gear Set | ||||
| *17 | 329197 | 17.74 | 21.46 | |
| Ring | ||||
| *21 | 993598 | 2.70 | 3.27 | |
| Dust Seal (a) | ||||
| *29 | 330259 | 1.80 | 2.18 | |
| Stator 220v-230v | ||||
| *30 | 340715E | 39.88 | 48.25 | |
| VELD 110 VOLT | ||||
| *30 | 340715D | 37.24 | 45.06 | |
| ANKER 110-120 VOLT | ||||
| *32 | 360829U | 79.86 | 96.63 | |
| Armature 230v | ||||
| *32 | 360829E | 76.04 | 92.01 | |
| Carbon Brush (1 Pair) | ||||
| *56 | 999056 | 6.45 | 7.80 | |
| LED 220v-240v | ||||
| *62 | 329742 | 33.96 | 41.09 | |
| Cord Armor D8.8 | ||||
| *76 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| *76 | 938051 | 1.04 | 1.26 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| *79 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| *80 | 329744 | |||
| Dust Cover (a) | ||||
| 1 | 329200 | 30.45 | 36.84 | |
| Dust Cover (b) | ||||
| 2 | 329201 | 24.75 | 29.95 | |
| Spring | ||||
| 3 | 329204 | 2.10 | 2.54 | |
| Knob | ||||
| 4 | 329202 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 5 | 301653 | 1.04 | 1.26 | |
| Glass Plate | ||||
| 6 | 329205 | 10.50 | 12.70 | |
| Dust Cover (c) | ||||
| 7 | 329206 | 5.10 | 6.17 | |
| DUST COVER (C) BLACK (OLD 329206) | ||||
| 7A | 376176 | 3.15 | 3.81 | |
| SEAL LOCK HD SCREW M5X12 | ||||
| 9 | 305568 | 1.05 | 1.27 | |
| Ring | ||||
| 10 | 329736 | 2.10 | 2.54 | |
| Ball Bearing 6202vvcmps2l | ||||
| 11 | 6202VV | 7.05 | 8.53 | |
| Lower Guard | ||||
| 12 | 329216 | 11.10 | 13.43 | |
| Bearing Cap | ||||
| 13 | 330043 | 2.10 | 2.54 | |
| Machine Screw (w/sp. Washer) M4x10 | ||||
| 14 | 307635 | 1.05 | 1.27 | |
| Spacer bushing | ||||
| 15 | 961366 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 16 | 608VVM | 5.70 | 6.90 | |
| Spindle And Gear Set | ||||
| 17 | 329197 | 17.74 | 21.46 | |
| Bearing Holder | ||||
| 18 | 329198 | 4.20 | 5.08 | |
| Sleeve (OLD 961807Z) | ||||
| 19 | 961807 | 2.15 | 2.60 | |
| Return Spring | ||||
| 20 | 957062 | 1.04 | 1.26 | |
| Washer (a2) | ||||
| 21 | 329738 | 4.20 | 5.08 | |
| Ring | ||||
| 21 | 993598 | 2.70 | 3.27 | |
| Ring D15.9/i.d14.5 For Chi,pan,mex | ||||
| 22 | 990100 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 23A | 330742 | |||
| Washer | ||||
| 24 | 957064 | 4.50 | 5.44 | |
| Bolt (w/washer) M7x17.5 | ||||
| 25 | 957749 | 1.05 | 1.27 | |
| Machine Screw M5x40 | ||||
| 26 | 303796 | 1.04 | 1.26 | |
| Housing | ||||
| 27 | 329193 | 22.83 | 27.62 | |
| WASHER THRUST | ||||
| 28 | 316394 | 3.30 | 3.99 | |
| Dust Seal (a) | ||||
| 29 | 330259 | 1.80 | 2.18 | |
| Dust Seal | ||||
| 29 | 315877 | 1.05 | 1.27 | |
| Stator 220v-230v | ||||
| 30 | 340715E | 39.88 | 48.25 | |
| VELD 110 VOLT | ||||
| 30 | 340715D | 37.24 | 45.06 | |
| Fan Guide | ||||
| 31 | 329194 | 2.10 | 2.54 | |
| ANKER 110-120 VOLT | ||||
| 32 | 360829U | 79.86 | 96.63 | |
| Armature 230v | ||||
| 32 | 360829E | 76.04 | 92.01 | |
| Lock Lever | ||||
| 33 | 329195 | 2.10 | 2.54 | |
| Bolt (+hd.) M6x38 | ||||
| 34 | 329218 | 2.10 | 2.54 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 35 | 304043 | 1.05 | 1.27 | |
| Gear Cover | ||||
| 36A | 330748 | 96.88 | 117.22 | |
| Cushion | ||||
| 37 | 961729 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 38 | 949794 | 1.65 | 2.00 | |
| Ball Bearing 6001vv | ||||
| 39 | 6001VV | 6.60 | 7.99 | |
| Brush Terminal | ||||
| 40 | 930703 | 2.40 | 2.90 | |
| Hex. Hd. Tapping Screw D5x70 | ||||
| 41 | 961400 | 1.04 | 1.26 | |
| Spring | ||||
| 42 | 941056 | 1.05 | 1.27 | |
| ROL PIN D6X32 (10 STUKS) | ||||
| 43 | 949576 | 3.06 | 3.70 | |
| Wing Bolt M6x12 | ||||
| 44 | 307947 | 1.35 | 1.63 | |
| Special Bolt M6 | ||||
| 45 | 329729 | 1.05 | 1.27 | |
| Washer M6 (10 Pcs.) | ||||
| 46 | 949425 | 1.05 | 1.27 | |
| Washer | ||||
| 46A | 320975 | 1.05 | 1.27 | |
| O-ring (4pc-5) | ||||
| 47 | 307292 | 1.05 | 1.27 | |
| Base | ||||
| 48 | 329199 | 39.88 | 48.25 | |
| Washer Spring | ||||
| 49 | 942827 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 50 | 329730 | |||
| Hex Adjustment Screw M5x8 | ||||
| 51 | 938477 | 1.05 | 1.27 | |
| Tapping Screw D2.6x10 | ||||
| 52 | 323239 | 1.65 | 2.00 | |
| Led Cover (b) | ||||
| 53 | 329740 | 1.80 | 2.18 | |
| LED COVER (B) GREEN (OLD 329740) | ||||
| 53A | 375645 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 54 | 329732 | |||
| Brush Holder | ||||
| 55 | 958900 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 56 | 999056 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 56 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 57 | 945161 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 59 | 329217 | |||
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 60 | 305558 | 1.04 | 1.26 | |
| Side Handle (b) | ||||
| 61A | 330749 | 12.90 | 15.61 | |
| SIDE HANDLE (B) GREEN (OLD 330749) | ||||
| 61B | 375643 | 6.60 | 7.99 | |
| LED 220v-240v | ||||
| 62 | 329742 | 33.96 | 41.09 | |
| Machine Screw (w/washers) M5x16 (black) | ||||
| 63 | 307294 | 1.05 | 1.27 | |
| Handle (b) | ||||
| 64 | 329215 | 13.50 | 16.34 | |
| Machine Screw M5x20 with Washer (Black) | ||||
| 65 | 316229 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 66 | 329207 | |||
| No information available, not orderable | ||||
| 67 | 330044 | |||
| No information available, not orderable | ||||
| 68 | 329213 | |||
| No information available, not orderable | ||||
| 69 | 330045 | |||
| Switch | ||||
| 70 | 319503 | 12.60 | 15.25 | |
| Switch | ||||
| 71 | 324424 | 6.45 | 7.80 | |
| Handle (a) | ||||
| 72 | 329214 | 13.50 | 16.34 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 73 | 938307 | 2.13 | 2.57 | |
| Noise Suppressor | ||||
| 74 | 930039 | 1.95 | 2.36 | |
| Connector 50092 (10 Pcs.) | ||||
| 75 | 959141 | 3.75 | 4.54 | |
| Cord Armor D8.8 | ||||
| 76 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 76 | 938051 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 77 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 78 | 984750 | |||
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 79 | 500461Z | 17.88 | 21.63 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 79 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| 80 | 329744 | |||
| WAVE WASHER 12 MM NEW | ||||
| 81 | 375106 | 1.80 | 2.18 | |
| Handle (A+B) set green (Old 329214+329215) | ||||
| 82 | 376175 | 10.50 | 12.70 | |
| No information available, not orderable | ||||
| 501 | 302756 | |||
| No information available, not orderable | ||||
| 502 | 940543 | |||
| No information available, not orderable | ||||
| 503 | 875769 | |||
