Here you will find all available parts and drawings of the 'Hikoki CD1805DB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

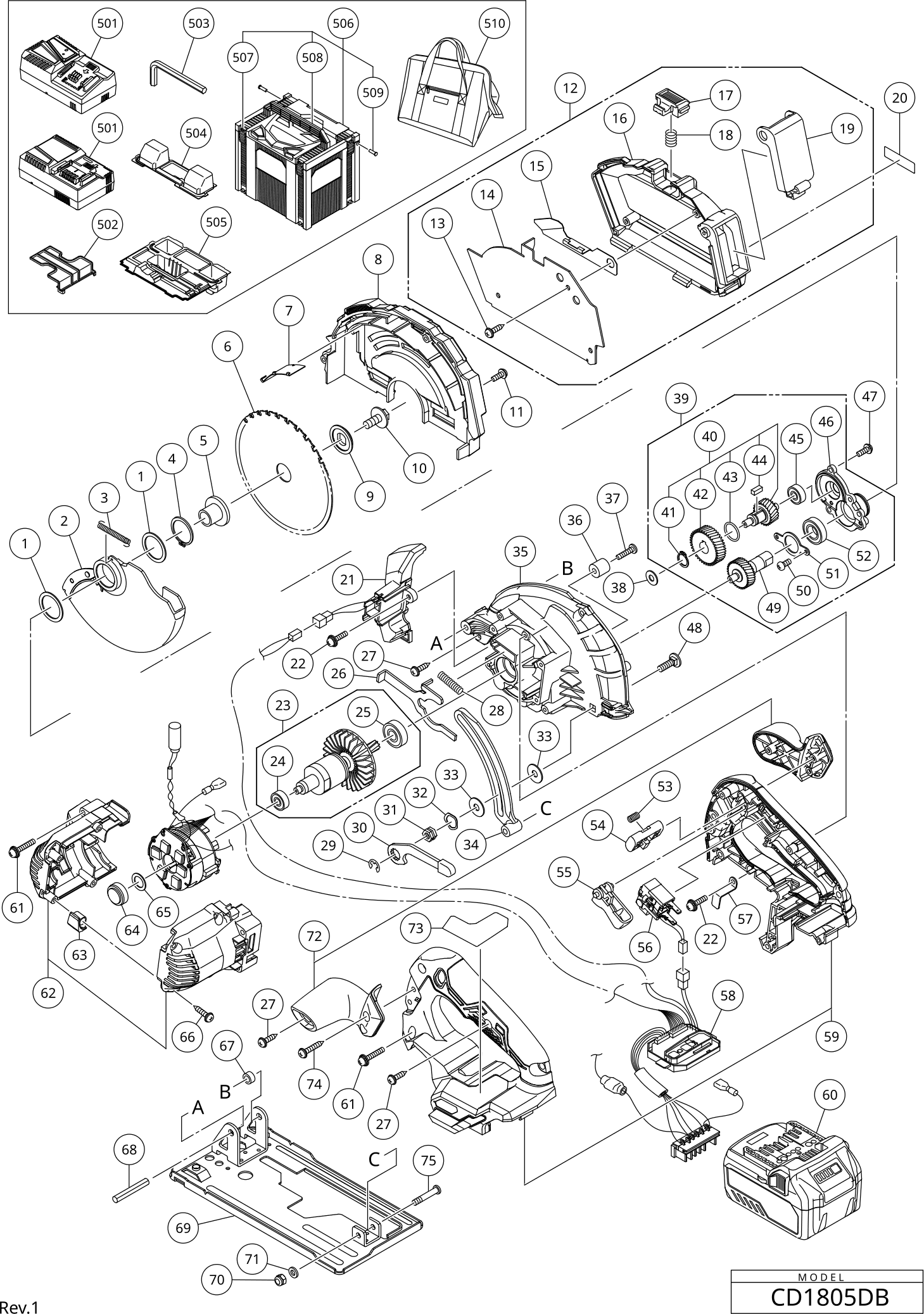

Technical drawing of model Hikoki CD1805DB
Spare parts list of model Hikoki CD1805DB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *12 | 380922 | |||
| SAW COVER (A) NEW | ||||
| *16 | 378829 | 2.28 | 2.76 | |
| No information available, not orderable | ||||
| *6 | 380927 | |||
| No information available, not orderable | ||||
| *60 | 380083M | |||
| Ring | ||||
| 1 | 339257 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 2 | 380925 | |||
| RETURN SPRING NEW | ||||
| 3 | 377313 | 1.00 | 1.21 | |
| Washer Spring | ||||
| 4 | 939548 | 4.65 | 5.63 | |
| WASHER (A) (OLD 338915) | ||||
| 5 | 376366 | 1.20 | 1.45 | |
| PLATE (C) NEW | ||||
| 7 | 377700 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 8 | 380924 | |||
| WASHER (B) (OLD 338916) | ||||
| 9 | 376367 | 1.04 | 1.26 | |
| Hex Flange Bolt | ||||
| 10 | 338917 | 1.04 | 1.26 | |
| Machine Screw (w/washer) M4x12 (black) | ||||
| 11 | 333781 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x14 (black) | ||||
| 13 | 309933 | 1.05 | 1.27 | |
| PLATE (A) NEW | ||||
| 14 | 377305 | 1.68 | 2.03 | |
| PLATE (D) NEW | ||||
| 15 | 377701 | 1.00 | 1.21 | |
| PUSHING BUTTON NEW | ||||
| 17 | 377306 | 1.00 | 1.21 | |
| SPRING (A) NEW | ||||
| 18 | 377312 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 19 | 380923 | |||
| LED NEW | ||||
| 21 | 377308 | 8.22 | 9.95 | |
| Machine Screw (w/washers) M4x14 (black) | ||||
| 22 | 305691 | 1.05 | 1.27 | |
| Rotor Ass'y Includ.23 | ||||
| 23 | 361100 | 34.10 | 41.26 | |
| Ball Bearing 606vv | ||||
| 24 | 606ZZM | 15.40 | 18.63 | |
| Ball bearing 609vvmc2ps2s | ||||
| 25 | 609VVM | 6.00 | 7.26 | |
| LOCK LEVER | ||||
| 26 | 374247 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 27 | 307811 | |||
| Spring | ||||
| 28 | 334225 | 1.80 | 2.18 | |
| Washer Spring | ||||
| 29 | 942827 | 1.04 | 1.26 | |
| LEVER | ||||
| 30 | 374246 | 2.70 | 3.27 | |
| LOCK NUT | ||||
| 31 | 374248 | 1.20 | 1.45 | |
| WAVE WASHER 12 MM NEW | ||||
| 32 | 375106 | 1.80 | 2.18 | |
| Washer | ||||
| 33 | 320975 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 34 | 380926 | |||
| GEAR COVER (A) NEW | ||||
| 35 | 377309 | 13.64 | 16.50 | |
| Cushion | ||||
| 36 | 310842 | 1.05 | 1.27 | |
| Special Bolt Till 7.2017 | ||||
| 37 | 333664 | 1.80 | 2.18 | |
| Washer (a) | ||||
| 38 | 329975 | 6.45 | 7.80 | |
| BEARING HOLDER ASS'Y NEW | ||||
| 39 | 377077 | 18.92 | 22.89 | |
| Second Shaft Ass'y Includ.3-6 | ||||
| 40 | 338924 | 28.60 | 34.61 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 41 | 316487 | 1.65 | 2.00 | |
| First Gear | ||||
| 42 | 338925 | 7.20 | 8.71 | |
| O-ring (s-15) | ||||
| 43 | 319567 | 1.65 | 2.00 | |
| Feather Key 4x4x10 | ||||
| 44 | 930511 | 2.40 | 2.90 | |
| Ball Bearing 606vv | ||||
| 45 | 606ZZM | 15.40 | 18.63 | |
| BEARING HOLDER NEW | ||||
| 46 | 375027 | 2.76 | 3.34 | |
| Machine Screw (w/sp. Washer) M4x12 | ||||
| 47 | 951039 | 1.05 | 1.27 | |
| Bolt (Square) M6X20 | ||||
| 48 | 375031 | 1.04 | 1.26 | |
| Spindle And Gear Set | ||||
| 49 | 338923 | 9.90 | 11.98 | |
| Machine Screw M3x8 (10 Pcs.) Since 9.2012 For Eur | ||||
| 50 | 949203 | 1.05 | 1.27 | |
| Bearing Cover | ||||
| 51 | 338922 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 52 | 6901VV | |||
| Spring (f) | ||||
| 53 | 301631 | 1.04 | 1.26 | |
| KNOB | ||||
| 54 | 374780 | 1.04 | 1.26 | |
| Trigger | ||||
| 55 | 338899 | 1.04 | 1.26 | |
| SWITCH NEW | ||||
| 56 | 377414 | 13.53 | 16.37 | |
| GUIDE PLATE NEW | ||||
| 57 | 377230 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 58 | 341173 | |||
| HANDLE SET (GREEN) (OLD 374302) | ||||
| 59 | 378355 | 8.10 | 9.80 | |
| Machine Screw M4 (w/Washers) | ||||
| 61 | 375104 | 1.80 | 2.18 | |
| HOUSING SET | ||||
| 62 | 374240 | 4.50 | 5.44 | |
| Cushion | ||||
| 63 | 336554 | 1.04 | 1.26 | |
| Rubber Ring | ||||
| 64 | 338928 | 1.04 | 1.26 | |
| Washer (1) | ||||
| 65 | 375110 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 66 | 301653 | 1.04 | 1.26 | |
| SPACER NEW | ||||
| 67 | 377699 | 1.00 | 1.21 | |
| ROLL PIN D6X45 (10 PCS.) NEW | ||||
| 68 | 949523 | 6.06 | 7.33 | |
| BASE NEW | ||||
| 69 | 377311 | 11.44 | 13.84 | |
| NYLON MOER M5 | ||||
| 70 | 377291 | 1.00 | 1.21 | |
| Washer D5 | ||||
| 71 | 375105 | 1.80 | 2.18 | |
| ZIJHANDGREEP | ||||
| 72 | 377950 | 2.76 | 3.34 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 74 | 305490 | 1.04 | 1.26 | |
| SPECIAL SCREW | ||||
| 75 | 371945 | 1.04 | 1.26 | |
| Battery Cover | ||||
| 502 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 503 | 944459 | |||
| No information available, not orderable | ||||
| 504 | 380946 | |||
| No information available, not orderable | ||||
| 505 | 380947 | |||
| No information available, not orderable | ||||
| 506 | 337528 | |||
| No information available, not orderable | ||||
| 507 | 336472 | |||
| No information available, not orderable | ||||
| 508 | 336473 | |||
| No information available, not orderable | ||||
| 509 | 336474 | |||
| No information available, not orderable | ||||
| 601 | 962175 | |||
| Wing Bolt M6x18 | ||||
| 602 | 307898 | 1.65 | 2.00 | |
| Spring | ||||
| 603 | 941056 | 1.05 | 1.27 | |
