Here you will find all available parts and drawings of the 'Hikoki CD14F'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

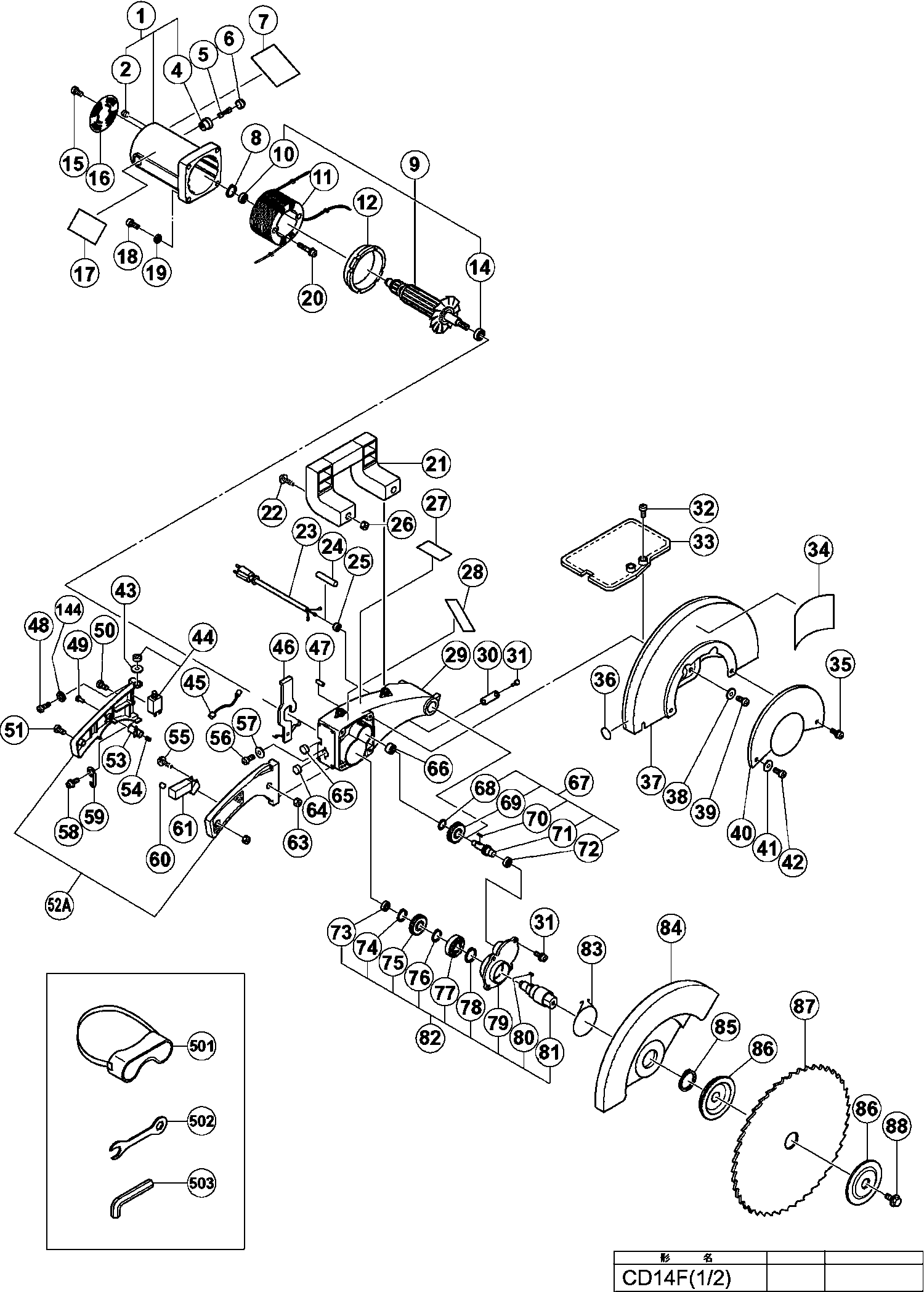

Technical drawing of model Hikoki CD14F
Spare parts list of model Hikoki CD14F
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 320058 | |||
| No information available, not orderable | ||||
| 2 | 320041 | |||
| No information available, not orderable | ||||
| 4 | 320059 | |||
| No information available, not orderable | ||||
| 5 | 999060 | |||
| No information available, not orderable | ||||
| 6 | 320060 | |||
| No information available, not orderable | ||||
| 8 | 320061 | |||
| No information available, not orderable | ||||
| 9 | 320077 | |||
| Ball Bearing 6200vvcmps2l | ||||
| 10 | 6200VV | 6.15 | 7.44 | |
| No information available, not orderable | ||||
| 11 | 320062 | |||
| No information available, not orderable | ||||
| 12 | 320063 | |||
| No information available, not orderable | ||||
| 14 | 320064 | |||
| Machine Screw M4x12 (10 Pcs.) | ||||
| 15 | 949217 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 16 | 320057 | |||
| No information available, not orderable | ||||
| 17 | 320082 | |||
| Machine Screw M6x20 (10 Pcs.) | ||||
| 18 | 949258 | 1.65 | 2.00 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 19 | 949455 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 20 | 977749 | |||
| No information available, not orderable | ||||
| 21 | 319989 | |||
| Hex. Socket Hd. Bolt M5x30 (10 Pcs.) | ||||
| 22 | 949664 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 23 | 320051 | |||
| No information available, not orderable | ||||
| 24 | 319997 | |||
| No information available, not orderable | ||||
| 25 | 319998 | |||
| Nut M5 (black) | ||||
| 26 | 302012 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 27 | 320081 | |||
| No information available, not orderable | ||||
| 29 | 320068 | |||
| No information available, not orderable | ||||
| 30 | 319999 | |||
| Machine Screw (w/sp. Washer) M5x16 | ||||
| 31 | 987512 | 1.04 | 1.26 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 32 | 949216 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 33 | 319990 | |||
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 35 | 949236 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 37 | 319991 | |||
| No information available, not orderable | ||||
| 38 | 319992 | |||
| No information available, not orderable | ||||
| 39 | 319993 | |||
| No information available, not orderable | ||||
| 40 | 319994 | |||
| No information available, not orderable | ||||
| 41 | 319995 | |||
| No information available, not orderable | ||||
| 42 | 319996 | |||
| No information available, not orderable | ||||
| 43 | 320006 | |||
| No information available, not orderable | ||||
| 44 | 320052 | |||
| No information available, not orderable | ||||
| 45 | 320065 | |||
| No information available, not orderable | ||||
| 46 | 320066 | |||
| No information available, not orderable | ||||
| 47 | 320067 | |||
| MACHINE SCREW M5X18 (10 PCS.) | ||||
| 48 | 949240 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 49 | 320005 | |||
| No information available, not orderable | ||||
| 50 | 320004 | |||
| Machine Screw M5x25 (10 pieces) | ||||
| 51 | 949243 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 52A | 323009 | |||
| No information available, not orderable | ||||
| 53 | 320007 | |||
| No information available, not orderable | ||||
| 54 | 320008 | |||
| Tapping Screw (w/flange) D4x10 (black) | ||||
| 55 | 311945 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 56 | 320010 | |||
| RETAINING RING M5 | ||||
| 57 | 973879 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 58 | 320002 | |||
| No information available, not orderable | ||||
| 59 | 320003 | |||
| No information available, not orderable | ||||
| 60 | 320009 | |||
| No information available, not orderable | ||||
| 61 | 320053 | |||
| Nut M5 (black) | ||||
| 63 | 302012 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 64 | 320012 | |||
| No information available, not orderable | ||||
| 65 | 320011 | |||
| No information available, not orderable | ||||
| 66 | 320069 | |||
| No information available, not orderable | ||||
| 67 | 320070 | |||
| Retaining Ring For D18 Shaft (10 Pcs.) | ||||
| 68 | 939546 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 69 | 320072 | |||
| No information available, not orderable | ||||
| 70 | 320188 | |||
| No information available, not orderable | ||||
| 71 | 320071 | |||
| Ball Bearing 6000vvcmps2l | ||||
| 72 | 6000VV | 6.15 | 7.44 | |
| Ball Bearing 608vvc2ps2l | ||||
| 73 | 608VVM | 5.70 | 6.90 | |
| Washer Spring | ||||
| 74 | 939548 | 4.65 | 5.63 | |
| No information available, not orderable | ||||
| 75 | 320076 | |||
| Washer Spring | ||||
| 76 | 965469 | 1.05 | 1.27 | |
| Ball Bearing 6005vvps2l | ||||
| 77 | 6005VV | 9.75 | 11.80 | |
| Retaining Ring For D47 Hole | ||||
| 78 | 948227 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 79 | 320075 | |||
| No information available, not orderable | ||||
| 80 | 320188 | |||
| No information available, not orderable | ||||
| 81 | 320074 | |||
| No information available, not orderable | ||||
| 82 | 320073 | |||
| No information available, not orderable | ||||
| 83 | 320000 | |||
| No information available, not orderable | ||||
| 84 | 320015 | |||
| No information available, not orderable | ||||
| 85 | 002525 | |||
| No information available, not orderable | ||||
| 86 | 320054 | |||
| No information available, not orderable | ||||
| 87 | 319949 | |||
| No information available, not orderable | ||||
| 88 | 320001 | |||
| No information available, not orderable | ||||
| 89 | 320033 | |||
| No information available, not orderable | ||||
| 90 | 320032 | |||
| No information available, not orderable | ||||
| 91 | 320079 | |||
| No information available, not orderable | ||||
| 92 | 307367 | |||
| No information available, not orderable | ||||
| 93 | 320024 | |||
| No information available, not orderable | ||||
| 94 | 320016 | |||
| ROLL PIN D6X32 (10 PCS.) | ||||
| 95 | 949576 | 3.06 | 3.70 | |
| No information available, not orderable | ||||
| 96 | 320018 | |||
| No information available, not orderable | ||||
| 97 | 320017 | |||
| No information available, not orderable | ||||
| 98 | 320019 | |||
| No information available, not orderable | ||||
| 99 | 320020 | |||
| Roll Pin D3x14 (10 Pcs.) | ||||
| 100 | 949900 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 101 | 320021 | |||
| No information available, not orderable | ||||
| 102 | 320023 | |||
| No information available, not orderable | ||||
| 103 | 320022 | |||
| No information available, not orderable | ||||
| 104 | 320027 | |||
| No information available, not orderable | ||||
| 105 | 307356 | |||
| No information available, not orderable | ||||
| 106 | 320028 | |||
| No information available, not orderable | ||||
| 107 | 320029 | |||
| No information available, not orderable | ||||
| 108 | 320026 | |||
| No information available, not orderable | ||||
| 109 | 320040 | |||
| No information available, not orderable | ||||
| 110 | 320039 | |||
| Nut M10 (10 Pcs.) | ||||
| 111 | 949560 | 2.40 | 2.90 | |
| Spring Washer M10 (10 Pcs.) | ||||
| 112 | 949458 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 113 | 320041 | |||
| Bolt M10x60 (10 Pcs.) | ||||
| 114 | 949634 | 5.10 | 6.17 | |
| Nut M10 (10 Pcs.) | ||||
| 115 | 949560 | 2.40 | 2.90 | |
| Spring Washer M10 (10 Pcs.) | ||||
| 116 | 949458 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 117 | 320050 | |||
| Machine Screw M5x12 (10 Pcs.) | ||||
| 118 | 949237 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 119 | 320042 | |||
| No information available, not orderable | ||||
| 120 | 320047 | |||
| No information available, not orderable | ||||
| 121 | 320048 | |||
| No information available, not orderable | ||||
| 122 | 320049 | |||
| Wing Bolt M5x10 (10 Pcs.) | ||||
| 123 | 949397 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 124 | 320043 | |||
| Ring | ||||
| 125 | 673489 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 126 | 320044 | |||
| No information available, not orderable | ||||
| 127 | 949761 | |||
| Spring Washer D12 (10 pieces) | ||||
| 128 | 939542 | 1.50 | 1.82 | |
| Machine Screw M5x8 (10 Pcs.) | ||||
| 129 | 949235 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 130 | 320030 | |||
| Wing Bolt M5x10 (10 Pcs.) | ||||
| 131 | 949397 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 132 | 320045 | |||
| WING SCREW M6X12 (10 PCS.) | ||||
| 133 | 949401 | 4.08 | 4.94 | |
| No information available, not orderable | ||||
| 134 | 320046 | |||
| No information available, not orderable | ||||
| 135 | 320031 | |||
| No information available, not orderable | ||||
| 136 | 320034 | |||
| Machine Screw M6x25 (10 Pcs.) | ||||
| 137 | 949260 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 138 | 320025 | |||
| Nut M10 (10 Pcs.) | ||||
| 139 | 949560 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 140 | 320035 | |||
| No information available, not orderable | ||||
| 141 | 320036 | |||
| No information available, not orderable | ||||
| 142 | 320038 | |||
| No information available, not orderable | ||||
| 143 | 320037 | |||
| Spring Washer M5 (10 pieces) | ||||
| 144 | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 320055 | |||
| No information available, not orderable | ||||
| 502 | 320080 | |||
| No information available, not orderable | ||||
| 503 | 872422 | |||
