Here you will find all available parts and drawings of the 'Hikoki CC12Y'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

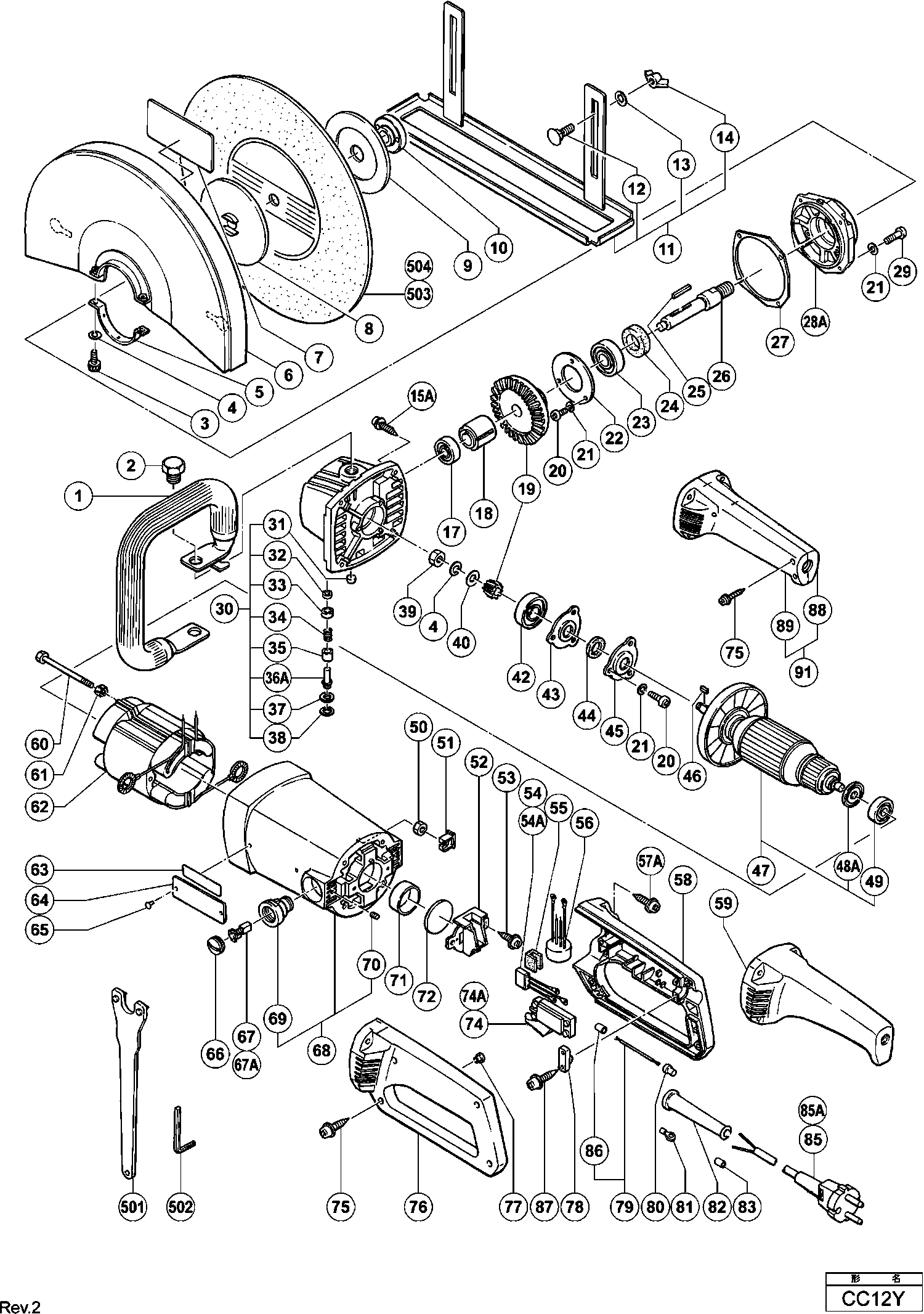

Technical drawing of model Hikoki CC12Y
Spare parts list of model Hikoki CC12Y
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *47 | 985602U | |||
| No longer available, no replacement | ||||
| *52 | 937905 | |||
| Noise Suppressor | ||||
| *54A | 994273 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| *62 | 937941E | |||
| BRUSH CAP NEW | ||||
| *66A | 371118 | 1.00 | 1.21 | |
| Carbon Brush (1 Pair) | ||||
| *67 | 999044 | 4.50 | 5.44 | |
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| *67B | 999086 | 15.26 | 18.47 | |
| Housing Ass'y Includ.69a,70 | ||||
| *68A | 985612 | 40.84 | 49.41 | |
| BRUSH HOLDER NEW | ||||
| *69A | 371117 | 3.24 | 3.92 | |
| No information available, not orderable | ||||
| *74 | 937985Z | |||
| Tapping Screw (w/washer) D4x20 | ||||
| *75 | 982095 | 1.04 | 1.26 | |
| Cord Clip | ||||
| *78 | 960266 | 1.04 | 1.26 | |
| Cord Armor D10.7 | ||||
| *82 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| *82 | 958049 | 1.04 | 1.26 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| *85 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| *87 | 930446 | |||
| BAIL HANDLE | ||||
| 1 | 985598 | 14.68 | 17.76 | |
| Bolt | ||||
| 2 | 985597 | 2.85 | 3.45 | |
| Hex. Socket Hd. Bolt M8x20 (10 Pcs.) | ||||
| 3 | 949656 | 5.55 | 6.72 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 4 | 949457 | 1.05 | 1.27 | |
| Ring | ||||
| 5 | 985599 | 2.40 | 2.90 | |
| Guard | ||||
| 6 | 985594 | 61.33 | 74.20 | |
| LABEL | ||||
| 7 | 985604 | 1.00 | 1.21 | |
| Washer | ||||
| 8 | 985601 | 26.68 | 32.28 | |
| Inner Washer | ||||
| 9 | 985593 | 25.99 | 31.44 | |
| No information available, not orderable | ||||
| 10 | 937909Z | |||
| No information available, not orderable | ||||
| 10A | 373779 | |||
| Pedal | ||||
| 11 | 985595 | 35.06 | 42.43 | |
| BOLT | ||||
| 12 | 985596 | 1.00 | 1.21 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 13 | 949433 | 1.05 | 1.27 | |
| Wing Nut M8 (10 Pcs.) | ||||
| 14 | 949312 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 15A | 937807 | |||
| Ball Bearing 6200vvcmps2l | ||||
| 17 | 6200VV | 6.15 | 7.44 | |
| REDUCING SLEEVE | ||||
| 18 | 938096 | 9.24 | 11.18 | |
| Gear | ||||
| 19 | 985590 | 87.59 | 105.98 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 20 | 949236 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 21 | 949454 | 1.04 | 1.26 | |
| Bearing Cover | ||||
| 22 | 937035 | 1.04 | 1.26 | |
| Ball Bearing 6302vvcmps2l | ||||
| 23 | 6302VV | 9.30 | 11.25 | |
| Felt Packing | ||||
| 24 | 938099 | 1.04 | 1.26 | |
| Feather Key 4x4x30 | ||||
| 25 | 948920 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 26 | 985614 | 17.33 | 20.96 | |
| Gasket | ||||
| 27 | 937901 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 28A | 937902 | |||
| Machine Screw M5X16 (10 pieces) | ||||
| 29 | 949239 | 1.05 | 1.27 | |
| Gear Cover | ||||
| 30 | 938187 | 43.86 | 53.07 | |
| Felt Washer | ||||
| 31 | 937033 | 1.04 | 1.26 | |
| Felt Packing | ||||
| 32 | 938599 | 1.04 | 1.26 | |
| Bushing (1) | ||||
| 33 | 938598 | 2.40 | 2.90 | |
| Spring | ||||
| 34 | 938597 | 1.04 | 1.26 | |
| RING | ||||
| 35 | 938596 | 1.26 | 1.52 | |
| Pin | ||||
| 36A | 938094 | 4.50 | 5.44 | |
| Dust Seal (1) | ||||
| 37 | 938595 | 1.04 | 1.26 | |
| Retaining Ring For D16 Hole | ||||
| 38 | 948011 | 1.04 | 1.26 | |
| Lock Nut M8 (10 Pcs.) | ||||
| 39 | 949568 | 1.50 | 1.82 | |
| Washer M8 (10 Pcs.) | ||||
| 40 | 949426 | 1.05 | 1.27 | |
| Ball Bearing 6301vvcmps2l | ||||
| 42 | 6301VV | 8.55 | 10.35 | |
| No information available, not orderable | ||||
| 43 | 937940 | |||
| Felt Packing | ||||
| 44 | 936853 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 45 | 937896 | |||
| Feather Key 3x3x10 | ||||
| 46 | 940533 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 47 | 985602U | |||
| Dust Seal | ||||
| 48A | 310998 | 1.05 | 1.27 | |
| Ball Bearing 6200vvcmps2l | ||||
| 49 | 6200VV | 6.15 | 7.44 | |
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 50 | 949555 | 1.05 | 1.27 | |
| NUT COVER | ||||
| 51 | 937892 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 52 | 937905 | |||
| No information available, not orderable | ||||
| 53 | 930446 | |||
| No information available, not orderable | ||||
| 54 | 960283Z | |||
| Noise Suppressor | ||||
| 54A | 994273 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 56 | 500323 | |||
| Tapping Screw (w/flange) D5x25 | ||||
| 57A | 985620 | 1.05 | 1.27 | |
| Handle (a) D Handle Type | ||||
| 58 | 981005 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 60 | 937925 | |||
| Washer | ||||
| 61 | 956764 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 62 | 937941E | |||
| Rivet D2.5x4.8 (10 Pcs.) Three-phase | ||||
| 65 | 949510 | 1.04 | 1.26 | |
| BRUSH CAP NEW | ||||
| 66A | 371118 | 1.00 | 1.21 | |
| Carbon Brush (1 Pair) | ||||
| 67 | 999044 | 4.50 | 5.44 | |
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| 67B | 999086 | 15.26 | 18.47 | |
| Housing Ass'y Includ.69a,70 | ||||
| 68A | 985612 | 40.84 | 49.41 | |
| BRUSH HOLDER NEW | ||||
| 69A | 371117 | 3.24 | 3.92 | |
| Hex. Socket Set Screw M4x5 | ||||
| 70 | 961681 | 1.04 | 1.26 | |
| Bushing | ||||
| 71 | 937894 | 7.05 | 8.53 | |
| INSULATING RING | ||||
| 72 | 937946 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 74 | 937985Z | |||
| Switch (2p Pillar Type) W/lock | ||||
| 74A | 981532 | 19.39 | 23.46 | |
| No information available, not orderable | ||||
| 75 | 956636 | |||
| HANDLE | ||||
| 76 | 981006 | 9.60 | 11.62 | |
| GASKET | ||||
| 77 | 943736 | 1.00 | 1.21 | |
| Cord Clip | ||||
| 78 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 79 | 937939Z | |||
| Connector 50092 (10 Pcs.) | ||||
| 80 | 959141 | 3.75 | 4.54 | |
| Cord Armor D10.7 | ||||
| 82 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 82 | 958049 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 83 | 981373 | 1.05 | 1.27 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| 85 | 500247Z | 6.18 | 7.48 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 85A | 500447Z | 6.60 | 7.99 | |
| Threaded cable sleeve | ||||
| 86 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 87 | 930446 | |||
| Handle (a) | ||||
| 88 | 937986 | 10.20 | 12.34 | |
| Handle (b) | ||||
| 89 | 937987 | 8.85 | 10.71 | |
| Handle (a) | ||||
| 91 | 937990 | 27.70 | 33.52 | |
| No information available, not orderable | ||||
| 501 | 985607 | |||
| No information available, not orderable | ||||
| 502 | 872422 | |||
| No information available, not orderable | ||||
| 503 | 985609 | |||
| No information available, not orderable | ||||
| 504 | 985611 | |||
| PRESSURE RING | ||||
| 601 | 937915 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 602 | 985618 | |||
| No information available, not orderable | ||||
| 603 | 985619 | |||
| No information available, not orderable | ||||
| 604 | 306433 | |||
| No information available, not orderable | ||||
| 605 | 306434 | |||
