Here you will find all available parts and drawings of the 'Hikoki CB3612DA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

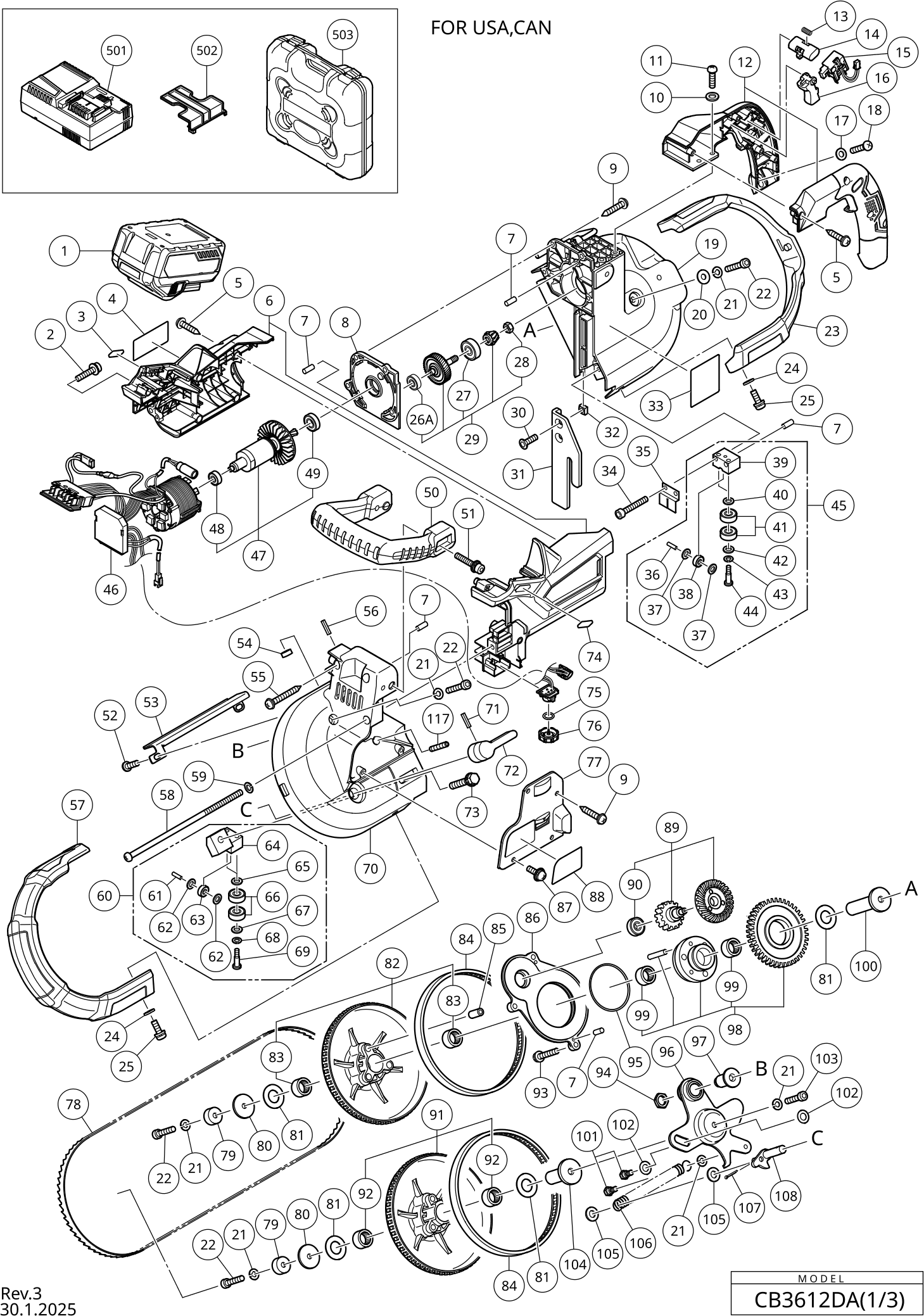

Technical drawing of model Hikoki CB3612DA
Spare parts list of model Hikoki CB3612DA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *1 | 372121M | |||
| TENSION SPRING NEW | ||||
| *106 | 376258 | 1.26 | 1.52 | |
| PROTECTIVE COVER (B) NEW | ||||
| *111 | 378932 | 3.78 | 4.57 | |
| PROTECTIVE COVER (A) NEW | ||||
| *112 | 378933 | 2.76 | 3.34 | |
| PULLEY GUARD (A) NEW | ||||
| *19 | 376242 | 24.31 | 29.42 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| *21 | 949455 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M6x20 (10 Pcs.) | ||||
| *22 | 949660 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| *33 | 376263 | |||
| No information available, not orderable | ||||
| *46 | 341072 | |||
| No information available, not orderable | ||||
| *47 | 361132 | |||
| No information available, not orderable | ||||
| *503 | 376490 | |||
| IMBUSBOUT HD M6X25 MET RING | ||||
| *51 | 307371 | 1.00 | 1.21 | |
| HOUSING SET (A+B) NEW | ||||
| *6 | 378930 | 7.74 | 9.37 | |
| PULLEY GUARD (B) NEW | ||||
| *70 | 378931 | 18.10 | 21.90 | |
| No information available, not orderable | ||||
| *77 | 376240 | |||
| No information available, not orderable | ||||
| *78 | 376364 | |||
| No information available, not orderable | ||||
| *79 | 376507 | |||
| No information available, not orderable | ||||
| *88 | 376265 | |||
| Hex. Socket Hd. Bolt (w/washers) M5x20 | ||||
| 2 | 316107 | 1.80 | 2.18 | |
| MV LABEL (B) | ||||
| 3 | 373914 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 5 | 301653 | 1.04 | 1.26 | |
| PIN D4X10 (10 STUKS) | ||||
| 7 | 949891 | 1.98 | 2.40 | |
| INNER COVER (A) NEW | ||||
| 8 | 376237 | 5.82 | 7.04 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 9 | 305558 | 1.04 | 1.26 | |
| Bolt Washer M5 (10 Pcs.) | ||||
| 10 | 949431 | 1.04 | 1.26 | |
| Machine Screw M5X16 (10 pieces) | ||||
| 11 | 949239 | 1.05 | 1.27 | |
| HANDLE SET (A+B) NEW | ||||
| 12 | 376239 | 6.90 | 8.35 | |
| SPRING | ||||
| 13 | 374781 | 1.04 | 1.26 | |
| KNOB | ||||
| 14 | 374780 | 1.04 | 1.26 | |
| SWITCH | ||||
| 15 | 371907 | 13.75 | 16.64 | |
| Trigger | ||||
| 16 | 338899 | 1.04 | 1.26 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 17 | 949432 | 1.05 | 1.27 | |
| Machine Screw M6x16 (10 Pcs.) | ||||
| 18 | 949256 | 1.35 | 1.63 | |
| Washer (h) | ||||
| 20 | 322677 | 1.65 | 2.00 | |
| KOGELLAGER 607VVC2 | ||||
| 26A | 381409 | 1.00 | 1.21 | |
| Ball Bearing 629vv | ||||
| 27 | 629VVM | 5.85 | 7.08 | |
| Special Nut M7 | ||||
| 28 | 301941 | 1.04 | 1.26 | |
| SECOND PINION NEW | ||||
| 29 | 376238 | 10.02 | 12.12 | |
| HEX SOCKET HD FLAT SCREW M6X16 NEW | ||||
| 30 | 968771 | 1.00 | 1.21 | |
| GUIDE PLATE | ||||
| 31 | 319165 | 6.42 | 7.77 | |
| Square Nut M6 | ||||
| 32 | 319166 | 1.80 | 2.18 | |
| Hex. Socket Hd. Bolt M5x30 (10 Pcs.) | ||||
| 34 | 949664 | 3.75 | 4.54 | |
| DUSTER PLATE NEW | ||||
| 35 | 376491 | 1.00 | 1.21 | |
| Bearing Pin | ||||
| 36 | 322680 | 1.20 | 1.45 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 37 | 949429 | 1.05 | 1.27 | |
| Roller 604vv | ||||
| 38 | 323043 | 3.15 | 3.81 | |
| BEARING HOLDER NEW | ||||
| 39 | 376250 | 2.28 | 2.76 | |
| Bolt Washer M5 (10 Pcs.) | ||||
| 40 | 949431 | 1.04 | 1.26 | |
| Ball Bearing 606vv | ||||
| 41 | 606ZZM | 15.40 | 18.63 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 42 | 949432 | 1.05 | 1.27 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 43 | 949455 | 1.05 | 1.27 | |
| Bearing Pin (b) | ||||
| 44 | 322681 | 1.20 | 1.45 | |
| BEARING HOLDER ASS'Y NEW | ||||
| 45 | 376249 | 10.80 | 13.07 | |
| Ball Bearing 606vv | ||||
| 48 | 606ZZM | 15.40 | 18.63 | |
| Ball Bearing (1) | ||||
| 49 | 371033 | 3.15 | 3.81 | |
| FRONT HANDLE NEW | ||||
| 50 | 376270 | 6.66 | 8.06 | |
| Machine Screw M5x10 (black) | ||||
| 52 | 323040 | 1.05 | 1.27 | |
| BLADE COVER (C) | ||||
| 53 | 322694 | 1.86 | 2.25 | |
| Bearing | ||||
| 54 | 322695 | 3.15 | 3.81 | |
| Tapping Screw (w/flange) D5x35 (black) | ||||
| 55 | 323209 | 1.35 | 1.63 | |
| ROLPIN D4X20 RVS | ||||
| 56 | 321956 | 1.50 | 1.82 | |
| MACHINE SCREW M5X220 NEW | ||||
| 58 | 376269 | 1.68 | 2.03 | |
| Spring Washer M5 (10 pieces) | ||||
| 59 | 949454 | 1.04 | 1.26 | |
| LAGERHOUDER (B) | ||||
| 60 | 325381 | 35.48 | 42.93 | |
| Bearing Pin | ||||
| 61 | 322680 | 1.20 | 1.45 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 62 | 949429 | 1.05 | 1.27 | |
| Roller 604vv | ||||
| 63 | 323043 | 3.15 | 3.81 | |
| LAGERHOUDER (B) | ||||
| 64 | 320172 | 11.70 | 14.16 | |
| Bolt Washer M5 (10 Pcs.) | ||||
| 65 | 949431 | 1.04 | 1.26 | |
| Ball Bearing 606vv | ||||
| 66 | 606ZZM | 15.40 | 18.63 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 67 | 949432 | 1.05 | 1.27 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 68 | 949455 | 1.05 | 1.27 | |
| Bearing Pin (b) | ||||
| 69 | 322681 | 1.20 | 1.45 | |
| ROL PIN D4X20 (10 STUKS) | ||||
| 71 | 949499 | 1.74 | 2.11 | |
| SPANNER | ||||
| 72 | 977119 | 20.79 | 25.16 | |
| BOUT M8X25 (MET RING) ZWART | ||||
| 73 | 309357 | 1.26 | 1.52 | |
| MV LABEL (A) | ||||
| 74 | 373913 | 1.04 | 1.26 | |
| O-ring (s-10) | ||||
| 75 | 987105 | 1.05 | 1.27 | |
| Dial | ||||
| 76 | 372109 | 1.50 | 1.82 | |
| RING (B) | ||||
| 80 | 936311 | 1.00 | 1.21 | |
| PLASTIC RING | ||||
| 81 | 977108 | 1.00 | 1.21 | |
| BLADE PULLEY CB3612DA | ||||
| 82 | 376315 | 11.77 | 14.24 | |
| NAALDLAGER | ||||
| 83 | 319150 | 5.52 | 6.68 | |
| RUBBERWIEL | ||||
| 84 | 977110 | 7.50 | 9.08 | |
| RUBBER BUSHING | ||||
| 85 | 319157 | 1.50 | 1.82 | |
| INNER COVER (B) NEW | ||||
| 86 | 376247 | 4.50 | 5.44 | |
| Machine Screw (w/washers) M5x12 (black) | ||||
| 87 | 996247 | 1.05 | 1.27 | |
| THIRD PINION NEW | ||||
| 89 | 376244 | 10.32 | 12.49 | |
| Ball Bearing 608vvc2ps2l | ||||
| 90 | 608VVM | 5.70 | 6.90 | |
| BLADE PULLEY ASS'Y | ||||
| 91 | 322690 | 14.90 | 18.03 | |
| NAALDLAGER | ||||
| 92 | 319150 | 5.52 | 6.68 | |
| Machine Screw (w/washers) M5x20 (black) | ||||
| 93 | 995096 | 1.05 | 1.27 | |
| MOER | ||||
| 94 | 322686 | 1.00 | 1.21 | |
| O-ring | ||||
| 95 | 327870 | 1.05 | 1.27 | |
| ARM | ||||
| 96 | 325379 | 25.30 | 30.61 | |
| SCHACHT | ||||
| 97 | 977116 | 10.86 | 13.14 | |
| SPINDLE NEW | ||||
| 98 | 376246 | 16.72 | 20.23 | |
| NAALDLAGER | ||||
| 99 | 319150 | 5.52 | 6.68 | |
| PULLEY SHAFT (A) NEW | ||||
| 100 | 376245 | 3.90 | 4.72 | |
| SCHROEF (A) | ||||
| 101 | 977117 | 2.58 | 3.12 | |
| BORGRING | ||||
| 102 | 973040 | 1.74 | 2.11 | |
| Hex. Socket Hd. Bolt M6x16 (10 Pcs.) | ||||
| 103 | 949755 | 3.00 | 3.63 | |
| PULLEY SHAFT (B) | ||||
| 104 | 322689 | 5.52 | 6.68 | |
| Washer M8 (10 Pcs.) | ||||
| 105 | 949426 | 1.05 | 1.27 | |
| Split Pin D2x12 (10 Pcs.) | ||||
| 107 | 949531 | 1.05 | 1.27 | |
| CAM SHAFT (A) | ||||
| 108 | 322687 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 109 | 370099 | |||
| No information available, not orderable | ||||
| 110 | 376267 | |||
| No information available, not orderable | ||||
| 111 | 325380 | |||
| No information available, not orderable | ||||
| 112 | 376259 | |||
| No information available, not orderable | ||||
| 113 | 977136 | |||
| No information available, not orderable | ||||
| 114 | 973699 | |||
| No information available, not orderable | ||||
| 115 | 325511 | |||
| No information available, not orderable | ||||
| 116 | 336199 | |||
| Hex. Socket Set Screw M6x20 | ||||
| 117 | 950094 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 118 | 935196 | 1.04 | 1.26 | |
| PLATE (A) NEW | ||||
| 119 | 378936 | 5.94 | 7.19 | |
| Nylon Clip | ||||
| 120 | 973313 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 121 | 944458 | |||
| HOLDER PLATE (A) NEW | ||||
| 122 | 378934 | 10.02 | 12.12 | |
| Slotted Head Screw (seal Lock) M4 | ||||
| 123 | 371814 | 1.04 | 1.26 | |
| COLLAR (A) NEW | ||||
| 124 | 378935 | 1.38 | 1.67 | |
| Nylock Hex. Socket Set Screw M8x8 | ||||
| 125 | 303252 | 1.65 | 2.00 | |
| Battery Cover | ||||
| 502 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 601 | 372120 | |||
| Battery Cover | ||||
| 602 | 329897 | 1.80 | 2.18 | |
