Here you will find all available parts and drawings of the 'Hikoki C9SA3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

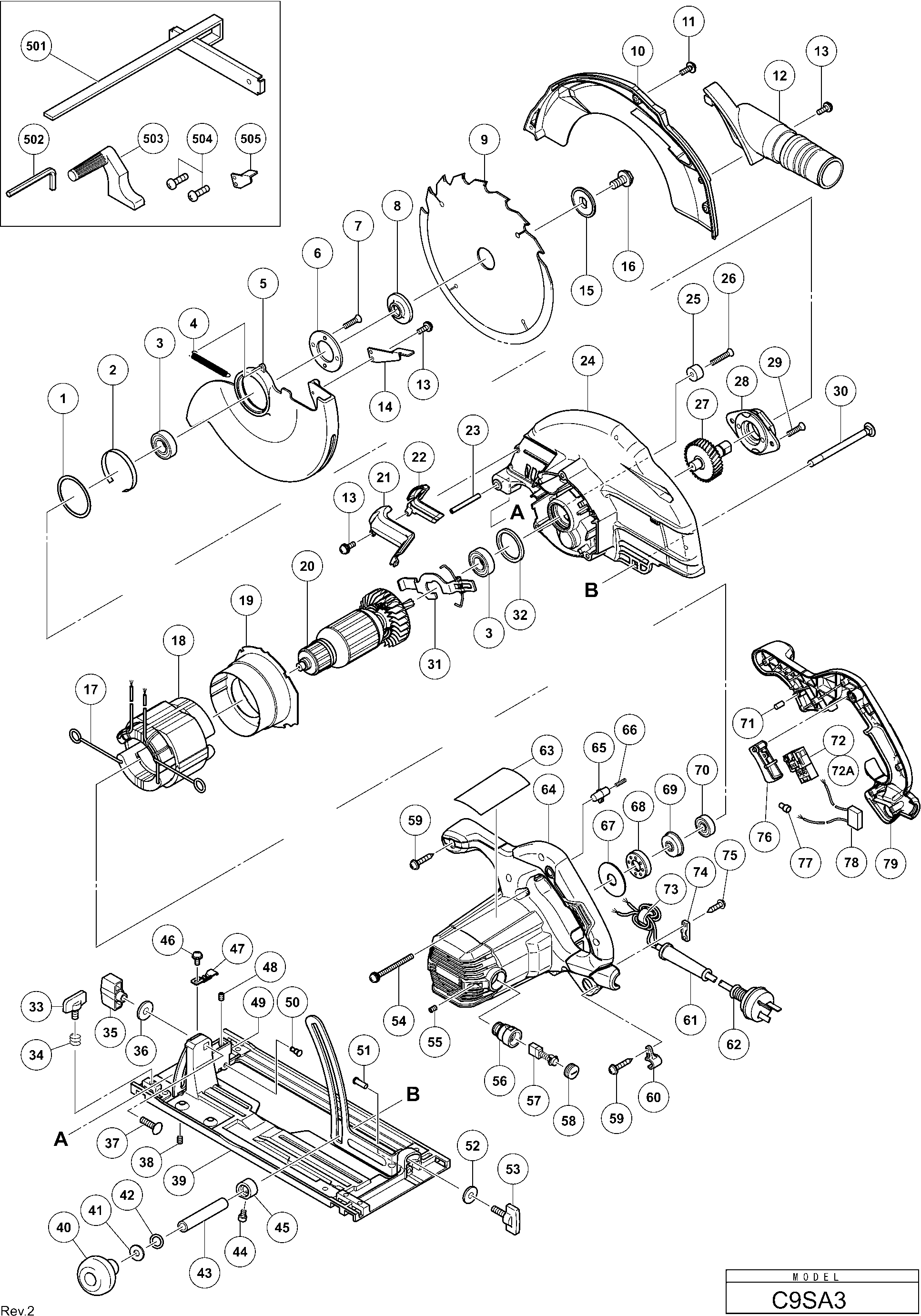

Technical drawing of model Hikoki C9SA3
Spare parts list of model Hikoki C9SA3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Stator 220v-230v | ||||
| *18 | 340942G | 36.71 | 44.42 | |
| FIELD 110 VOLT | ||||
| *18 | 340942J | 34.26 | 41.45 | |
| Armature 230v | ||||
| *20 | 361033E | 46.20 | 55.90 | |
| ARMATURE 110 V | ||||
| *20 | 361033C | 43.12 | 52.18 | |
| Cord Armor D10.1 | ||||
| *61 | 938051 | 1.04 | 1.26 | |
| Cord (cord Armor D8.2) For Sin,mal | ||||
| *62 | 500440Z | 20.49 | 24.79 | |
| Off Lock Button Except For Saf | ||||
| *65 | 370262 | 1.04 | 1.26 | |
| Washer (a) | ||||
| *8 | 370271 | 2.25 | 2.72 | |
| No information available, not orderable | ||||
| *9 | 370286 | |||
| Ring | ||||
| 1 | 370540 | 1.04 | 1.26 | |
| Liner | ||||
| 2 | 998887 | 9.30 | 11.25 | |
| Ball Bearing 6202vvcmps2l | ||||
| 3 | 6202VV | 7.05 | 8.53 | |
| Return Spring | ||||
| 4 | 370543 | 1.65 | 2.00 | |
| Lower Guard | ||||
| 5 | 370284 | 13.80 | 16.70 | |
| Bearing Cover (1) | ||||
| 6 | 370277 | 1.04 | 1.26 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 7 | 992013 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 8 | 370271 | 2.25 | 2.72 | |
| No information available, not orderable | ||||
| 9 | 370286 | |||
| Saw Cover | ||||
| 10 | 370280 | 11.10 | 13.43 | |
| Saw Cover | ||||
| 10A | 370280 | 11.10 | 13.43 | |
| Machine Screw (w/sp. Washer) M4x12 | ||||
| 11 | 951039 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 12 | 997247 | |||
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 13 | 935196 | 1.04 | 1.26 | |
| Lever | ||||
| 14 | 370542 | 1.04 | 1.26 | |
| Washer (b) | ||||
| 15 | 370279 | 2.25 | 2.72 | |
| Hex. Socket Hd. Bolt M8x15.5 | ||||
| 16 | 324662 | 1.95 | 2.36 | |
| Brush Terminal | ||||
| 17 | 937623 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 18 | 340942G | 36.71 | 44.42 | |
| FIELD 110 VOLT | ||||
| 18 | 340942J | 34.26 | 41.45 | |
| Fan Guide | ||||
| 19 | 370292 | 1.35 | 1.63 | |
| Armature 230v | ||||
| 20 | 361033E | 46.20 | 55.90 | |
| ARMATURE 110 V | ||||
| 20 | 361033C | 43.12 | 52.18 | |
| Flow Guide (b) | ||||
| 21 | 370282 | 1.04 | 1.26 | |
| Flow Guide (a) | ||||
| 22 | 370281 | 1.04 | 1.26 | |
| Roll Pin D8x50 (10 Pcs.) | ||||
| 23 | 949884 | 10.65 | 12.89 | |
| Gear Cover | ||||
| 24 | 370544 | 26.26 | 31.78 | |
| Cushion | ||||
| 25 | 337080 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 26 | 949794 | 1.65 | 2.00 | |
| Spindle And Gear Set | ||||
| 27 | 370276 | 11.55 | 13.98 | |
| Bearing Holder | ||||
| 28 | 370275 | 5.40 | 6.53 | |
| Seal Lock Flat Hd. Screw M6x14 | ||||
| 29 | 303797 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 30 | 370266 | |||
| DIAGONAL BOLT M8 ASS'Y (OLD 370266) | ||||
| 30A | 378198 | 2.40 | 2.90 | |
| Lock Lever | ||||
| 31 | 370291 | 1.50 | 1.82 | |
| Rubber Ring | ||||
| 32 | 303792 | 1.05 | 1.27 | |
| Wing Bolt M6x15 | ||||
| 33 | 301806 | 1.05 | 1.27 | |
| Spring (old 996224) | ||||
| 34 | 947859 | 1.04 | 1.26 | |
| Wing Nut M8 | ||||
| 35 | 324658 | 3.00 | 3.63 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 36 | 949433 | 1.05 | 1.27 | |
| Bolt (square) M8x30 | ||||
| 37 | 302457 | 1.04 | 1.26 | |
| Slotted Hd. Set Screw (seal Lock) M6x6 | ||||
| 38 | 302469 | 1.05 | 1.27 | |
| NYLOCK SET SCREW M6 NEW | ||||
| 38A | 379529 | 1.00 | 1.21 | |
| Base Ass'y Includ.57 | ||||
| 39 | 370294 | 24.89 | 30.11 | |
| Knob | ||||
| 40 | 324660 | 4.35 | 5.26 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 41 | 949433 | 1.05 | 1.27 | |
| O-RING (P-7) (OLD 676531) | ||||
| 42 | 889335 | 1.00 | 1.21 | |
| Sleeve (a) | ||||
| 43 | 370267 | 4.20 | 5.08 | |
| Seal Lock Hex. Socket Hd. Bolt M4x6 | ||||
| 44 | 370278 | 1.04 | 1.26 | |
| Sleeve (b) | ||||
| 45 | 370268 | 3.00 | 3.63 | |
| Machine Screw (w/sp. Washer) M4(black) | ||||
| 46 | 331003 | 1.95 | 2.36 | |
| Clamp | ||||
| 47 | 324659 | 1.95 | 2.36 | |
| Seal Lock Hex. Socket Set Screw M5x6 | ||||
| 48 | 319541 | 1.50 | 1.82 | |
| Bevel Plate | ||||
| 49 | 308481 | 4.65 | 5.63 | |
| Step Pin | ||||
| 50 | 370295 | 1.04 | 1.26 | |
| Rivet D6x17 | ||||
| 51 | 308480 | 1.05 | 1.27 | |
| Washer M6 (10 Pcs.) | ||||
| 52 | 949425 | 1.05 | 1.27 | |
| Wing Bolt M6x22 | ||||
| 53 | 322959 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M5x50 (black) | ||||
| 54 | 997841 | 1.05 | 1.27 | |
| Hex Adjustment Screw M5x8 | ||||
| 55 | 938477 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 56 | 983362 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 57 | 999038 | 9.30 | 11.25 | |
| Brush Cap | ||||
| 58 | 961781 | 2.55 | 3.09 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 59 | 301653 | 1.04 | 1.26 | |
| Cord Holder | ||||
| 60 | 370269 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 61 | 938051 | 1.04 | 1.26 | |
| Cord (cord Armor D8.2) For Sin,mal | ||||
| 62 | 500440Z | 20.49 | 24.79 | |
| Casing Box DUO 110 - Set | ||||
| 64A | 373924 | 23.93 | 28.95 | |
| Casing Box DUO 110 - Set | ||||
| 64B | 373924 | 23.93 | 28.95 | |
| Off Lock Button Except For Saf | ||||
| 65 | 370262 | 1.04 | 1.26 | |
| Spring (a) | ||||
| 66 | 335465 | 1.04 | 1.26 | |
| Spring Plate | ||||
| 67 | 992926 | 1.05 | 1.27 | |
| Rubber Bushing | ||||
| 68 | 370628 | 1.04 | 1.26 | |
| Bushing | ||||
| 69 | 325355 | 3.00 | 3.63 | |
| Ball Bearing 6000vvcmps2l | ||||
| 70 | 6000VV | 6.15 | 7.44 | |
| RUBBER PEN | ||||
| 71 | 931701 | 1.05 | 1.27 | |
| Switch (1) | ||||
| 72 | 370260 | 13.75 | 16.64 | |
| No information available, not orderable | ||||
| 72A | 371310 | |||
| SWITCH (OLD 370260) | ||||
| 72B | 382232 | 3.60 | 4.36 | |
| Ferrite Core Except For Sin,mal,uae | ||||
| 73 | 334379 | 4.65 | 5.63 | |
| Cord Clip | ||||
| 74 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 75 | 984750 | |||
| Trigger (1) | ||||
| 76 | 370261 | 1.04 | 1.26 | |
| Connector 50092 (10 Pcs.) | ||||
| 77 | 959141 | 3.75 | 4.54 | |
| Noise Suppressor | ||||
| 78 | 930039 | 1.95 | 2.36 | |
| Handle Cover | ||||
| 79 | 370290 | 10.35 | 12.52 | |
| Threaded cable sleeve | ||||
| 80 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 303888 | |||
| No information available, not orderable | ||||
| 502 | 872422 | |||
| No information available, not orderable | ||||
| 503 | 303811 | |||
| No information available, not orderable | ||||
| 504 | 323208 | |||
| Lever (1) | ||||
| 505 | 370264 | 1.04 | 1.26 | |
