Here you will find all available parts and drawings of the 'Hikoki C9SA2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

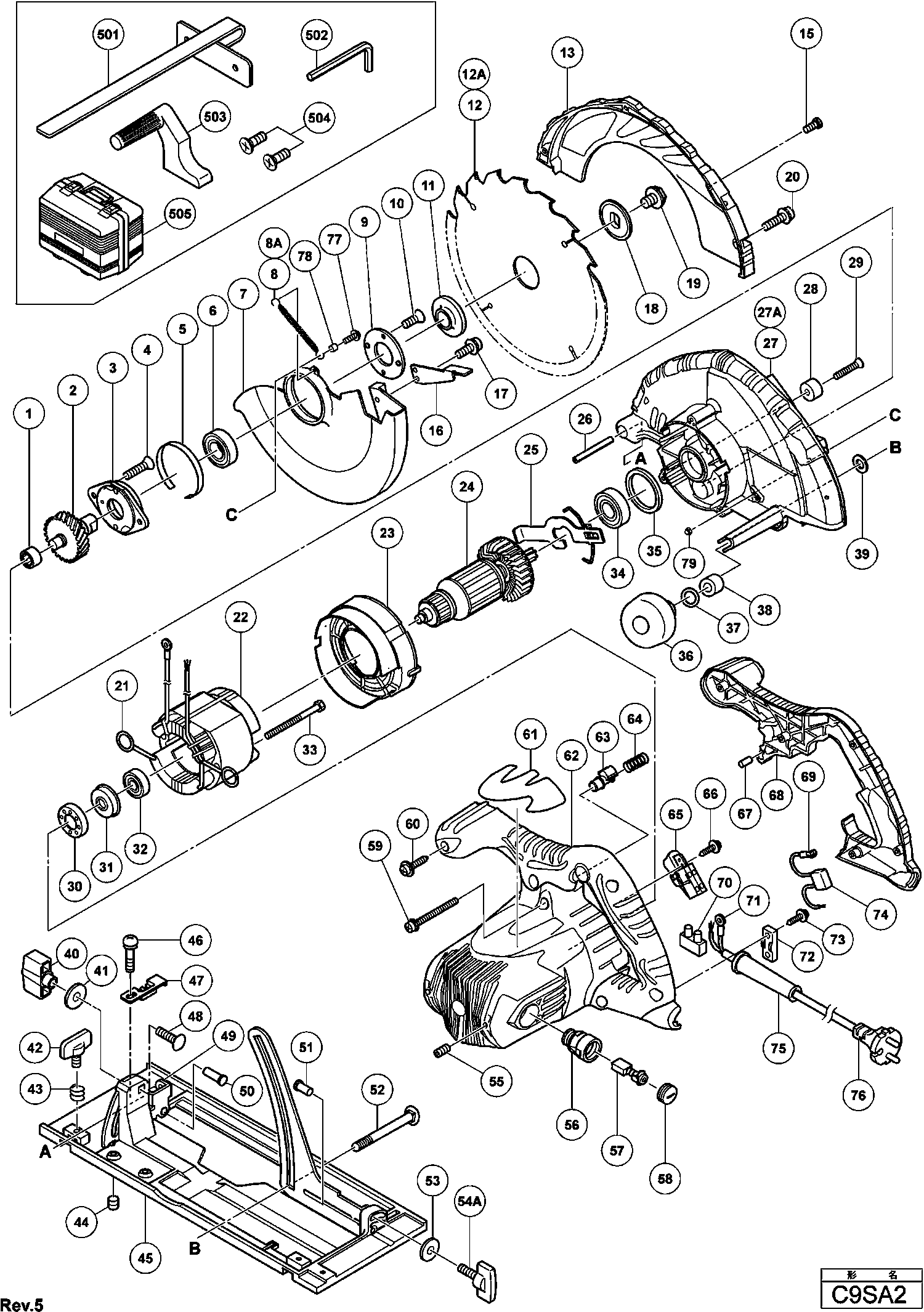

Technical drawing of model Hikoki C9SA2
Spare parts list of model Hikoki C9SA2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Needle Bearing Hk1212 | ||||
| 1 | 673002 | 4.35 | 5.26 | |
| Gear Shaft | ||||
| 2 | 303789 | 26.13 | 31.61 | |
| Bearing Holder | ||||
| 3 | 303790 | 8.85 | 10.71 | |
| Seal Lock Flat Hd. Screw M6x14 | ||||
| 4 | 303797 | 1.05 | 1.27 | |
| Liner | ||||
| 5 | 998887 | 9.30 | 11.25 | |
| Ball Bearing 6203vvcmps2l | ||||
| 6 | 6203VV | 7.80 | 9.44 | |
| No information available, not orderable | ||||
| 7 | 326803 | |||
| No information available, not orderable | ||||
| 8 | 303906 | |||
| No information available, not orderable | ||||
| 8A | 328626 | |||
| Bearing Cover | ||||
| 9 | 303804 | 2.10 | 2.54 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 10 | 992013 | 1.05 | 1.27 | |
| Ring | ||||
| 11 | 303365 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 12 | 326830 | |||
| No information available, not orderable | ||||
| 12A | 335001 | |||
| Guard | ||||
| 13 | 325354 | 14.03 | 16.97 | |
| Special Bolt | ||||
| 15 | 324139 | 1.65 | 2.00 | |
| Lever | ||||
| 16A | 370542 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 17 | 304043 | 1.05 | 1.27 | |
| Washer (b) | ||||
| 18 | 302423 | 2.10 | 2.54 | |
| Hex. Socket Hd. Bolt M8x15.5 | ||||
| 19 | 324662 | 1.95 | 2.36 | |
| Machine Screw (w/washers) M4x14 (black) | ||||
| 20 | 305691 | 1.05 | 1.27 | |
| Brush Terminal | ||||
| 21 | 937623 | 1.04 | 1.26 | |
| Stator 230v | ||||
| 22 | 340660Q | 42.21 | 51.08 | |
| FIELD 110 VOLT | ||||
| 22 | 340660P | 39.44 | 47.72 | |
| Fan Guide | ||||
| 23 | 325352 | 1.05 | 1.27 | |
| Armature 230v | ||||
| 24 | 360759E | 66.69 | 80.69 | |
| ARMATURE 110 VOLT | ||||
| 24 | 360759C | 62.26 | 75.33 | |
| Lock Lever | ||||
| 25 | 303793 | 4.65 | 5.63 | |
| Roll Pin D8x50 (10 Pcs.) | ||||
| 26 | 949884 | 10.65 | 12.89 | |
| Gear Cover | ||||
| 27 | 325350 | 59.68 | 72.21 | |
| No information available, not orderable | ||||
| 27A | 328627 | |||
| Cushion | ||||
| 28 | 961729 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 29 | 949794 | 1.65 | 2.00 | |
| Rubber Bushing | ||||
| 30 | 325356 | 1.05 | 1.27 | |
| Bushing | ||||
| 31 | 325355 | 3.00 | 3.63 | |
| Ball Bearing 6000vvcmps2l | ||||
| 32 | 6000VV | 6.15 | 7.44 | |
| Hex. Hd. Tapping Screw D5x65 | ||||
| 33 | 960251 | 1.05 | 1.27 | |
| Ball Bearing 6202vvcmps2l | ||||
| 34 | 6202VV | 7.05 | 8.53 | |
| Rubber Ring | ||||
| 35 | 303792 | 1.05 | 1.27 | |
| Knob | ||||
| 36 | 324660 | 4.35 | 5.26 | |
| O-RING (P-7) (OLD 676531) | ||||
| 37 | 889335 | 1.00 | 1.21 | |
| Socket | ||||
| 38 | 303801 | 3.60 | 4.36 | |
| Washer (b) | ||||
| 39 | 961436 | 1.05 | 1.27 | |
| Wing Nut M8 | ||||
| 40 | 324658 | 3.00 | 3.63 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 41 | 949433 | 1.05 | 1.27 | |
| Wing Bolt M6x15 | ||||
| 42 | 301806 | 1.05 | 1.27 | |
| Spring (old 996224) | ||||
| 43 | 947859 | 1.04 | 1.26 | |
| Slotted Hd. Set Screw (seal Lock) M6x6 | ||||
| 44 | 302469 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 45 | 326804 | |||
| Machine Screw (w/sp. Washer) M4x6 | ||||
| 46 | 317333 | 1.50 | 1.82 | |
| Clamp | ||||
| 47 | 324659 | 1.95 | 2.36 | |
| Bolt (square) M8x30 | ||||
| 48 | 302457 | 1.04 | 1.26 | |
| Bevel Plate | ||||
| 49 | 308481 | 4.65 | 5.63 | |
| No longer available, no replacement | ||||
| 50 | 308482 | |||
| Rivet D6x17 | ||||
| 51 | 308480 | 1.05 | 1.27 | |
| Diagonal Bolt M8 | ||||
| 52 | 303800 | 2.55 | 3.09 | |
| Washer M6 (10 Pcs.) | ||||
| 53 | 949425 | 1.05 | 1.27 | |
| Wing Bolt M6x20 | ||||
| 54A | 328923 | 1.50 | 1.82 | |
| Hex Adjustment Screw M5x8 | ||||
| 55 | 938477 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 56 | 983362 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 57 | 999038 | 9.30 | 11.25 | |
| Brush Cap | ||||
| 58 | 961781 | 2.55 | 3.09 | |
| Machine Screw M5x40 | ||||
| 59 | 303796 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 60 | 301653 | 1.04 | 1.26 | |
| Housing | ||||
| 62 | 325362 | 28.05 | 33.94 | |
| Pushing Button | ||||
| 63 | 325358 | 1.05 | 1.27 | |
| Spring | ||||
| 64 | 325359 | 1.05 | 1.27 | |
| Switch | ||||
| 65 | 325357 | 21.04 | 25.46 | |
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 66 | 305720 | 1.05 | 1.27 | |
| RUBBER PIN (OLD 976441) | ||||
| 67 | 946362 | 1.05 | 1.27 | |
| Handle Cover | ||||
| 68 | 325351 | 9.30 | 11.25 | |
| connecting terminal | ||||
| 69 | 980063 | 1.04 | 1.26 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 70 | 938307 | 2.13 | 2.57 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 71 | 930804 | 3.00 | 3.63 | |
| connecting terminal | ||||
| 71 | 980063 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 72 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 73 | 984750 | |||
| Noise Suppressor | ||||
| 74 | 930039 | 1.95 | 2.36 | |
| Cord Armor D10.7 | ||||
| 75 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 75 | 958049 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 76 | 500447Z | 6.60 | 7.99 | |
| Tp-screw M4x14 | ||||
| 77 | 311836 | 1.04 | 1.26 | |
| Spacer M4 | ||||
| 78 | 311837 | 1.04 | 1.26 | |
| Hex. Cap Nut M4 | ||||
| 79 | 311839 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 303888 | |||
| No information available, not orderable | ||||
| 502 | 872422 | |||
| No information available, not orderable | ||||
| 503 | 303811 | |||
| Flat Hd. Screw M6x16 (10 Pcs.) | ||||
| 504 | 949340 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 505 | 325364 | |||
| No information available, not orderable | ||||
| 601 | 325365 | |||
| No information available, not orderable | ||||
| 602 | 324669 | |||
| Knob | ||||
| 603 | 303338 | 2.40 | 2.90 | |
