Here you will find all available parts and drawings of the 'Hikoki C9BU2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

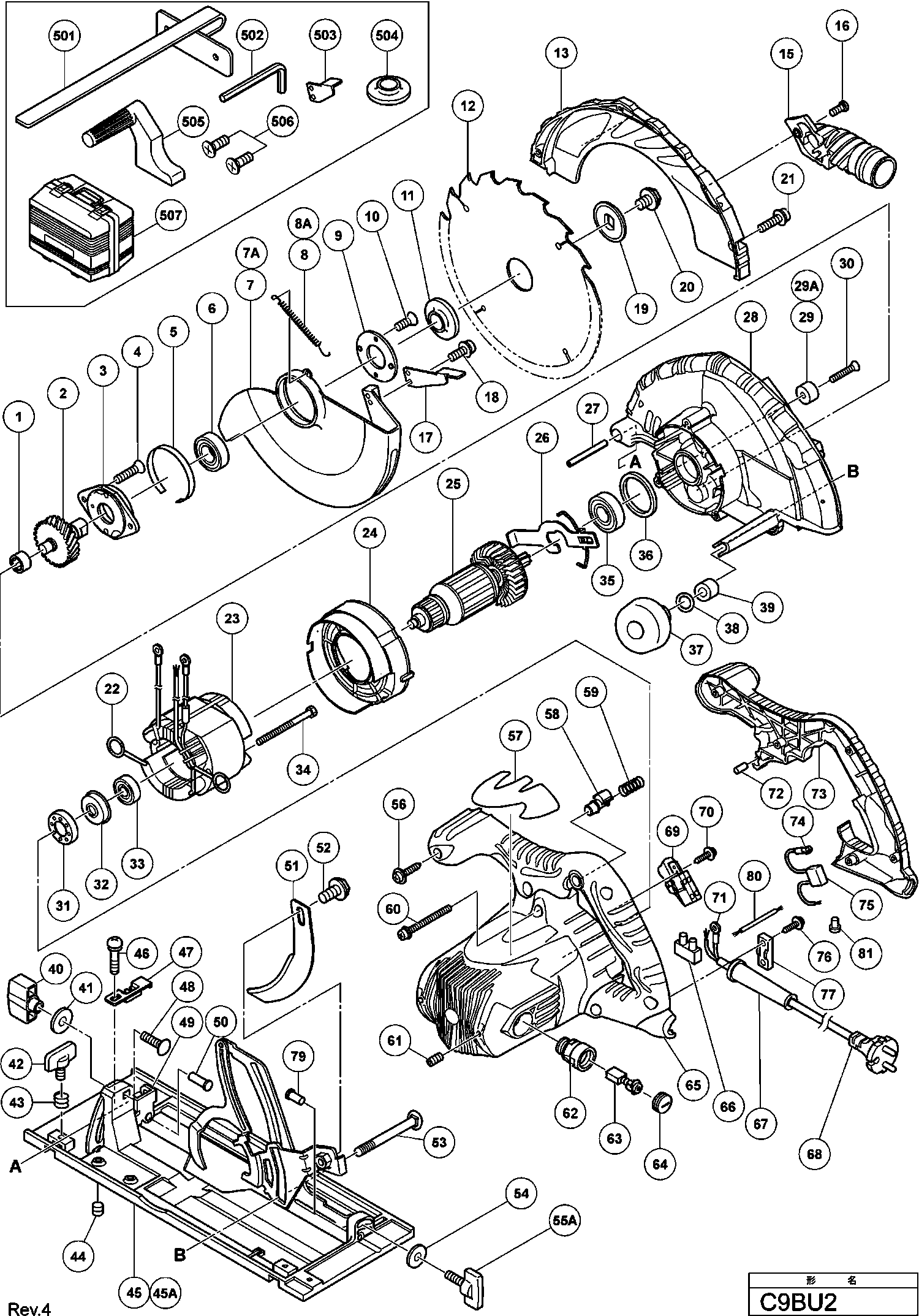

Technical drawing of model Hikoki C9BU2
Spare parts list of model Hikoki C9BU2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Needle Bearing Hk1212 | ||||
| 1 | 673002 | 4.35 | 5.26 | |
| Gear Shaft | ||||
| 2 | 303789 | 26.13 | 31.61 | |
| Bearing Holder | ||||
| 3 | 303790 | 8.85 | 10.71 | |
| Seal Lock Flat Hd. Screw M6x14 | ||||
| 4 | 303797 | 1.05 | 1.27 | |
| Liner | ||||
| 5 | 998887 | 9.30 | 11.25 | |
| Ball Bearing 6203vvcmps2l | ||||
| 6 | 6203VV | 7.80 | 9.44 | |
| No information available, not orderable | ||||
| 7 | 325353 | |||
| Lower Guard Since 12.2013 | ||||
| 7A | 337187 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 8 | 303805 | |||
| Return Spring Since 12.2013 | ||||
| 8A | 337188 | 3.00 | 3.63 | |
| Bearing Cover | ||||
| 9 | 303804 | 2.10 | 2.54 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 10 | 992013 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 11 | 302476 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 12 | 303810 | |||
| Guard | ||||
| 13 | 325354 | 14.03 | 16.97 | |
| No information available, not orderable | ||||
| 15 | 324669 | |||
| Special Bolt | ||||
| 16 | 324139 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 17 | 302464 | |||
| Lever | ||||
| 17A | 370542 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 18 | 304043 | 1.05 | 1.27 | |
| Washer (b) | ||||
| 19 | 302423 | 2.10 | 2.54 | |
| Hex. Socket Hd. Bolt M8x15.5 | ||||
| 20 | 324662 | 1.95 | 2.36 | |
| Machine Screw (w/washers) M4x14 (black) | ||||
| 21 | 305691 | 1.05 | 1.27 | |
| Brush Terminal | ||||
| 22 | 937623 | 1.04 | 1.26 | |
| Stator Ass'y 230v Includ.22 | ||||
| 23 | 340661E | 56.24 | 68.05 | |
| Fan Guide | ||||
| 24 | 325352 | 1.05 | 1.27 | |
| ANKER 110 VOLT | ||||
| 25 | 360778C | 111.32 | 134.70 | |
| Armature 230v | ||||
| 25 | 360778E | 77.14 | 93.34 | |
| Lock Lever | ||||
| 26 | 303793 | 4.65 | 5.63 | |
| Roll Pin D8x50 (10 Pcs.) | ||||
| 27 | 949884 | 10.65 | 12.89 | |
| Gear Cover | ||||
| 28 | 325350 | 59.68 | 72.21 | |
| Cushion | ||||
| 29 | 961729 | 1.05 | 1.27 | |
| Cushion Since 12.2013 | ||||
| 29A | 337097 | 1.20 | 1.45 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 30 | 949794 | 1.65 | 2.00 | |
| Rubber Bushing | ||||
| 31 | 325356 | 1.05 | 1.27 | |
| Bushing | ||||
| 32 | 325355 | 3.00 | 3.63 | |
| Ball Bearing 6000vvcmps2l | ||||
| 33 | 6000VV | 6.15 | 7.44 | |
| Hex. Hd. Tapping Screw D5x65 | ||||
| 34 | 960251 | 1.05 | 1.27 | |
| Ball Bearing 6202vvcmps2l | ||||
| 35 | 6202VV | 7.05 | 8.53 | |
| Rubber Ring | ||||
| 36 | 303792 | 1.05 | 1.27 | |
| Knob | ||||
| 37 | 324660 | 4.35 | 5.26 | |
| O-RING (P-7) (OUD 676531) | ||||
| 38 | 889335 | 1.00 | 1.21 | |
| Socket | ||||
| 39 | 303801 | 3.60 | 4.36 | |
| Wing Nut M8 | ||||
| 40 | 324658 | 3.00 | 3.63 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 41 | 949433 | 1.05 | 1.27 | |
| Wing Bolt M6x15 | ||||
| 42 | 301806 | 1.05 | 1.27 | |
| Spring (old 996224) | ||||
| 43 | 947859 | 1.04 | 1.26 | |
| Slotted Hd. Set Screw (seal Lock) M6x6 | ||||
| 44 | 302469 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 45 | 325366 | |||
| Base | ||||
| 45A | 337190 | 71.23 | 86.18 | |
| Machine Screw (w/sp. Washer) M4x6 | ||||
| 46 | 317333 | 1.50 | 1.82 | |
| Clamp | ||||
| 47 | 324659 | 1.95 | 2.36 | |
| Bolt (square) M8x30 | ||||
| 48 | 302457 | 1.04 | 1.26 | |
| Bevel Plate | ||||
| 49 | 308481 | 4.65 | 5.63 | |
| No longer available, no replacement | ||||
| 50 | 308482 | |||
| No longer available, no replacement | ||||
| 51 | 303806 | |||
| Hex. Socket Hd. Bolt M8x10 | ||||
| 52 | 324664 | 1.95 | 2.36 | |
| Diagonal Bolt M8 | ||||
| 53 | 303800 | 2.55 | 3.09 | |
| Washer M6 (10 Pcs.) | ||||
| 54 | 949425 | 1.05 | 1.27 | |
| Wing Bolt M6x20 | ||||
| 55A | 328923 | 1.50 | 1.82 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 56 | 301653 | 1.04 | 1.26 | |
| Pushing Button | ||||
| 58 | 325358 | 1.05 | 1.27 | |
| Spring | ||||
| 59 | 325359 | 1.05 | 1.27 | |
| Machine Screw M5x40 | ||||
| 60 | 303796 | 1.04 | 1.26 | |
| Hex Adjustment Screw M5x8 | ||||
| 61 | 938477 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 62 | 983362 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 63 | 999038 | 9.30 | 11.25 | |
| Brush Cap | ||||
| 64 | 961781 | 2.55 | 3.09 | |
| Housing | ||||
| 65 | 325362 | 28.05 | 33.94 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 66 | 938307 | 2.13 | 2.57 | |
| Cord Armor D10.7 | ||||
| 67 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 67 | 958049 | 1.04 | 1.26 | |
| CORD 2,4M 2 X 1.5 H05VV-F GBR 110V | ||||
| 68 | 500463Z | 22.60 | 27.35 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 68 | 500247Z | 6.18 | 7.48 | |
| Switch | ||||
| 69 | 325357 | 21.04 | 25.46 | |
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 70 | 305720 | 1.05 | 1.27 | |
| connecting terminal | ||||
| 71 | 980063 | 1.04 | 1.26 | |
| RUBBER PIN (OLD 976441) | ||||
| 72 | 946362 | 1.05 | 1.27 | |
| Handle Cover | ||||
| 73 | 325351 | 9.30 | 11.25 | |
| connecting terminal | ||||
| 74 | 980063 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| 75 | 930039 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 76 | 984750 | |||
| Cord Clip | ||||
| 77 | 937631 | 1.04 | 1.26 | |
| Rivet D6x17 | ||||
| 79 | 308480 | 1.05 | 1.27 | |
| Internal wire | ||||
| 80 | 330644 | 1.95 | 2.36 | |
| Connector 50092 (10 Pcs.) | ||||
| 81 | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 501 | 303888 | |||
| No information available, not orderable | ||||
| 502 | 872422 | |||
| Knob | ||||
| 503 | 303338 | 2.40 | 2.90 | |
| Ring | ||||
| 504 | 302443 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 505 | 303811 | |||
| Flat Hd. Screw M6x16 (10 Pcs.) | ||||
| 506 | 949340 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 507 | 325364 | |||
| No information available, not orderable | ||||
| 601 | 325365 | |||
