Here you will find all available parts and drawings of the 'Hikoki C8FSE'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

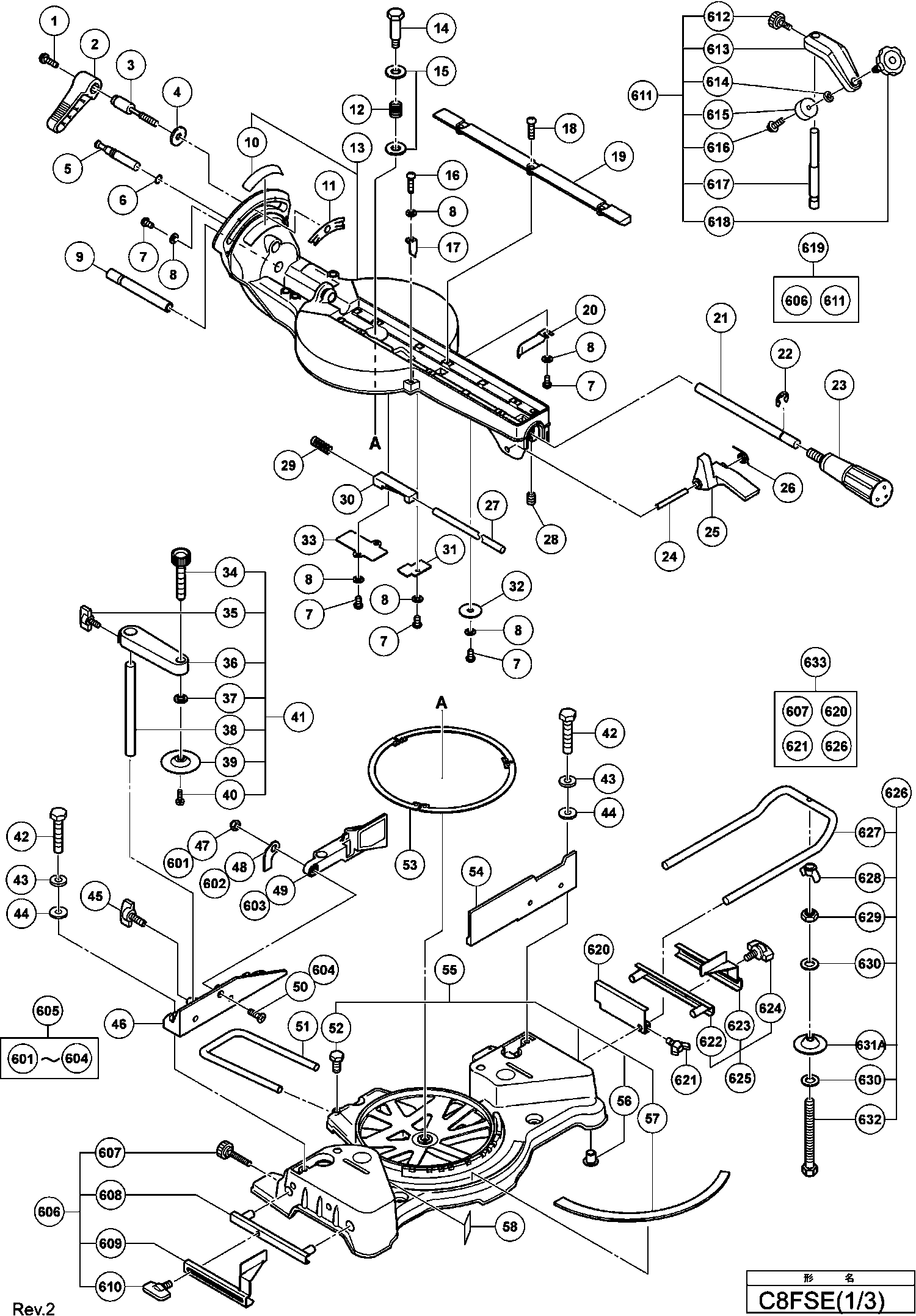

Technical drawing of model Hikoki C8FSE
Spare parts list of model Hikoki C8FSE
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Carbon Brush (1 Pair) | ||||
| *159 | 999001 | 6.75 | 8.17 | |
| Internal Wire (g) | ||||
| *165 | 329461 | 2.10 | 2.54 | |
| Stator 220v-230v | ||||
| *175 | 340729E | 32.31 | 39.10 | |
| FIELD 110 VOLT | ||||
| *175 | 340729C | 30.20 | 36.54 | |
| Stator 220v-230v | ||||
| *175 | 340729G | 26.40 | 31.94 | |
| Armature 230v | ||||
| *181 | 360839E | 41.80 | 50.58 | |
| Armature 230v | ||||
| *181 | 360839G | 36.44 | 44.09 | |
| Guide Holder For Europe, model (s) | ||||
| *201 | 335780 | 2.70 | 3.27 | |
| Collar (b) For D25.4 Hole For Sin | ||||
| *204 | 976819 | 4.80 | 5.81 | |
| Cord (cord Armor D8.8) For Pan | ||||
| *94 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| *94 | 500247Z | 6.18 | 7.48 | |
| Nylon Clip | ||||
| *96 | 948614 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 1 | 935196 | 1.04 | 1.26 | |
| Clamp Lever | ||||
| 2 | 312488 | 9.21 | 11.15 | |
| Bolt (left Hand) D10 | ||||
| 3 | 329409 | 4.20 | 5.08 | |
| Ring | ||||
| 4 | 965077 | 1.05 | 1.27 | |
| Set Pin | ||||
| 5 | 325028 | 4.20 | 5.08 | |
| O-ring (1ap-12) | ||||
| 6 | 996407 | 1.05 | 1.27 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 7 | 949215 | 1.05 | 1.27 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 8 | 949429 | 1.05 | 1.27 | |
| Hinge Shaft (a) | ||||
| 9 | 320141 | 10.20 | 12.34 | |
| Scale (b) | ||||
| 10 | 329417 | 2.10 | 2.54 | |
| Liner (a) | ||||
| 11 | 329408 | 1.20 | 1.45 | |
| Spring | ||||
| 12 | 312481 | 2.55 | 3.09 | |
| Rotary Table | ||||
| 13 | 329422 | 87.45 | 105.81 | |
| Rotary Table | ||||
| 13A | 329422 | 87.45 | 105.81 | |
| Shaft (b) | ||||
| 14 | 329418 | 3.00 | 3.63 | |
| Bolt Washer M12 (10 Pcs.) | ||||
| 15 | 949437 | 1.95 | 2.36 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 16 | 949217 | 1.05 | 1.27 | |
| Indicator | ||||
| 17 | 321329 | 1.65 | 2.00 | |
| Machine Screw M6x16 (10 Pcs.) | ||||
| 18 | 949256 | 1.35 | 1.63 | |
| Table Insert | ||||
| 19 | 329421 | 2.10 | 2.54 | |
| Spacer (a) | ||||
| 20 | 321342 | 1.65 | 2.00 | |
| Shaft (a) | ||||
| 21 | 329416 | 1.20 | 1.45 | |
| Ring | ||||
| 22 | 673489 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 23 | 322283 | |||
| SIDE HANDLE (OLD 322283/322898) | ||||
| 23A | 376050 | 1.20 | 1.45 | |
| Lever Shaft | ||||
| 24 | 321339 | 1.80 | 2.18 | |
| Lever | ||||
| 25 | 321338 | 1.65 | 2.00 | |
| Spring | ||||
| 26 | 321340 | 1.80 | 2.18 | |
| Shaft (c) | ||||
| 27 | 329415 | 2.10 | 2.54 | |
| Seal Lock Hex. Socket Set Screw M6x6 | ||||
| 28 | 987860 | 1.05 | 1.27 | |
| Spring (e) | ||||
| 29 | 321417 | 3.45 | 4.17 | |
| Stopper | ||||
| 30 | 322280 | 4.95 | 5.99 | |
| Cover | ||||
| 31 | 324395 | 1.50 | 1.82 | |
| Thrust Washer | ||||
| 32 | 875249 | 1.35 | 1.63 | |
| Pin Cover | ||||
| 33 | 321336 | 1.65 | 2.00 | |
| Knob Bolt M10x66 | ||||
| 34 | 302522 | 9.60 | 11.62 | |
| Wing Bolt M6x15 | ||||
| 35 | 301806 | 1.05 | 1.27 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 37 | 949432 | 1.05 | 1.27 | |
| Vise Shaft | ||||
| 38 | 329859 | 2.10 | 2.54 | |
| Clamping Plate | ||||
| 39 | 302532 | 2.40 | 2.90 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 40 | 949216 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 41 | 329860 | |||
| Bolt M8x35 (10 Pcs.) | ||||
| 42 | 949678 | 2.55 | 3.09 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 43 | 949457 | 1.05 | 1.27 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 44 | 949433 | 1.05 | 1.27 | |
| WING SCREW (A) | ||||
| 45 | 307937 | 1.05 | 1.27 | |
| Fence (b) | ||||
| 46 | 329420 | 13.35 | 16.15 | |
| Holder | ||||
| 51 | 998844 | 7.95 | 9.62 | |
| Bolt M6x10 (10 Pcs.) | ||||
| 52 | 949610 | 1.20 | 1.45 | |
| Liner | ||||
| 53 | 324400 | 1.50 | 1.82 | |
| Fence (a) | ||||
| 54 | 329419 | 14.70 | 17.79 | |
| Base | ||||
| 55 | 329414 | 113.99 | 137.92 | |
| Base Rubber | ||||
| 56 | 323606 | 1.05 | 1.27 | |
| Scale (a) | ||||
| 57 | 315210 | 5.85 | 7.08 | |
| Sleeve | ||||
| 81 | 322889 | 1.05 | 1.27 | |
| Spring | ||||
| 82 | 329410 | 9.60 | 11.62 | |
| INBUSSTELSCHROEF M8X10 | ||||
| 83 | 961554 | 1.00 | 1.21 | |
| Hinge (a) Ass'y Includ.86,113 | ||||
| 84 | 329427 | 117.84 | 142.58 | |
| Machine Screw M5x12 (10 Pcs.) | ||||
| 85 | 949237 | 1.05 | 1.27 | |
| Spacer | ||||
| 86 | 998980 | 1.04 | 1.26 | |
| Link | ||||
| 87A | 329411 | 7.35 | 8.89 | |
| Hinge Shaft (a) | ||||
| 88 | 320141 | 10.20 | 12.34 | |
| O-ring (p-6) | ||||
| 89 | 984528 | 1.05 | 1.27 | |
| Stopper Pin Ass'y Includ.94 | ||||
| 90 | 302518 | 4.50 | 5.44 | |
| Cover | ||||
| 91 | 324058 | 5.10 | 6.17 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 92 | 949429 | 1.05 | 1.27 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 93 | 949215 | 1.05 | 1.27 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 94 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 94 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 94 | 500247Z | 6.18 | 7.48 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 95 | 935196 | 1.04 | 1.26 | |
| Nylon Clip | ||||
| 96 | 948614 | 1.05 | 1.27 | |
| Nylon Clip | ||||
| 96 | 948193 | 1.05 | 1.27 | |
| Holder | ||||
| 97 | 329492 | 7.95 | 9.62 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 98 | 949215 | 1.05 | 1.27 | |
| Bushing | ||||
| 99 | 329424 | 30.80 | 37.27 | |
| Washer | ||||
| 100 | 326141 | 7.80 | 9.44 | |
| KNOP M6X25 | ||||
| 101 | 324418 | 3.00 | 3.63 | |
| Spring (old 996224) | ||||
| 102 | 947859 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Set Screw M6x10 | ||||
| 103 | 307956 | 1.05 | 1.27 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 104 | 949217 | 1.05 | 1.27 | |
| Indicator | ||||
| 105 | 321329 | 1.65 | 2.00 | |
| Hex. Socket Set Screw M6x8 | ||||
| 106 | 301575 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 107 | 305558 | 1.04 | 1.26 | |
| NYLOCK BOLT M8 X 25 | ||||
| 108 | 303409 | 1.00 | 1.21 | |
| Holder (a) | ||||
| 109 | 329428 | 72.19 | 87.35 | |
| Holder | ||||
| 110 | 324372 | 7.50 | 9.08 | |
| Knob Bolt For Europe,model (s) | ||||
| 111 | 998879 | 1.05 | 1.27 | |
| Guard (a) For Europe,model (s) | ||||
| 112 | 321333 | 11.85 | 14.34 | |
| Holder | ||||
| 113 | 321394 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 151 | 984750 | |||
| Cord Armor D10.1 | ||||
| 152 | 938051 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 153 | 937631 | 1.04 | 1.26 | |
| Housing | ||||
| 154 | 329437 | 34.24 | 41.43 | |
| Machine Screw (w/washers) M5x40 (black) | ||||
| 156 | 322123 | 1.65 | 2.00 | |
| Hex Adjustment Screw M5x8 | ||||
| 157 | 938477 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 158 | 957571 | 2.40 | 2.90 | |
| Carbon Brush (1 Pair) | ||||
| 159 | 999001 | 6.75 | 8.17 | |
| Brush Cap | ||||
| 160 | 931266 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 161 | 301653 | 1.04 | 1.26 | |
| Handle Cover | ||||
| 162 | 329438 | 15.81 | 19.13 | |
| Ferrite Core For Europe,aus,ina,model (s) | ||||
| 163 | 324518 | 12.15 | 14.70 | |
| Connector 50092 (10 Pcs.) | ||||
| 164 | 959141 | 3.75 | 4.54 | |
| Internal Wire (g) | ||||
| 165 | 329461 | 2.10 | 2.54 | |
| Switch | ||||
| 166 | 324424 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 167 | 958308Z | |||
| Capacitor 220-240 Volt | ||||
| 168 | 329861 | 7.05 | 8.53 | |
| CAPACITOR 110 VOLT | ||||
| 168 | 329862 | 6.60 | 7.99 | |
| Cover | ||||
| 169 | 329439 | 1.20 | 1.45 | |
| Spring | ||||
| 170 | 323433 | 1.80 | 2.18 | |
| Lock Lever | ||||
| 171 | 323432 | 5.10 | 6.17 | |
| Fan Guide | ||||
| 172 | 329436 | 2.10 | 2.54 | |
| Hex. Hd. Tapping Screw D4x60 | ||||
| 173 | 960108 | 1.04 | 1.26 | |
| Brush Terminal | ||||
| 174 | 931867 | 1.05 | 1.27 | |
| Stator 220v-230v | ||||
| 175 | 340729E | 32.31 | 39.10 | |
| FIELD 110 VOLT | ||||
| 175 | 340729C | 30.20 | 36.54 | |
| Stator 220v-230v | ||||
| 175 | 340729G | 26.40 | 31.94 | |
| Ball Bearing 6000vvcmps2l | ||||
| 176 | 6000VV | 6.15 | 7.44 | |
| Dust Seal | ||||
| 177 | 315877 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 178 | 608VVM | 5.70 | 6.90 | |
| Bushing | ||||
| 179 | 322089 | 4.80 | 5.81 | |
| Rubber Bushing | ||||
| 180 | 322090 | 1.80 | 2.18 | |
| Armature 230v | ||||
| 181 | 360839E | 41.80 | 50.58 | |
| Armature 230v | ||||
| 181 | 360839G | 36.44 | 44.09 | |
| Armature 220v-230v | ||||
| 181A | 361115E | 57.34 | 69.38 | |
| Knob | ||||
| 182 | 961468 | 1.35 | 1.63 | |
| Holding Spring | ||||
| 183 | 988821 | 3.60 | 4.36 | |
| NYLOCK BOLT M8 X 25 | ||||
| 184 | 303409 | 1.00 | 1.21 | |
| Machine Screw (w/washers) M5x8 | ||||
| 185 | 996274 | 1.05 | 1.27 | |
| Spindle Cover | ||||
| 186 | 329413 | 6.75 | 8.17 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 188 | 935196 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M5x10 | ||||
| 189 | 877839 | 1.05 | 1.27 | |
| Gear Cover | ||||
| 190 | 329431 | 83.60 | 101.16 | |
| Brand Plate | ||||
| 191 | 328922 | 1.95 | 2.36 | |
| Brand Plate | ||||
| 191A | 328922 | 1.95 | 2.36 | |
| Bolt (w/washers) M6x16 (black) | ||||
| 192 | 308259 | 1.05 | 1.27 | |
| Machine Screw M6x25 (10 Pcs.) | ||||
| 193 | 949260 | 1.35 | 1.63 | |
| Ball Bearing 606vv | ||||
| 194 | 606ZZM | 15.40 | 18.63 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 195 | 949455 | 1.05 | 1.27 | |
| Washer M6 (10 Pcs.) | ||||
| 196 | 949425 | 1.05 | 1.27 | |
| Spring | ||||
| 197 | 329463 | 1.20 | 1.45 | |
| Lock Lever | ||||
| 198 | 329462 | 5.10 | 6.17 | |
| No longer available, no replacement | ||||
| 199 | 322950 | |||
| Dust Guide | ||||
| 200 | 321364 | 1.80 | 2.18 | |
| Guide Holder For Europe, model (s) | ||||
| 201 | 335780 | 2.70 | 3.27 | |
| Bolt (left Hand) W/washer M7x17.5 | ||||
| 202 | 998335 | 1.05 | 1.27 | |
| Collar (b) For D25.4 Hole For Sin | ||||
| 204 | 976819 | 4.80 | 5.81 | |
| Flat Hd. Screw M4x10 (10 Pcs.) | ||||
| 205 | 949322 | 1.05 | 1.27 | |
| Cover | ||||
| 206 | 307731 | 2.55 | 3.09 | |
| Lower Guard | ||||
| 207 | 329412 | 27.23 | 32.94 | |
| Return Spring | ||||
| 208 | 317203 | 3.30 | 3.99 | |
| Spindle Ass'y | ||||
| 209 | 329432 | 24.75 | 29.95 | |
| BALL BEARING 6003VVCM (NYLON RETAINER) | ||||
| 210 | 327694 | 5.25 | 6.35 | |
| Bearing Holder | ||||
| 211 | 329435 | 6.45 | 7.80 | |
| Ball Bearing 608vvc2ps2l | ||||
| 212 | 608VVM | 5.70 | 6.90 | |
| Flange (D) | ||||
| 213 | 308789 | 15.84 | 19.16 | |
| Machine Screw M5x20 (10 pieces) | ||||
| 214 | 949241 | 1.35 | 1.63 | |
| Spring Washer M5 (10 pieces) | ||||
| 215 | 949454 | 1.04 | 1.26 | |
| Washer (g) | ||||
| 218 | 318452 | 1.20 | 1.45 | |
| Controller For Model (s) | ||||
| 219 | 336578 | 49.78 | 60.23 | |
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 220 | 305720 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 221 | 336579 | |||
| No information available, not orderable | ||||
| 222 | 336580 | |||
| CORD CLAMP | ||||
| 230 | 975144 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 940543 | |||
| No information available, not orderable | ||||
| 502 | 322955M | |||
| Nylon Nut M6 | ||||
| 601 | 963837 | 1.05 | 1.27 | |
| Plate | ||||
| 602 | 329465 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 603 | 330138 | |||
| Flat Hd. Screw M6x25 (10 Pcs.) | ||||
| 604 | 949342 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 605 | 329464 | |||
| No information available, not orderable | ||||
| 606 | 321374 | |||
| Knob Bolt M6x32 | ||||
| 607 | 960017 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 608 | 321390 | |||
| Wing Bolt M6x15 | ||||
| 610 | 301806 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 611 | 322957 | |||
| Knob Bolt M6x11 | ||||
| 612 | 998836 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 614 | 306985 | |||
| Base Rubber | ||||
| 615 | 964851 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 616 | 304043 | 1.05 | 1.27 | |
| Vise Shaft | ||||
| 617 | 318967 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 618 | 321551 | |||
| No information available, not orderable | ||||
| 619 | 329782 | |||
| Stopper | ||||
| 620 | 974561 | 7.05 | 8.53 | |
| Wing Bolt M6x20 (10 Pcs.) | ||||
| 621 | 949404 | 7.65 | 9.26 | |
| No information available, not orderable | ||||
| 622 | 321390 | |||
| Wing Bolt M6x15 | ||||
| 624 | 301806 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 625 | 321373 | |||
| No information available, not orderable | ||||
| 627 | 321549 | |||
| Wing Nut M6 (10 Pcs.) | ||||
| 628 | 949313 | 4.65 | 5.63 | |
| Tpe (sl),kor (sl) | ||||
| 629 | 949556 | 1.05 | 1.27 | |
| Ring | ||||
| 630 | 967329 | 1.05 | 1.27 | |
| Clamping plate | ||||
| 631A | 322047 | 1.38 | 1.67 | |
| High Tension Bolt M6x65 | ||||
| 632 | 996283 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 633 | 321553 | |||
| No information available, not orderable | ||||
| 634 | 998840 | |||
| No information available, not orderable | ||||
| 635 | 998858 | |||
| No information available, not orderable | ||||
| 636 | 998859 | |||
| No information available, not orderable | ||||
| 637 | 339237 | |||
