Here you will find all available parts and drawings of the 'Hikoki C8FC'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

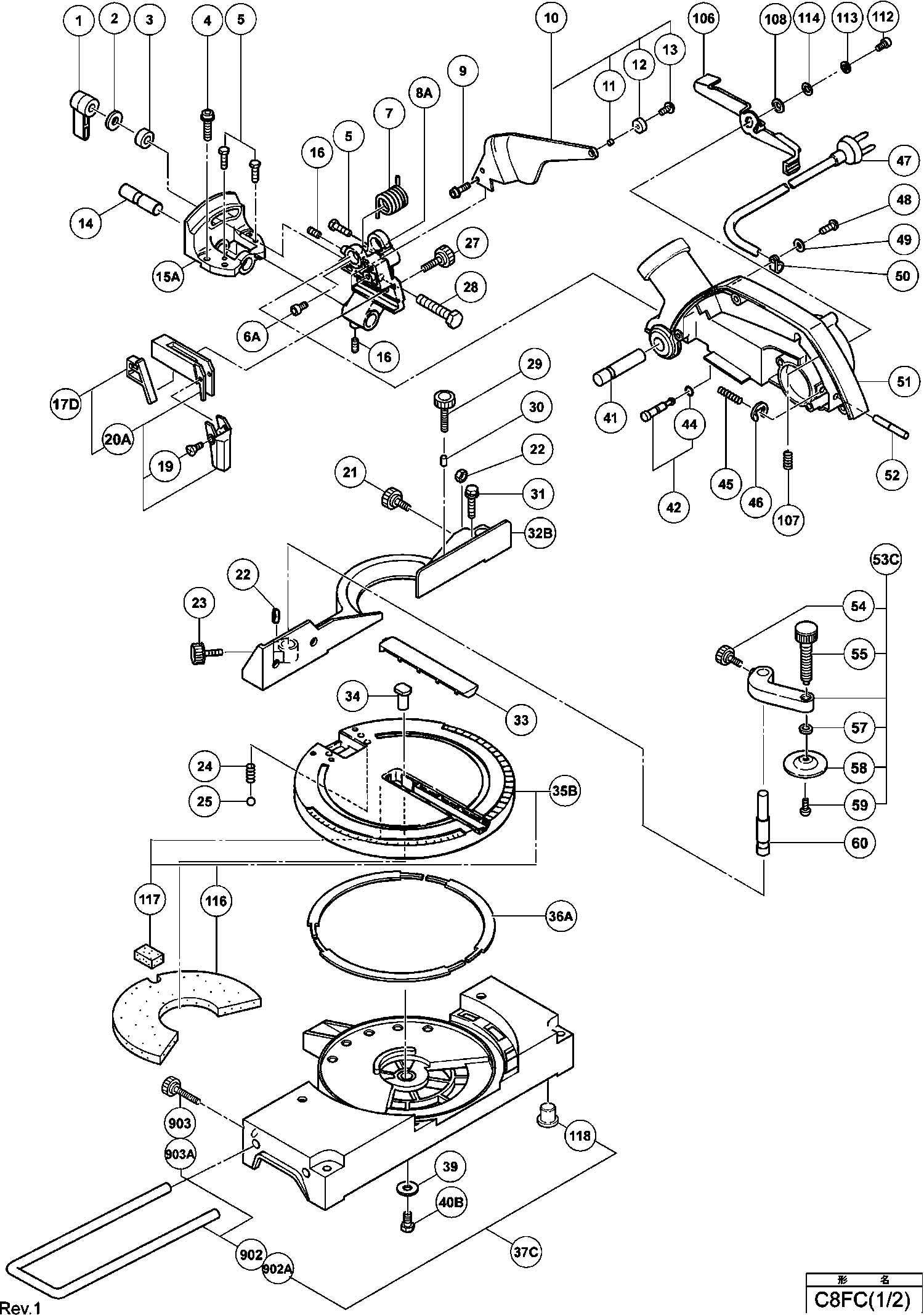

Technical drawing of model Hikoki C8FC
Spare parts list of model Hikoki C8FC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *47 | 952806Z | |||
| Nylon Clip For Nor,fin,sin,hol(till 5.2004 For Fr | ||||
| *50 | 996530 | 1.05 | 1.27 | |
| Nylon Clip | ||||
| *62 | 948193 | 1.05 | 1.27 | |
| Armature | ||||
| *74A | 360072E | 116.74 | 141.25 | |
| Cord Armor D10.1 | ||||
| *84A | 938051 | 1.04 | 1.26 | |
| Adjustment Knob | ||||
| 1 | 302696 | 9.00 | 10.89 | |
| Bolt Washer M10 (10 Pcs.) | ||||
| 2 | 949434 | 1.35 | 1.63 | |
| Ring | ||||
| 3 | 302506 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 4 | 302504 | |||
| HEX. SOCKET HEAD BOLT M6X22 | ||||
| 4A | 971392 | 1.00 | 1.21 | |
| NYLOCK BOLT M5 X 16 | ||||
| 5 | 302505 | 1.00 | 1.21 | |
| Seal Lock Hex. Socket Hd. Bolt M5x10 | ||||
| 6A | 877839 | 1.05 | 1.27 | |
| Spring | ||||
| 7 | 302508 | 3.30 | 3.99 | |
| Hinge Point (old 303519) | ||||
| 8A | 302499 | 26.95 | 32.61 | |
| No information available, not orderable | ||||
| 9 | 302510 | |||
| Bow | ||||
| 10 | 302509 | 9.00 | 10.89 | |
| Spacer | ||||
| 11 | 302757 | 1.04 | 1.26 | |
| Ring | ||||
| 12 | 303074 | 1.04 | 1.26 | |
| Machine Screw (w/sp. Washer) M4x8 Since D106801 | ||||
| 13 | 958523 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 14 | 302500 | |||
| Hinge Holder (old 303520) | ||||
| 15A | 302498 | 21.73 | 26.29 | |
| Hex. Socket Set Screw M5x10 | ||||
| 16 | 952384 | 1.04 | 1.26 | |
| Guard set including 20a parts | ||||
| 17D | 320750 | 13.80 | 16.70 | |
| Flat Hd. Screw (brass) M4x6 | ||||
| 19 | 998850 | 1.05 | 1.27 | |
| Guard Assembly Including 19 parts | ||||
| 20A | 320749 | 6.45 | 7.80 | |
| Knob Screw M6x22 | ||||
| 21 | 302503 | 1.65 | 2.00 | |
| Tpe (sl),kor (sl) | ||||
| 22 | 949556 | 1.05 | 1.27 | |
| Knob Screw M6x37 Till 1.2002 | ||||
| 23 | 302497 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 24 | 302493 | |||
| Steel Ball D9.53 (10 pieces) | ||||
| 25 | 959152 | 3.00 | 3.63 | |
| Knob Screw M6x22 | ||||
| 27 | 302503 | 1.65 | 2.00 | |
| Bolt (left Hand) M10x60 | ||||
| 28 | 302698 | 1.95 | 2.36 | |
| Knob Screw M6x37 Till 1.2002 | ||||
| 29 | 302497 | 1.04 | 1.26 | |
| Clamp Piece | ||||
| 30 | 998351 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 31 | 302496 | |||
| No information available, not orderable | ||||
| 32B | 302495 | |||
| Table Insert | ||||
| 33 | 302494 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 34 | 302515 | |||
| No information available, not orderable | ||||
| 35B | 311438 | |||
| Liner | ||||
| 36A | 302492 | 1.65 | 2.00 | |
| Base Ass'y Includ.118,902a | ||||
| 37C | 320665 | 104.78 | 126.78 | |
| Ring | ||||
| 39 | 996257 | 1.05 | 1.27 | |
| Washer | ||||
| 39A | 940845 | 1.04 | 1.26 | |
| Seal Lock Bolt M6x10 | ||||
| 40B | 302491 | 1.05 | 1.27 | |
| Gear Case Shaft | ||||
| 41 | 302507 | 5.85 | 7.08 | |
| Stopper Pin Ass'y Includ.94 | ||||
| 42 | 302518 | 4.50 | 5.44 | |
| O-ring (p-6) | ||||
| 44 | 984528 | 1.05 | 1.27 | |
| Spring | ||||
| 45 | 998852 | 1.05 | 1.27 | |
| Washer Spring | ||||
| 46 | 974577 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 47 | 952806Z | |||
| Machine Screw M5x12 (10 Pcs.) | ||||
| 48 | 949237 | 1.05 | 1.27 | |
| Bolt Washer M5 (10 Pcs.) | ||||
| 49 | 949431 | 1.04 | 1.26 | |
| Nylon Clip For Nor,fin,sin,hol(till 5.2004 For Fr | ||||
| 50 | 996530 | 1.05 | 1.27 | |
| For Fra) | ||||
| 50 | 998902 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 51 | 303524 | 55.41 | 67.05 | |
| No longer available, no replacement | ||||
| 52 | 302517 | |||
| No information available, not orderable | ||||
| 53C | 331852 | |||
| Knob Bolt M6x11 | ||||
| 54 | 998836 | 1.65 | 2.00 | |
| Knob Bolt M10x66 | ||||
| 55 | 302522 | 9.60 | 11.62 | |
| Washer M6 (10 Pcs.) | ||||
| 57 | 949425 | 1.05 | 1.27 | |
| Clamping Plate | ||||
| 58 | 302532 | 2.40 | 2.90 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 59 | 949216 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 60 | 302533 | |||
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 61A | 307028 | 1.05 | 1.27 | |
| Nylon Clip | ||||
| 62 | 948193 | 1.05 | 1.27 | |
| Nylon Clip | ||||
| 62 | 948614 | 1.05 | 1.27 | |
| Closing Washer (b) (old 976448) | ||||
| 63 | 962569 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 64A | 301653 | 1.04 | 1.26 | |
| Baffle | ||||
| 65 | 996254 | 2.40 | 2.90 | |
| Machine Screw (w/washers) M5x50 (black) | ||||
| 66 | 997841 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 68 | 998868 | |||
| No information available, not orderable | ||||
| 68A | 958400Z | |||
| Handle Cover | ||||
| 69A | 307706 | 4.20 | 5.08 | |
| Field | ||||
| 70 | 340219E | 67.10 | 81.19 | |
| No information available, not orderable | ||||
| 70A | 340760 | |||
| Brush Terminal | ||||
| 71 | 930703 | 2.40 | 2.90 | |
| Machine Screw with Washers M5x60 (Black) | ||||
| 72A | 307224 | 1.05 | 1.27 | |
| Fan Guide | ||||
| 73A | 954584 | 1.80 | 2.18 | |
| Armature | ||||
| 74A | 360072E | 116.74 | 141.25 | |
| Armature 110V-115V (OLD G) | ||||
| 74A | 360072C | 109.01 | 131.90 | |
| Ball Bearing 608vvc2ps2l | ||||
| 75 | 608VVM | 5.70 | 6.90 | |
| Bearing Lock | ||||
| 76 | 976301 | 1.05 | 1.27 | |
| Ball Bearing 6001vv | ||||
| 77 | 6001VV | 6.60 | 7.99 | |
| Rubber ring (OLD 996252) | ||||
| 78A | 958130 | 1.65 | 2.00 | |
| Housing Ass'y | ||||
| 79B | 302520 | 39.74 | 48.08 | |
| Hex. Socket Set Screw M5x6 | ||||
| 80 | 966426 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 81B | 981586 | 6.45 | 7.80 | |
| Brush Cap | ||||
| 82 | 996259 | 1.05 | 1.27 | |
| Brush Cap | ||||
| 82A | 961781 | 2.55 | 3.09 | |
| Carbon Brush (1 Pair) | ||||
| 83 | 999043 | 4.50 | 5.44 | |
| Cord Armor D10.1 | ||||
| 84A | 938051 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 85 | 981373 | 1.05 | 1.27 | |
| Cord Clip | ||||
| 87 | 937631 | 1.04 | 1.26 | |
| Tapping Screw (w/washer) D4x16 | ||||
| 88 | 995062 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 88A | 930446 | |||
| Spindle Ass'y Includ.90-92 | ||||
| 89 | 998837 | 61.33 | 74.20 | |
| Ball Bearing 608vvc2ps2l | ||||
| 90 | 608VVM | 5.70 | 6.90 | |
| Bearing Holder | ||||
| 91 | 996238 | 15.54 | 18.80 | |
| Ball Bearing 6004vvcmps2l | ||||
| 92 | 6004VV | 8.55 | 10.35 | |
| Cover Holder | ||||
| 93 | 302512 | 14.10 | 17.06 | |
| Flat Hd.screw (w/toothed Lock Wash)m5x35 | ||||
| 94 | 996240 | 1.05 | 1.27 | |
| Spring | ||||
| 95 | 302511 | 1.05 | 1.27 | |
| Safety Cover | ||||
| 96 | 998308 | 16.64 | 20.13 | |
| Spring retaining ring | ||||
| 97 | 302513 | 2.40 | 2.90 | |
| Flat Hd. Screw(w/toothed Lock Wash)m4x12 | ||||
| 98 | 996244 | 1.05 | 1.27 | |
| Washer (c) | ||||
| 99 | 998838 | 5.49 | 6.64 | |
| No information available, not orderable | ||||
| 100 | 998859 | |||
| No information available, not orderable | ||||
| 100A | 998863 | |||
| Intermediate Flange | ||||
| 101 | 303525 | 10.20 | 12.34 | |
| Bolt (left Hand) W/washer M7x17.5 | ||||
| 102A | 998335 | 1.05 | 1.27 | |
| Flat Hd. Screw M5x12 (10 Pcs.) | ||||
| 103 | 949332 | 1.04 | 1.26 | |
| Guard | ||||
| 104 | 303526 | 12.15 | 14.70 | |
| No information available, not orderable | ||||
| 104B | 331848 | |||
| No information available, not orderable | ||||
| 106 | 303527 | |||
| No information available, not orderable | ||||
| 107 | 303528 | |||
| No longer available, no replacement | ||||
| 108 | 303529 | |||
| Collar (b) For D25.4 Hole For Sin | ||||
| 109 | 976819 | 4.80 | 5.81 | |
| Capacitor | ||||
| 110A | 303530 | 8.40 | 10.16 | |
| Terminal For Noise Suppressor | ||||
| 111 | 938108 | 1.20 | 1.45 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 112 | 949236 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 113 | 949454 | 1.04 | 1.26 | |
| Washer M5 (10 Pcs.) | ||||
| 114 | 949424 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 116 | 311439 | |||
| No longer available, no replacement | ||||
| 117 | 311440 | |||
| No information available, not orderable | ||||
| 118 | 312672 | |||
| Base Rubber | ||||
| 118A | 323606 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 701C | 322955 | |||
| No information available, not orderable | ||||
| 702 | 940543 | |||
| No information available, not orderable | ||||
| 901 | 998861 | |||
| No information available, not orderable | ||||
| 902 | 303554 | |||
| No information available, not orderable | ||||
| 902A | 320897 | |||
| Knob Screw M6x37 Till 1.2002 | ||||
| 903 | 302497 | 1.04 | 1.26 | |
| Knob Bolt M6x32 | ||||
| 903A | 960017 | 1.65 | 2.00 | |
