Here you will find all available parts and drawings of the 'Hikoki C7UY'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

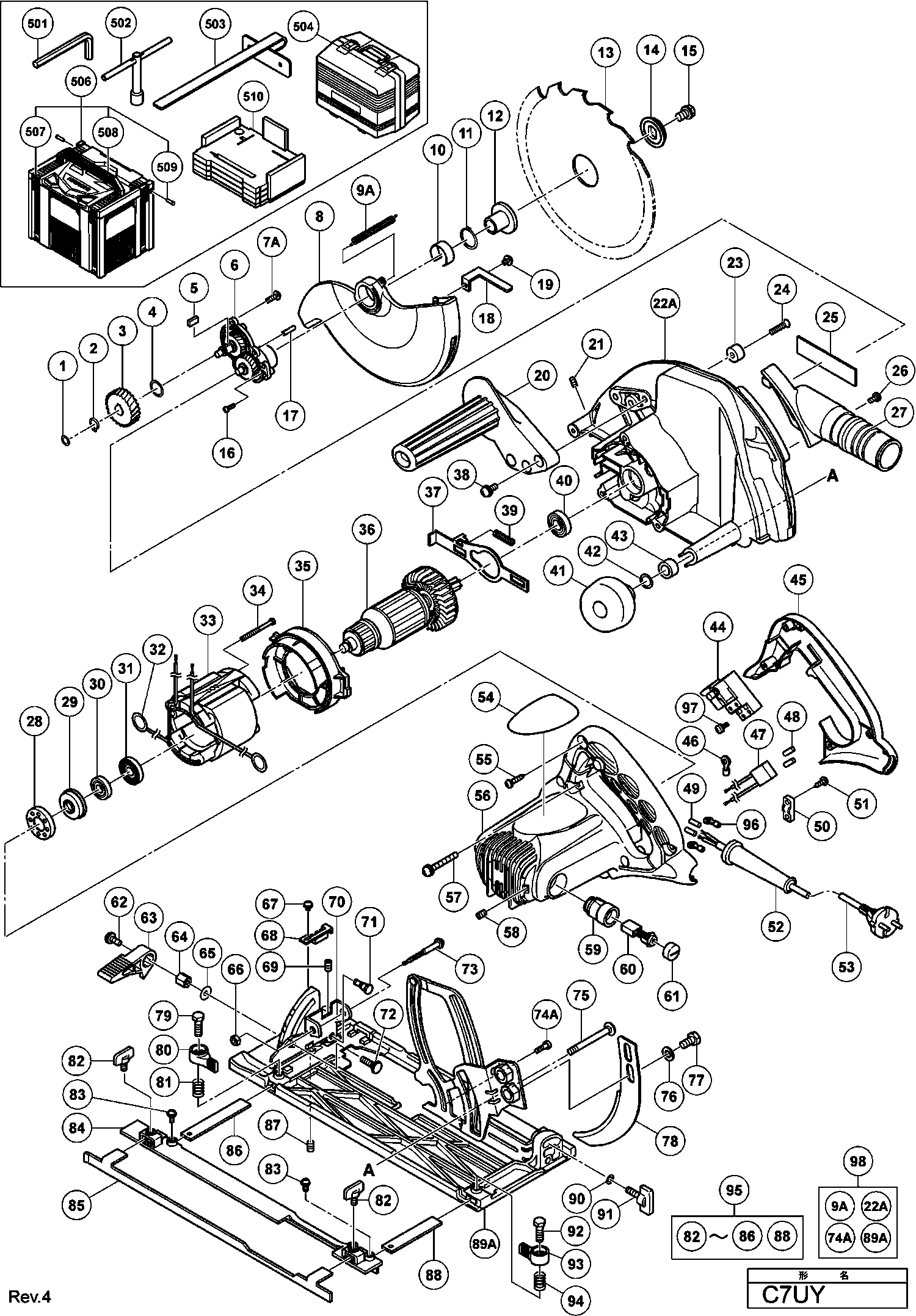

Technical drawing of model Hikoki C7UY
Spare parts list of model Hikoki C7UY
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *27 | 997247 | |||
| Stator 220v-230v | ||||
| *33 | 340762E | 51.84 | 62.72 | |
| FIELD 110 VOLT | ||||
| *33 | 340762G | 30.20 | 36.54 | |
| Armature 230v | ||||
| *36 | 360882E | 94.46 | 114.30 | |
| Switch | ||||
| *44 | 302470 | 10.95 | 13.25 | |
| Cord Armor D10.1 | ||||
| *52 | 938051 | 1.04 | 1.26 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| *53 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| *56 | 330996 | |||
| Bolt Washer M6 (10 Pcs.) | ||||
| *76 | 949432 | 1.05 | 1.27 | |
| Bolt (h) M6x10 Sui,saf | ||||
| *77 | 331513 | 1.05 | 1.27 | |
| Riving Knife | ||||
| *78 | 331016 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| *8 | 335414 | |||
| Wing Bolt M6x12 | ||||
| *82 | 307947 | 1.35 | 1.63 | |
| Machine Screw M5x12 Black | ||||
| *83 | 331761 | 1.65 | 2.00 | |
| Guide Rail Adapter Sui | ||||
| *84 | 330968 | 8.33 | 10.07 | |
| Guide Rail Plate Sui | ||||
| *85 | 330978 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| *86 | 330979 | |||
| No information available, not orderable | ||||
| *88 | 330980 | |||
| Bolt M6x10 Sui | ||||
| *92 | 331004 | 5.55 | 6.72 | |
| Lever | ||||
| *93 | 330972 | 1.95 | 2.36 | |
| Spring (b) | ||||
| *94 | 330983 | 1.05 | 1.27 | |
| Guide Rail | ||||
| *95 | 331762 | 14.65 | 17.73 | |
| Ring | ||||
| 1 | 991733 | 1.05 | 1.27 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 2 | 316487 | 1.65 | 2.00 | |
| First Gear | ||||
| 3 | 331756 | 8.25 | 9.98 | |
| O-ring | ||||
| 4 | 331304 | 1.05 | 1.27 | |
| Feather Key 4x4x10 | ||||
| 5 | 930511 | 2.40 | 2.90 | |
| Bearing Holder | ||||
| 6 | 330999 | 55.14 | 66.72 | |
| Seal Lock Screw (w/washer) M4x12 | ||||
| 7A | 328628 | 1.05 | 1.27 | |
| Guard | ||||
| 8 | 331015 | 12.45 | 15.06 | |
| Return Spring | ||||
| 9A | 337086 | 1.04 | 1.26 | |
| WASHER | ||||
| 10 | 330981 | 1.05 | 1.27 | |
| Washer Spring | ||||
| 11 | 939548 | 4.65 | 5.63 | |
| Washer (a) | ||||
| 12 | 330985 | 5.03 | 6.08 | |
| No information available, not orderable | ||||
| 13 | 330888 | |||
| Flange | ||||
| 14 | 330986 | 3.15 | 3.81 | |
| Bolt (w/washer) M7x17.5 | ||||
| 15 | 957749 | 1.05 | 1.27 | |
| Machine Screw M3 | ||||
| 16 | 331001 | 1.95 | 2.36 | |
| Needle Roller | ||||
| 17 | 998426 | 1.05 | 1.27 | |
| Lever | ||||
| 18 | 330977 | 1.05 | 1.27 | |
| Machine Screw (w/sp. Washer) M4x8 (black | ||||
| 19 | 325079 | 1.65 | 2.00 | |
| Side Handle | ||||
| 20 | 330973 | 4.20 | 5.08 | |
| Hex. Socket Set Screw M5x6 Till 2.1986 | ||||
| 21 | 962782 | 1.04 | 1.26 | |
| Gear-box cover | ||||
| 22A | 337079 | 20.76 | 25.12 | |
| Cushion | ||||
| 23 | 961729 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 24 | 949794 | 1.65 | 2.00 | |
| Brand Plate | ||||
| 25 | 328922 | 1.95 | 2.36 | |
| Brand Plate | ||||
| 25A | 328922 | 1.95 | 2.36 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 26 | 935196 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 27 | 997247 | |||
| Rubber Bushing | ||||
| 28 | 331006 | 1.95 | 2.36 | |
| Bushing | ||||
| 29 | 322089 | 4.80 | 5.81 | |
| Ball Bearing 608vvc2ps2l | ||||
| 30 | 608VVM | 5.70 | 6.90 | |
| Dust Seal | ||||
| 31 | 315877 | 1.05 | 1.27 | |
| Brush Terminal | ||||
| 32 | 930703 | 2.40 | 2.90 | |
| Stator 220v-230v | ||||
| 33 | 340762E | 51.84 | 62.72 | |
| FIELD 110 VOLT | ||||
| 33 | 340762G | 30.20 | 36.54 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 34 | 953174 | 1.04 | 1.26 | |
| Fan Guide | ||||
| 35 | 330971 | 3.45 | 4.17 | |
| Armature 230v | ||||
| 36 | 360882E | 94.46 | 114.30 | |
| No information available, not orderable | ||||
| 37 | 330976 | |||
| Machine Screw (w/washers) M5x16 | ||||
| 38 | 990541 | 1.05 | 1.27 | |
| Spring (a) | ||||
| 39 | 330982 | 1.05 | 1.27 | |
| Ball Bearing 6000vvcmps2l | ||||
| 40 | 6000VV | 6.15 | 7.44 | |
| Knob | ||||
| 41 | 324660 | 4.35 | 5.26 | |
| O-RING (P-7) (OLD 676531) | ||||
| 42 | 889335 | 1.00 | 1.21 | |
| Socket | ||||
| 43 | 319830 | 2.10 | 2.54 | |
| Switch | ||||
| 44 | 302470 | 10.95 | 13.25 | |
| Handle Cover | ||||
| 45 | 330969 | 8.40 | 10.16 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 46 | 930804 | 3.00 | 3.63 | |
| Noise Suppressor | ||||
| 47 | 930039 | 1.95 | 2.36 | |
| Threaded cable sleeve | ||||
| 48 | 981373 | 1.05 | 1.27 | |
| Threaded cable sleeve | ||||
| 49 | 981373 | 1.05 | 1.27 | |
| Cord Clip | ||||
| 50 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 51 | 984750 | |||
| Cord Armor D10.1 | ||||
| 52 | 938051 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 53 | 500461Z | 17.88 | 21.63 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| 53 | 500247Z | 6.18 | 7.48 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 55 | 301653 | 1.04 | 1.26 | |
| Housing | ||||
| 56 | 330995 | 26.60 | 32.19 | |
| Machine Screw (w/washers) M5x40 (black) | ||||
| 57 | 322123 | 1.65 | 2.00 | |
| Hex Adjustment Screw M5x8 | ||||
| 58 | 938477 | 1.05 | 1.27 | |
| Brush Holder (2) | ||||
| 59 | 957051 | 5.25 | 6.35 | |
| Carbon Brush (1 Pair) | ||||
| 60 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 61 | 935829 | 1.05 | 1.27 | |
| Seal Lock Screw (w/sp. Washers) M6x14 | ||||
| 62 | 322260 | 1.50 | 1.82 | |
| Lever (a) W/stopper | ||||
| 63 | 322600 | 3.15 | 3.81 | |
| Lock Nut | ||||
| 64 | 328048 | 1.05 | 1.27 | |
| Washer | ||||
| 65 | 320975 | 1.05 | 1.27 | |
| U-nut M5 | ||||
| 66 | 308387 | 1.05 | 1.27 | |
| NYLON NUT M5 | ||||
| 66A | 377291 | 1.00 | 1.21 | |
| Machine Screw (w/sp. Washer) M4(black) | ||||
| 67 | 331003 | 1.95 | 2.36 | |
| Clamp | ||||
| 68 | 324659 | 1.95 | 2.36 | |
| Seal Lock Hex. Socket Set Screw M5x6 | ||||
| 69 | 319541 | 1.50 | 1.82 | |
| Bevel Plate | ||||
| 70 | 330975 | 3.15 | 3.81 | |
| Step Pin D6x13 | ||||
| 71 | 320163 | 1.50 | 1.82 | |
| Nut | ||||
| 72 | 942808 | 1.05 | 1.27 | |
| Adjusting Screw (a) | ||||
| 73 | 322096 | 1.95 | 2.36 | |
| Special Screw M6 Since 12.2013 | ||||
| 74A | 337081 | 1.04 | 1.26 | |
| Diagonal Bolt M8 | ||||
| 75 | 303800 | 2.55 | 3.09 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 76 | 949432 | 1.05 | 1.27 | |
| Bolt (h) M6x10 Sui,saf | ||||
| 77 | 331513 | 1.05 | 1.27 | |
| Riving Knife | ||||
| 78 | 331016 | 3.15 | 3.81 | |
| Bolt M6x10 Sui | ||||
| 79 | 331004 | 5.55 | 6.72 | |
| Lever | ||||
| 80 | 330972 | 1.95 | 2.36 | |
| Spring (b) | ||||
| 81 | 330983 | 1.05 | 1.27 | |
| Wing Bolt M6x12 | ||||
| 82 | 307947 | 1.35 | 1.63 | |
| Machine Screw M5x12 Black | ||||
| 83 | 331761 | 1.65 | 2.00 | |
| Guide Rail Adapter Sui | ||||
| 84 | 330968 | 8.33 | 10.07 | |
| Guide Rail Plate Sui | ||||
| 85 | 330978 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 86 | 330979 | |||
| Slotted Hd. Set Screw (seal Lock) M6x6 | ||||
| 87 | 302469 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 88 | 330980 | |||
| Base | ||||
| 89A | 337083 | 35.75 | 43.26 | |
| Washer M6 (10 Pcs.) | ||||
| 90 | 949425 | 1.05 | 1.27 | |
| Wing Bolt M6x17 | ||||
| 91 | 302459 | 1.05 | 1.27 | |
| Bolt M6x10 Sui | ||||
| 92 | 331004 | 5.55 | 6.72 | |
| Lever | ||||
| 93 | 330972 | 1.95 | 2.36 | |
| Spring (b) | ||||
| 94 | 330983 | 1.05 | 1.27 | |
| Guide Rail | ||||
| 95 | 331762 | 14.65 | 17.73 | |
| connecting terminal | ||||
| 96 | 980063 | 1.04 | 1.26 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 97 | 305499 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 98 | 337085 | |||
| No information available, not orderable | ||||
| 501 | 990666 | |||
| No information available, not orderable | ||||
| 502 | 940543 | |||
| No information available, not orderable | ||||
| 503 | 302756 | |||
| No information available, not orderable | ||||
| 504 | 331498 | |||
| No information available, not orderable | ||||
| 506 | 337528 | |||
| No information available, not orderable | ||||
| 507 | 336472 | |||
| No information available, not orderable | ||||
| 508 | 336473 | |||
| No information available, not orderable | ||||
| 509 | 336474 | |||
| No information available, not orderable | ||||
| 510 | 337658 | |||
