Here you will find all available parts and drawings of the 'Hikoki C7U3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

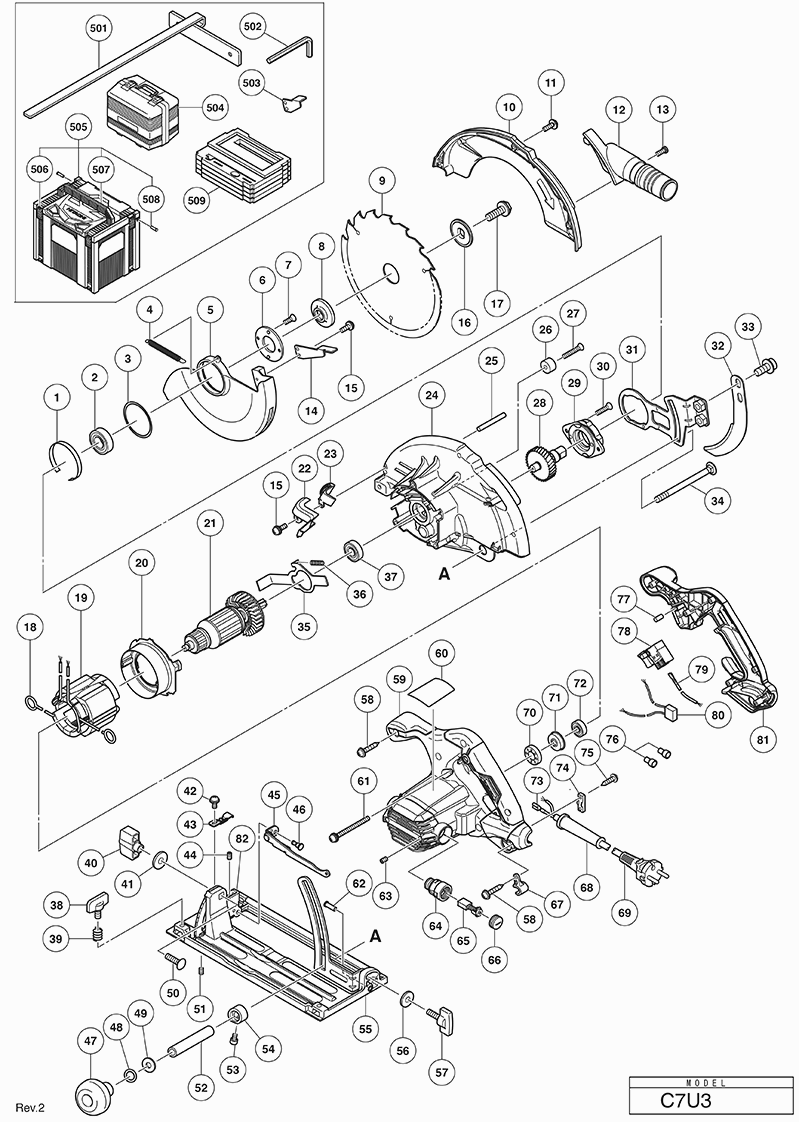

Technical drawing of model Hikoki C7U3
Spare parts list of model Hikoki C7U3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Stator 220v-230v | ||||
| *19 | 340945E | 28.60 | 34.61 | |
| VELD 110 VOLT | ||||
| *19 | 340945C | 26.84 | 32.48 | |
| Armature 230v | ||||
| *21 | 361037E | 34.79 | 42.09 | |
| ANKER 110 VOLT | ||||
| *21 | 361037C | 32.72 | 39.59 | |
| Housing Ass'y Includ.68,69 | ||||
| *59A | 370339 | 23.65 | 28.62 | |
| No information available, not orderable | ||||
| *69 | 500501Z | |||
| Switch | ||||
| *78 | 334474 | 10.05 | 12.16 | |
| Washer (a) | ||||
| *8 | 370272 | 2.25 | 2.72 | |
| No information available, not orderable | ||||
| *9 | 330888 | |||
| Liner | ||||
| 1 | 998887 | 9.30 | 11.25 | |
| BALL BEARING 6003VVCM (NYLON RETAINER) | ||||
| 2 | 327694 | 5.25 | 6.35 | |
| Ring | ||||
| 3 | 370591 | 1.04 | 1.26 | |
| Return Spring | ||||
| 4 | 370373 | 1.04 | 1.26 | |
| Lower Guard | ||||
| 5 | 370356 | 11.55 | 13.98 | |
| Bearing Cover | ||||
| 6 | 302435 | 1.35 | 1.63 | |
| Seal Lock Flat Hd. Screw M4x10 | ||||
| 7 | 990430 | 1.04 | 1.26 | |
| Washer (a) | ||||
| 8 | 370272 | 2.25 | 2.72 | |
| No information available, not orderable | ||||
| 9 | 330888 | |||
| Saw Cover | ||||
| 10 | 370354 | 10.95 | 13.25 | |
| Saw Cover | ||||
| 10A | 370354 | 10.95 | 13.25 | |
| Machine Screw (w/sp. Washer) M4x12 | ||||
| 11 | 951039 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 12 | 997247 | |||
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 13 | 935196 | 1.04 | 1.26 | |
| Lever | ||||
| 14 | 370542 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 15 | 935196 | 1.04 | 1.26 | |
| Washer (b) | ||||
| 16 | 370279 | 2.25 | 2.72 | |
| Hex. Socket Hd. Bolt M8x15.5 | ||||
| 17 | 324662 | 1.95 | 2.36 | |
| Brush Terminal | ||||
| 18 | 930703 | 2.40 | 2.90 | |
| Stator 220v-230v | ||||
| 19 | 340945E | 28.60 | 34.61 | |
| VELD 110 VOLT | ||||
| 19 | 340945C | 26.84 | 32.48 | |
| Fan Guide | ||||
| 20 | 370342 | 1.20 | 1.45 | |
| Armature 230v | ||||
| 21 | 361037E | 34.79 | 42.09 | |
| ANKER 110 VOLT | ||||
| 21 | 361037C | 32.72 | 39.59 | |
| Flow Guide (b) | ||||
| 22 | 370344 | 1.04 | 1.26 | |
| Flow Guide (a) | ||||
| 23 | 370343 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 24 | 370349 | 21.59 | 26.12 | |
| Roll Pin D6x40 (10 Pcs.) | ||||
| 25 | 949686 | 6.75 | 8.17 | |
| Cushion | ||||
| 26 | 961729 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 27 | 949794 | 1.65 | 2.00 | |
| Spindle And Gear Set | ||||
| 28 | 370371 | 11.55 | 13.98 | |
| Bearing Holder | ||||
| 29 | 370353 | 5.40 | 6.53 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 30 | 992013 | 1.05 | 1.27 | |
| Arm | ||||
| 31 | 370364 | 4.20 | 5.08 | |
| Riving Knife | ||||
| 32 | 370365 | 3.75 | 4.54 | |
| Hex. Socket Hd. Bolt M8 | ||||
| 33 | 370287 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 34 | 370663 | |||
| DIAGONAL BOLT M8 ASS'Y (OLD 370663) | ||||
| 34A | 378200 | 2.64 | 3.19 | |
| Lock Lever | ||||
| 35 | 370363 | 1.20 | 1.45 | |
| Spring (a) | ||||
| 36 | 330982 | 1.05 | 1.27 | |
| Ball Bearing 6001vv | ||||
| 37 | 6001VV | 6.60 | 7.99 | |
| Wing Bolt M6x15 | ||||
| 38 | 301806 | 1.05 | 1.27 | |
| Spring (old 996224) | ||||
| 39 | 947859 | 1.04 | 1.26 | |
| Wing Nut M8 | ||||
| 40 | 324658 | 3.00 | 3.63 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 41 | 949433 | 1.05 | 1.27 | |
| Machine Screw (w/sp. Washer) M4(black) | ||||
| 42 | 331003 | 1.95 | 2.36 | |
| Clamp | ||||
| 43 | 324659 | 1.95 | 2.36 | |
| Seal Lock Hex. Socket Set Screw M5x6 | ||||
| 44 | 319541 | 1.50 | 1.82 | |
| Plate | ||||
| 45 | 370368 | 2.70 | 3.27 | |
| Step Pin | ||||
| 46 | 370295 | 1.04 | 1.26 | |
| Knob | ||||
| 47 | 324660 | 4.35 | 5.26 | |
| O-RING (P-7) (OUD 676531) | ||||
| 48 | 889335 | 1.00 | 1.21 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 49 | 949433 | 1.05 | 1.27 | |
| Bolt (square) M8x30 | ||||
| 50 | 302457 | 1.04 | 1.26 | |
| Slotted Hd. Set Screw (seal Lock) M6x6 | ||||
| 51 | 302469 | 1.05 | 1.27 | |
| NYLOCK SET SCREW M6 NEW | ||||
| 51A | 379529 | 1.00 | 1.21 | |
| Sleeve (a) | ||||
| 52 | 370267 | 4.20 | 5.08 | |
| Seal Lock Hex. Socket Hd. Bolt M4x6 | ||||
| 53 | 370278 | 1.04 | 1.26 | |
| Sleeve (b) | ||||
| 54 | 370268 | 3.00 | 3.63 | |
| Base Ass'y Includ.62 | ||||
| 55 | 370359 | 18.01 | 21.80 | |
| Washer M6 (10 Pcs.) | ||||
| 56 | 949425 | 1.05 | 1.27 | |
| Wing Bolt M6x17 | ||||
| 57 | 302459 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 58 | 301653 | 1.04 | 1.26 | |
| Housing Ass'y Includ.68,69 | ||||
| 59 | 370339 | 23.65 | 28.62 | |
| Machine Screw (w/washers) M5x50 (black) | ||||
| 61 | 997841 | 1.05 | 1.27 | |
| Rivet D6x17 | ||||
| 62 | 308480 | 1.05 | 1.27 | |
| Hex Adjustment Screw M5x8 | ||||
| 63 | 938477 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 64 | 958900 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 65 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 66 | 945161 | 1.20 | 1.45 | |
| Cord Holder | ||||
| 67 | 370269 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 68 | 953327 | |||
| Cord (cord Armor D8.2) For Sin,mal | ||||
| 69 | 500440Z | 20.49 | 24.79 | |
| Rubber Bushing | ||||
| 70 | 331006 | 1.95 | 2.36 | |
| Bushing | ||||
| 71 | 322089 | 4.80 | 5.81 | |
| Ball Bearing 608vv | ||||
| 72 | 333945 | 1.80 | 2.18 | |
| Faston | ||||
| 73 | 331707 | 1.88 | 2.27 | |
| Cord Clip | ||||
| 74 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 75 | 984750 | |||
| Connector 50092 (10 Pcs.) | ||||
| 76 | 959141 | 3.75 | 4.54 | |
| RUBBER PEN | ||||
| 77 | 931701 | 1.05 | 1.27 | |
| Switch | ||||
| 78 | 334474 | 10.05 | 12.16 | |
| No information available, not orderable | ||||
| 79 | 370661 | |||
| Noise Suppressor | ||||
| 80 | 930039 | 1.95 | 2.36 | |
| Handle Cover | ||||
| 81 | 370341 | 9.15 | 11.07 | |
| Bevel Plate | ||||
| 82 | 370367 | 1.80 | 2.18 | |
| PLATE (C) | ||||
| 83 | 371213 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 84 | 935196 | 1.04 | 1.26 | |
| Guide (1) | ||||
| 501 | 370587 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 502 | 872422 | |||
| Lever (1) | ||||
| 503 | 370264 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 504 | 370664 | |||
| No information available, not orderable | ||||
| 505 | 337528 | |||
| No information available, not orderable | ||||
| 506 | 336472 | |||
| No information available, not orderable | ||||
| 507 | 336473 | |||
| No information available, not orderable | ||||
| 508 | 336474 | |||
| No information available, not orderable | ||||
| 509 | 370589 | |||
| Guide Rail | ||||
| 601 | 331762 | 14.65 | 17.73 | |
| Guide Rail Adapter Sui | ||||
| 602 | 330968 | 8.33 | 10.07 | |
| Guide Rail Plate Sui | ||||
| 603 | 330978 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 604 | 330979 | |||
| No information available, not orderable | ||||
| 605 | 330980 | |||
| Wing Bolt M6x12 | ||||
| 606 | 307947 | 1.35 | 1.63 | |
| Machine Screw M5x12 Black | ||||
| 607 | 331761 | 1.65 | 2.00 | |
