Here you will find all available parts and drawings of the 'Hikoki C7U2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

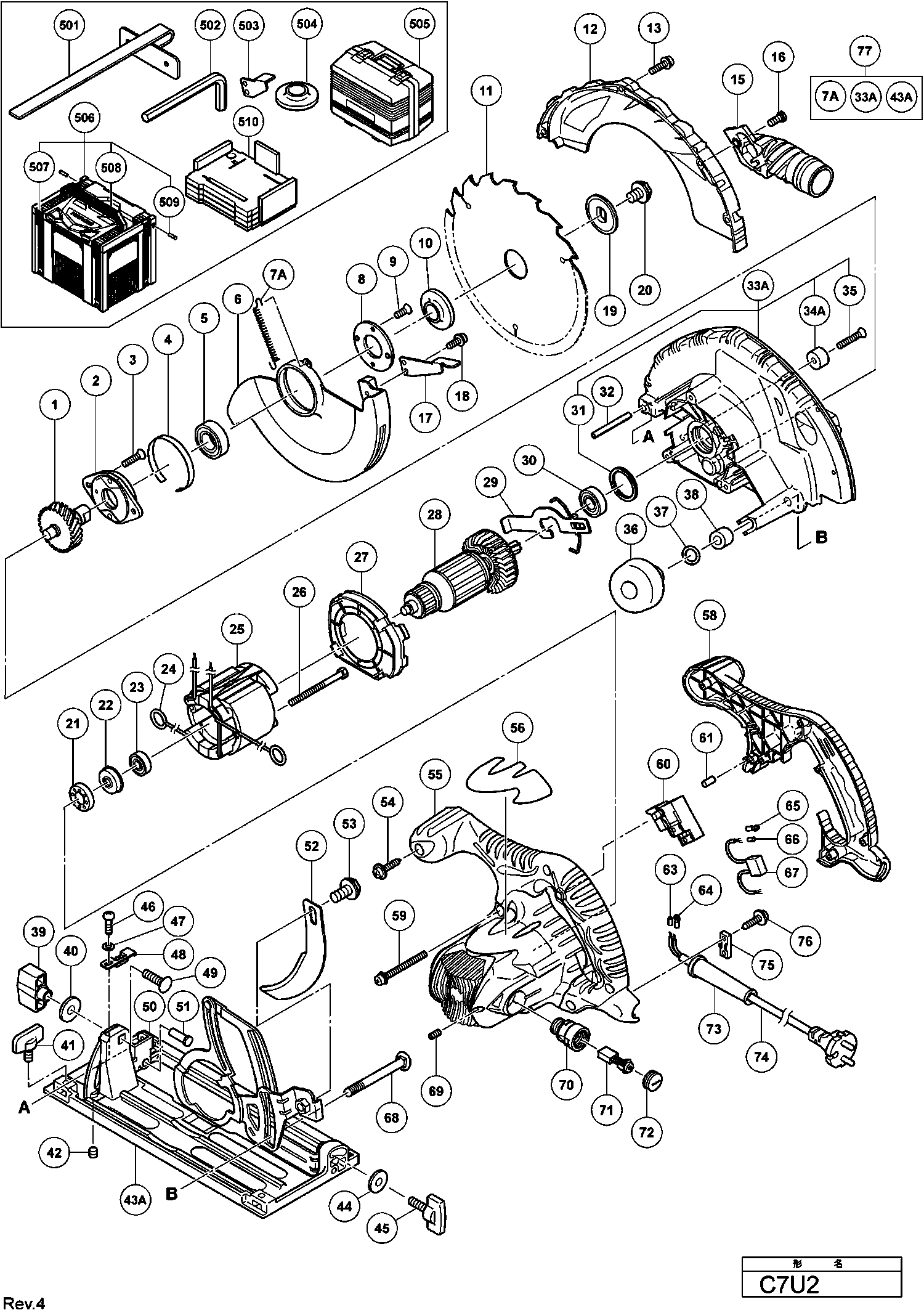

Technical drawing of model Hikoki C7U2
Spare parts list of model Hikoki C7U2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spindle And Gear Set | ||||
| 1 | 302988 | 14.44 | 17.47 | |
| Bearing Holder | ||||
| 2 | 302433 | 2.55 | 3.09 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 3 | 992013 | 1.05 | 1.27 | |
| Sleeve (OLD 961807Z) | ||||
| 4 | 961807 | 2.15 | 2.60 | |
| Ball Bearing 6003vvcmps2l | ||||
| 5 | 6003VV | 7.65 | 9.26 | |
| Safety Cover | ||||
| 6 | 324661 | 11.55 | 13.98 | |
| Return Spring Since 12.2013 | ||||
| 7A | 337101 | 1.04 | 1.26 | |
| Bearing Cover | ||||
| 8 | 302435 | 1.35 | 1.63 | |
| Seal Lock Flat Hd. Screw M4x10 | ||||
| 9 | 990430 | 1.04 | 1.26 | |
| Washer (a) | ||||
| 10 | 302476 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 11 | 324668 | |||
| PROTECTION COVER | ||||
| 12 | 324654 | 5.40 | 6.53 | |
| Machine Screw (w/washers) M4x14 (black) | ||||
| 13 | 305691 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 15 | 324669 | |||
| Special Bolt | ||||
| 16 | 324139 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 17 | 302464 | |||
| Lever | ||||
| 17A | 370542 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 18 | 304043 | 1.05 | 1.27 | |
| Washer (b) | ||||
| 19 | 302423 | 2.10 | 2.54 | |
| Hex. Socket Hd. Bolt M8x15.5 | ||||
| 20 | 324662 | 1.95 | 2.36 | |
| Rubber bushing | ||||
| 21 | 325060 | 1.05 | 1.27 | |
| Bushing | ||||
| 22 | 322089 | 4.80 | 5.81 | |
| Ball Bearing 608vvc2ps2l | ||||
| 23 | 608VVM | 5.70 | 6.90 | |
| Brush Terminal | ||||
| 24 | 930703 | 2.40 | 2.90 | |
| Stator Ass'y 230v Includ.24 | ||||
| 25 | 340640E | 28.05 | 33.94 | |
| VELD 110 VOLT | ||||
| 25 | 340640C | 26.18 | 31.68 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 26 | 953174 | 1.04 | 1.26 | |
| Fan Guide | ||||
| 27 | 324656 | 1.95 | 2.36 | |
| ARMATURE 230 VOLT | ||||
| 28 | 360727E | 49.23 | 59.56 | |
| ANKER 110 VOLT | ||||
| 28 | 360727C | 45.98 | 55.64 | |
| Lock Lever | ||||
| 29 | 324655 | 1.95 | 2.36 | |
| Ball Bearing 6001vv | ||||
| 30 | 6001VV | 6.60 | 7.99 | |
| Rubber ring (OLD 996252) | ||||
| 31 | 958130 | 1.65 | 2.00 | |
| Roll Pin D6x40 (10 Pcs.) | ||||
| 32 | 949686 | 6.75 | 8.17 | |
| Gear Cover Ass'y Includ.31,34a,35 Since 12.2013 | ||||
| 33A | 337095 | 23.51 | 28.45 | |
| Cushion Since 12.2013 | ||||
| 34A | 337097 | 1.20 | 1.45 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 35 | 949794 | 1.65 | 2.00 | |
| Knob | ||||
| 36 | 324660 | 4.35 | 5.26 | |
| O-RING (P-7) (OUD 676531) | ||||
| 37 | 889335 | 1.00 | 1.21 | |
| Socket | ||||
| 38 | 303801 | 3.60 | 4.36 | |
| Wing Nut M8 | ||||
| 39 | 324658 | 3.00 | 3.63 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 40 | 949433 | 1.05 | 1.27 | |
| Wing Bolt M6x15 | ||||
| 41 | 301806 | 1.05 | 1.27 | |
| Slotted Hd. Set Screw (seal Lock) M6x6 | ||||
| 42 | 302469 | 1.05 | 1.27 | |
| Base Ass'y Includ.39,40,44-51 Since 12.2013 | ||||
| 43A | 337098 | 45.10 | 54.57 | |
| Washer M6 (10 Pcs.) | ||||
| 44 | 949425 | 1.05 | 1.27 | |
| Wing Bolt M6x17 | ||||
| 45 | 302459 | 1.05 | 1.27 | |
| Machine Screw M4x6 (10 Pcs.) | ||||
| 46 | 949214 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 47 | 949453 | 1.05 | 1.27 | |
| Clamp | ||||
| 48 | 324659 | 1.95 | 2.36 | |
| Bolt (square) M8x30 | ||||
| 49 | 302457 | 1.04 | 1.26 | |
| Bevel Plate | ||||
| 50 | 308479 | 3.00 | 3.63 | |
| Rivet D6x17 | ||||
| 51 | 308480 | 1.05 | 1.27 | |
| Riving knife CS 50 EBG | ||||
| 52 | 324663 | 5.40 | 6.53 | |
| Hex. Socket Hd. Bolt M8x10 | ||||
| 53 | 324664 | 1.95 | 2.36 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 54 | 301653 | 1.04 | 1.26 | |
| Housing | ||||
| 55 | 324665 | 21.04 | 25.46 | |
| Handle Cover | ||||
| 58 | 324667 | 5.10 | 6.17 | |
| Machine Screw (w/washers) M5x45 (black) | ||||
| 59 | 302434 | 1.04 | 1.26 | |
| Switch | ||||
| 60 | 302470 | 10.95 | 13.25 | |
| RUBBER PIN (OLD 976441) | ||||
| 61 | 946362 | 1.05 | 1.27 | |
| Threaded cable sleeve | ||||
| 63 | 981373 | 1.05 | 1.27 | |
| connecting terminal | ||||
| 64 | 980063 | 1.04 | 1.26 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 65 | 930804 | 3.00 | 3.63 | |
| Threaded cable sleeve | ||||
| 66 | 981373 | 1.05 | 1.27 | |
| Noise Suppressor | ||||
| 67 | 930039 | 1.95 | 2.36 | |
| Diagonal Bolt M8x105 | ||||
| 68 | 316444 | 3.90 | 4.72 | |
| Hex Adjustment Screw M5x8 | ||||
| 69 | 938477 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 70 | 958900 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 71 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 72 | 945161 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 73 | 953327 | |||
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 74 | 500461Z | 17.88 | 21.63 | |
| Cord Clip | ||||
| 75 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 76 | 984750 | |||
| Gear Cover Set Includ.7a,33a,43a Till 11.2013 | ||||
| 77 | 337103 | 69.99 | 84.68 | |
| No information available, not orderable | ||||
| 501 | 302756 | |||
| No information available, not orderable | ||||
| 502 | 872422 | |||
| Knob | ||||
| 503 | 303338 | 2.40 | 2.90 | |
| Ring | ||||
| 504 | 302443 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 505 | 325318 | |||
| No information available, not orderable | ||||
| 506 | 337528 | |||
| No information available, not orderable | ||||
| 507 | 336472 | |||
| No information available, not orderable | ||||
| 508 | 336473 | |||
| No information available, not orderable | ||||
| 509 | 336474 | |||
| No information available, not orderable | ||||
| 510 | 337659 | |||
| No information available, not orderable | ||||
| 601 | 317848 | |||
| No information available, not orderable | ||||
| 602 | 317849 | |||
| Bar | ||||
| 603 | 317850 | 2.25 | 2.72 | |
| Bar | ||||
| 604 | 317851 | 2.25 | 2.72 | |
| Wing Bolt M6x15 | ||||
| 605 | 301806 | 1.05 | 1.27 | |
| Machine Screw M5x12 (10 Pcs.) | ||||
| 606 | 949237 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 607 | 949454 | 1.04 | 1.26 | |
