Here you will find all available parts and drawings of the 'Hikoki C7SS'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

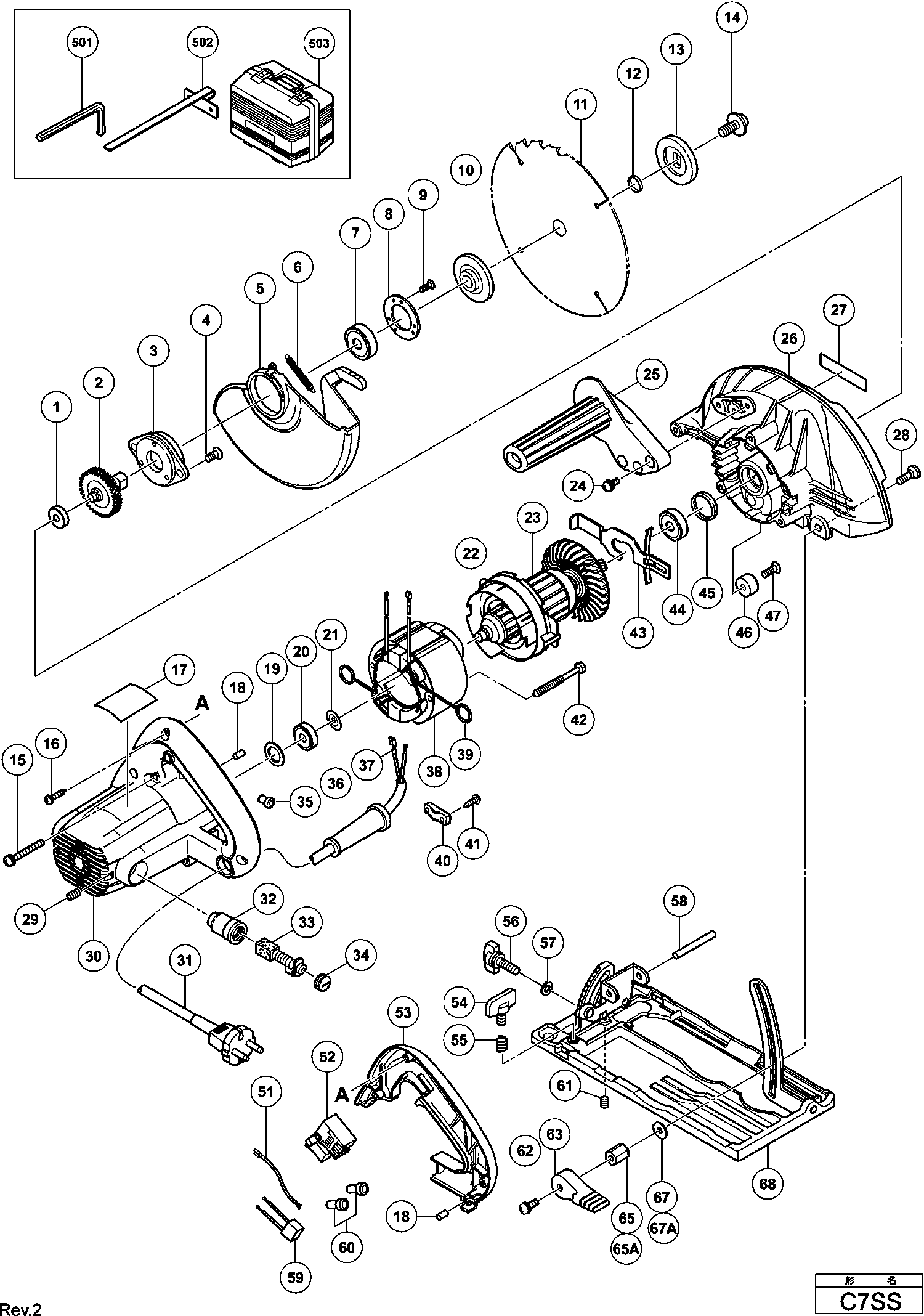

Technical drawing of model Hikoki C7SS
Spare parts list of model Hikoki C7SS
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Washer (a1) For Chi,pan,mex | ||||
| *10 | 317466 | 9.00 | 10.89 | |
| Washer (a) | ||||
| *10 | 322099 | 7.35 | 8.89 | |
| Washer (a) | ||||
| *10 | 323928 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| *11 | 331659 | |||
| No information available, not orderable | ||||
| *11A | 372881 | |||
| Clamping Flange | ||||
| *13 | 324563 | 4.20 | 5.08 | |
| Armature 230v | ||||
| *23 | 360883E | 53.63 | 64.89 | |
| No information available, not orderable | ||||
| *24 | 887021 | |||
| Side Handle | ||||
| *25 | 330973 | 4.20 | 5.08 | |
| AS EN TANDWIELSET (OUD 322088) | ||||
| *2A | 373459 | 5.82 | 7.04 | |
| Cord (cord Armor D8.8) For Mex | ||||
| *31 | 500240Z | 13.18 | 15.94 | |
| Cord (cord Armor D8.8) For Pan | ||||
| *31 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| *31 | 500247Z | 6.18 | 7.48 | |
| Cord Armor D10.1 | ||||
| *36 | 938051 | 1.04 | 1.26 | |
| Stator 230v | ||||
| *38 | 340614E | 24.75 | 29.95 | |
| No longer available, no replacement | ||||
| *51 | 331269 | |||
| Switch | ||||
| *52 | 331259 | 20.35 | 24.62 | |
| Wing Bolt (a) M6x15 | ||||
| *56 | 308364 | 1.05 | 1.27 | |
| WING SCREW (A) | ||||
| *56 | 307937 | 1.05 | 1.27 | |
| Noise Suppressor | ||||
| *59 | 930039 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| *61A | 381655 | |||
| Base | ||||
| *68 | 331270 | 32.31 | 39.10 | |
| Metal | ||||
| 1 | 963803 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 2 | 331705 | |||
| Bearing Holder | ||||
| 3 | 308361 | 3.30 | 3.99 | |
| SEAL LOCK HD SCREW M5X12 | ||||
| 4 | 305568 | 1.05 | 1.27 | |
| Lower Guard (since 04.2007 For Aus,nzl) | ||||
| 5 | 331273 | 10.05 | 12.16 | |
| Return Spring | ||||
| 6 | 331268 | 1.05 | 1.27 | |
| Ball Bearing 6002vvcmps2l | ||||
| 7 | 6002VV | 7.35 | 8.89 | |
| Bearing Cover | ||||
| 8 | 308362 | 2.40 | 2.90 | |
| Seal Lock Flat Hd. Screw M3x12 | ||||
| 9 | 308773 | 1.05 | 1.27 | |
| Washer (a1) For Chi,pan,mex | ||||
| 10 | 317466 | 9.00 | 10.89 | |
| Washer (a) | ||||
| 10 | 323928 | 3.15 | 3.81 | |
| WASHER (A) | ||||
| 10A | 373052 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 11 | 334709 | |||
| No information available, not orderable | ||||
| 11A | 372881 | |||
| Ring D15.9/i.d14.5 For Chi,pan,mex | ||||
| 12 | 990100 | 1.65 | 2.00 | |
| Clamping Flange | ||||
| 13 | 324563 | 4.20 | 5.08 | |
| WASHER (B) (OLD 323924) | ||||
| 13A | 375604 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt (w/washer) M7x17.5 | ||||
| 14 | 325541 | 3.75 | 4.54 | |
| Machine Screw (w/washers) M5x45 (black) | ||||
| 15 | 302434 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 16 | 328643 | 1.05 | 1.27 | |
| RUBBER PEN | ||||
| 18 | 931701 | 1.05 | 1.27 | |
| Thrust Washer | ||||
| 19 | 331264 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 20 | 608VVM | 5.70 | 6.90 | |
| Washer (a) | ||||
| 21 | 982631 | 1.04 | 1.26 | |
| Fan Guide | ||||
| 22 | 322002 | 1.35 | 1.63 | |
| Armature 230v | ||||
| 23 | 360883E | 53.63 | 64.89 | |
| No information available, not orderable | ||||
| 24 | 887021 | |||
| Side Handle | ||||
| 25 | 330973 | 4.20 | 5.08 | |
| Inner Cover | ||||
| 26 | 331272 | 26.60 | 32.19 | |
| Nut | ||||
| 28 | 942808 | 1.05 | 1.27 | |
| Hex Adjustment Screw M5x8 | ||||
| 29 | 938477 | 1.05 | 1.27 | |
| Housing | ||||
| 30 | 331260 | 14.30 | 17.30 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 31 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 31 | 500240Z | 13.18 | 15.94 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 31 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 31 | 500247Z | 6.18 | 7.48 | |
| Brush Holder (2) | ||||
| 32 | 957051 | 5.25 | 6.35 | |
| Carbon Brush (1 Pair) | ||||
| 33 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 34 | 935829 | 1.05 | 1.27 | |
| Connector 50091 (10 Pcs.) | ||||
| 35 | 959140 | 3.30 | 3.99 | |
| Cord Armor D10.1 | ||||
| 36 | 938051 | 1.04 | 1.26 | |
| Faston | ||||
| 37 | 331707 | 1.88 | 2.27 | |
| Stator 230v | ||||
| 38 | 340614E | 24.75 | 29.95 | |
| Brush Terminal | ||||
| 39 | 930703 | 2.40 | 2.90 | |
| Cord Clip | ||||
| 40 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 41 | 984750 | |||
| Hex. Hd. Tapping Screw D5x55 | ||||
| 42 | 953174 | 1.04 | 1.26 | |
| Lock Lever | ||||
| 43 | 307918 | 5.25 | 6.35 | |
| Ball Bearing 6000vvcmps2l | ||||
| 44 | 6000VV | 6.15 | 7.44 | |
| Rubber Ring | ||||
| 45 | 318647 | 1.65 | 2.00 | |
| Cushion | ||||
| 46 | 961729 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 47 | 949794 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 51 | 331269 | |||
| Switch | ||||
| 52 | 331259 | 20.35 | 24.62 | |
| Handle Cover | ||||
| 53 | 331261 | 4.20 | 5.08 | |
| Wing Bolt M6x18 | ||||
| 54 | 307898 | 1.65 | 2.00 | |
| Spring | ||||
| 55 | 941056 | 1.05 | 1.27 | |
| WING SCREW (A) | ||||
| 56 | 307937 | 1.05 | 1.27 | |
| Wing Bolt (a) M6x15 | ||||
| 56 | 308364 | 1.05 | 1.27 | |
| Super Lock Washer M6 Single-phase | ||||
| 57 | 948167 | 1.04 | 1.26 | |
| Roll Pin D6x50 (10 Pcs.) | ||||
| 58 | 949750 | 7.35 | 8.89 | |
| Noise Suppressor | ||||
| 59 | 930039 | 1.95 | 2.36 | |
| Connector 50092 (10 Pcs.) | ||||
| 60 | 959141 | 3.75 | 4.54 | |
| Slotted Hd. Set Screw (seal Lock) M6x8 | ||||
| 61 | 308109 | 1.04 | 1.26 | |
| Seal Lock Screw (w/sp. Washers) M6x14 | ||||
| 62 | 322260 | 1.50 | 1.82 | |
| Lever (a) | ||||
| 63 | 323923 | 1.05 | 1.27 | |
| Lock Nut | ||||
| 65 | 328048 | 1.05 | 1.27 | |
| Lock Nut | ||||
| 65A | 331267 | 2.10 | 2.54 | |
| Washer (c) Till 10.2009 | ||||
| 67 | 329933 | 1.88 | 2.27 | |
| Washer | ||||
| 67A | 320975 | 1.05 | 1.27 | |
| Base | ||||
| 68 | 331270 | 32.31 | 39.10 | |
| No information available, not orderable | ||||
| 501 | 944459 | |||
| No information available, not orderable | ||||
| 502 | 302756 | |||
| No information available, not orderable | ||||
| 503 | 331671 | |||
| No information available, not orderable | ||||
| 601 | 302981 | |||
| Washer (a) | ||||
| 602 | 322099 | 7.35 | 8.89 | |
