Here you will find all available parts and drawings of the 'Hikoki C7SF'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

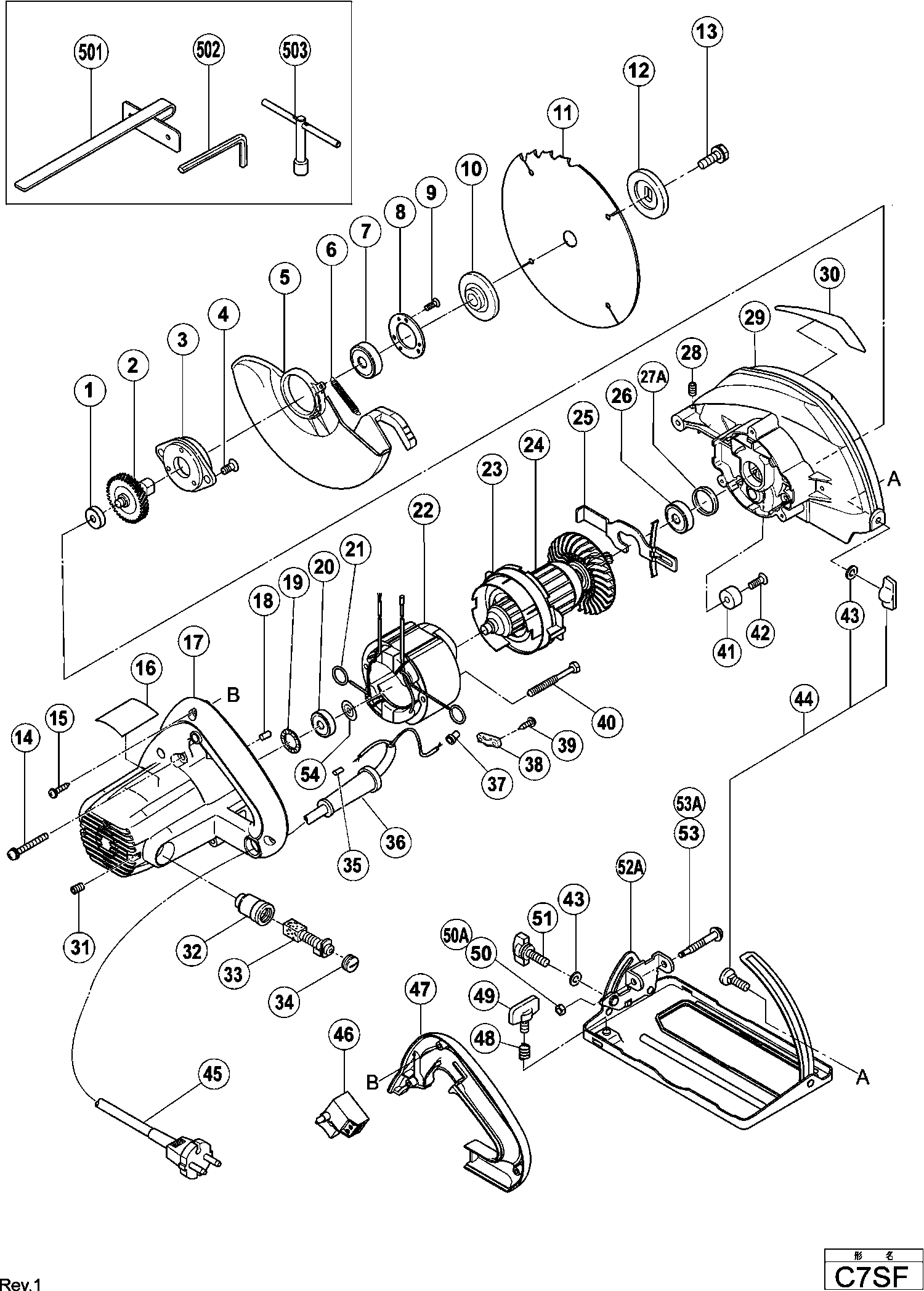

Technical drawing of model Hikoki C7SF
Spare parts list of model Hikoki C7SF
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Metal | ||||
| 1 | 963803 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 2 | 322088 | |||
| Bearing Holder | ||||
| 3 | 308361 | 3.30 | 3.99 | |
| SEAL LOCK HD SCREW M5X12 | ||||
| 4 | 305568 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 5 | 322507 | |||
| Return Spring | ||||
| 6 | 317203 | 3.30 | 3.99 | |
| Ball Bearing 6002vvcmps2l | ||||
| 7 | 6002VV | 7.35 | 8.89 | |
| Bearing Cover | ||||
| 8 | 308362 | 2.40 | 2.90 | |
| Seal Lock Flat Hd. Screw M3x12 | ||||
| 9 | 308773 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 10 | 322099 | 7.35 | 8.89 | |
| No information available, not orderable | ||||
| 12 | 322100 | |||
| Bolt (w/washer) M7x17.5 | ||||
| 13 | 957749 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M5x45 (black) | ||||
| 14 | 302434 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 15 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 17 | 322504 | |||
| RUBBER PEN | ||||
| 18 | 931701 | 1.05 | 1.27 | |
| WASHER THRUST | ||||
| 19 | 316394 | 3.30 | 3.99 | |
| Ball Bearing 608vvc2ps2l | ||||
| 20 | 608VVM | 5.70 | 6.90 | |
| Brush Terminal | ||||
| 21 | 930703 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 22 | 340571F | |||
| Fan Guide | ||||
| 23 | 322002 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 24 | 360694F | |||
| Lock Lever | ||||
| 25 | 307918 | 5.25 | 6.35 | |
| Ball Bearing 6000vvcmps2l | ||||
| 26 | 6000VV | 6.15 | 7.44 | |
| Rubber Ring | ||||
| 27A | 318647 | 1.65 | 2.00 | |
| Hex. Socket Set Screw M5x6 Till 2.1986 | ||||
| 28 | 962782 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 29 | 322015 | |||
| Hex Adjustment Screw M5x8 | ||||
| 31 | 938477 | 1.05 | 1.27 | |
| Brush Holder (2) | ||||
| 32 | 957051 | 5.25 | 6.35 | |
| Carbon Brush (1 Pair) | ||||
| 33 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 34 | 935829 | 1.05 | 1.27 | |
| Threaded cable sleeve | ||||
| 35 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 36 | 953327 | |||
| Connector 50091 (10 Pcs.) | ||||
| 37 | 959140 | 3.30 | 3.99 | |
| Cord Clip | ||||
| 38 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 39 | 984750 | |||
| Hex. Hd. Tapping Screw D5x55 | ||||
| 40 | 953174 | 1.04 | 1.26 | |
| Cushion | ||||
| 41 | 961729 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 42 | 949794 | 1.65 | 2.00 | |
| Super Lock Washer M6 Single-phase | ||||
| 43 | 948167 | 1.04 | 1.26 | |
| Bolt Ass'y (square) M6x22 Includ.89 | ||||
| 44 | 314620 | 6.45 | 7.80 | |
| No longer available, no replacement | ||||
| 45 | 500423Z | |||
| No information available, not orderable | ||||
| 46 | 322578 | |||
| No information available, not orderable | ||||
| 47 | 322505 | |||
| Spring | ||||
| 48 | 941056 | 1.05 | 1.27 | |
| Wing Bolt M6x18 | ||||
| 49 | 307898 | 1.65 | 2.00 | |
| Lock Sleeve | ||||
| 50 | 315253 | 7.35 | 8.89 | |
| U-nut M5 | ||||
| 50A | 308387 | 1.05 | 1.27 | |
| Wing Bolt (a) M6x15 | ||||
| 51 | 308364 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 52A | 330844 | |||
| Adjusting Screw (a) (till 09.2008) | ||||
| 53 | 315183 | 4.80 | 5.81 | |
| Adjusting Screw (a) | ||||
| 53A | 322096 | 1.95 | 2.36 | |
| Washer (a) | ||||
| 54 | 982631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 302756 | |||
| No information available, not orderable | ||||
| 502 | 990666 | |||
| No information available, not orderable | ||||
| 503 | 940543 | |||
| HANGER | ||||
| 601 | 954619 | 3.30 | 3.99 | |
