Here you will find all available parts and drawings of the 'Hikoki C7SE'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

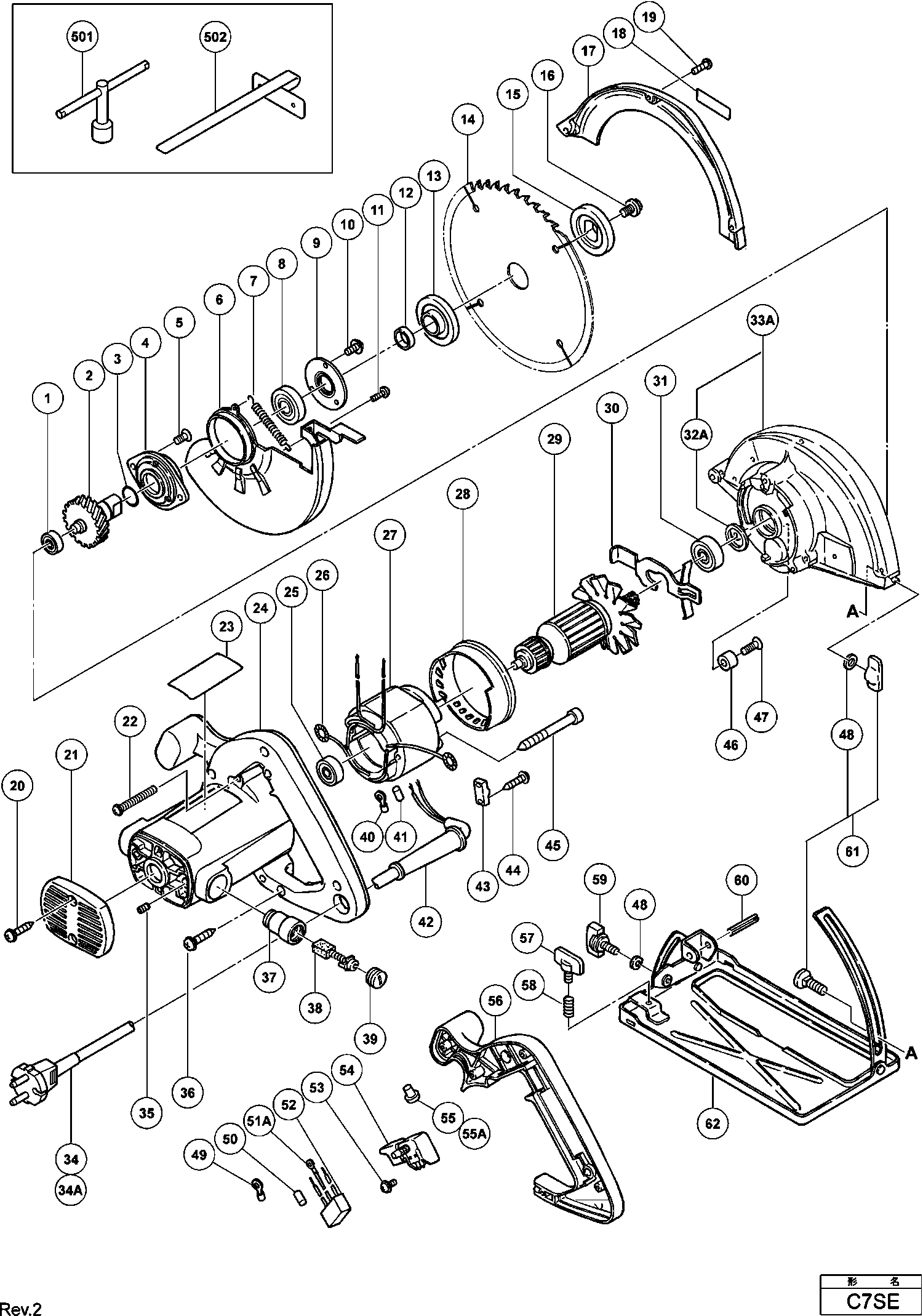

Technical drawing of model Hikoki C7SE
Spare parts list of model Hikoki C7SE
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Ball Bearing 626vvc2ps2l | ||||
| 1 | 626VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 2 | 317925 | |||
| O-ring (p-16) | ||||
| 3 | 873095 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 4 | 940867 | |||
| No information available, not orderable | ||||
| 5 | 990299 | |||
| No information available, not orderable | ||||
| 6 | 317923 | |||
| Return Spring | ||||
| 7 | 957062 | 1.04 | 1.26 | |
| Ball Bearing 6202vvcmps2l | ||||
| 8 | 6202VV | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| 9 | 940868 | |||
| Machine Screw (w/sp. Washer) M4x10 | ||||
| 10 | 307635 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x8 Except For Double | ||||
| 11 | 986723 | 1.05 | 1.27 | |
| Spacer bushing | ||||
| 12 | 961366 | 1.04 | 1.26 | |
| Ring | ||||
| 13 | 993598 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 14 | 317929 | |||
| Washer | ||||
| 15 | 957064 | 4.50 | 5.44 | |
| Bolt (w/washer) M7x17.5 | ||||
| 16 | 957749 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 17 | 317926 | |||
| Machine Screw M4x16 (10 Pcs.) | ||||
| 19 | 949219 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 20 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 21 | 961732 | |||
| Machine Screw (w/washers) M5x45 (black) | ||||
| 22 | 302434 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 24 | 317936 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 25 | 608VVM | 5.70 | 6.90 | |
| Brush Terminal | ||||
| 26 | 930703 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 27 | 340448H | |||
| No information available, not orderable | ||||
| 28 | 987940 | |||
| No information available, not orderable | ||||
| 29 | 360501F | |||
| No information available, not orderable | ||||
| 30 | 987981 | |||
| Ball Bearing 6001vv | ||||
| 31 | 6001VV | 6.60 | 7.99 | |
| Rubber ring (OLD 996252) | ||||
| 32A | 958130 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 33A | 317924 | |||
| No longer available, no replacement | ||||
| 34 | 500435Z | |||
| Hex Adjustment Screw M5x8 | ||||
| 35 | 938477 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 36 | 307028 | 1.05 | 1.27 | |
| Brush Holder (2) | ||||
| 37 | 957051 | 5.25 | 6.35 | |
| Carbon Brush (1 Pair) | ||||
| 38 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 39 | 935829 | 1.05 | 1.27 | |
| connecting terminal | ||||
| 40 | 980063 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 41 | 981373 | 1.05 | 1.27 | |
| Cord Armor D8.8 | ||||
| 42 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 42 | 938051 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 43 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 44 | 984750 | |||
| Hex. Hd. Tapping Screw D5x60 | ||||
| 45 | 961501 | 1.04 | 1.26 | |
| Cushion | ||||
| 46 | 961729 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 47 | 949794 | 1.65 | 2.00 | |
| Super Lock Washer M6 Single-phase | ||||
| 48 | 948167 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 49 | 980063 | 1.04 | 1.26 | |
| Terminal | ||||
| 49 | 311741 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 50 | 981373 | 1.05 | 1.27 | |
| Terminal For Noise Suppressor | ||||
| 51A | 938108 | 1.20 | 1.45 | |
| Noise Suppressor | ||||
| 52 | 994273 | 4.29 | 5.19 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 53 | 305499 | 1.05 | 1.27 | |
| Switch | ||||
| 54 | 957747 | 14.03 | 16.97 | |
| Switch | ||||
| 54 | 963756Z | 13.20 | 15.97 | |
| Switch | ||||
| 54 | 302470 | 10.95 | 13.25 | |
| Connector 50091 (10 Pcs.) | ||||
| 55 | 959140 | 3.30 | 3.99 | |
| Connector 50092 (10 Pcs.) | ||||
| 55A | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 56 | 302320 | |||
| Wing Bolt M6x15 | ||||
| 57 | 301806 | 1.05 | 1.27 | |
| Spring (old 996224) | ||||
| 58 | 947859 | 1.04 | 1.26 | |
| Wing Bolt M6x17 | ||||
| 59 | 302459 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 60 | 949515 | |||
| Bolt Ass'y (square) M6x22 Includ.89 | ||||
| 61 | 314620 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 62 | 317927 | |||
| No information available, not orderable | ||||
| 501 | 940543 | |||
| No information available, not orderable | ||||
| 502 | 316106 | |||
| No information available, not orderable | ||||
| 601 | 940878 | |||
| No information available, not orderable | ||||
| 602 | 879099 | |||
| No information available, not orderable | ||||
| 603 | 879101 | |||
| No information available, not orderable | ||||
| 604 | 879100 | |||
| No information available, not orderable | ||||
| 605 | 879102 | |||
| No information available, not orderable | ||||
| 606 | 939156 | |||
| No information available, not orderable | ||||
| 607 | 961734 | |||
| No information available, not orderable | ||||
| 608 | 323717 | |||
