Here you will find all available parts and drawings of the 'Hikoki C7SC'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

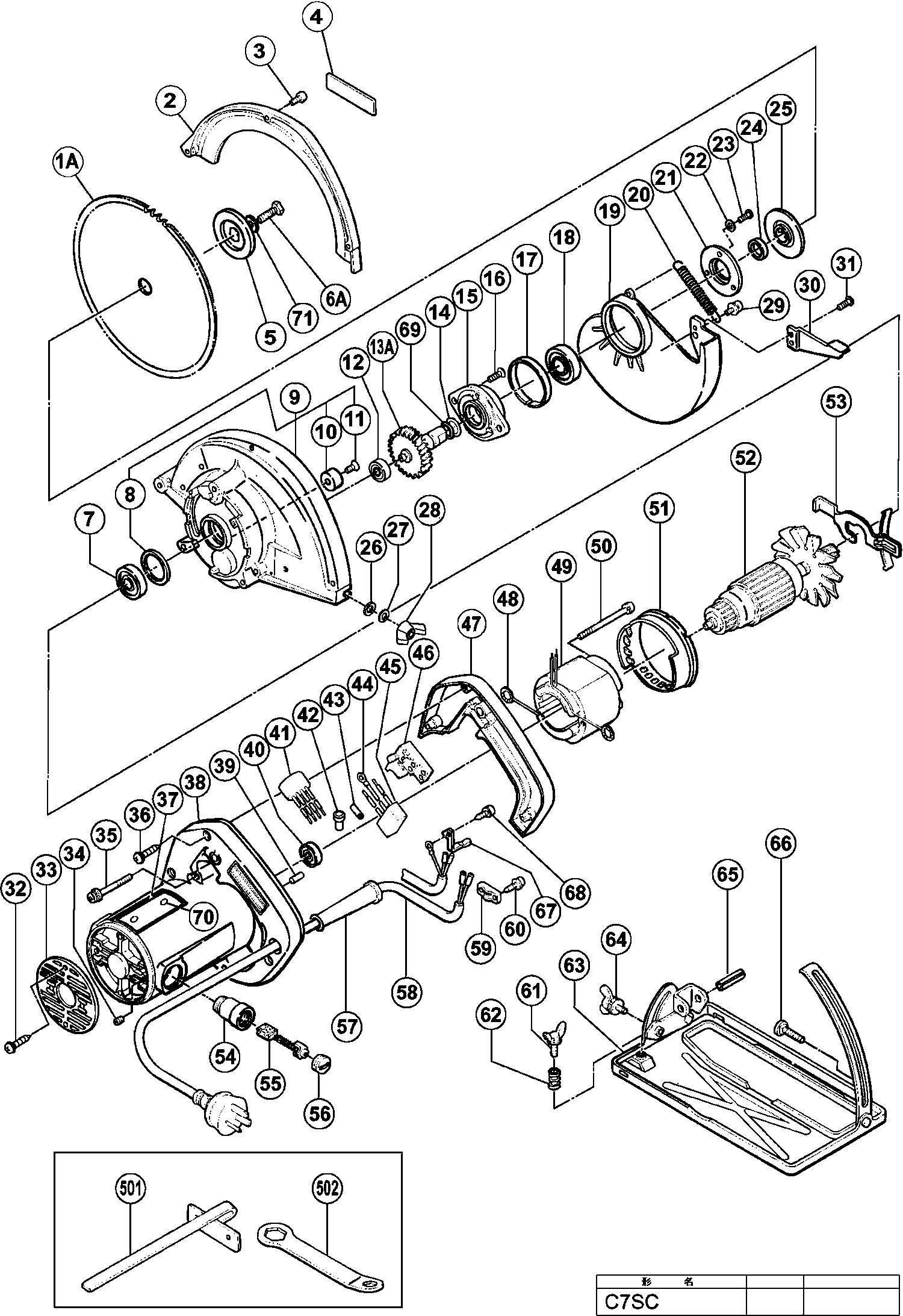

Technical drawing of model Hikoki C7SC
Spare parts list of model Hikoki C7SC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 302411 | |||
| No information available, not orderable | ||||
| 1A | 879139 | |||
| No information available, not orderable | ||||
| 2 | 990095 | |||
| Machine Screw M4x16 (10 Pcs.) | ||||
| 3 | 949219 | 1.20 | 1.45 | |
| Washer | ||||
| 5 | 957064 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 6A | 311196 | |||
| Ball Bearing 6001vv | ||||
| 7 | 6001VV | 6.60 | 7.99 | |
| Rubber ring (OLD 996252) | ||||
| 8 | 958130 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 9 | 306913 | |||
| Cushion | ||||
| 10 | 961729 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 11 | 949794 | 1.65 | 2.00 | |
| Bronze Bush (new 626vvm) | ||||
| 12 | 954612 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 13A | 311198 | |||
| O-ring (p-16) | ||||
| 14 | 873095 | 1.04 | 1.26 | |
| LAGERHOUDER | ||||
| 15 | 940867 | 6.90 | 8.35 | |
| No information available, not orderable | ||||
| 16 | 990299 | |||
| Sleeve (OLD 961807Z) | ||||
| 17 | 961807 | 2.15 | 2.60 | |
| Ball Bearing 6202vvcmps2l | ||||
| 18 | 6202VV | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| 19 | 990097 | |||
| Return Spring | ||||
| 20 | 957062 | 1.04 | 1.26 | |
| LAGERKAP | ||||
| 21 | 940868 | 1.08 | 1.31 | |
| Spring Washer M4 (10 pieces) | ||||
| 22 | 949453 | 1.05 | 1.27 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 23 | 949216 | 1.05 | 1.27 | |
| Spacer bushing | ||||
| 24 | 961366 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 25 | 990099 | |||
| Washer M6 (10 Pcs.) | ||||
| 26 | 949425 | 1.05 | 1.27 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 27 | 949455 | 1.05 | 1.27 | |
| Wing Nut M6 (10 Pcs.) | ||||
| 28 | 949313 | 4.65 | 5.63 | |
| Machine Screw (w/washers) M4x8 Except For Double | ||||
| 29 | 986723 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 30 | 990098 | |||
| Machine Screw M4x8 (10 Pcs.) | ||||
| 31 | 949215 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 32 | 930446 | |||
| No information available, not orderable | ||||
| 33 | 990093 | |||
| Hex. Socket Set Screw M5x6 Till 2.1986 | ||||
| 34 | 962782 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M5x45 (black) | ||||
| 35 | 302434 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 36 | 956636 | |||
| No information available, not orderable | ||||
| 38 | 954580H | |||
| RUBBER PEN | ||||
| 39 | 931701 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 40 | 608VVM | 5.70 | 6.90 | |
| SMOORSPOEL | ||||
| 41 | 980685 | 11.66 | 14.11 | |
| Connector 50091 (10 Pcs.) | ||||
| 42 | 959140 | 3.30 | 3.99 | |
| Threaded cable sleeve | ||||
| 43 | 981373 | 1.05 | 1.27 | |
| Terminal For Noise Suppressor | ||||
| 44 | 938108 | 1.20 | 1.45 | |
| Noise Suppressor | ||||
| 45 | 994273 | 4.29 | 5.19 | |
| Switch | ||||
| 46 | 957747 | 14.03 | 16.97 | |
| No information available, not orderable | ||||
| 47 | 954585H | |||
| Brush Terminal | ||||
| 48 | 930703 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 49 | 990106K | |||
| No information available, not orderable | ||||
| 50 | 943430 | |||
| No information available, not orderable | ||||
| 51 | 987940 | |||
| No information available, not orderable | ||||
| 52 | 990112U | |||
| SCHAKELBLOKKERING | ||||
| 53 | 987981 | 3.48 | 4.21 | |
| Brush Holder (2) | ||||
| 54 | 957051 | 5.25 | 6.35 | |
| Carbon Brush (1 Pair) | ||||
| 55 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 56 | 935829 | 1.05 | 1.27 | |
| Cord Armor D10.1 | ||||
| 57 | 938051 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 58 | 500447Z | 6.60 | 7.99 | |
| Cord Clip | ||||
| 59 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 60 | 984750 | |||
| Wing Bolt M6x15 | ||||
| 61 | 941055 | 1.04 | 1.26 | |
| Spring | ||||
| 62 | 941056 | 1.05 | 1.27 | |
| Base Ass'y Includ.46-48,60,61,64a,65 | ||||
| 63 | 957060 | 19.66 | 23.79 | |
| VLEUGELMOER M6X15 MET RINGEN | ||||
| 64 | 990316 | 1.00 | 1.21 | |
| ROL PIN D6X30 (10 STUKS) | ||||
| 65 | 949515 | 3.48 | 4.21 | |
| BOUT | ||||
| 66 | 957073 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 67 | 990103 | |||
| No information available, not orderable | ||||
| 68 | 990104 | |||
| Ring D15.9/i.d14.5 For Chi,pan,mex | ||||
| 69 | 990100 | 1.65 | 2.00 | |
| NAGEL D2.5X3.2 (10 STKS.) | ||||
| 70 | 949509 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 71 | 311197 | |||
| GELEIDER | ||||
| 501 | 984964 | 3.96 | 4.79 | |
| No information available, not orderable | ||||
| 502 | 961524 | |||
| No information available, not orderable | ||||
| 601 | 990092 | |||
| No information available, not orderable | ||||
| 602 | 957071 | |||
| Spring Washer M10 (10 Pcs.) | ||||
| 603 | 949458 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 604 | 998888 | |||
| Spring Washer M5 (10 pieces) | ||||
| 605 | 949454 | 1.04 | 1.26 | |
| Machine Screw M5x12 (10 Pcs.) | ||||
| 606 | 949237 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 607 | 981828 | |||
| No information available, not orderable | ||||
| 608 | 990091 | |||
| Wing Bolt M6x15 | ||||
| 609 | 941055 | 1.04 | 1.26 | |
| Spring | ||||
| 610 | 941056 | 1.05 | 1.27 | |
