Here you will find all available parts and drawings of the 'Hikoki C7BUR'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

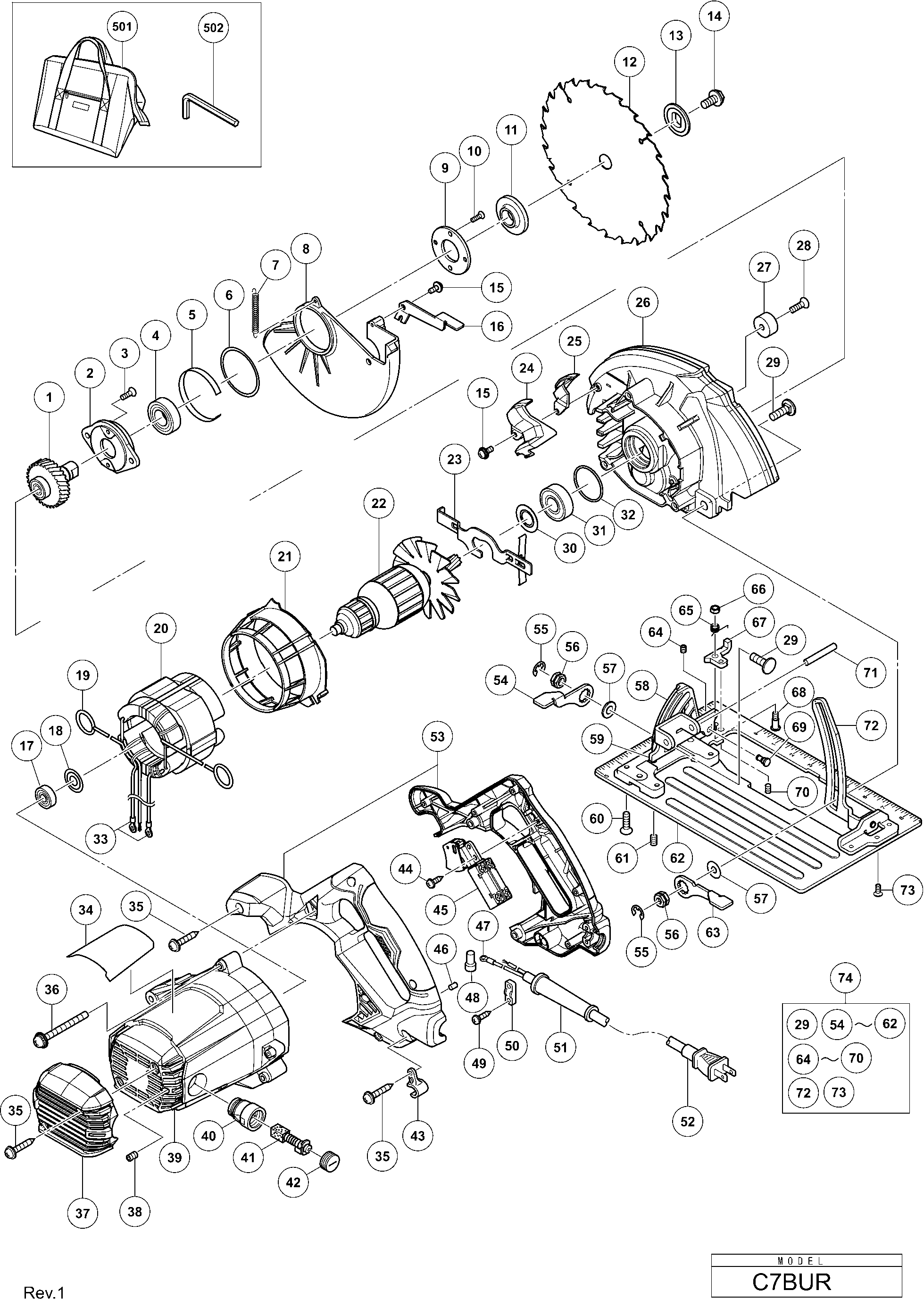

Technical drawing of model Hikoki C7BUR
Spare parts list of model Hikoki C7BUR
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *501 | 371108M | |||
| Axle + Gear Set | ||||
| 1 | 372782 | 8.85 | 10.71 | |
| Bearing Holder | ||||
| 2 | 372765 | 2.70 | 3.27 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 3 | 992013 | 1.05 | 1.27 | |
| Ball Bearing 6003vvcmps2l | ||||
| 4 | 6003VV | 7.65 | 9.26 | |
| BUSH | ||||
| 5 | 373811 | 1.80 | 2.18 | |
| Ring | ||||
| 6 | 370591 | 1.04 | 1.26 | |
| Return Spring | ||||
| 7 | 373026 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 8 | 372758 | |||
| Lower Guard | ||||
| 8A | 373812 | 13.75 | 16.64 | |
| Bearing Cover | ||||
| 9 | 302435 | 1.35 | 1.63 | |
| Seal Lock Flat Hd. Screw M4x10 | ||||
| 10 | 990430 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 11 | 372780 | |||
| Clamping Flange | ||||
| 13 | 324598 | 3.15 | 3.81 | |
| Hex. Socket Hd. Bolt M8x15.5 | ||||
| 14 | 324662 | 1.95 | 2.36 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 15 | 935196 | 1.04 | 1.26 | |
| Lever | ||||
| 16 | 328045 | 1.20 | 1.45 | |
| Ball Bearing 6000vvcmps2l | ||||
| 17 | 6000VV | 6.15 | 7.44 | |
| Ring | ||||
| 18 | 302428 | 1.04 | 1.26 | |
| Brush Terminal | ||||
| 19 | 937623 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 20 | 340984C | |||
| Fan Guide | ||||
| 21 | 372743 | 1.20 | 1.45 | |
| ARMATURE 110-120 VOLT | ||||
| 22 | 361074U | 35.42 | 42.86 | |
| Lock Lever | ||||
| 23 | 320959 | 2.55 | 3.09 | |
| Fan Guide (b) | ||||
| 24 | 372768 | 1.05 | 1.27 | |
| Fan Guide (a) | ||||
| 25 | 372767 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 26 | 372763 | |||
| No information available, not orderable | ||||
| 26A | 375923M | |||
| Cushion | ||||
| 27 | 337080 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 28 | 949794 | 1.65 | 2.00 | |
| Bolt M8 (Square) | ||||
| 29 | 372774 | 1.04 | 1.26 | |
| Washer | ||||
| 30 | 980700 | 1.04 | 1.26 | |
| Ball Bearing 6202vvcmps2l | ||||
| 31 | 6202VV | 7.05 | 8.53 | |
| O-RING (I.D. 34.5) | ||||
| 32 | 372783 | 1.04 | 1.26 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 33 | 930804 | 3.00 | 3.63 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 35 | 301653 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M5x50 (black) | ||||
| 36 | 997841 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 37 | 372762 | 2.25 | 2.72 | |
| Hex Adjustment Screw M5x8 | ||||
| 38 | 938477 | 1.05 | 1.27 | |
| Casing Box DUO 110 - Set | ||||
| 39 | 372759 | 14.40 | 17.42 | |
| Brush Holder | ||||
| 40 | 938241 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 41 | 999038 | 9.30 | 11.25 | |
| Brush Cap | ||||
| 42 | 945161 | 1.20 | 1.45 | |
| Cord Holder | ||||
| 43 | 370269 | 1.04 | 1.26 | |
| SCREW D4X10 (PLASTIC TIE) | ||||
| 44 | 373166 | 1.04 | 1.26 | |
| Switch | ||||
| 45 | 320950 | 32.18 | 38.93 | |
| RUBBER PEN | ||||
| 46 | 931701 | 1.05 | 1.27 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 47 | 930804 | 3.00 | 3.63 | |
| Connector 50092 (10 Pcs.) | ||||
| 48 | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 49 | 984750 | |||
| Cord Clip | ||||
| 50 | 937631 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 51 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 52 | 500453Z | |||
| Handle (a).(b) Set | ||||
| 53 | 373432 | 11.40 | 13.79 | |
| LEVER (A) | ||||
| 54 | 372773 | 1.20 | 1.45 | |
| Ring | ||||
| 55 | 670514 | 1.05 | 1.27 | |
| Locking Nut | ||||
| 56 | 372772 | 1.35 | 1.63 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 57 | 949433 | 1.05 | 1.27 | |
| BEVEL STAND | ||||
| 58 | 372764 | 6.30 | 7.62 | |
| Adjustment plate | ||||
| 59 | 372770 | 1.65 | 2.00 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 60 | 992013 | 1.05 | 1.27 | |
| Slotted Hd. Set Screw (seal Lock) M6x8 | ||||
| 61 | 308109 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 61A | 381655 | |||
| Base plate KS 60 | ||||
| 62 | 372769 | 12.15 | 14.70 | |
| LEVER | ||||
| 63 | 372745 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Set Screw M5x6 | ||||
| 64 | 319541 | 1.50 | 1.82 | |
| Spring (b) | ||||
| 65 | 372778 | 1.04 | 1.26 | |
| U-nut M5 | ||||
| 66 | 308387 | 1.05 | 1.27 | |
| NYLON NUT M5 | ||||
| 66A | 377291 | 1.00 | 1.21 | |
| Stopper Lever | ||||
| 67 | 372776 | 1.04 | 1.26 | |
| Special Screw | ||||
| 68 | 372777 | 1.04 | 1.26 | |
| Step Pin | ||||
| 69 | 372775 | 1.04 | 1.26 | |
| SEAL LOCK HEX. SOCKET SET SCREW M5X8 | ||||
| 70 | 372779 | 1.04 | 1.26 | |
| Roll Pin D6x40 (10 Pcs.) | ||||
| 71 | 949686 | 6.75 | 8.17 | |
| LINK | ||||
| 72 | 372771 | 2.85 | 3.45 | |
| SEAL LOCK FLAT HD. SCREW M4X8 | ||||
| 73 | 328604 | 1.80 | 2.18 | |
| VOETPLAAT COMPLEET | ||||
| 74 | 372785 | 25.30 | 30.61 | |
| No information available, not orderable | ||||
| 501 | 371108 | |||
| No information available, not orderable | ||||
| 502 | 872422 | |||
| No information available, not orderable | ||||
| 601 | 302691 | |||
| DUST EXTRACTION ADAPTER | ||||
| 602 | 372757 | 3.00 | 3.63 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 603 | 935196 | 1.04 | 1.26 | |
