Here you will find all available parts and drawings of the 'Hikoki C7BUM'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

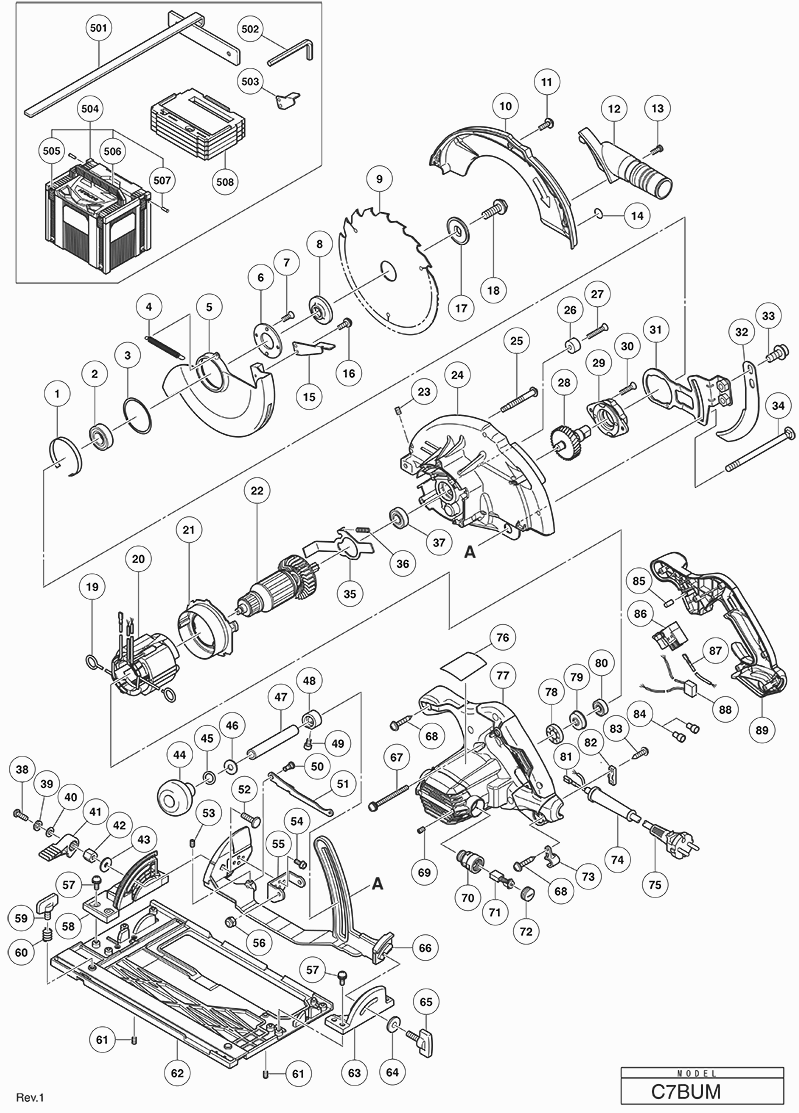

Technical drawing of model Hikoki C7BUM
Spare parts list of model Hikoki C7BUM
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Liner | ||||
| 1 | 998887 | 9.30 | 11.25 | |
| BALL BEARING 6003VVCM (NYLON RETAINER) | ||||
| 2 | 327694 | 5.25 | 6.35 | |
| Return Spring | ||||
| 3 | 370374 | 1.04 | 1.26 | |
| Ring | ||||
| 3 | 370591 | 1.04 | 1.26 | |
| Lower Guard | ||||
| 4 | 370357 | 11.10 | 13.43 | |
| Return Spring | ||||
| 4 | 370373 | 1.04 | 1.26 | |
| Lower Guard | ||||
| 5 | 370356 | 11.55 | 13.98 | |
| Bearing Cover | ||||
| 5 | 302435 | 1.35 | 1.63 | |
| Bearing Cover | ||||
| 6 | 302435 | 1.35 | 1.63 | |
| Seal Lock Flat Hd. Screw M4x10 | ||||
| 6 | 990430 | 1.04 | 1.26 | |
| Washer (a) | ||||
| 7 | 370272 | 2.25 | 2.72 | |
| Seal Lock Flat Hd. Screw M4x10 | ||||
| 7 | 990430 | 1.04 | 1.26 | |
| Washer (a) | ||||
| 8 | 370272 | 2.25 | 2.72 | |
| Saw Cover | ||||
| 9 | 370355 | 10.50 | 12.70 | |
| Saw Cover | ||||
| 10 | 370354 | 10.95 | 13.25 | |
| Machine Screw (w/sp. Washer) M4x12 | ||||
| 10 | 951039 | 1.05 | 1.27 | |
| Saw Cover | ||||
| 10A | 370354 | 10.95 | 13.25 | |
| Machine Screw (w/sp. Washer) M4x12 | ||||
| 11 | 951039 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 12 | 997247 | |||
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 13 | 935196 | 1.04 | 1.26 | |
| Lever | ||||
| 14 | 370542 | 1.04 | 1.26 | |
| Lever | ||||
| 15 | 370542 | 1.04 | 1.26 | |
| Washer (b) | ||||
| 16 | 370279 | 2.25 | 2.72 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 16 | 935196 | 1.04 | 1.26 | |
| Washer (b) | ||||
| 17 | 370279 | 2.25 | 2.72 | |
| Hex. Socket Hd. Bolt M8x15.5 | ||||
| 17 | 324662 | 1.95 | 2.36 | |
| Brush Terminal | ||||
| 18 | 930703 | 2.40 | 2.90 | |
| Hex. Socket Hd. Bolt M8x15.5 | ||||
| 18 | 324662 | 1.95 | 2.36 | |
| Stator 220v-230v | ||||
| 19 | 340946E | 41.25 | 49.91 | |
| Brush Terminal | ||||
| 19 | 930703 | 2.40 | 2.90 | |
| Stator 220v-230v | ||||
| 20 | 340946E | 41.25 | 49.91 | |
| Fan Guide | ||||
| 20 | 370342 | 1.20 | 1.45 | |
| Armature 230v | ||||
| 21 | 361037E | 34.79 | 42.09 | |
| Fan Guide | ||||
| 21 | 370342 | 1.20 | 1.45 | |
| Armature 230v | ||||
| 22 | 361037E | 34.79 | 42.09 | |
| Hex. Socket Set Screw M5x6 Till 2.1986 | ||||
| 22 | 962782 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 23 | 370352 | 21.59 | 26.12 | |
| Hex. Socket Set Screw M5x6 Till 2.1986 | ||||
| 23 | 962782 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 24 | 370350 | 22.00 | 26.62 | |
| Adjusting Screw (a) | ||||
| 24 | 322096 | 1.95 | 2.36 | |
| Adjusting Screw (a) | ||||
| 25 | 322096 | 1.95 | 2.36 | |
| Cushion | ||||
| 25 | 961729 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 26 | 949794 | 1.65 | 2.00 | |
| Cushion | ||||
| 26 | 961729 | 1.05 | 1.27 | |
| Spindle And Gear Set | ||||
| 27 | 370372 | 11.40 | 13.79 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 27 | 949794 | 1.65 | 2.00 | |
| Spindle And Gear Set | ||||
| 28 | 370371 | 11.55 | 13.98 | |
| Bearing Holder | ||||
| 28 | 302433 | 2.55 | 3.09 | |
| Bearing Holder | ||||
| 29 | 370353 | 5.40 | 6.53 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 29 | 992013 | 1.05 | 1.27 | |
| Riving Knife | ||||
| 30 | 370366 | 3.60 | 4.36 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 30 | 992013 | 1.05 | 1.27 | |
| Arm | ||||
| 31 | 370364 | 4.20 | 5.08 | |
| Hex. Socket Hd. Bolt M8 | ||||
| 31 | 370287 | 1.05 | 1.27 | |
| Diagonal Bolt M8 | ||||
| 32 | 370662 | 8.40 | 10.16 | |
| Riving Knife | ||||
| 32 | 370365 | 3.75 | 4.54 | |
| Lock Lever | ||||
| 33 | 370363 | 1.20 | 1.45 | |
| Hex. Socket Hd. Bolt M8 | ||||
| 33 | 370287 | 1.05 | 1.27 | |
| Diagonal Bolt M8 | ||||
| 34 | 370662 | 8.40 | 10.16 | |
| Spring (a) | ||||
| 34 | 330982 | 1.05 | 1.27 | |
| Ball Bearing 6001vv | ||||
| 35 | 6001VV | 6.60 | 7.99 | |
| Lock Lever | ||||
| 35 | 370363 | 1.20 | 1.45 | |
| Machine Screw M6x14 | ||||
| 36 | 333922 | 1.20 | 1.45 | |
| Spring (a) | ||||
| 36 | 330982 | 1.05 | 1.27 | |
| Ball Bearing 6001vv | ||||
| 37 | 6001VV | 6.60 | 7.99 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 37 | 949455 | 1.05 | 1.27 | |
| Machine Screw M6x14 | ||||
| 38 | 333922 | 1.20 | 1.45 | |
| Lever (a) | ||||
| 39 | 323923 | 1.05 | 1.27 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 39 | 949455 | 1.05 | 1.27 | |
| Lock Nut | ||||
| 40 | 333921 | 4.20 | 5.08 | |
| Washer M6 (10 Pcs.) | ||||
| 40 | 949425 | 1.05 | 1.27 | |
| Washer (g) | ||||
| 41 | 318452 | 1.20 | 1.45 | |
| Lever (a) | ||||
| 41 | 323923 | 1.05 | 1.27 | |
| Knob | ||||
| 42 | 324660 | 4.35 | 5.26 | |
| Lock Nut | ||||
| 42 | 333921 | 4.20 | 5.08 | |
| Washer (g) | ||||
| 43 | 318452 | 1.20 | 1.45 | |
| O-RING (P-7) (OUD 676531) | ||||
| 43 | 889335 | 1.00 | 1.21 | |
| Knob | ||||
| 44 | 324660 | 4.35 | 5.26 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 44 | 949433 | 1.05 | 1.27 | |
| Sleeve (a) | ||||
| 45 | 370825 | 4.50 | 5.44 | |
| O-RING (P-7) (OUD 676531) | ||||
| 45 | 889335 | 1.00 | 1.21 | |
| Sleeve (b) | ||||
| 46 | 370268 | 3.00 | 3.63 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 46 | 949433 | 1.05 | 1.27 | |
| Sleeve (a) | ||||
| 47 | 370825 | 4.50 | 5.44 | |
| Washer (1) | ||||
| 47 | 370376 | 1.04 | 1.26 | |
| Sleeve (b) | ||||
| 48 | 370268 | 3.00 | 3.63 | |
| Seal Lock Hex. Socket Hd. Bolt M4x6 | ||||
| 48 | 370278 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M4x6 | ||||
| 49 | 370278 | 1.04 | 1.26 | |
| Bolt (square) D6 | ||||
| 49 | 370377 | 1.04 | 1.26 | |
| Step Pin D6x13 | ||||
| 50 | 320163 | 1.50 | 1.82 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 50 | 305755 | 1.04 | 1.26 | |
| Plate (b) | ||||
| 51 | 370369 | 1.05 | 1.27 | |
| Bevel Plate (c) | ||||
| 51 | 370370 | 1.04 | 1.26 | |
| U-nut M5 | ||||
| 52 | 308387 | 1.05 | 1.27 | |
| Bolt (square) D6 | ||||
| 52 | 370377 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Set Screw M5x6 | ||||
| 53 | 319541 | 1.50 | 1.82 | |
| Machine Screw (w/washers) M5x14 (black) | ||||
| 53 | 678653 | 1.05 | 1.27 | |
| Bevel Plate (a) | ||||
| 54 | 370347 | 2.85 | 3.45 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 54 | 305755 | 1.04 | 1.26 | |
| Wing Bolt M6x15 | ||||
| 55 | 301806 | 1.05 | 1.27 | |
| Bevel Plate (c) | ||||
| 55 | 370370 | 1.04 | 1.26 | |
| U-nut M5 | ||||
| 56 | 308387 | 1.05 | 1.27 | |
| Spring (old 996224) | ||||
| 56 | 947859 | 1.04 | 1.26 | |
| NYLON MOER M5 | ||||
| 56A | 377291 | 1.00 | 1.21 | |
| Machine Screw (w/washers) M5x14 (black) | ||||
| 57 | 678653 | 1.05 | 1.27 | |
| Slotted Hd. Set Screw (seal Lock) M6x6 | ||||
| 57 | 302469 | 1.05 | 1.27 | |
| Base | ||||
| 58 | 370358 | 25.30 | 30.61 | |
| Bevel Plate (a) | ||||
| 58 | 370347 | 2.85 | 3.45 | |
| Bevel Plate (b) | ||||
| 59 | 370348 | 2.40 | 2.90 | |
| Wing Bolt M6x15 | ||||
| 59 | 301806 | 1.05 | 1.27 | |
| Washer M6 (10 Pcs.) | ||||
| 60 | 949425 | 1.05 | 1.27 | |
| Spring (old 996224) | ||||
| 60 | 947859 | 1.04 | 1.26 | |
| Slotted Hd. Set Screw (seal Lock) M6x6 | ||||
| 61 | 302469 | 1.05 | 1.27 | |
| Wing Bolt M6x17 | ||||
| 61 | 302459 | 1.05 | 1.27 | |
| NYLOCK SET SCREW M6 NEW | ||||
| 61A | 379529 | 1.00 | 1.21 | |
| Base | ||||
| 62 | 370358 | 25.30 | 30.61 | |
| Link | ||||
| 62 | 370362 | 17.05 | 20.63 | |
| Bevel Plate (b) | ||||
| 63 | 370348 | 2.40 | 2.90 | |
| Machine Screw (w/washers) M5x50 (black) | ||||
| 63 | 997841 | 1.05 | 1.27 | |
| Washer M6 (10 Pcs.) | ||||
| 64 | 949425 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 64 | 301653 | 1.04 | 1.26 | |
| Wing Bolt M6x17 | ||||
| 65 | 302459 | 1.05 | 1.27 | |
| Hex Adjustment Screw M5x8 | ||||
| 65 | 938477 | 1.05 | 1.27 | |
| Link | ||||
| 66 | 370361 | 18.56 | 22.46 | |
| Brush Holder | ||||
| 66 | 960685 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 67 | 999056 | 6.45 | 7.80 | |
| Machine Screw (w/washers) M5x50 (black) | ||||
| 67 | 997841 | 1.05 | 1.27 | |
| Brush Cap | ||||
| 68 | 945161 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 68 | 301653 | 1.04 | 1.26 | |
| Hex Adjustment Screw M5x8 | ||||
| 69 | 938477 | 1.05 | 1.27 | |
| Cord Holder | ||||
| 69 | 370269 | 1.04 | 1.26 | |
| Brush Holder | ||||
| 70 | 960685 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 71 | 999056 | 6.45 | 7.80 | |
| Brush Cap | ||||
| 72 | 945161 | 1.20 | 1.45 | |
| Housing Ass'y Includ.69,70 | ||||
| 73 | 370820 | 29.70 | 35.94 | |
| Cord Holder | ||||
| 73 | 370269 | 1.04 | 1.26 | |
| Rubber Bushing | ||||
| 74 | 331006 | 1.95 | 2.36 | |
| Bushing | ||||
| 75 | 322089 | 4.80 | 5.81 | |
| Ball Bearing 608vv | ||||
| 76 | 333945 | 1.80 | 2.18 | |
| Housing Ass'y Includ.69,70 | ||||
| 77 | 370820 | 29.70 | 35.94 | |
| Faston | ||||
| 77 | 331707 | 1.88 | 2.27 | |
| Housing Ass'y Includ.69,70 | ||||
| 77A | 370820 | 29.70 | 35.94 | |
| Rubber Bushing | ||||
| 78 | 331006 | 1.95 | 2.36 | |
| Cord Clip | ||||
| 78 | 937631 | 1.04 | 1.26 | |
| Bushing | ||||
| 79 | 322089 | 4.80 | 5.81 | |
| Connector 50092 (10 Pcs.) | ||||
| 80 | 959141 | 3.75 | 4.54 | |
| Ball Bearing 608vv | ||||
| 80 | 333945 | 1.80 | 2.18 | |
| Faston | ||||
| 81 | 331707 | 1.88 | 2.27 | |
| RUBBER PEN | ||||
| 81 | 931701 | 1.05 | 1.27 | |
| Switch | ||||
| 82 | 334474 | 10.05 | 12.16 | |
| Cord Clip | ||||
| 82 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 83 | 984750 | |||
| Connector 50092 (10 Pcs.) | ||||
| 84 | 959141 | 3.75 | 4.54 | |
| Noise Suppressor | ||||
| 84 | 930039 | 1.95 | 2.36 | |
| Handle Cover | ||||
| 85 | 370341 | 9.15 | 11.07 | |
| RUBBER PEN | ||||
| 85 | 931701 | 1.05 | 1.27 | |
| Switch | ||||
| 86 | 334474 | 10.05 | 12.16 | |
| PLATE (C) | ||||
| 86 | 371212 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 87 | 935196 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| 88 | 930039 | 1.95 | 2.36 | |
| Handle Cover | ||||
| 89 | 370341 | 9.15 | 11.07 | |
| PLATE (C) | ||||
| 90 | 371213 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 91 | 935196 | 1.04 | 1.26 | |
| Guide (1) | ||||
| 501 | 370587 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 502 | 872422 | |||
| Lever (1) | ||||
| 503 | 370264 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 504 | 337528 | |||
| No information available, not orderable | ||||
| 505 | 336472 | |||
| No information available, not orderable | ||||
| 506 | 336473 | |||
| No information available, not orderable | ||||
| 507 | 336474 | |||
| No information available, not orderable | ||||
| 508 | 370588 | |||
