Here you will find all available parts and drawings of the 'Hikoki C6U2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

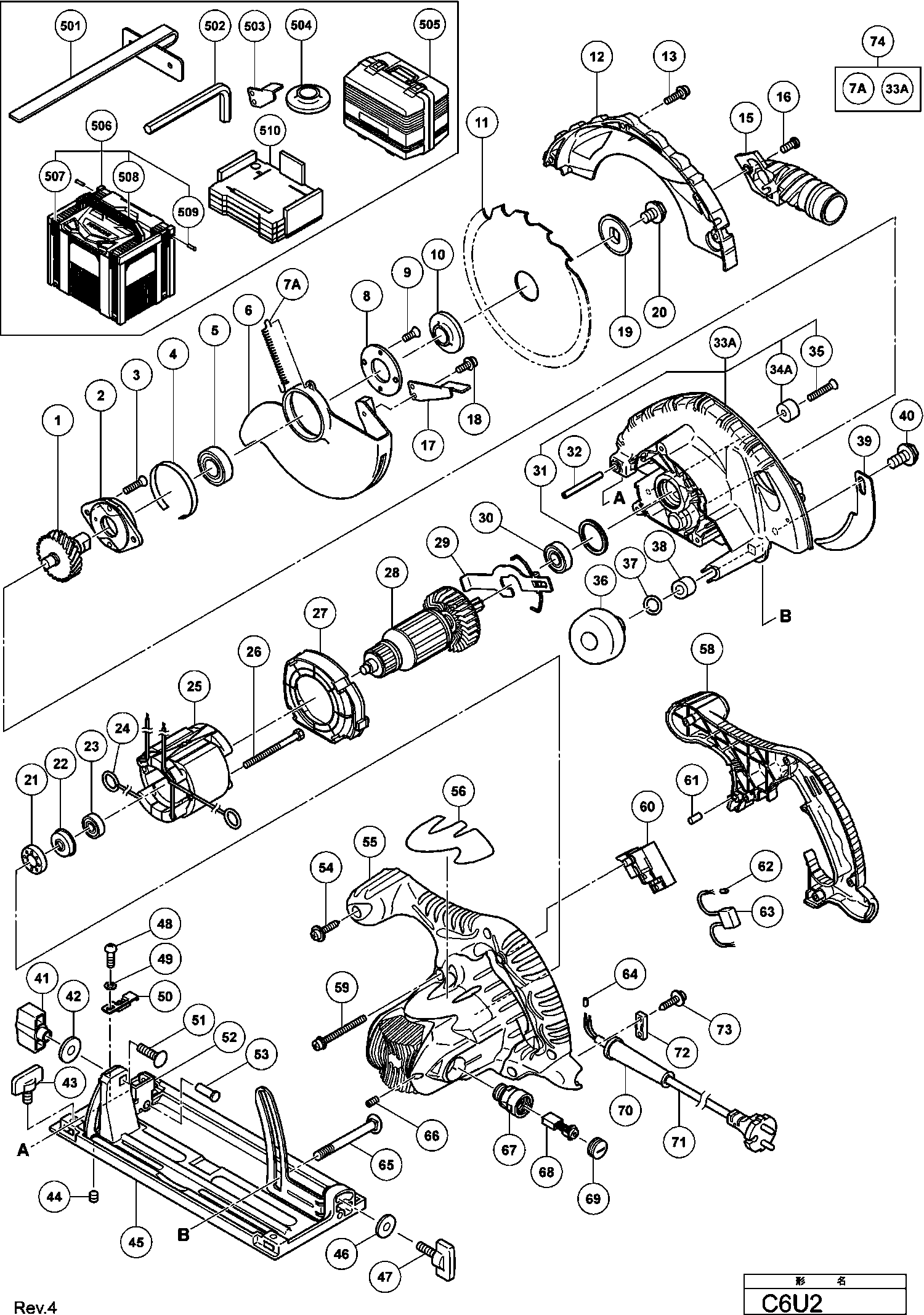

Technical drawing of model Hikoki C6U2
Spare parts list of model Hikoki C6U2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gear | ||||
| 1 | 302449 | 14.71 | 17.80 | |
| Bearing Holder | ||||
| 2 | 302433 | 2.55 | 3.09 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 3 | 992013 | 1.05 | 1.27 | |
| Sleeve (OLD 961807Z) | ||||
| 4 | 961807 | 2.15 | 2.60 | |
| Ball Bearing 6003vvcmps2l | ||||
| 5 | 6003VV | 7.65 | 9.26 | |
| Safety Cover | ||||
| 6 | 324677 | 11.55 | 13.98 | |
| Return Spring | ||||
| 7A | 337100 | 1.04 | 1.26 | |
| Bearing Cover | ||||
| 8 | 302435 | 1.35 | 1.63 | |
| Seal Lock Flat Hd. Screw M4x10 | ||||
| 9 | 990430 | 1.04 | 1.26 | |
| Washer (a) | ||||
| 10 | 302476 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 11 | 324678 | |||
| Guard | ||||
| 12 | 324674 | 4.35 | 5.26 | |
| Machine Screw (w/washers) M4x14 (black) | ||||
| 13 | 305691 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 15 | 324669 | |||
| Special Bolt | ||||
| 16 | 324139 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 17 | 302464 | |||
| Lever | ||||
| 17A | 370542 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 18 | 304043 | 1.05 | 1.27 | |
| Washer (b) | ||||
| 19 | 302423 | 2.10 | 2.54 | |
| Hex. Socket Hd. Bolt M8x15.5 | ||||
| 20 | 324662 | 1.95 | 2.36 | |
| Rubber bushing | ||||
| 21 | 325060 | 1.05 | 1.27 | |
| Bushing | ||||
| 22 | 322089 | 4.80 | 5.81 | |
| Ball Bearing 608vvc2ps2l | ||||
| 23 | 608VVM | 5.70 | 6.90 | |
| Brush Terminal | ||||
| 24 | 930703 | 2.40 | 2.90 | |
| Stator 230v | ||||
| 25 | 340641E | 31.63 | 38.27 | |
| Hex. Hd. Tapping Screw D5x50 | ||||
| 26 | 953121 | 1.04 | 1.26 | |
| Fan Guide | ||||
| 27 | 324675 | 1.95 | 2.36 | |
| Armature 230v | ||||
| 28 | 360729E | 49.23 | 59.56 | |
| Lock Lever | ||||
| 29 | 324655 | 1.95 | 2.36 | |
| Ball Bearing 6001vv | ||||
| 30 | 6001VV | 6.60 | 7.99 | |
| Rubber ring (OLD 996252) | ||||
| 31 | 958130 | 1.65 | 2.00 | |
| Roll Pin D6x40 (10 Pcs.) | ||||
| 32 | 949686 | 6.75 | 8.17 | |
| Gear Cover | ||||
| 33A | 337096 | 21.31 | 25.79 | |
| Cushion Since 12.2013 | ||||
| 34A | 337097 | 1.20 | 1.45 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 35 | 949794 | 1.65 | 2.00 | |
| Knob | ||||
| 36 | 324660 | 4.35 | 5.26 | |
| O-RING (P-7) (OLD 676531) | ||||
| 37 | 889335 | 1.00 | 1.21 | |
| Socket | ||||
| 38 | 303801 | 3.60 | 4.36 | |
| Riving Knife | ||||
| 39 | 303838 | 5.78 | 6.99 | |
| Hex. Socket Hd. Bolt M8x10 | ||||
| 40 | 324664 | 1.95 | 2.36 | |
| Wing Nut M8 | ||||
| 41 | 324658 | 3.00 | 3.63 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 42 | 949433 | 1.05 | 1.27 | |
| Wing Bolt M6x15 | ||||
| 43 | 301806 | 1.05 | 1.27 | |
| Slotted Hd. Set Screw (seal Lock) M6x6 | ||||
| 44 | 302469 | 1.05 | 1.27 | |
| Base | ||||
| 45 | 324676 | 52.66 | 63.72 | |
| Washer M6 (10 Pcs.) | ||||
| 46 | 949425 | 1.05 | 1.27 | |
| Wing Bolt M6x17 | ||||
| 47 | 302459 | 1.05 | 1.27 | |
| Machine Screw M4x6 (10 Pcs.) | ||||
| 48 | 949214 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 49 | 949453 | 1.05 | 1.27 | |
| Clamp | ||||
| 50 | 324659 | 1.95 | 2.36 | |
| Bolt (square) M8x30 | ||||
| 51 | 302457 | 1.04 | 1.26 | |
| Bevel Plate | ||||
| 52 | 308479 | 3.00 | 3.63 | |
| Rivet D6x17 | ||||
| 53 | 308480 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 54 | 301653 | 1.04 | 1.26 | |
| Housing | ||||
| 55 | 324665 | 21.04 | 25.46 | |
| Handle Cover | ||||
| 58 | 324667 | 5.10 | 6.17 | |
| Machine Screw (w/washers) M5x45 (black) | ||||
| 59 | 302434 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 60 | 963756Z | |||
| RUBBER PIN (OLD 976441) | ||||
| 61 | 946362 | 1.05 | 1.27 | |
| Threaded cable sleeve | ||||
| 62 | 981373 | 1.05 | 1.27 | |
| Noise Suppressor | ||||
| 63 | 930039 | 1.95 | 2.36 | |
| Threaded cable sleeve | ||||
| 64 | 981373 | 1.05 | 1.27 | |
| Diagonal Bolt M8x105 | ||||
| 65 | 316444 | 3.90 | 4.72 | |
| Hex Adjustment Screw M5x8 | ||||
| 66 | 938477 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 67 | 958900 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 68 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 69 | 945161 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 70 | 953327 | |||
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| 71 | 500247Z | 6.18 | 7.48 | |
| Cord Clip | ||||
| 72 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 73 | 984750 | |||
| No information available, not orderable | ||||
| 74 | 337102 | |||
| No information available, not orderable | ||||
| 501 | 302756 | |||
| No information available, not orderable | ||||
| 502 | 872422 | |||
| Knob | ||||
| 503 | 303338 | 2.40 | 2.90 | |
| Ring | ||||
| 504 | 302443 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 505 | 325317 | |||
| No information available, not orderable | ||||
| 506 | 337528 | |||
| No information available, not orderable | ||||
| 507 | 336472 | |||
| No information available, not orderable | ||||
| 508 | 336473 | |||
| No information available, not orderable | ||||
| 509 | 336474 | |||
| No information available, not orderable | ||||
| 510 | 337659 | |||
| No information available, not orderable | ||||
| 601 | 317848 | |||
| No information available, not orderable | ||||
| 602 | 317849 | |||
| Bar | ||||
| 603 | 317850 | 2.25 | 2.72 | |
| Bar | ||||
| 604 | 317851 | 2.25 | 2.72 | |
| Wing Bolt M6x15 | ||||
| 605 | 301806 | 1.05 | 1.27 | |
| Machine Screw M5x12 (10 Pcs.) | ||||
| 606 | 949237 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 607 | 949454 | 1.04 | 1.26 | |
