Here you will find all available parts and drawings of the 'Hikoki C6SS'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

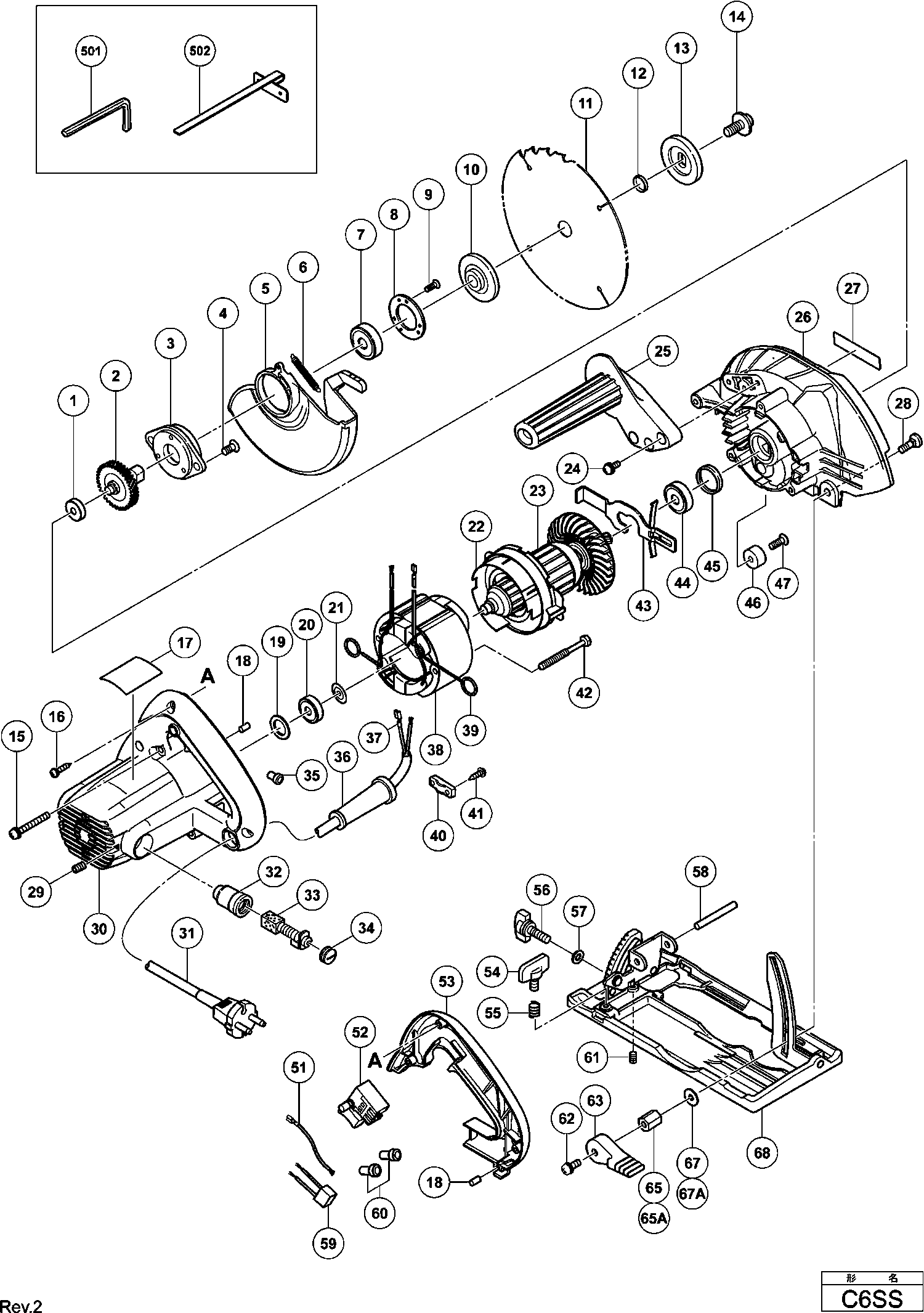

Technical drawing of model Hikoki C6SS
Spare parts list of model Hikoki C6SS
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Metal | ||||
| 1 | 963803 | 1.50 | 1.82 | |
| Spindle And Gear Set | ||||
| 2 | 322088 | 32.18 | 38.93 | |
| Bearing Holder | ||||
| 3 | 308361 | 3.30 | 3.99 | |
| SEAL LOCK HD SCREW M5X12 | ||||
| 4 | 305568 | 1.05 | 1.27 | |
| Protective Cover | ||||
| 5 | 331266 | 10.05 | 12.16 | |
| Return Spring | ||||
| 6 | 331268 | 1.05 | 1.27 | |
| Ball Bearing 6002vvcmps2l | ||||
| 7 | 6002VV | 7.35 | 8.89 | |
| Bearing Cover | ||||
| 8 | 308362 | 2.40 | 2.90 | |
| Seal Lock Flat Hd. Screw M3x12 | ||||
| 9 | 308773 | 1.05 | 1.27 | |
| Washer (a1) For Chi,pan,mex | ||||
| 10 | 317466 | 9.00 | 10.89 | |
| Washer (a) | ||||
| 10 | 322099 | 7.35 | 8.89 | |
| Washer (a) | ||||
| 10 | 323928 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 11 | 331658 | |||
| Ring D15.9/i.d14.5 For Chi,pan,mex | ||||
| 12 | 990100 | 1.65 | 2.00 | |
| Clamping Flange | ||||
| 13 | 324563 | 4.20 | 5.08 | |
| Hex. Socket Hd. Bolt (w/washer) M7x17.5 | ||||
| 14 | 325541 | 3.75 | 4.54 | |
| Machine Screw (w/washers) M5x45 (black) | ||||
| 15 | 302434 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 16 | 328643 | 1.05 | 1.27 | |
| RUBBER PEN | ||||
| 18 | 931701 | 1.05 | 1.27 | |
| Thrust Washer | ||||
| 19 | 331264 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 20 | 608VVM | 5.70 | 6.90 | |
| Washer (a) | ||||
| 21 | 982631 | 1.04 | 1.26 | |
| Fan Guide | ||||
| 22 | 322002 | 1.35 | 1.63 | |
| Armature 230v | ||||
| 23 | 360883E | 53.63 | 64.89 | |
| No information available, not orderable | ||||
| 24 | 887021 | |||
| Side Handle | ||||
| 25 | 330973 | 4.20 | 5.08 | |
| Inner Cover | ||||
| 26 | 331265 | 24.68 | 29.86 | |
| Nut | ||||
| 28 | 942808 | 1.05 | 1.27 | |
| Hex Adjustment Screw M5x8 | ||||
| 29 | 938477 | 1.05 | 1.27 | |
| Housing | ||||
| 30 | 331260 | 14.30 | 17.30 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 31 | 500240Z | 13.18 | 15.94 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 31 | 500447Z | 6.60 | 7.99 | |
| Brush Holder (2) | ||||
| 32 | 957051 | 5.25 | 6.35 | |
| Carbon Brush (1 Pair) | ||||
| 33 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 34 | 935829 | 1.05 | 1.27 | |
| Connector 50091 (10 Pcs.) | ||||
| 35 | 959140 | 3.30 | 3.99 | |
| Cord Armor D8.8 | ||||
| 36 | 380090 | 1.04 | 1.26 | |
| Faston | ||||
| 37 | 331707 | 1.88 | 2.27 | |
| Stator 230v | ||||
| 38 | 340614E | 24.75 | 29.95 | |
| Brush Terminal | ||||
| 39 | 930703 | 2.40 | 2.90 | |
| Cord Clip | ||||
| 40 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 41 | 984750 | |||
| Hex. Hd. Tapping Screw D5x55 | ||||
| 42 | 953174 | 1.04 | 1.26 | |
| Lock Lever | ||||
| 43 | 307918 | 5.25 | 6.35 | |
| Ball Bearing 6000vvcmps2l | ||||
| 44 | 6000VV | 6.15 | 7.44 | |
| Rubber Ring | ||||
| 45 | 318647 | 1.65 | 2.00 | |
| Cushion | ||||
| 46 | 961729 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 47 | 949794 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 51 | 331269 | |||
| Switch | ||||
| 52 | 331259 | 20.35 | 24.62 | |
| Handle Cover | ||||
| 53 | 331261 | 4.20 | 5.08 | |
| Wing Bolt M6x18 | ||||
| 54 | 307898 | 1.65 | 2.00 | |
| Spring | ||||
| 55 | 941056 | 1.05 | 1.27 | |
| WING SCREW (A) | ||||
| 56 | 307937 | 1.05 | 1.27 | |
| Wing Bolt (a) M6x15 | ||||
| 56 | 308364 | 1.05 | 1.27 | |
| Super Lock Washer M6 Single-phase | ||||
| 57 | 948167 | 1.04 | 1.26 | |
| Roll Pin D6x50 (10 Pcs.) | ||||
| 58 | 949750 | 7.35 | 8.89 | |
| Noise Suppressor | ||||
| 59 | 930039 | 1.95 | 2.36 | |
| Connector 50092 (10 Pcs.) | ||||
| 60 | 959141 | 3.75 | 4.54 | |
| Slotted Hd. Set Screw (seal Lock) M6x8 | ||||
| 61 | 308109 | 1.04 | 1.26 | |
| Seal Lock Screw (w/sp. Washers) M6x14 | ||||
| 62 | 322260 | 1.50 | 1.82 | |
| Lever (a) | ||||
| 63 | 323923 | 1.05 | 1.27 | |
| Lock Nut | ||||
| 65 | 328048 | 1.05 | 1.27 | |
| Lock Nut | ||||
| 65A | 331267 | 2.10 | 2.54 | |
| Washer (c) Till 10.2009 | ||||
| 67 | 329933 | 1.88 | 2.27 | |
| Washer | ||||
| 67A | 320975 | 1.05 | 1.27 | |
| Base | ||||
| 68 | 331262 | 28.60 | 34.61 | |
| No information available, not orderable | ||||
| 501 | 944459 | |||
| No information available, not orderable | ||||
| 502 | 302756 | |||
| No information available, not orderable | ||||
| 601 | 302981 | |||
| Washer (a) | ||||
| 602 | 322099 | 7.35 | 8.89 | |
