Here you will find all available parts and drawings of the 'Hikoki C6SE'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

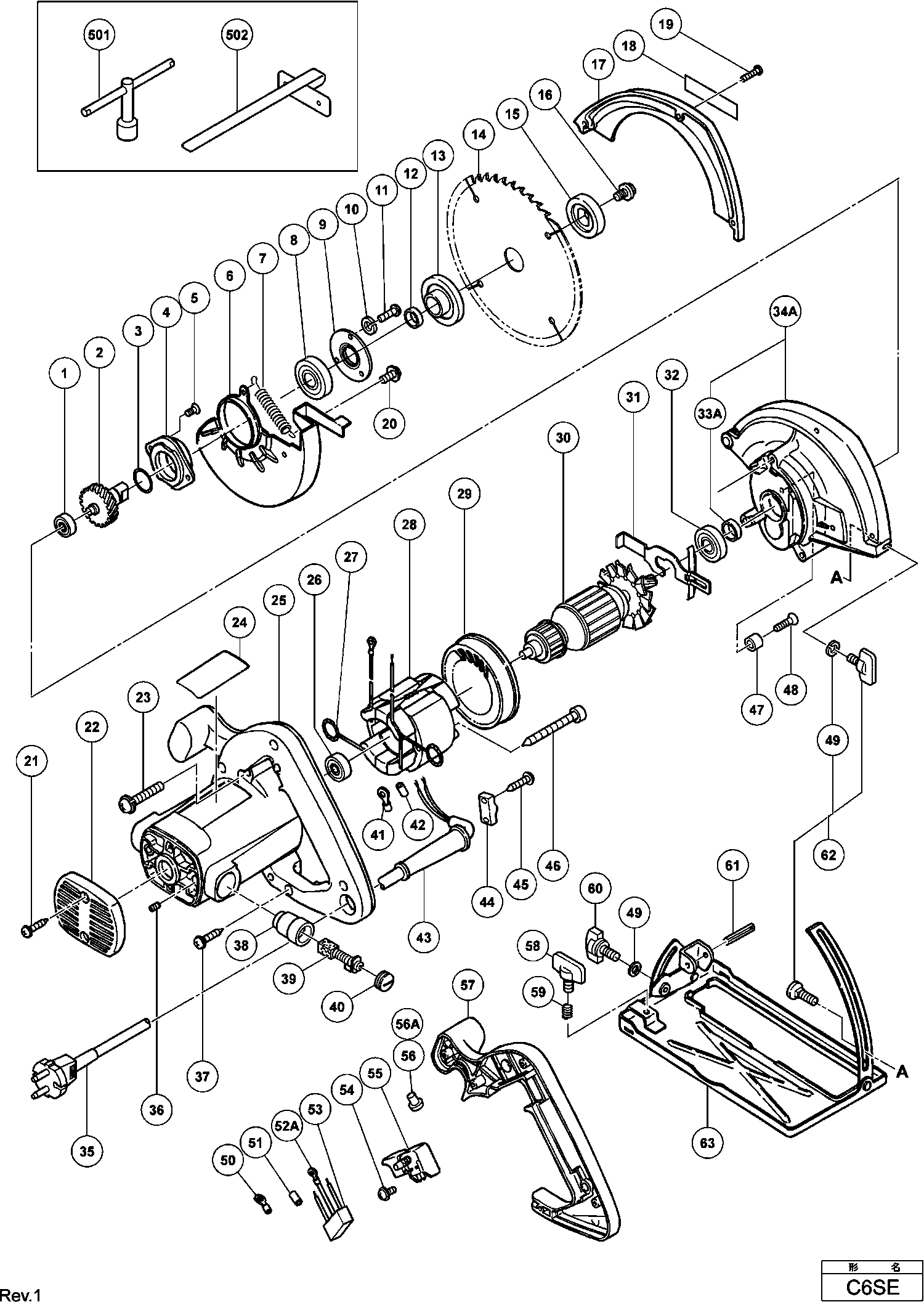

Technical drawing of model Hikoki C6SE
Spare parts list of model Hikoki C6SE
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Ball Bearing 606vv | ||||
| 1 | 606ZZM | 15.40 | 18.63 | |
| No information available, not orderable | ||||
| 2 | 317932 | |||
| O-ring (p-16) | ||||
| 3 | 873095 | 1.04 | 1.26 | |
| Bearing Holder | ||||
| 4 | 941048 | 6.90 | 8.35 | |
| Seal Lock Flat Hd. Screw M4x10 | ||||
| 5 | 990430 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 6 | 317930 | |||
| Return Spring | ||||
| 7 | 957062 | 1.04 | 1.26 | |
| Ball Bearing 6202vvcmps2l | ||||
| 8 | 6202VV | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| 9 | 941049 | |||
| Spring Washer M3 (10 pieces) | ||||
| 10 | 949451 | 1.05 | 1.27 | |
| Machine Screw M3x8 (10 Pcs.) Since 9.2012 For Eur | ||||
| 11 | 949203 | 1.05 | 1.27 | |
| Spacer bushing | ||||
| 12 | 961366 | 1.04 | 1.26 | |
| Ring | ||||
| 13 | 993598 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 14 | 317937 | |||
| Washer | ||||
| 15 | 957064 | 4.50 | 5.44 | |
| Bolt (w/washer) M7x17.5 | ||||
| 16 | 957749 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 17 | 317933 | |||
| Machine Screw M4x16 (10 Pcs.) | ||||
| 19 | 949219 | 1.20 | 1.45 | |
| Machine Screw (w/washers) M4x8 Except For Double | ||||
| 20 | 986723 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 21 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 22 | 961732 | |||
| Machine Screw (w/washers) M5x45 (black) | ||||
| 23 | 302434 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 25 | 317936 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 26 | 608VVM | 5.70 | 6.90 | |
| Brush Terminal | ||||
| 27 | 930703 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 28 | 340447H | |||
| No information available, not orderable | ||||
| 29 | 987980 | |||
| No information available, not orderable | ||||
| 30 | 360500F | |||
| No information available, not orderable | ||||
| 31 | 987981 | |||
| Ball Bearing 6000vvcmps2l | ||||
| 32 | 6000VV | 6.15 | 7.44 | |
| Rubber Ring | ||||
| 33A | 318647 | 1.65 | 2.00 | |
| Gear Cover Ass'y Includ.3,17 | ||||
| 34A | 317931 | 14.99 | 18.13 | |
| No information available, not orderable | ||||
| 35 | 930054 | |||
| Hex Adjustment Screw M5x8 | ||||
| 36 | 938477 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 37 | 307028 | 1.05 | 1.27 | |
| Brush Holder (2) | ||||
| 38 | 957051 | 5.25 | 6.35 | |
| Carbon Brush (1 Pair) | ||||
| 39 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 40 | 935829 | 1.05 | 1.27 | |
| connecting terminal | ||||
| 41 | 980063 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 42 | 981373 | 1.05 | 1.27 | |
| Cord Armor D8.8 | ||||
| 43 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 43 | 938051 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 44 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 45 | 984750 | |||
| Hex. Hd. Tapping Screw D5x55 | ||||
| 46 | 953174 | 1.04 | 1.26 | |
| Cushion | ||||
| 47 | 961729 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 48 | 949794 | 1.65 | 2.00 | |
| Super Lock Washer M6 Single-phase | ||||
| 49 | 948167 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 50 | 980063 | 1.04 | 1.26 | |
| Terminal | ||||
| 50 | 311741 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 51 | 981373 | 1.05 | 1.27 | |
| Terminal For Noise Suppressor | ||||
| 52A | 938108 | 1.20 | 1.45 | |
| Noise Suppressor | ||||
| 53 | 994273 | 4.29 | 5.19 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 54 | 305499 | 1.05 | 1.27 | |
| Switch | ||||
| 55 | 957747 | 14.03 | 16.97 | |
| Switch | ||||
| 55 | 963756Z | 13.20 | 15.97 | |
| Switch | ||||
| 55 | 302470 | 10.95 | 13.25 | |
| Connector 50091 (10 Pcs.) | ||||
| 56 | 959140 | 3.30 | 3.99 | |
| Connector 50092 (10 Pcs.) | ||||
| 56A | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 57 | 302320 | |||
| Wing Bolt M6x15 | ||||
| 58 | 301806 | 1.05 | 1.27 | |
| Spring (old 996224) | ||||
| 59 | 947859 | 1.04 | 1.26 | |
| Wing Bolt M6x17 | ||||
| 60 | 302459 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 61 | 949515 | |||
| Bolt Ass'y (square) M6x22 Includ.89 | ||||
| 62 | 314620 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 63 | 317934 | |||
| No information available, not orderable | ||||
| 501 | 940543 | |||
| No information available, not orderable | ||||
| 502 | 316106 | |||
| No information available, not orderable | ||||
| 601 | 949172 | |||
| No information available, not orderable | ||||
| 602 | 879096 | |||
| No information available, not orderable | ||||
| 603 | 879097 | |||
| No information available, not orderable | ||||
| 604 | 879098 | |||
| No information available, not orderable | ||||
| 605 | 939156 | |||
| No information available, not orderable | ||||
| 606 | 961734 | |||
