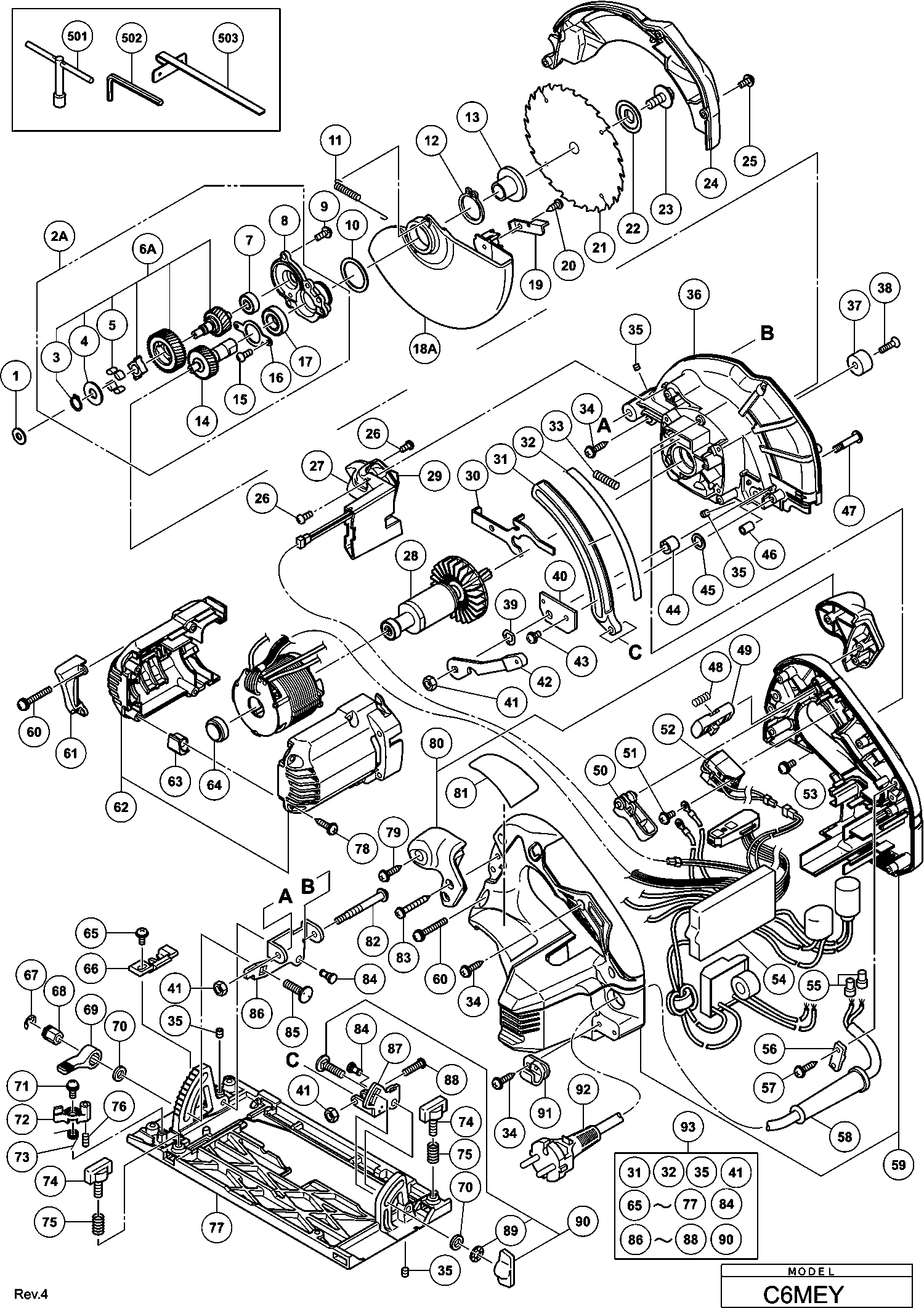

Technical drawing of model Hikoki C6MEY
Spare parts list of model Hikoki C6MEY
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rotor | ||||
| *28 | 361011 | 40.84 | 49.41 | |
| Seal Lock Hex. Socket Set Screw M5x6 | ||||
| *35 | 319541 | 1.50 | 1.82 | |
| NYLON MOER M5 | ||||
| *41A | 377291 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| *54B | 341189 | |||
| Wing Bolt M6x18 | ||||
| *74 | 307898 | 1.65 | 2.00 | |
| Spring | ||||
| *75 | 324876 | 1.80 | 2.18 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| *92 | 500247Z | 6.18 | 7.48 | |
| Base Ass'y Includ.57 | ||||
| *93B | 371939 | 35.61 | 43.09 | |
| Washer (a) | ||||
| 1 | 329975 | 6.45 | 7.80 | |
| Bearing Holder Ass'y Includ.6a-8,14-17 | ||||
| 2A | 370007 | 41.11 | 49.75 | |
| Retaining Ring For D8 Shaft | ||||
| 3 | 940079 | 1.04 | 1.26 | |
| Coupling Cover | ||||
| 4 | 339378 | 1.04 | 1.26 | |
| Coupling Damper | ||||
| 5 | 339377 | 1.04 | 1.26 | |
| Second Shaft Assembly (old 339376) | ||||
| 6A | 370008 | 22.41 | 27.12 | |
| Ball Bearing 606vv | ||||
| 7 | 606ZZM | 15.40 | 18.63 | |
| Bearing Holder | ||||
| 8 | 338921 | 5.55 | 6.72 | |
| Machine Screw (w/sp. Washer) M4x12 | ||||
| 9 | 951039 | 1.05 | 1.27 | |
| Ring | ||||
| 10 | 339257 | 1.04 | 1.26 | |
| Return Spring | ||||
| 11 | 338926 | 1.04 | 1.26 | |
| Washer Spring | ||||
| 12 | 939548 | 4.65 | 5.63 | |
| No information available, not orderable | ||||
| 13 | 338915 | |||
| WASHER (A) (OLD 338915) | ||||
| 13A | 376366 | 1.20 | 1.45 | |
| Spindle And Gear Set | ||||
| 14 | 338923 | 9.90 | 11.98 | |
| Machine Screw M3x8 (10 Pcs.) Since 9.2012 For Eur | ||||
| 15 | 949203 | 1.05 | 1.27 | |
| Bearing Cover | ||||
| 16 | 338922 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 17 | 6901VV | |||
| Lower Guard | ||||
| 18A | 338905 | 3.60 | 4.36 | |
| Knob | ||||
| 19 | 338927 | 1.04 | 1.26 | |
| Tapping Screw D4x10 (black) | ||||
| 20 | 302090 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 21 | 338935 | |||
| No information available, not orderable | ||||
| 22 | 338916 | |||
| WASHER (B) (OLD 338916) | ||||
| 22A | 376367 | 1.04 | 1.26 | |
| Hex Flange Bolt | ||||
| 23 | 338917 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 24 | 339261 | |||
| PROTECTIVE CAP (OLD 339261) | ||||
| 24A | 373653 | 7.20 | 8.71 | |
| Machine Screw (w/washer) M4x12 (black) | ||||
| 25 | 333781 | 1.20 | 1.45 | |
| Machine Screw M4x8 (black) | ||||
| 26 | 323211 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 27 | 339220 | |||
| Rotor | ||||
| 28 | 361011 | 40.84 | 49.41 | |
| ROTOR (C) ASS'Y | ||||
| 28A | 361078 | 47.58 | 57.57 | |
| No information available, not orderable | ||||
| 29 | 339374 | |||
| Lock Lever | ||||
| 30 | 338918 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 31 | 338911 | |||
| LINK | ||||
| 31A | 371943 | 4.35 | 5.26 | |
| Gauge Plate (a) | ||||
| 32 | 339258 | 1.80 | 2.18 | |
| Spring | ||||
| 33 | 334225 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 34 | 307811 | |||
| Seal Lock Hex. Socket Set Screw M5x6 | ||||
| 35 | 319541 | 1.50 | 1.82 | |
| Gear Cover | ||||
| 36 | 338907 | 21.31 | 25.79 | |
| Gear Cover | ||||
| 36B | 376033 | 13.75 | 16.64 | |
| Cushion | ||||
| 37 | 310842 | 1.05 | 1.27 | |
| Flat Hd. Screw M5x20 (10 Pcs.) | ||||
| 38 | 949793 | 1.35 | 1.63 | |
| Wave Washer 8 | ||||
| 39 | 334242 | 1.73 | 2.09 | |
| No information available, not orderable | ||||
| 40 | 338929 | |||
| Cover Plate (2 needed) | ||||
| 40A | 371946 | 1.20 | 1.45 | |
| U-nut M5 | ||||
| 41 | 308387 | 1.05 | 1.27 | |
| NYLON MOER M5 | ||||
| 41A | 377291 | 1.00 | 1.21 | |
| Lever (a) | ||||
| 42 | 338930 | 3.15 | 3.81 | |
| Machine Screw (w/sp. Washer) M4x8 (black | ||||
| 43 | 325079 | 1.65 | 2.00 | |
| SCREW M4 WITH WASHER | ||||
| 43A | 372219 | 1.04 | 1.26 | |
| Cam | ||||
| 44 | 333681 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 45 | 338931 | |||
| Plate | ||||
| 45A | 371947 | 1.04 | 1.26 | |
| Lock Lever | ||||
| 46 | 338932 | 1.20 | 1.45 | |
| Cam Shaft | ||||
| 47 | 333680 | 5.10 | 6.17 | |
| Bolt (Square) M6X20 | ||||
| 47A | 375031 | 1.04 | 1.26 | |
| Spring | ||||
| 48 | 336650 | 1.05 | 1.27 | |
| Knob | ||||
| 49 | 338901 | 1.04 | 1.26 | |
| KNOB | ||||
| 49A | 374780 | 1.04 | 1.26 | |
| Trigger | ||||
| 50 | 338899 | 1.04 | 1.26 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 51 | 307887 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 52 | 338900 | |||
| Switch (1) | ||||
| 52A | 371322 | 12.30 | 14.88 | |
| Machine Screw (w/washers) M4x14 (black) | ||||
| 53 | 305691 | 1.05 | 1.27 | |
| Stator Sensor Pcb Ass'y | ||||
| 54 | 340913B | 139.98 | 169.37 | |
| No information available, not orderable | ||||
| 54B | 341189 | |||
| Connector 50092 (10 Pcs.) | ||||
| 55 | 959141 | 3.75 | 4.54 | |
| Cord Clip | ||||
| 56 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 57 | 984750 | |||
| No information available, not orderable | ||||
| 58 | 953327 | |||
| No information available, not orderable | ||||
| 59 | 338937 | |||
| Handle Set (green) | ||||
| 59A | 371937 | 16.78 | 20.30 | |
| Machine Screw (w/washers) M4x35 (black) | ||||
| 60 | 334141 | 1.80 | 2.18 | |
| Flow Guide | ||||
| 61 | 338919 | 1.04 | 1.26 | |
| Housing | ||||
| 62 | 338902 | 6.30 | 7.62 | |
| Cushion | ||||
| 63 | 336554 | 1.04 | 1.26 | |
| Rubber Ring | ||||
| 64 | 338928 | 1.04 | 1.26 | |
| Machine Screw (w/washer) M4x8 (black) | ||||
| 65 | 315500 | 1.35 | 1.63 | |
| Guide Piece (1) | ||||
| 66 | 338913 | 1.04 | 1.26 | |
| Washer Spring | ||||
| 67 | 942827 | 1.04 | 1.26 | |
| Special Nut M6 | ||||
| 68 | 333660 | 1.80 | 2.18 | |
| Lever | ||||
| 69 | 333659 | 1.80 | 2.18 | |
| Washer M6 (10 Pcs.) | ||||
| 70 | 949425 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x8 (black) | ||||
| 71 | 317200 | 1.65 | 2.00 | |
| Stopper Lever | ||||
| 72 | 333657 | 3.45 | 4.17 | |
| Spring (b) | ||||
| 73 | 339259 | 1.80 | 2.18 | |
| Wing Bolt M6x18 | ||||
| 74 | 307898 | 1.65 | 2.00 | |
| Spring | ||||
| 75 | 324876 | 1.80 | 2.18 | |
| Seal Lock Hex. Socket Set Screw M5x10 | ||||
| 76 | 334142 | 1.80 | 2.18 | |
| HEX. SOCKET SET SCREW M5X10 NEW | ||||
| 76A | 377288 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 77 | 338909 | |||
| Base plate KS 60 | ||||
| 77A | 371941 | 21.31 | 25.79 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 78 | 301653 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 79 | 301653 | 1.04 | 1.26 | |
| Handle | ||||
| 80 | 338934 | 3.15 | 3.81 | |
| Adjusting Screw (a) | ||||
| 82 | 339260 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 83 | 305490 | 1.04 | 1.26 | |
| Step Pin D6x13 | ||||
| 84 | 320163 | 1.50 | 1.82 | |
| Bolt (square) M6x22 | ||||
| 85 | 314623 | 1.80 | 2.18 | |
| Bevel Plate | ||||
| 86 | 338910 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 87 | 338912 | |||
| SUB LINK | ||||
| 87A | 371944 | 2.40 | 2.90 | |
| Special Bolt Till 7.2017 | ||||
| 88 | 333664 | 1.80 | 2.18 | |
| SPECIAL SCREW | ||||
| 88A | 371945 | 1.04 | 1.26 | |
| Super Lock Washer M6 Single-phase | ||||
| 89 | 948167 | 1.04 | 1.26 | |
| Bolt Ass'y (square) M6x22 Includ.89 | ||||
| 90 | 314620 | 6.45 | 7.80 | |
| Bolt (square) M6x22 | ||||
| 90A | 314623 | 1.80 | 2.18 | |
| Cord Holder | ||||
| 91 | 338938 | 1.04 | 1.26 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 92 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| 93 | 338908 | |||
| Base Ass'y Includ.57 | ||||
| 93A | 371939 | 35.61 | 43.09 | |
| Washer (1) | ||||
| 94 | 375110 | 1.04 | 1.26 | |
| Washer Spring | ||||
| 98 | 942827 | 1.04 | 1.26 | |
| LEVER | ||||
| 99 | 374246 | 2.70 | 3.27 | |
| LOCK NUT | ||||
| 100 | 374248 | 1.20 | 1.45 | |
| WAVE WASHER 12 MM NEW | ||||
| 101 | 375106 | 1.80 | 2.18 | |
| Washer | ||||
| 102 | 320975 | 1.05 | 1.27 | |
| Spacer (A) | ||||
| 103 | 376105 | 1.04 | 1.26 | |
| Wing Nut M6 | ||||
| 104 | 375026 | 1.20 | 1.45 | |
| Lever Set Including 20 | ||||
| 105A | 376031 | 18.70 | 22.63 | |
| Ball Bearing 606vv | ||||
| 106 | 606ZZM | 15.40 | 18.63 | |
| Ball bearing 609vvmc2ps2s | ||||
| 107 | 609VVM | 6.00 | 7.26 | |
| Spring Plate (1) | ||||
| 108 | 376621 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 940543 | |||
| No information available, not orderable | ||||
| 502 | 990666 | |||
| No information available, not orderable | ||||
| 503 | 302756 | |||
| No information available, not orderable | ||||
| 601 | 316161 | |||
| No information available, not orderable | ||||
| 601A | 375630 | |||
| Long Guide (650mm) | ||||
| 602 | 316104 | 91.58 | 110.81 | |
| Long Guide (650mm) | ||||
| 602A | 316104 | 91.58 | 110.81 | |
| No information available, not orderable | ||||
| 603 | 302756 | |||
| No information available, not orderable | ||||
| 604 | 329331 | |||
| Duct Adapter | ||||
| 604A | 339383 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 605 | 339188 | |||
| Special Bolt | ||||
| 606 | 321996 | 1.65 | 2.00 | |
