Here you will find all available parts and drawings of the 'Hikoki C6DC2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

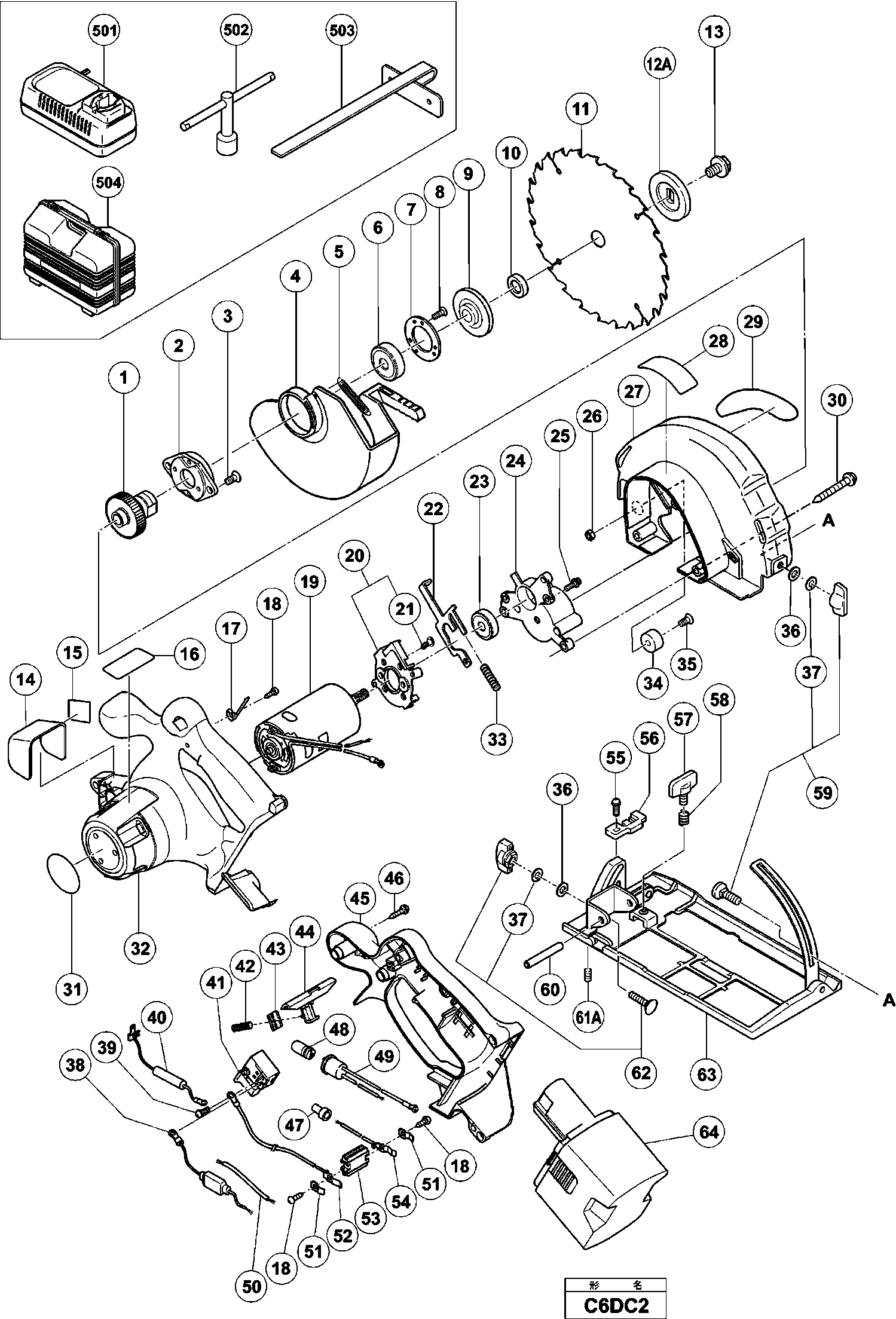

Technical drawing of model Hikoki C6DC2
Spare parts list of model Hikoki C6DC2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 317468 | |||
| Bearing Holder | ||||
| 2 | 308361 | 3.30 | 3.99 | |
| SEAL LOCK HD SCREW M5X12 | ||||
| 3 | 305568 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 4 | 317202 | |||
| Return Spring | ||||
| 5 | 317203 | 3.30 | 3.99 | |
| Ball Bearing 6002vvcmps2l | ||||
| 6 | 6002VV | 7.35 | 8.89 | |
| Bearing Cover | ||||
| 7 | 308362 | 2.40 | 2.90 | |
| Seal Lock Flat Hd. Screw M3x12 | ||||
| 8 | 308773 | 1.05 | 1.27 | |
| Washer (a2) | ||||
| 9 | 317465 | 9.00 | 10.89 | |
| Washer (a1) For Chi,pan,mex | ||||
| 9 | 317466 | 9.00 | 10.89 | |
| Ring D15.9/i.d14.5 For Chi,pan,mex | ||||
| 10 | 990100 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 11 | 317452 | |||
| Clamping Flange | ||||
| 12A | 324563 | 4.20 | 5.08 | |
| Bolt (w/washer) M7x17.5 | ||||
| 13 | 957749 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 14 | 317204 | |||
| No information available, not orderable | ||||
| 17 | 317211 | |||
| Screw | ||||
| 18 | 958715 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 19 | 320996 | |||
| No information available, not orderable | ||||
| 20 | 318347 | |||
| Special Bolt M5 | ||||
| 21 | 317914 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 22 | 317194 | |||
| Ball bearing 609vvmc2ps2s | ||||
| 23 | 609VVM | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 24 | 317195 | |||
| NYLOCK Bolt M4X12 | ||||
| 25 | 317196 | 1.65 | 2.00 | |
| Nut M5 (black) | ||||
| 26 | 302012 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 27 | 317201 | |||
| Tapping Screw (w/flange) D5x50 | ||||
| 30 | 317449 | 1.65 | 2.00 | |
| Housing (1) | ||||
| 32 | 321003 | 27.50 | 33.28 | |
| Spring | ||||
| 33 | 961803 | 1.20 | 1.45 | |
| Cushion | ||||
| 34 | 310842 | 1.05 | 1.27 | |
| Flat Hd. Screw M5x20 (10 Pcs.) | ||||
| 35 | 949793 | 1.35 | 1.63 | |
| Washer M6 (10 Pcs.) | ||||
| 36 | 949425 | 1.05 | 1.27 | |
| Super Lock Washer M6 Single-phase | ||||
| 37 | 948167 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 38 | 320998 | |||
| Machine Screw (w/washer) M3.5x6 | ||||
| 39 | 307887 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 40 | 317455 | |||
| SWITCH | ||||
| 41 | 980061 | 15.34 | 18.56 | |
| Spring (f) | ||||
| 42 | 301631 | 1.04 | 1.26 | |
| Terminal (a) | ||||
| 43 | 317207 | 1.35 | 1.63 | |
| Knob | ||||
| 44 | 319904 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 45 | 321004 | |||
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 46 | 305812 | 1.04 | 1.26 | |
| Connector 50092 (10 Pcs.) | ||||
| 47 | 959141 | 3.75 | 4.54 | |
| Lamp (12v 5w) | ||||
| 48 | 315229 | 9.30 | 11.25 | |
| No information available, not orderable | ||||
| 49 | 320999 | |||
| Internal Wire | ||||
| 50 | 321002 | 1.35 | 1.63 | |
| Spring | ||||
| 51 | 996118 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 52 | 321001 | |||
| Terminal Piece | ||||
| 53 | 320997 | 1.20 | 1.45 | |
| Terminal | ||||
| 54 | 321000 | 4.05 | 4.90 | |
| Machine Screw (w/washers) M4x8 (black) | ||||
| 55 | 317200 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 56 | 321006 | |||
| Wing Bolt M6x18 | ||||
| 57 | 307898 | 1.65 | 2.00 | |
| Spring | ||||
| 58 | 941056 | 1.05 | 1.27 | |
| Bolt Ass'y (square) M6x22 Includ.89 | ||||
| 59 | 314620 | 6.45 | 7.80 | |
| ROLL PIN D6X45 (10 PCS.) NEW | ||||
| 60 | 949523 | 6.06 | 7.33 | |
| Slotted Hd. Set Screw (seal Lock) M6x8 | ||||
| 61A | 308109 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 62 | 314621 | |||
| No information available, not orderable | ||||
| 63 | 321005 | |||
| No information available, not orderable | ||||
| 64 | 319764 | |||
| No information available, not orderable | ||||
| 502 | 940543 | |||
| No information available, not orderable | ||||
| 503 | 302756 | |||
| No information available, not orderable | ||||
| 504 | 321100 | |||
