Here you will find all available parts and drawings of the 'Hikoki C6BUY'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

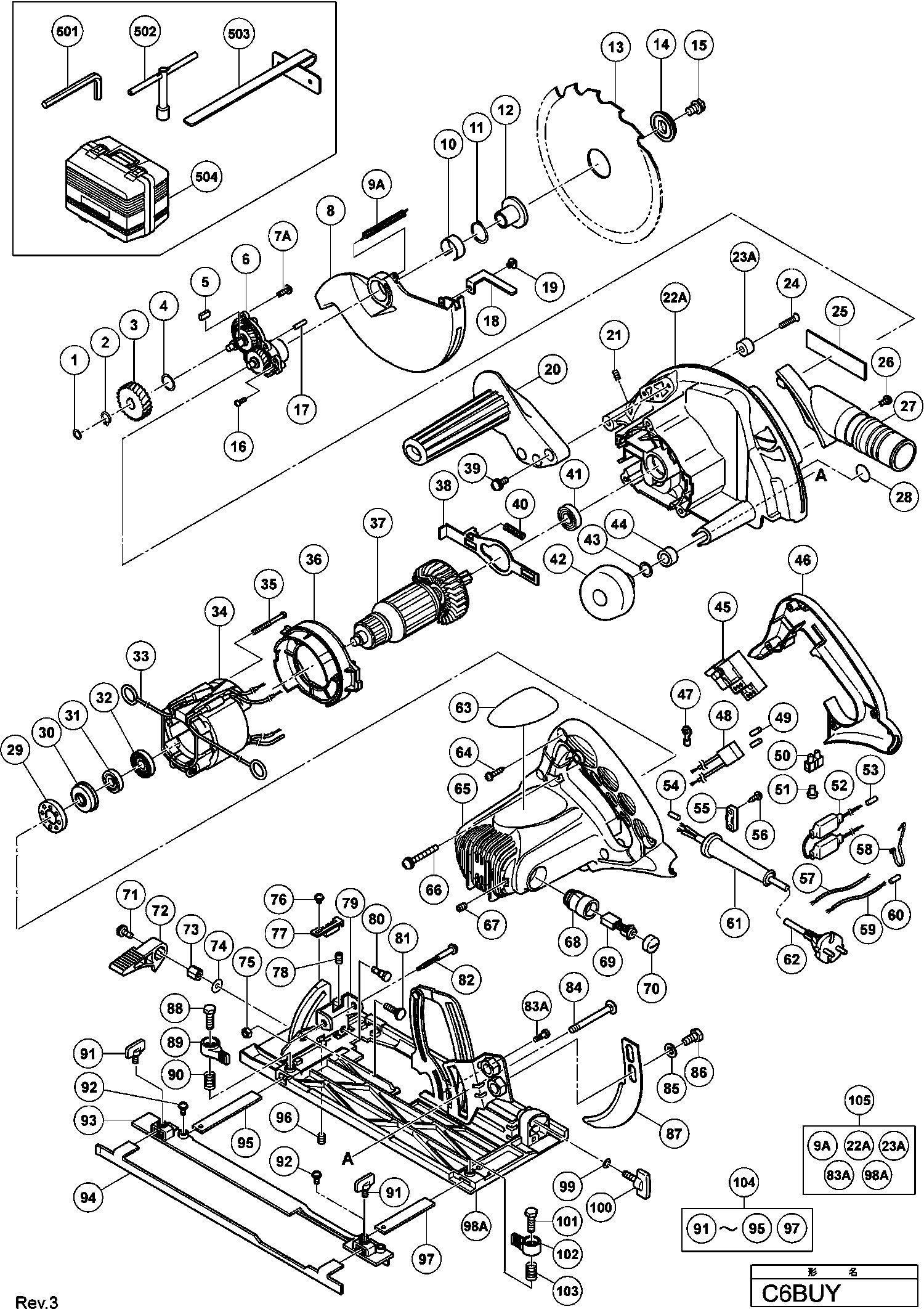

Technical drawing of model Hikoki C6BUY
Spare parts list of model Hikoki C6BUY
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Ring | ||||
| 1 | 991733 | 1.05 | 1.27 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 2 | 316487 | 1.65 | 2.00 | |
| First Gear | ||||
| 3 | 331756 | 8.25 | 9.98 | |
| O-ring | ||||
| 4 | 331304 | 1.05 | 1.27 | |
| Feather Key 4x4x10 | ||||
| 5 | 930511 | 2.40 | 2.90 | |
| Bearing Holder | ||||
| 6 | 330999 | 55.14 | 66.72 | |
| Seal Lock Screw (w/washer) M4x12 | ||||
| 7A | 328628 | 1.05 | 1.27 | |
| Guard | ||||
| 8 | 330967 | 11.85 | 14.34 | |
| Return Spring | ||||
| 9A | 336975 | 1.04 | 1.26 | |
| WASHER | ||||
| 10 | 330981 | 1.05 | 1.27 | |
| Washer Spring | ||||
| 11 | 939548 | 4.65 | 5.63 | |
| Washer (a) | ||||
| 12 | 330985 | 5.03 | 6.08 | |
| No information available, not orderable | ||||
| 13 | 330889 | |||
| Flange | ||||
| 14 | 330986 | 3.15 | 3.81 | |
| Bolt (w/washer) M7x17.5 | ||||
| 15 | 957749 | 1.05 | 1.27 | |
| Machine Screw M3 | ||||
| 16 | 331001 | 1.95 | 2.36 | |
| Needle Roller | ||||
| 17 | 998426 | 1.05 | 1.27 | |
| Lever | ||||
| 18 | 330977 | 1.05 | 1.27 | |
| Machine Screw (w/sp. Washer) M4x8 (black | ||||
| 19 | 325079 | 1.65 | 2.00 | |
| Side Handle | ||||
| 20 | 330973 | 4.20 | 5.08 | |
| Hex. Socket Set Screw M5x6 Till 2.1986 | ||||
| 21 | 962782 | 1.04 | 1.26 | |
| Gear Cover Since 12.2013 | ||||
| 22A | 337078 | 19.94 | 24.12 | |
| Cushion | ||||
| 23A | 337080 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 24 | 949794 | 1.65 | 2.00 | |
| Brand Plate | ||||
| 25 | 328922 | 1.95 | 2.36 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 26 | 935196 | 1.04 | 1.26 | |
| Rubber Bushing | ||||
| 29 | 331006 | 1.95 | 2.36 | |
| Bushing | ||||
| 30 | 322089 | 4.80 | 5.81 | |
| Ball Bearing 608vvc2ps2l | ||||
| 31 | 608VVM | 5.70 | 6.90 | |
| Dust Seal | ||||
| 32 | 315877 | 1.05 | 1.27 | |
| Brush Terminal | ||||
| 33 | 930703 | 2.40 | 2.90 | |
| Stator 220v-230v | ||||
| 34 | 340763E | 57.95 | 70.12 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 35 | 953174 | 1.04 | 1.26 | |
| Fan Guide | ||||
| 36 | 330971 | 3.45 | 4.17 | |
| Armature 230v | ||||
| 37 | 360882E | 94.46 | 114.30 | |
| Lock Lever | ||||
| 38 | 330976 | 2.10 | 2.54 | |
| Machine Screw (w/washers) M5x16 | ||||
| 39 | 990541 | 1.05 | 1.27 | |
| Spring (a) | ||||
| 40 | 330982 | 1.05 | 1.27 | |
| Ball Bearing 6000vvcmps2l | ||||
| 41 | 6000VV | 6.15 | 7.44 | |
| Knob | ||||
| 42 | 324660 | 4.35 | 5.26 | |
| O-ring | ||||
| 43 | 676531 | 1.04 | 1.26 | |
| Socket | ||||
| 44 | 319830 | 2.10 | 2.54 | |
| Switch | ||||
| 45 | 316445 | 23.38 | 28.28 | |
| Handle Cover | ||||
| 46 | 331758 | 13.35 | 16.15 | |
| Noise Suppressor | ||||
| 48 | 930039 | 1.95 | 2.36 | |
| Threaded cable sleeve | ||||
| 49 | 981373 | 1.05 | 1.27 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 50 | 938307 | 2.13 | 2.57 | |
| Connector 50092 (10 Pcs.) | ||||
| 51 | 959141 | 3.75 | 4.54 | |
| Threaded cable sleeve | ||||
| 54 | 981373 | 1.05 | 1.27 | |
| Cord Clip | ||||
| 55 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 56 | 984750 | |||
| Internal wire (blue) 70l | ||||
| 57 | 324680 | 1.05 | 1.27 | |
| Wire Band | ||||
| 58A | 313505 | 1.05 | 1.27 | |
| Cord Armor D8.8 | ||||
| 61 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 61 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 62 | 500439Z | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 64 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 65 | 331760 | |||
| Machine Screw (w/washers) M5x40 (black) | ||||
| 66 | 322123 | 1.65 | 2.00 | |
| Hex Adjustment Screw M5x8 | ||||
| 67 | 938477 | 1.05 | 1.27 | |
| Brush Holder (2) | ||||
| 68 | 957051 | 5.25 | 6.35 | |
| Carbon Brush (1 Pair) | ||||
| 69 | 999056 | 6.45 | 7.80 | |
| Brush Cap | ||||
| 70 | 935829 | 1.05 | 1.27 | |
| Seal Lock Screw (w/sp. Washers) M6x14 | ||||
| 71 | 322260 | 1.50 | 1.82 | |
| Lever (a) W/stopper | ||||
| 72 | 322600 | 3.15 | 3.81 | |
| Lock Nut | ||||
| 73 | 328048 | 1.05 | 1.27 | |
| Washer | ||||
| 74 | 320975 | 1.05 | 1.27 | |
| U-nut M5 | ||||
| 75 | 308387 | 1.05 | 1.27 | |
| Machine Screw (w/sp. Washer) M4(black) | ||||
| 76 | 331003 | 1.95 | 2.36 | |
| Clamp | ||||
| 77 | 324659 | 1.95 | 2.36 | |
| Seal Lock Hex. Socket Set Screw M5x6 | ||||
| 78 | 319541 | 1.50 | 1.82 | |
| Bevel Plate | ||||
| 79 | 330975 | 3.15 | 3.81 | |
| Step Pin D6x13 | ||||
| 80 | 320163 | 1.50 | 1.82 | |
| Nut | ||||
| 81 | 942808 | 1.05 | 1.27 | |
| Adjusting Screw (a) | ||||
| 82 | 322096 | 1.95 | 2.36 | |
| Special Screw M6 Since 12.2013 | ||||
| 83A | 337081 | 1.04 | 1.26 | |
| Diagonal Bolt M8 | ||||
| 84 | 303800 | 2.55 | 3.09 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 85 | 949432 | 1.05 | 1.27 | |
| Bolt (h) M6x10 Sui,saf | ||||
| 86 | 331513 | 1.05 | 1.27 | |
| Riving Knife | ||||
| 87 | 330974 | 2.10 | 2.54 | |
| Bolt M6x10 Sui | ||||
| 88 | 331004 | 5.55 | 6.72 | |
| Lever | ||||
| 89 | 330972 | 1.95 | 2.36 | |
| Spring (b) | ||||
| 90 | 330983 | 1.05 | 1.27 | |
| Wing Bolt M6x12 | ||||
| 91 | 307947 | 1.35 | 1.63 | |
| Machine Screw M5x12 Black | ||||
| 92 | 331761 | 1.65 | 2.00 | |
| Guide Rail Adapter Sui | ||||
| 93 | 330968 | 8.33 | 10.07 | |
| Guide Rail Plate Sui | ||||
| 94 | 330978 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 95 | 330979 | |||
| Slotted Hd. Set Screw (seal Lock) M6x6 | ||||
| 96 | 302469 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 97 | 330980 | |||
| Base | ||||
| 98A | 337082 | 33.55 | 40.60 | |
| Washer M6 (10 Pcs.) | ||||
| 99 | 949425 | 1.05 | 1.27 | |
| Wing Bolt M6x17 | ||||
| 100 | 302459 | 1.05 | 1.27 | |
| Bolt M6x10 Sui | ||||
| 101 | 331004 | 5.55 | 6.72 | |
| Lever | ||||
| 102 | 330972 | 1.95 | 2.36 | |
| Spring (b) | ||||
| 103 | 330983 | 1.05 | 1.27 | |
| Gear Cover Set Includ.9a,22a,23a,74a,89a Till 11. | ||||
| 105 | 337084 | 55.00 | 66.55 | |
| No information available, not orderable | ||||
| 501 | 990666 | |||
| No information available, not orderable | ||||
| 502 | 940543 | |||
| No information available, not orderable | ||||
| 503 | 302756 | |||
| No information available, not orderable | ||||
| 504 | 331497 | |||
