Here you will find all available parts and drawings of the 'Hikoki C6BUM'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

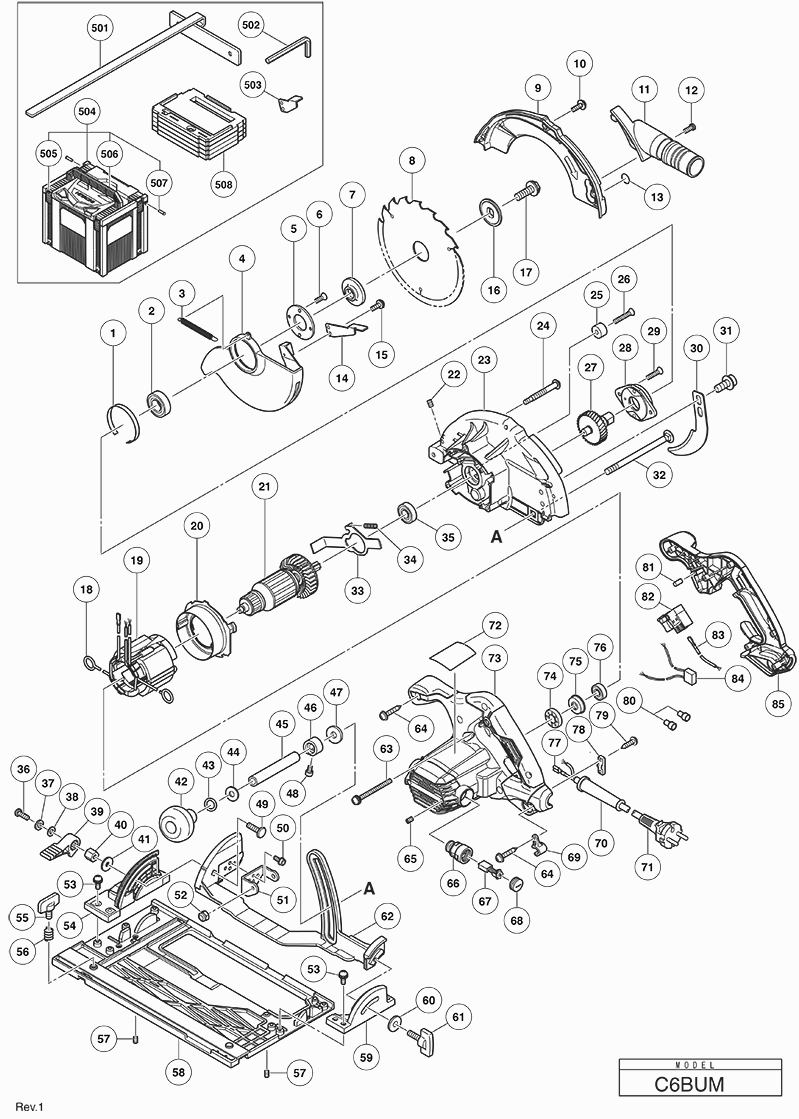

Technical drawing of model Hikoki C6BUM
Spare parts list of model Hikoki C6BUM
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Liner | ||||
| 1 | 998887 | 9.30 | 11.25 | |
| BALL BEARING 6003VVCM (NYLON RETAINER) | ||||
| 2 | 327694 | 5.25 | 6.35 | |
| Return Spring | ||||
| 3 | 370374 | 1.04 | 1.26 | |
| Lower Guard | ||||
| 4 | 370357 | 11.10 | 13.43 | |
| Bearing Cover | ||||
| 5 | 302435 | 1.35 | 1.63 | |
| Seal Lock Flat Hd. Screw M4x10 | ||||
| 6 | 990430 | 1.04 | 1.26 | |
| Washer (a) | ||||
| 7 | 370272 | 2.25 | 2.72 | |
| No information available, not orderable | ||||
| 8 | 324678 | |||
| Saw Cover | ||||
| 9 | 370355 | 10.50 | 12.70 | |
| Saw Cover | ||||
| 9A | 370355 | 10.50 | 12.70 | |
| Machine Screw (w/sp. Washer) M4x12 | ||||
| 10 | 951039 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 11 | 997247 | |||
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 12 | 935196 | 1.04 | 1.26 | |
| Lever | ||||
| 14 | 370542 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 15 | 935196 | 1.04 | 1.26 | |
| Washer (b) | ||||
| 16 | 370279 | 2.25 | 2.72 | |
| Hex. Socket Hd. Bolt M8x15.5 | ||||
| 17 | 324662 | 1.95 | 2.36 | |
| Brush Terminal | ||||
| 18 | 930703 | 2.40 | 2.90 | |
| Stator 220v-230v | ||||
| 19 | 340946E | 41.25 | 49.91 | |
| Fan Guide | ||||
| 20 | 370342 | 1.20 | 1.45 | |
| Armature 230v | ||||
| 21 | 361037E | 34.79 | 42.09 | |
| Hex. Socket Set Screw M5x6 Till 2.1986 | ||||
| 22 | 962782 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 23 | 370352 | 21.59 | 26.12 | |
| Adjusting Screw (a) | ||||
| 24 | 322096 | 1.95 | 2.36 | |
| Cushion | ||||
| 25 | 961729 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 26 | 949794 | 1.65 | 2.00 | |
| Spindle And Gear Set | ||||
| 27 | 370372 | 11.40 | 13.79 | |
| Bearing Holder | ||||
| 28 | 302433 | 2.55 | 3.09 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 29 | 992013 | 1.05 | 1.27 | |
| Riving Knife | ||||
| 30 | 370366 | 3.60 | 4.36 | |
| Hex. Socket Hd. Bolt M8 | ||||
| 31 | 370287 | 1.05 | 1.27 | |
| Diagonal Bolt M8 | ||||
| 32 | 370662 | 8.40 | 10.16 | |
| Lock Lever | ||||
| 33 | 370363 | 1.20 | 1.45 | |
| Spring (a) | ||||
| 34 | 330982 | 1.05 | 1.27 | |
| Ball Bearing 6001vv | ||||
| 35 | 6001VV | 6.60 | 7.99 | |
| Machine Screw M6x14 | ||||
| 36 | 333922 | 1.20 | 1.45 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 37 | 949455 | 1.05 | 1.27 | |
| Washer M6 (10 Pcs.) | ||||
| 38 | 949425 | 1.05 | 1.27 | |
| Lever (a) | ||||
| 39 | 323923 | 1.05 | 1.27 | |
| Lock Nut | ||||
| 40 | 333921 | 4.20 | 5.08 | |
| Washer (g) | ||||
| 41 | 318452 | 1.20 | 1.45 | |
| Knob | ||||
| 42 | 324660 | 4.35 | 5.26 | |
| O-RING (P-7) (OUD 676531) | ||||
| 43 | 889335 | 1.00 | 1.21 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 44 | 949433 | 1.05 | 1.27 | |
| Sleeve (a) | ||||
| 45 | 370825 | 4.50 | 5.44 | |
| Sleeve (b) | ||||
| 46 | 370268 | 3.00 | 3.63 | |
| Washer (1) | ||||
| 47 | 370376 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M4x6 | ||||
| 48 | 370278 | 1.04 | 1.26 | |
| Bolt (square) D6 | ||||
| 49 | 370377 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 50 | 305755 | 1.04 | 1.26 | |
| Bevel Plate (c) | ||||
| 51 | 370370 | 1.04 | 1.26 | |
| U-nut M5 | ||||
| 52 | 308387 | 1.05 | 1.27 | |
| NYLON MOER M5 | ||||
| 52A | 377291 | 1.00 | 1.21 | |
| Machine Screw (w/washers) M5x14 (black) | ||||
| 53 | 678653 | 1.05 | 1.27 | |
| Bevel Plate (a) | ||||
| 54 | 370347 | 2.85 | 3.45 | |
| Wing Bolt M6x15 | ||||
| 55 | 301806 | 1.05 | 1.27 | |
| Spring (old 996224) | ||||
| 56 | 947859 | 1.04 | 1.26 | |
| Slotted Hd. Set Screw (seal Lock) M6x6 | ||||
| 57 | 302469 | 1.05 | 1.27 | |
| NYLOCK SET SCREW M6 NEW | ||||
| 57A | 379529 | 1.00 | 1.21 | |
| Base | ||||
| 58 | 370358 | 25.30 | 30.61 | |
| Bevel Plate (b) | ||||
| 59 | 370348 | 2.40 | 2.90 | |
| Washer M6 (10 Pcs.) | ||||
| 60 | 949425 | 1.05 | 1.27 | |
| Wing Bolt M6x17 | ||||
| 61 | 302459 | 1.05 | 1.27 | |
| Link | ||||
| 62 | 370362 | 17.05 | 20.63 | |
| Machine Screw (w/washers) M5x50 (black) | ||||
| 63 | 997841 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 64 | 301653 | 1.04 | 1.26 | |
| Hex Adjustment Screw M5x8 | ||||
| 65 | 938477 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 66 | 960685 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 67 | 999056 | 6.45 | 7.80 | |
| Brush Cap | ||||
| 68 | 945161 | 1.20 | 1.45 | |
| Cord Holder | ||||
| 69 | 370269 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 70 | 953327 | |||
| No information available, not orderable | ||||
| 71 | 500390Z | |||
| Housing Ass'y Includ.69,70 | ||||
| 73 | 370820 | 29.70 | 35.94 | |
| Housing Ass'y Includ.69,70 | ||||
| 73A | 370820 | 29.70 | 35.94 | |
| Rubber Bushing | ||||
| 74 | 331006 | 1.95 | 2.36 | |
| Bushing | ||||
| 75 | 322089 | 4.80 | 5.81 | |
| Ball Bearing 608vv | ||||
| 76 | 333945 | 1.80 | 2.18 | |
| Faston | ||||
| 77 | 331707 | 1.88 | 2.27 | |
| Cord Clip | ||||
| 78 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 79 | 984750 | |||
| Connector 50092 (10 Pcs.) | ||||
| 80 | 959141 | 3.75 | 4.54 | |
| RUBBER PEN | ||||
| 81 | 931701 | 1.05 | 1.27 | |
| Switch | ||||
| 82 | 334474 | 10.05 | 12.16 | |
| No information available, not orderable | ||||
| 83 | 370661 | |||
| Noise Suppressor | ||||
| 84 | 930039 | 1.95 | 2.36 | |
| Handle Cover | ||||
| 85 | 370341 | 9.15 | 11.07 | |
| PLATE (C) | ||||
| 86 | 371212 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 87 | 935196 | 1.04 | 1.26 | |
| Guide (1) | ||||
| 501 | 370587 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 502 | 872422 | |||
| Lever (1) | ||||
| 503 | 370264 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 504 | 337528 | |||
| No information available, not orderable | ||||
| 505 | 336472 | |||
| No information available, not orderable | ||||
| 506 | 336473 | |||
| No information available, not orderable | ||||
| 507 | 336474 | |||
| No information available, not orderable | ||||
| 508 | 370588 | |||
