Here you will find all available parts and drawings of the 'Hikoki C3609DUM'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

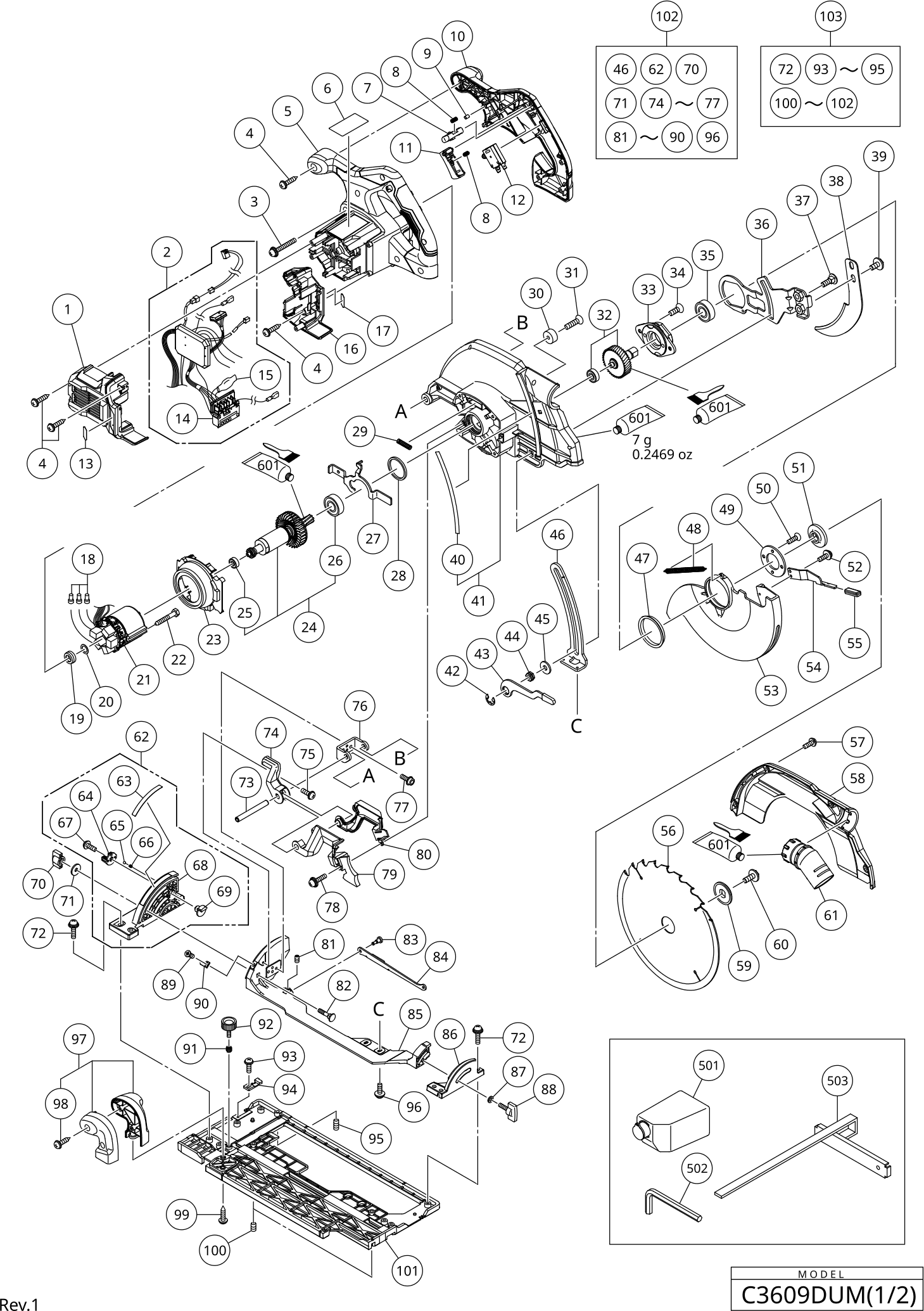

Technical drawing of model Hikoki C3609DUM
Spare parts list of model Hikoki C3609DUM
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Washer (a) | ||||
| *51 | 370271 | 2.25 | 2.72 | |
| Washer (a) | ||||
| *51 | 370272 | 2.25 | 2.72 | |
| No information available, not orderable | ||||
| *56 | 382813 | |||
| No information available, not orderable | ||||
| 1 | 382939 | |||
| No information available, not orderable | ||||
| 2 | 382957 | |||
| Machine Screw (w/washers) M5x50 (black) | ||||
| 3 | 997841 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 4 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 5 | 382936 | |||
| KNOB NEW | ||||
| 7 | 379531 | 1.00 | 1.21 | |
| Spring (f) | ||||
| 8 | 301631 | 1.04 | 1.26 | |
| RUBBER PEN | ||||
| 9 | 931701 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 10 | 382937 | |||
| No information available, not orderable | ||||
| 11 | 382942 | |||
| SWITCH NEW | ||||
| 12 | 379415 | 13.42 | 16.24 | |
| MV LABEL (A) (2) NEW | ||||
| 13 | 379349 | 1.00 | 1.21 | |
| BATTERY TERMINAL NEW | ||||
| 14 | 379931 | 5.28 | 6.39 | |
| FUSE NEW | ||||
| 15 | 379283 | 7.38 | 8.93 | |
| No information available, not orderable | ||||
| 16 | 382938 | |||
| MV LABEL (B) (2) NEW | ||||
| 17 | 379350 | 1.00 | 1.21 | |
| Connector 50092 (10 Pcs.) | ||||
| 18 | 959141 | 3.75 | 4.54 | |
| RUBBER BUSH | ||||
| 19 | 373516 | 1.04 | 1.26 | |
| Washer (1) | ||||
| 20 | 375110 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 21 | 341216 | |||
| Hex head self-tapping screw D4x55 | ||||
| 22 | 981421 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 23 | 382941 | |||
| No information available, not orderable | ||||
| 24 | 361246 | |||
| Ball Bearing 606vv | ||||
| 25 | 606ZZM | 15.40 | 18.63 | |
| Ball Bearing 6202vvcmps2l | ||||
| 26 | 6202VV | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| 27 | 382949 | |||
| Rubber Ring | ||||
| 28 | 303792 | 1.05 | 1.27 | |
| Spring | ||||
| 29 | 334225 | 1.80 | 2.18 | |
| Cushion | ||||
| 30 | 337080 | 1.05 | 1.27 | |
| SCHROEF M6X20 | ||||
| 31 | 377945 | 1.00 | 1.21 | |
| Spindle And Gear Set | ||||
| 32 | 370276 | 11.55 | 13.98 | |
| Bearing Holder | ||||
| 33 | 370275 | 5.40 | 6.53 | |
| Seal Lock Flat Hd. Screw M6x14 | ||||
| 34 | 303797 | 1.05 | 1.27 | |
| Ball Bearing 6202vvcmps2l | ||||
| 35 | 6202VV | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| 36 | 382951 | |||
| No information available, not orderable | ||||
| 37 | 382954 | |||
| No information available, not orderable | ||||
| 38 | 382953 | |||
| Hex. Socket Hd. Bolt M8 | ||||
| 39 | 370287 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 40 | 382935 | |||
| No information available, not orderable | ||||
| 41 | 382934 | |||
| Ring | ||||
| 42 | 670514 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 43 | 382948 | |||
| No information available, not orderable | ||||
| 44 | 382955 | |||
| No information available, not orderable | ||||
| 45 | 318929 | |||
| No information available, not orderable | ||||
| 46 | 382950 | |||
| No information available, not orderable | ||||
| 47 | 382943 | |||
| Return Spring | ||||
| 48 | 370543 | 1.65 | 2.00 | |
| Bearing Cover (1) | ||||
| 49 | 370277 | 1.04 | 1.26 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 50 | 992013 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 52 | 935196 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 53 | 383164 | |||
| No information available, not orderable | ||||
| 54 | 382944 | |||
| No information available, not orderable | ||||
| 55 | 382945 | |||
| Machine Screw (w/sp. Washer) M4x12 | ||||
| 57 | 951039 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 58 | 382933 | |||
| Washer (b) | ||||
| 59 | 370279 | 2.25 | 2.72 | |
| Hex. Socket Hd. Bolt M8x15.5 | ||||
| 60 | 324662 | 1.95 | 2.36 | |
| EXHAUST NOZZLE NEW | ||||
| 61 | 379613 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 62 | 382958 | |||
| No information available, not orderable | ||||
| 63 | 382963 | |||
| No information available, not orderable | ||||
| 64 | 382960 | |||
| Steel Ball D3.97 (10 Pcs.) | ||||
| 65 | 959155 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 66 | 382961 | |||
| Machine Screw (w/washer) M4x12 (black) | ||||
| 67 | 333781 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 68 | 382959 | |||
| No information available, not orderable | ||||
| 69 | 382962 | |||
| WING NUT M6 NEW | ||||
| 70 | 380791 | 1.00 | 1.21 | |
| Washer (g) | ||||
| 71 | 318452 | 1.20 | 1.45 | |
| Machine Screw (w/washers) M5x14 (black) | ||||
| 72 | 678653 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 73 | 382940 | |||
| No information available, not orderable | ||||
| 74 | 382956 | |||
| Machine Screw (w/washer) M4x8 (black) | ||||
| 75 | 315500 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 76 | 382952 | |||
| No information available, not orderable | ||||
| 77 | 383165 | |||
| Machine Screw (w/washers) M4x16 | ||||
| 78 | 993539 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 79 | 383166 | |||
| No information available, not orderable | ||||
| 80 | 383167 | |||
| Seal Lock Hex. Socket Set Screw M5x6 | ||||
| 81 | 319541 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 82 | 383168 | |||
| No information available, not orderable | ||||
| 83 | 382947 | |||
| No information available, not orderable | ||||
| 84 | 382965 | |||
| No information available, not orderable | ||||
| 85 | 382932 | |||
| No information available, not orderable | ||||
| 86 | 382964 | |||
| Washer M6 (10 Pcs.) | ||||
| 87 | 949425 | 1.05 | 1.27 | |
| Wing Bolt M6x22 | ||||
| 88 | 322959 | 1.05 | 1.27 | |
| SPECIAL BOLT NEW | ||||
| 89 | 380795 | 1.00 | 1.21 | |
| INDICATOR NEW | ||||
| 90 | 380794 | 1.62 | 1.96 | |
| Spring | ||||
| 91 | 324876 | 1.80 | 2.18 | |
| KNOB BOLT M6X17 NEW | ||||
| 92 | 379538 | 1.00 | 1.21 | |
| Machine Screw (w/washer) M4x8 (black) | ||||
| 93 | 315500 | 1.35 | 1.63 | |
| GUIDE PIECE NEW | ||||
| 94 | 380797 | 1.00 | 1.21 | |
| NYLOCK SET SCREW M6 (OUD 382231) | ||||
| 95 | 382231 | 1.00 | 1.21 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 96 | 935196 | 1.04 | 1.26 | |
| SUB HANDLE ASS'Y NEW | ||||
| 97 | 380799 | 1.08 | 1.31 | |
| No information available, not orderable | ||||
| 98 | 307811 | |||
| No information available, not orderable | ||||
| 99 | 307811 | |||
| No information available, not orderable | ||||
| 100 | 382946 | |||
| No information available, not orderable | ||||
| 101 | 382930 | |||
| No information available, not orderable | ||||
| 102 | 382931 | |||
| No information available, not orderable | ||||
| 103 | 382929 | |||
| No information available, not orderable | ||||
| 501 | 379266 | |||
| No information available, not orderable | ||||
| 502 | 872422 | |||
| No information available, not orderable | ||||
| 503 | 303888 | |||
| No information available, not orderable | ||||
| 601 | 930035 | |||
| No information available, not orderable | ||||
| 604 | 379259 | |||
| No information available, not orderable | ||||
| 605 | 379264 | |||
| No information available, not orderable | ||||
| 610 | 382814 | |||
| No information available, not orderable | ||||
| 611 | 382815 | |||
| No information available, not orderable | ||||
| 612 | 382816 | |||
