Here you will find all available parts and drawings of the 'Hikoki C3607DAW2Z'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

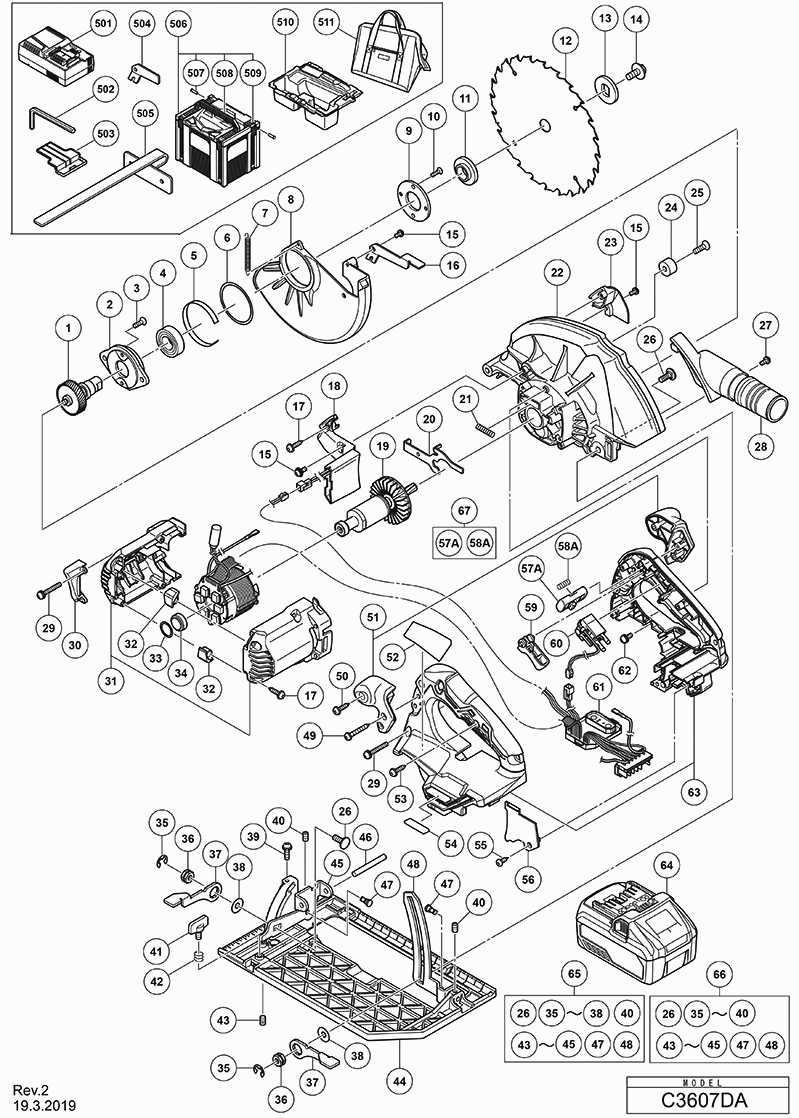

Technical drawing of model Hikoki C3607DAW2Z
Spare parts list of model Hikoki C3607DAW2Z
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gear shaft | ||||
| 1 | 373643 | 14.70 | 17.79 | |
| Bearing Holder | ||||
| 2 | 373810 | 2.25 | 2.72 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 3 | 992013 | 1.05 | 1.27 | |
| Ball Bearing 6003vvcmps2l | ||||
| 4 | 6003VV | 7.65 | 9.26 | |
| BUSH | ||||
| 5 | 373811 | 1.80 | 2.18 | |
| Ring | ||||
| 6 | 370591 | 1.04 | 1.26 | |
| Return Spring | ||||
| 7 | 373011 | 1.04 | 1.26 | |
| Lower Guard | ||||
| 8 | 373812 | 13.75 | 16.64 | |
| Bearing Cover | ||||
| 9 | 302435 | 1.35 | 1.63 | |
| Seal Lock Flat Hd. Screw M4x10 | ||||
| 10 | 990430 | 1.04 | 1.26 | |
| Washer (a) | ||||
| 11 | 324597 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 12 | 302412 | |||
| Flange | ||||
| 13 | 333556 | 1.20 | 1.45 | |
| Hex Flange Bolt | ||||
| 14 | 338917 | 1.04 | 1.26 | |
| Lever | ||||
| 16 | 328045 | 1.20 | 1.45 | |
| LED | ||||
| 18 | 373644 | 3.90 | 4.72 | |
| ROTOR | ||||
| 19 | 361087 | 37.26 | 45.09 | |
| Lock Lever | ||||
| 20 | 338918 | 1.50 | 1.82 | |
| Spring | ||||
| 21 | 334225 | 1.80 | 2.18 | |
| Gear Housing | ||||
| 22 | 373641 | 28.33 | 34.27 | |
| FLOW GUIDE (A) | ||||
| 23 | 373814 | 1.20 | 1.45 | |
| Cushion | ||||
| 24 | 337080 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 25 | 949794 | 1.65 | 2.00 | |
| BOUT M6 (SQUARE) | ||||
| 26 | 372747 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 27 | 935196 | 1.04 | 1.26 | |
| DUST EXTRACTION ADAPTER | ||||
| 28 | 372757 | 3.00 | 3.63 | |
| Machine Screw (w/washers) M4x35 (black) | ||||
| 29 | 334141 | 1.80 | 2.18 | |
| Flow Guide | ||||
| 30 | 338919 | 1.04 | 1.26 | |
| Housing | ||||
| 31 | 338902 | 6.30 | 7.62 | |
| Cushion | ||||
| 32 | 336554 | 1.04 | 1.26 | |
| Washer | ||||
| 33 | 372734 | 1.04 | 1.26 | |
| Rubber Ring | ||||
| 34 | 338928 | 1.04 | 1.26 | |
| Ring | ||||
| 35 | 670514 | 1.05 | 1.27 | |
| LOCK NUT | ||||
| 36 | 372746 | 1.05 | 1.27 | |
| LEVER | ||||
| 37 | 372745 | 1.05 | 1.27 | |
| Washer | ||||
| 38 | 320975 | 1.05 | 1.27 | |
| Borgscrew M4x14 with washer | ||||
| 39 | 373010 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Set Screw M5x6 | ||||
| 40 | 319541 | 1.50 | 1.82 | |
| Wing Bolt M6x15 | ||||
| 41 | 301806 | 1.05 | 1.27 | |
| Spring (old 996224) | ||||
| 42 | 947859 | 1.04 | 1.26 | |
| SEAL LOCK HEX. SOCKET SET SCREW M6X10 | ||||
| 43 | 373815 | 1.04 | 1.26 | |
| Base Body | ||||
| 44 | 372742 | 15.26 | 18.47 | |
| BEVEL PLATE | ||||
| 45 | 372744 | 1.50 | 1.82 | |
| Roll Pin D6x50 (10 Pcs.) | ||||
| 46 | 949750 | 7.35 | 8.89 | |
| Step Pin D6x13 | ||||
| 47 | 320163 | 1.50 | 1.82 | |
| LINK | ||||
| 48 | 372754 | 1.95 | 2.36 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 49 | 305490 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 50 | 301653 | 1.04 | 1.26 | |
| Handle | ||||
| 51 | 338934 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 53 | 307811 | |||
| Tapping Screw D3x12 (black) | ||||
| 55 | 334333 | 1.80 | 2.18 | |
| HANDLE COVER (GREEN) | ||||
| 56 | 371909 | 1.95 | 2.36 | |
| KNOB | ||||
| 57A | 374780 | 1.04 | 1.26 | |
| SPRING | ||||
| 58A | 374781 | 1.04 | 1.26 | |
| Trigger | ||||
| 59 | 338899 | 1.04 | 1.26 | |
| SWITCH | ||||
| 60 | 371907 | 13.75 | 16.64 | |
| No information available, not orderable | ||||
| 61 | 341002 | |||
| Machine Screw (w/washers) M4x14 (black) | ||||
| 62 | 305691 | 1.05 | 1.27 | |
| HANDLE SET (GREEN) | ||||
| 63 | 371908 | 18.70 | 22.63 | |
| No information available, not orderable | ||||
| 64 | 371750 | |||
| Base Body | ||||
| 66 | 373817 | 34.79 | 42.09 | |
| Knob Spring Set | ||||
| 67 | 374782 | 2.25 | 2.72 | |
| No information available, not orderable | ||||
| 502 | 944459 | |||
| Battery Cover | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 505 | 302691 | |||
| No information available, not orderable | ||||
| 506 | 337528 | |||
| No information available, not orderable | ||||
| 507 | 336474 | |||
| No information available, not orderable | ||||
| 508 | 336473 | |||
| No information available, not orderable | ||||
| 509 | 336472 | |||
| No information available, not orderable | ||||
| 510 | 373646 | |||
