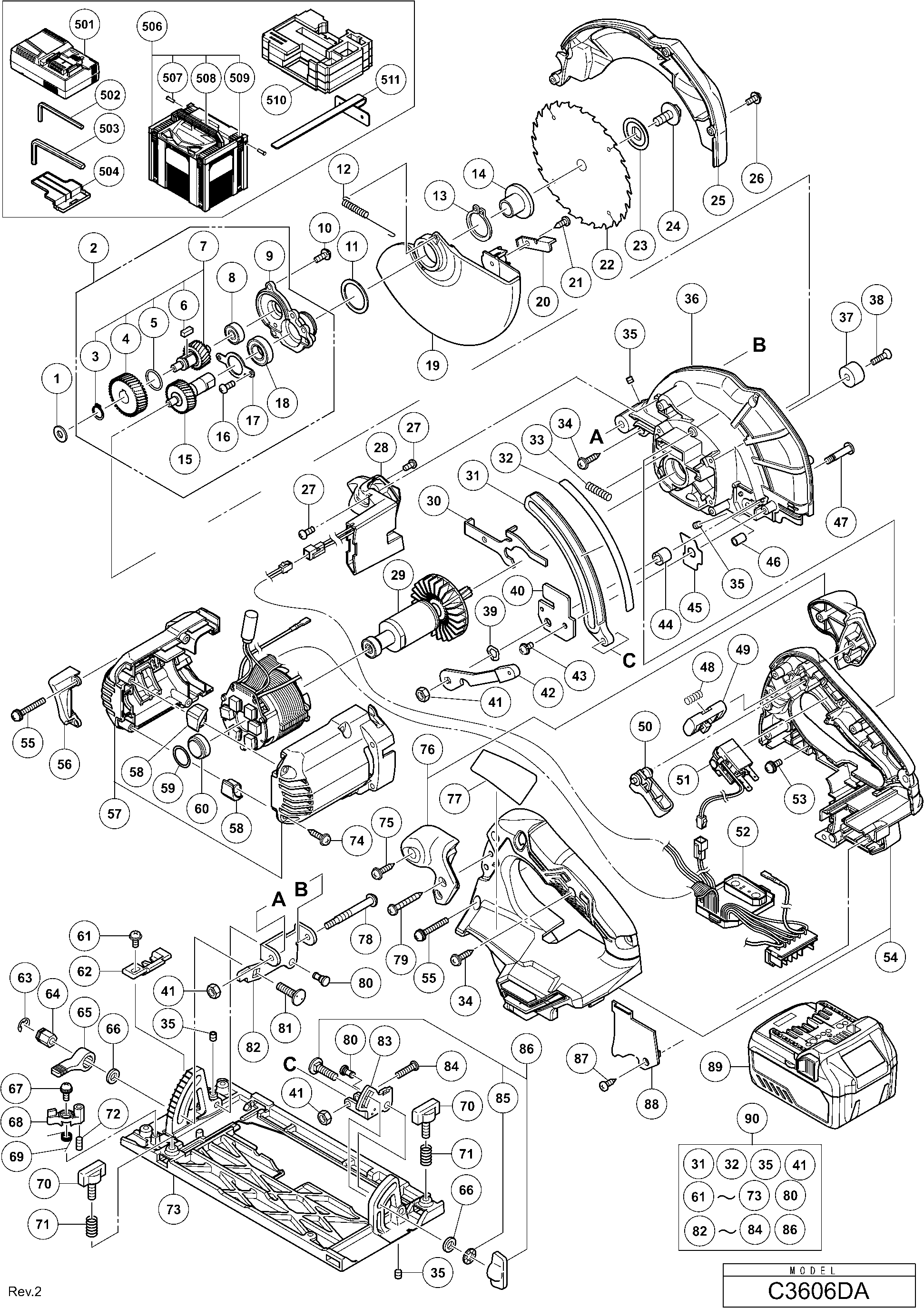

Technical drawing of model Hikoki C3606DA

Spare parts list of model Hikoki C3606DA

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Seal Lock Hex. Socket Set Screw M5x6
*35 319541 1.50 1.82
NYLON MOER M5
*41A 377291 1.00 1.21
Washer (a)
1 329975 6.45 7.80
Bearing Holder
2 338920 33.55 40.60
Retaining Ring For D11 Shaft Till 9.2012
3 316487 1.65 2.00
First Gear
4 338925 7.20 8.71
O-ring (s-15)
5 319567 1.65 2.00
Feather Key 4x4x10
6 930511 2.40 2.90
Second Shaft Ass'y Includ.3-6
7 338924 28.60 34.61
Ball Bearing 606vv
8 606ZZM 15.40 18.63
Bearing Holder
9 338921 5.55 6.72
Machine Screw (w/sp. Washer) M4x12
10 951039 1.05 1.27
Ring
11 339257 1.04 1.26
Return Spring
12 373078 1.04 1.26
Washer Spring
13 939548 4.65 5.63
No information available, not orderable
14 338915
WASHER (A) (OLD 338915)
14A 376366 1.20 1.45
Spindle And Gear Set
15 338923 9.90 11.98
Machine Screw M3x8 (10 Pcs.) Since 9.2012 For Eur
16 949203 1.05 1.27
Bearing Cover
17 338922 1.04 1.26
Ball Bearing 6901vvm
18 6901VV 9.60 11.62
Lower Guard
19 338905 3.60 4.36
Knob
20 338927 1.04 1.26
Tapping Screw D4x10 (black)
21 302090 1.05 1.27
No information available, not orderable
22 338935
No information available, not orderable
23 338916
WASHER (B) (OLD 338916)
23A 376367 1.04 1.26
Hex Flange Bolt
24 338917 1.04 1.26
No information available, not orderable
25 372880
PROTECTIVE CAP (GREEN)(OLD 372880)
25A 373650 7.35 8.89
Machine Screw (w/washer) M4x12 (black)
26 333781 1.20 1.45
Machine Screw M4x8 (black)
27 323211 1.05 1.27
Led
28 339218 5.40 6.53
ROTOR (C) ASS'Y
29 361078 47.58 57.57
Lock Lever
30 338918 1.50 1.82
LINK
31 371943 4.35 5.26
Gauge Plate (a)
32 339258 1.80 2.18
Spring
33 334225 1.80 2.18
No information available, not orderable
34 307811
Seal Lock Hex. Socket Set Screw M5x6
35 319541 1.50 1.82
Gear Cover
36 338907 21.31 25.79
Gear Cover
36B 376033 13.75 16.64
Cushion
37 310842 1.05 1.27
Flat Hd. Screw M5x20 (10 Pcs.)
38 949793 1.35 1.63
Wave Washer 8
39 334242 1.73 2.09
Cover Plate (2 needed)
40 371946 1.20 1.45
U-nut M5
41 308387 1.05 1.27
NYLON MOER M5
41A 377291 1.00 1.21
Lever (a)
42 338930 3.15 3.81
SCREW M4 WITH WASHER
43 372219 1.04 1.26
Cam
44 333681 3.45 4.17
Plate
45 371947 1.04 1.26
Lock Lever
46 338932 1.20 1.45
Cam Shaft
47 333680 5.10 6.17
Bolt (Square) M6X20
47A 375031 1.04 1.26
Spring
48 336650 1.05 1.27
Spring (f)
48B 301631 1.04 1.26
Knob
49 338901 1.04 1.26
KNOB
49A 374780 1.04 1.26
Trigger
50 338899 1.04 1.26
SWITCH
51 371907 13.75 16.64
STATOR FET PCB ASS'Y
52 340992 127.60 154.40
VELD FET PCB SET (OUD 340992)
52A 341101 116.82 141.35
Machine Screw (w/washers) M4x14 (black)
53 305691 1.05 1.27
HANDLE SET (GREEN)
54 371908 18.70 22.63
Machine Screw (w/washers) M4x35 (black)
55 334141 1.80 2.18
Flow Guide
56 338919 1.04 1.26
Housing
57 338902 6.30 7.62
Cushion
58 336554 1.04 1.26
Washer
59 372734 1.04 1.26
Rubber Ring
60 338928 1.04 1.26
Machine Screw (w/washer) M4x8 (black)
61 315500 1.35 1.63
Guide Piece (1)
62 338913 1.04 1.26
Washer Spring
63 942827 1.04 1.26
Special Nut M6
64 333660 1.80 2.18
Lever
65 333659 1.80 2.18
Washer M6 (10 Pcs.)
66 949425 1.05 1.27
Machine Screw (w/washers) M4x8 (black)
67 317200 1.65 2.00
Stopper Lever
68 333657 3.45 4.17
Spring (b)
69 339259 1.80 2.18
Wing Bolt M6x18
70 307898 1.65 2.00
Spring
71 324876 1.80 2.18
Seal Lock Hex. Socket Set Screw M5x10
72 334142 1.80 2.18
HEX. SOCKET SET SCREW M5X10 NEW
72A 377288 1.00 1.21
Base plate KS 60
73 371941 21.31 25.79
Tapping Screw (w/flange) D4x20 (black)
74 301653 1.04 1.26
Tapping Screw (w/flange) D4x20 (black)
75 301653 1.04 1.26
Handle
76 338934 3.15 3.81
Adjusting Screw (a)
78 339260 1.04 1.26
Tapping Screw (w/flange) D4x30 (black)
79 305490 1.04 1.26
Step Pin D6x13
80 320163 1.50 1.82
Bolt (square) M6x22
81 314623 1.80 2.18
Bevel Plate
82 338910 1.65 2.00
SUB LINK
83 371944 2.40 2.90
SPECIAL SCREW
84 371945 1.04 1.26
Super Lock Washer M6 Single-phase
85 948167 1.04 1.26
Bolt Ass'y (square) M6x22 Includ.89
86 314620 6.45 7.80
Bolt (square) M6x22
86A 314623 1.80 2.18
Tapping Screw D3x12 (black)
87 334333 1.80 2.18
HANDLE COVER (GREEN)
88 371909 1.95 2.36
No information available, not orderable
89 371750
Base Ass'y Includ.57
90 371939 35.61 43.09
Base Ass'y Includ.57
90B 371939 35.61 43.09
Knob Spring Set
91 374782 2.25 2.72
Washer Spring
94 942827 1.04 1.26
LEVER
95 374246 2.70 3.27
LOCK NUT
96 374248 1.20 1.45
WAVE WASHER 12 MM NEW
97 375106 1.80 2.18
Washer
98 320975 1.05 1.27
Spacer (A)
99 376105 1.04 1.26
Wing Nut M6
100 375026 1.20 1.45
Lever Set Including 20
101A 376031 18.70 22.63
Ball Bearing 606vv
102 606ZZM 15.40 18.63
Ball bearing 609vvmc2ps2s
103 609VVM 6.00 7.26
Spring Plate (1)
104 376621 1.04 1.26
No information available, not orderable
502 990666
No information available, not orderable
503 944459
Battery Cover
504 329897 1.80 2.18
No information available, not orderable
506 337528
No information available, not orderable
507 336474
No information available, not orderable
508 336473
No information available, not orderable
509 336472
No information available, not orderable
510 373138
No information available, not orderable
510C 378278
No information available, not orderable
511 302756
No information available, not orderable
601 316161
No information available, not orderable
601A 375630
Long Guide (650mm)
602 316104 91.58 110.81
Long Guide (650mm)
602A 316104 91.58 110.81
Duct Adapter
603 339383 4.50 5.44
No information available, not orderable
604 962175
Wing Bolt M6x18
605 307898 1.65 2.00
Spring
606 941056 1.05 1.27
No information available, not orderable
607 339188
Special Bolt
608 321996 1.65 2.00
