Here you will find all available parts and drawings of the 'Hikoki C3605DA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

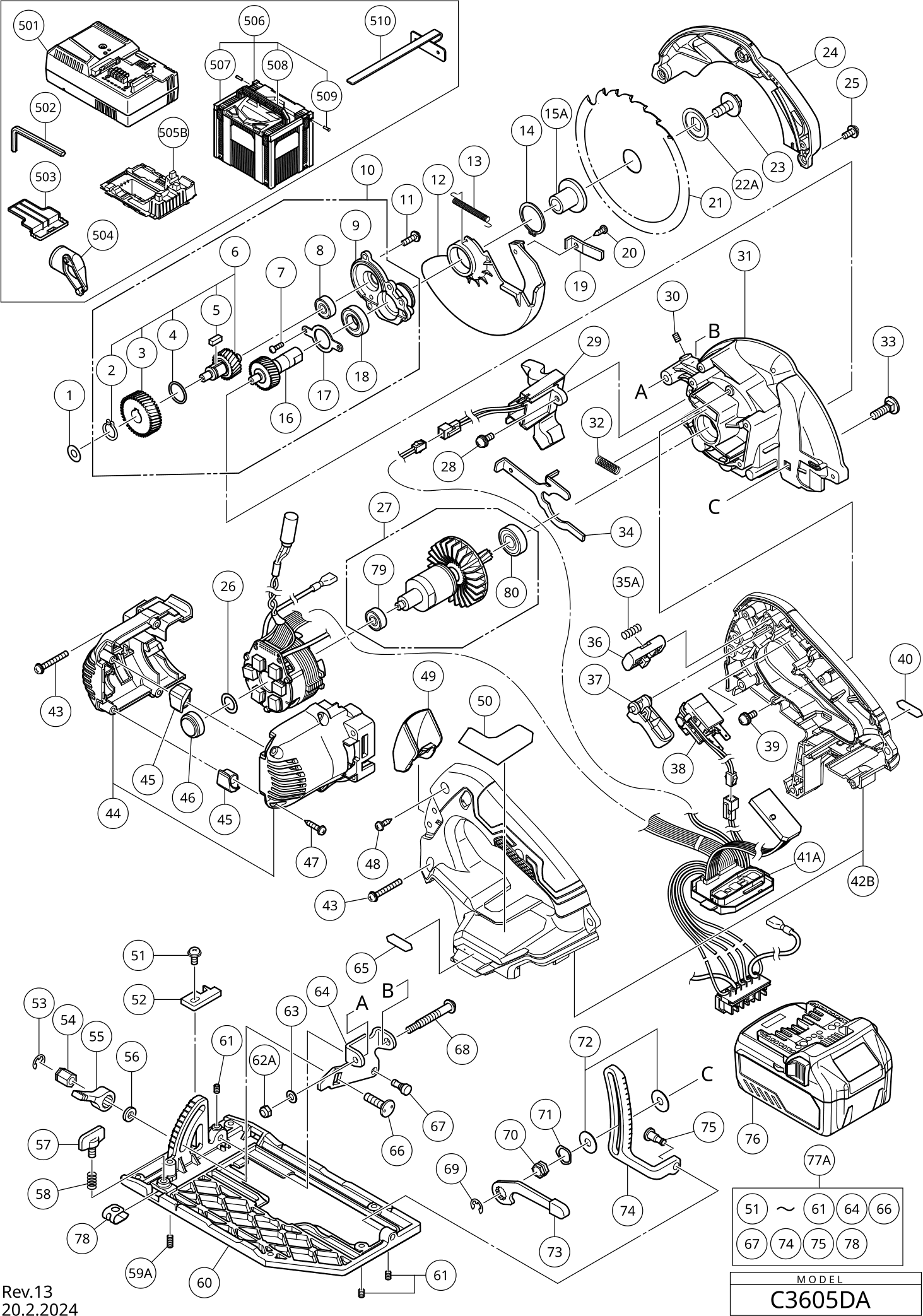

Technical drawing of model Hikoki C3605DA
Spare parts list of model Hikoki C3605DA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Washer (a) | ||||
| 1 | 329975 | 6.45 | 7.80 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 2 | 316487 | 1.65 | 2.00 | |
| First Gear | ||||
| 3 | 338925 | 7.20 | 8.71 | |
| O-ring (s-15) | ||||
| 4 | 319567 | 1.65 | 2.00 | |
| Feather Key 4x4x10 | ||||
| 5 | 930511 | 2.40 | 2.90 | |
| Second Shaft Ass'y Include.2-5 | ||||
| 6 | 374250 | 18.70 | 22.63 | |
| Machine Screw M3x8 (10 Pcs.) Since 9.2012 For Eur | ||||
| 7 | 949203 | 1.05 | 1.27 | |
| Ball Bearing 606vv | ||||
| 8 | 606ZZM | 15.40 | 18.63 | |
| BEARING HOLDER | ||||
| 9 | 374239 | 5.55 | 6.72 | |
| No information available, not orderable | ||||
| 9A | 383696 | |||
| BEARING HOLDER ASS'Y | ||||
| 10 | 374252 | 35.89 | 43.42 | |
| No information available, not orderable | ||||
| 10A | 383691 | |||
| Machine Screw (w/sp. Washer) M4x12 | ||||
| 11 | 951039 | 1.05 | 1.27 | |
| Lower Guard | ||||
| 12 | 374244 | 2.70 | 3.27 | |
| Return Spring | ||||
| 13 | 374253 | 1.04 | 1.26 | |
| Washer Spring | ||||
| 14 | 939548 | 4.65 | 5.63 | |
| WASHER (A) (OLD 374254) | ||||
| 15A | 378281 | 1.00 | 1.21 | |
| SPINDLE GEAR SET | ||||
| 16 | 374251 | 9.30 | 11.25 | |
| Bearing Cover | ||||
| 17 | 338922 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 18 | 6901VV | |||
| Knob (1) | ||||
| 19 | 333894 | 1.80 | 2.18 | |
| Tapping Screw D4x10 (black) | ||||
| 20 | 302090 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 21 | 374351 | |||
| RING (B) (OUD 374255) | ||||
| 22A | 381477 | 1.00 | 1.21 | |
| Hex Flange Bolt | ||||
| 23 | 338917 | 1.04 | 1.26 | |
| SAW COVER | ||||
| 24 | 374243 | 6.30 | 7.62 | |
| Machine Screw (w/washer) M4x12 (black) | ||||
| 25 | 333781 | 1.20 | 1.45 | |
| Washer (1) | ||||
| 26 | 375110 | 1.04 | 1.26 | |
| Rotor Ass'y Includ.23 | ||||
| 27 | 361100 | 34.10 | 41.26 | |
| Machine Screw (w/washers) M4x14 (black) | ||||
| 28 | 305691 | 1.05 | 1.27 | |
| LED (A) | ||||
| 29 | 374241 | 4.95 | 5.99 | |
| Seal Lock Hex. Socket Set Screw M5x6 | ||||
| 30 | 319541 | 1.50 | 1.82 | |
| GEAR COVER (A) | ||||
| 31 | 374236 | 17.74 | 21.46 | |
| Spring | ||||
| 32 | 334225 | 1.80 | 2.18 | |
| Bolt (Square) M6X20 | ||||
| 33 | 375031 | 1.04 | 1.26 | |
| LOCK LEVER | ||||
| 34 | 374247 | 1.04 | 1.26 | |
| Spring (f) | ||||
| 35A | 301631 | 1.04 | 1.26 | |
| KNOB | ||||
| 36 | 374780 | 1.04 | 1.26 | |
| Trigger | ||||
| 37 | 338899 | 1.04 | 1.26 | |
| SWITCH | ||||
| 38 | 371907 | 13.75 | 16.64 | |
| Machine Screw (w/washers) M4x14 (black) | ||||
| 39 | 305691 | 1.05 | 1.27 | |
| MV LABEL (B) | ||||
| 40 | 373914 | 1.04 | 1.26 | |
| VELD FET PCB SET VOOR BLUETOOTH (OUD 341041) | ||||
| 41A | 341107 | 133.70 | 161.78 | |
| VELD FET PCB SET (OUD 341040) | ||||
| 41A | 341106 | 100.70 | 121.85 | |
| HANDGREEP SET VOOR MV-BX BAT | ||||
| 42B | 381001 | 10.74 | 13.00 | |
| Machine Screw M4 (w/Washers) | ||||
| 43 | 375104 | 1.80 | 2.18 | |
| HOUSING SET | ||||
| 44 | 374240 | 4.50 | 5.44 | |
| Cushion | ||||
| 45 | 336554 | 1.04 | 1.26 | |
| Rubber Ring | ||||
| 46 | 338928 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 47 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 48 | 307811 | |||
| COVER NEW | ||||
| 49 | 338914 | 1.04 | 1.26 | |
| Machine Screw (w/washer) M4x8 (black) | ||||
| 51 | 315500 | 1.35 | 1.63 | |
| GUIDE PIECE | ||||
| 52 | 374259 | 1.04 | 1.26 | |
| Washer Spring | ||||
| 53 | 942827 | 1.04 | 1.26 | |
| Special Nut M6 | ||||
| 54 | 333660 | 1.80 | 2.18 | |
| Lever | ||||
| 55 | 333659 | 1.80 | 2.18 | |
| Washer M6 (10 Pcs.) | ||||
| 56 | 949425 | 1.05 | 1.27 | |
| Wing Bolt M6x18 | ||||
| 57 | 307898 | 1.65 | 2.00 | |
| Spring | ||||
| 58 | 324876 | 1.80 | 2.18 | |
| HEX. SOCKET SET SCREW M5X10 NEW | ||||
| 59A | 377288 | 1.00 | 1.21 | |
| Base Body | ||||
| 60 | 374237 | 20.90 | 25.29 | |
| Seal Lock Hex. Socket Set Screw M5x6 | ||||
| 61 | 319541 | 1.50 | 1.82 | |
| NYLON MOER M5 | ||||
| 62A | 377291 | 1.00 | 1.21 | |
| Washer D5 | ||||
| 63 | 375105 | 1.80 | 2.18 | |
| BEVEL PLATE | ||||
| 64 | 374245 | 1.20 | 1.45 | |
| MV LABEL (A) | ||||
| 65 | 373913 | 1.04 | 1.26 | |
| Bolt (square) M6x22 | ||||
| 66 | 314623 | 1.80 | 2.18 | |
| Step Pin | ||||
| 67 | 333656 | 1.80 | 2.18 | |
| Adjusting Screw (a) | ||||
| 68 | 325236 | 5.10 | 6.17 | |
| Washer Spring | ||||
| 69 | 942827 | 1.04 | 1.26 | |
| LOCK NUT | ||||
| 70 | 374248 | 1.20 | 1.45 | |
| WAVE WASHER 12 MM NEW | ||||
| 71 | 375106 | 1.80 | 2.18 | |
| Washer | ||||
| 72 | 320975 | 1.05 | 1.27 | |
| LEVER | ||||
| 73 | 374246 | 2.70 | 3.27 | |
| LINK | ||||
| 74 | 374238 | 3.00 | 3.63 | |
| SHOULDER PIN (A) | ||||
| 75 | 374249 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 76 | 371750 | |||
| BASE ASS'Y (B) | ||||
| 77A | 374257 | 31.90 | 38.60 | |
| Spring Plate (1) | ||||
| 78 | 376621 | 1.04 | 1.26 | |
| Ball Bearing 606vv | ||||
| 79 | 606ZZM | 15.40 | 18.63 | |
| Ball bearing 609vvmc2ps2s | ||||
| 80 | 609VVM | 6.00 | 7.26 | |
| RUBBER PEN | ||||
| 81 | 931701 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 502 | 944459 | |||
| Battery Cover | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 504 | 329063 | |||
| No information available, not orderable | ||||
| 505B | 381000 | |||
| No information available, not orderable | ||||
| 506 | 337528 | |||
| No information available, not orderable | ||||
| 507 | 336472 | |||
| No information available, not orderable | ||||
| 508 | 336473 | |||
| No information available, not orderable | ||||
| 509 | 336474 | |||
| No information available, not orderable | ||||
| 510 | 302756 | |||
| No information available, not orderable | ||||
| 601 | 374261 | |||
| Special Bolt | ||||
| 602 | 321996 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 603 | 339187 | |||
