Here you will find all available parts and drawings of the 'Hikoki C18DL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

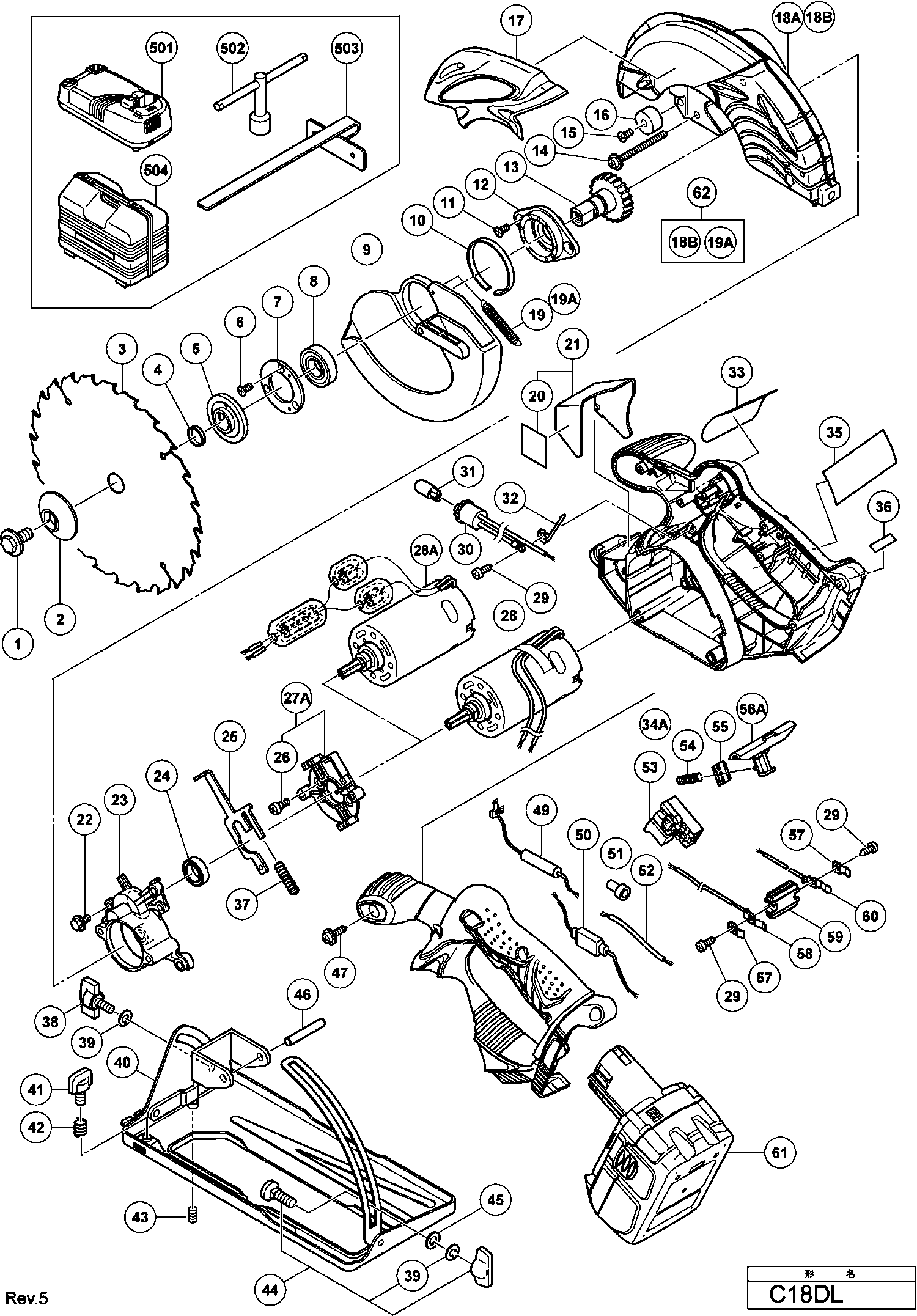

Technical drawing of model Hikoki C18DL
Spare parts list of model Hikoki C18DL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *3 | 324295 | |||
| Washer (a2) | ||||
| *5 | 317465 | 9.00 | 10.89 | |
| Washer (a3) | ||||
| *5 | 324569 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| *601 | 324580 | |||
| Bolt (left Hand) W/washer M7x17.5 | ||||
| 1 | 998335 | 1.05 | 1.27 | |
| Clamping Flange | ||||
| 2 | 324563 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 3 | 324295 | |||
| Ring D15.9/i.d14.5 For Chi,pan,mex | ||||
| 4 | 990100 | 1.65 | 2.00 | |
| Washer (a2) | ||||
| 5 | 317465 | 9.00 | 10.89 | |
| Washer (a1) For Chi,pan,mex | ||||
| 5 | 317466 | 9.00 | 10.89 | |
| Washer (a3) | ||||
| 5 | 324569 | 4.20 | 5.08 | |
| Seal Lock Flat Hd. Screw M3x12 | ||||
| 6 | 308773 | 1.05 | 1.27 | |
| Bearing Cover | ||||
| 7 | 308362 | 2.40 | 2.90 | |
| Ball Bearing 6002vvcmps2l | ||||
| 8 | 6002VV | 7.35 | 8.89 | |
| Guard | ||||
| 9 | 324567 | 7.05 | 8.53 | |
| Washer | ||||
| 10 | 318192 | 1.65 | 2.00 | |
| SEAL LOCK HD SCREW M5X12 | ||||
| 11 | 305568 | 1.05 | 1.27 | |
| Bearing Holder | ||||
| 12 | 308361 | 3.30 | 3.99 | |
| Gear | ||||
| 13 | 324564 | 34.24 | 41.43 | |
| Tapping Screw (w/flange) D5x50 | ||||
| 14 | 317449 | 1.65 | 2.00 | |
| Flat Hd. Screw M5x20 (10 Pcs.) | ||||
| 15 | 949793 | 1.35 | 1.63 | |
| Cushion | ||||
| 16 | 310842 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 17 | 326773 | |||
| No information available, not orderable | ||||
| 18A | 331434 | |||
| Protection Cap (old 331434) | ||||
| 18B | 336370 | 21.45 | 25.95 | |
| Return Spring | ||||
| 19 | 317203 | 3.30 | 3.99 | |
| Return Spring | ||||
| 19A | 336369 | 1.50 | 1.82 | |
| Light Cover Ass'y | ||||
| 21 | 324577 | 1.05 | 1.27 | |
| NYLOCK Bolt M4X12 | ||||
| 22 | 317196 | 1.65 | 2.00 | |
| Inner Cover (b) | ||||
| 23 | 324565 | 9.15 | 11.07 | |
| Ball bearing 609vvmc2ps2s | ||||
| 24 | 609VVM | 6.00 | 7.26 | |
| Lock Lever | ||||
| 25 | 324568 | 2.10 | 2.54 | |
| Special Bolt M5 | ||||
| 26 | 317914 | 1.65 | 2.00 | |
| Inner Cover (a) Ass'y Includ.26 | ||||
| 27A | 331435 | 9.98 | 12.07 | |
| Motor | ||||
| 28 | 324572 | 102.58 | 124.12 | |
| Motor (b) Set Since 3.2012 For Europe | ||||
| 28A | 334848 | 125.40 | 151.73 | |
| Screw | ||||
| 29 | 958715 | 1.04 | 1.26 | |
| Holder | ||||
| 30 | 319820 | 7.35 | 8.89 | |
| Lamp (12v 5w) | ||||
| 31 | 315229 | 9.30 | 11.25 | |
| Terminal (d) | ||||
| 32 | 319823 | 1.50 | 1.82 | |
| Housing. Handle Cover Set | ||||
| 34A | 334223 | 30.53 | 36.94 | |
| Spring | ||||
| 37 | 961803 | 1.20 | 1.45 | |
| Wing Bolt (a) M6x15 | ||||
| 38 | 308364 | 1.05 | 1.27 | |
| Super Lock Washer M6 Single-phase | ||||
| 39 | 948167 | 1.04 | 1.26 | |
| Base | ||||
| 40 | 324561 | 22.83 | 27.62 | |
| Knob Bolt | ||||
| 41 | 324562 | 1.05 | 1.27 | |
| Spring (old 996224) | ||||
| 42 | 947859 | 1.04 | 1.26 | |
| Slotted Hd. Set Screw (seal Lock) M6x6 | ||||
| 43 | 302469 | 1.05 | 1.27 | |
| Bolt Ass'y (square) M6x22 Includ.89 | ||||
| 44 | 314620 | 6.45 | 7.80 | |
| Washer M6 (10 Pcs.) | ||||
| 45 | 949425 | 1.05 | 1.27 | |
| Roll Pin D6x50 (10 Pcs.) | ||||
| 46 | 949750 | 7.35 | 8.89 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 47 | 305812 | 1.04 | 1.26 | |
| Resistor | ||||
| 49 | 324570 | 4.20 | 5.08 | |
| Resistor (a) | ||||
| 50 | 324573 | 4.20 | 5.08 | |
| Connector 50092 (10 Pcs.) | ||||
| 51 | 959141 | 3.75 | 4.54 | |
| Internal Wire | ||||
| 52 | 321002 | 1.35 | 1.63 | |
| Switch (1p Screw Type) W/o Lock | ||||
| 53 | 319825 | 18.56 | 22.46 | |
| Spring (f) | ||||
| 54 | 301631 | 1.04 | 1.26 | |
| Terminal (a) | ||||
| 55 | 317207 | 1.35 | 1.63 | |
| Knob | ||||
| 56A | 331433 | 1.88 | 2.27 | |
| Spring | ||||
| 57 | 996118 | 2.55 | 3.09 | |
| Terminal | ||||
| 58 | 324574 | 2.10 | 2.54 | |
| Terminal Piece | ||||
| 59 | 320997 | 1.20 | 1.45 | |
| Terminal | ||||
| 60 | 321000 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 61 | 326241 | |||
| Saw Cover And Return Spring Set Includ.18b,19b Ti | ||||
| 62 | 336371 | 24.34 | 29.45 | |
| No information available, not orderable | ||||
| 502 | 940543 | |||
| No information available, not orderable | ||||
| 503 | 302756 | |||
| No information available, not orderable | ||||
| 504 | 324579 | |||
| No information available, not orderable | ||||
| 601 | 324581 | |||
