Here you will find all available parts and drawings of the 'Hikoki C1810DFA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

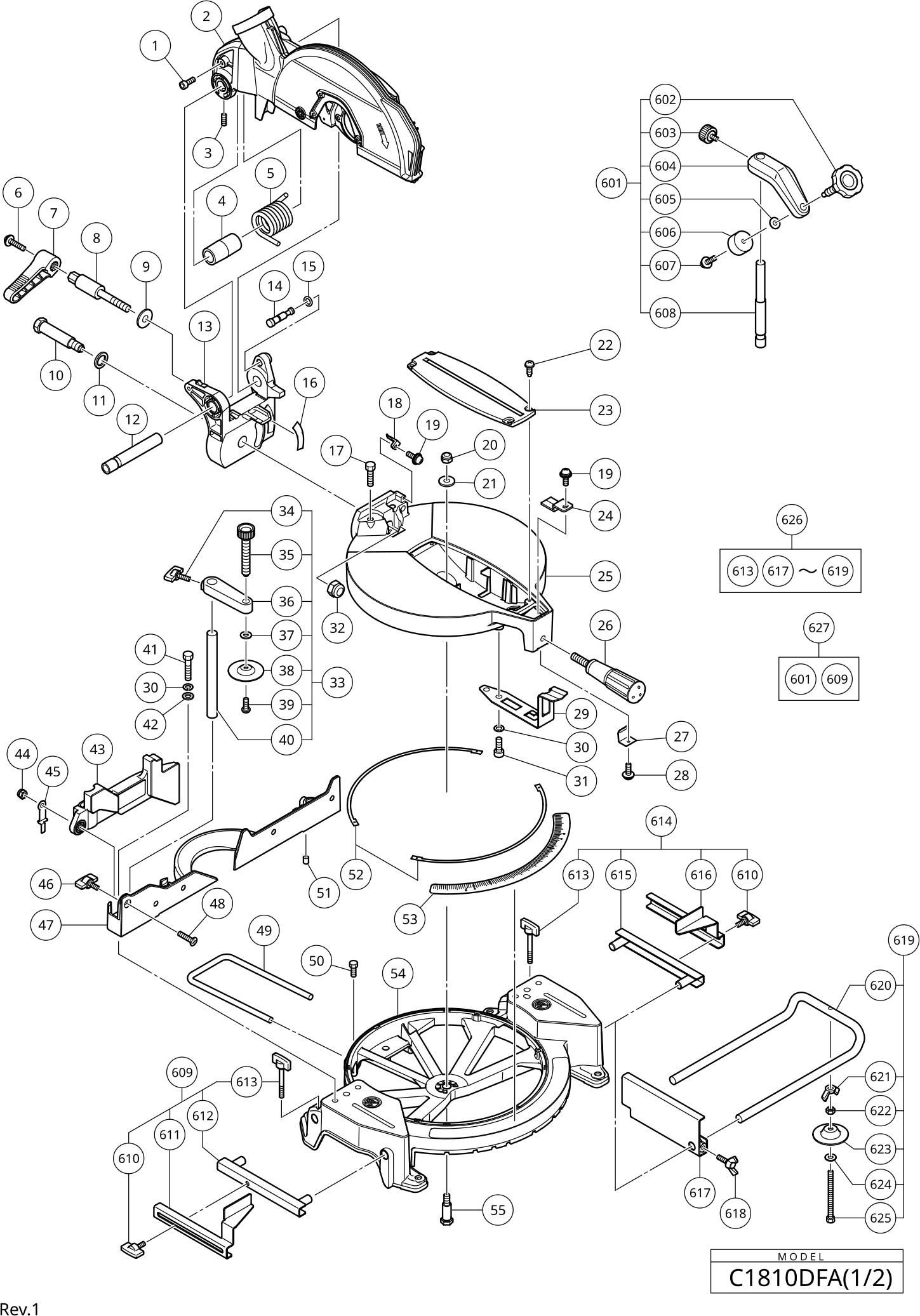

Technical drawing of model Hikoki C1810DFA
Spare parts list of model Hikoki C1810DFA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex. Socket Hd. Bolt M5x10 (10 Pcs.) | ||||
| 1 | 949819 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 2 | 378668 | |||
| Seal Lock Hex. Socket Set Screw M6x10 | ||||
| 3 | 307956 | 1.05 | 1.27 | |
| Sleeve | ||||
| 4 | 322889 | 1.05 | 1.27 | |
| Spring | ||||
| 5 | 322890 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 6 | 323208 | |||
| CLAMP HANDLE (OLD 322935) | ||||
| 7 | 371742 | 1.20 | 1.45 | |
| Bolt (left Hand) M10 | ||||
| 8 | 371743 | 2.40 | 2.90 | |
| Washer | ||||
| 9 | 318934 | 1.50 | 1.82 | |
| Shaft (d) | ||||
| 10 | 371740 | 2.10 | 2.54 | |
| Washer M16 | ||||
| 11 | 322934 | 1.05 | 1.27 | |
| Shaft (c) | ||||
| 12 | 322888 | 5.10 | 6.17 | |
| No information available, not orderable | ||||
| 13 | 371732 | |||
| Stopper Pin Ass'y Includ.94 | ||||
| 14 | 302518 | 4.50 | 5.44 | |
| O-ring (p-6) | ||||
| 15 | 984528 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 16 | 371733 | |||
| NYLOCK BOUT M8X25 | ||||
| 17 | 303409 | 1.00 | 1.21 | |
| Indicator | ||||
| 18 | 321329 | 1.65 | 2.00 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 19 | 304043 | 1.05 | 1.27 | |
| NYLON MOER M8 | ||||
| 20 | 371739 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 21 | 318929 | |||
| Machine Screw (w/washer) M4x12 (black) | ||||
| 22 | 333781 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 23 | 371729 | |||
| Indicator (a) | ||||
| 24 | 322904 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 25 | 371719 | |||
| SIDE HANDLE (OLD 322283/322898) | ||||
| 26 | 376050 | 1.20 | 1.45 | |
| Spacer | ||||
| 27 | 326696 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x8 (black) | ||||
| 28 | 317200 | 1.65 | 2.00 | |
| Spring Plate | ||||
| 29 | 322903 | 2.10 | 2.54 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 30 | 949457 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M8x16 (10 Pcs.) | ||||
| 31 | 949655 | 3.90 | 4.72 | |
| NYLON MOER M12 | ||||
| 32 | 371741 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 33 | 322952 | |||
| WING BOLT M6X15 | ||||
| 34 | 375132 | 1.04 | 1.26 | |
| Knob Bolt M10x66 | ||||
| 35 | 302522 | 9.60 | 11.62 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 37 | 949432 | 1.05 | 1.27 | |
| Clamping Plate | ||||
| 38 | 302532 | 2.40 | 2.90 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 39 | 949216 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 40 | 322954 | |||
| Bolt M8x35 (10 Pcs.) | ||||
| 41 | 949678 | 2.55 | 3.09 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 42 | 949433 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 43 | 326704 | |||
| Nylon Nut M6 | ||||
| 44 | 963837 | 1.05 | 1.27 | |
| Plate | ||||
| 45 | 326711 | 1.65 | 2.00 | |
| Wing Bolt M6x15 | ||||
| 46 | 301806 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 47 | 375117 | |||
| Flat Hd. Screw M6x25 (10 Pcs.) | ||||
| 48 | 949342 | 1.65 | 2.00 | |
| Edge Guide | ||||
| 49 | 326705 | 3.15 | 3.81 | |
| Bolt M6x10 (10 Pcs.) | ||||
| 50 | 949610 | 1.20 | 1.45 | |
| RUBBER PEN | ||||
| 51 | 931701 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 52 | 371720 | |||
| SCALE (A) | ||||
| 53 | 372290 | 4.05 | 4.90 | |
| BASE ASS'Y (OLD 371718) | ||||
| 54 | 372289 | 44.00 | 53.24 | |
| Shaft (b) | ||||
| 55 | 371738 | 1.35 | 1.63 | |
| LEFT HEX. SOCKET BOLT M7 | ||||
| 71 | 371730 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 72 | 371731 | |||
| No information available, not orderable | ||||
| 73 | 318963 | |||
| Flange (D) | ||||
| 74 | 308789 | 15.84 | 19.16 | |
| No information available, not orderable | ||||
| 75 | 371725 | |||
| Seal Lock Flat Hd. Screw M4x10 | ||||
| 76 | 990430 | 1.04 | 1.26 | |
| Cover | ||||
| 77 | 322919 | 1.05 | 1.27 | |
| Ball Bearing 6003vvcmps2l | ||||
| 78 | 6003VV | 7.65 | 9.26 | |
| Bearing Holder | ||||
| 79 | 322918 | 4.65 | 5.63 | |
| No information available, not orderable | ||||
| 80 | 371726 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 81 | 608VVM | 5.70 | 6.90 | |
| Handle | ||||
| 82 | 326708 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 83 | 323208 | |||
| No information available, not orderable | ||||
| 84 | 378670 | |||
| No information available, not orderable | ||||
| 85 | 378671 | |||
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 86 | 935196 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 87 | 322950 | |||
| Washer M7 | ||||
| 88 | 322948 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 89 | 371735 | |||
| No information available, not orderable | ||||
| 90 | 378669M | |||
| Machine Screw (w/sp. Washer) M5x16 | ||||
| 91 | 987512 | 1.04 | 1.26 | |
| Flat Hd. Screw M6x16 (10 Pcs.) | ||||
| 92 | 949340 | 1.35 | 1.63 | |
| Cushion | ||||
| 93 | 961729 | 1.05 | 1.27 | |
| Special Screw (c) M5 | ||||
| 94 | 322947 | 1.05 | 1.27 | |
| Washer | ||||
| 95 | 322938 | 1.05 | 1.27 | |
| SPACER (B) | ||||
| 96 | 371745 | 1.00 | 1.21 | |
| Spring Washer M5 (10 pieces) | ||||
| 97 | 949454 | 1.04 | 1.26 | |
| Machine Screw (w/washer) M4x8 (black) | ||||
| 98 | 315500 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 99 | 371723 | |||
| No information available, not orderable | ||||
| 100 | 361175 | |||
| Ball Bearing 6002vvcmps2l | ||||
| 101 | 6002VV | 7.35 | 8.89 | |
| Lock Lever | ||||
| 102 | 322916 | 1.05 | 1.27 | |
| Ball Bearing 606vv | ||||
| 103 | 606ZZM | 15.40 | 18.63 | |
| No information available, not orderable | ||||
| 104 | 341119 | |||
| Connector 50092 (10 Pcs.) | ||||
| 105 | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 106 | 378672 | |||
| No information available, not orderable | ||||
| 107 | 371751M | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 108 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 110 | 378673 | |||
| No information available, not orderable | ||||
| 111 | 336667 | |||
| VEER (A) | ||||
| 112 | 376830 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 113 | 378674 | |||
| SWITCH | ||||
| 114 | 371907 | 13.75 | 16.64 | |
| Machine Screw M5x40 | ||||
| 115 | 303796 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 116 | 378676 | |||
| No information available, not orderable | ||||
| 117 | 378675 | |||
| Battery Cover | ||||
| 502 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 503 | 944459 | |||
| Bolt M10x35 (10 Pcs.) | ||||
| 504 | 949695 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 505 | 322955M | |||
| No information available, not orderable | ||||
| 601 | 322957 | |||
| No information available, not orderable | ||||
| 602 | 321551 | |||
| Knob Bolt M6x11 | ||||
| 603 | 998836 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 605 | 306985 | |||
| Base Rubber | ||||
| 606 | 964851 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 607 | 304043 | 1.05 | 1.27 | |
| Vise Shaft | ||||
| 608 | 318967 | 3.00 | 3.63 | |
| Wing Bolt M6x15 | ||||
| 610 | 301806 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 612 | 321390 | |||
| No information available, not orderable | ||||
| 613 | 323682 | |||
| No information available, not orderable | ||||
| 614 | 323547 | |||
| No information available, not orderable | ||||
| 615 | 321390 | |||
| Stopper | ||||
| 617 | 974561 | 7.05 | 8.53 | |
| Wing Bolt M6x20 (10 Pcs.) | ||||
| 618 | 949404 | 7.65 | 9.26 | |
| Holder Assembly Including 620-625 | ||||
| 619 | 322956 | 20.49 | 24.79 | |
| No information available, not orderable | ||||
| 620 | 321549 | |||
| Wing Nut M6 (10 Pcs.) | ||||
| 621 | 949313 | 4.65 | 5.63 | |
| Tpe (sl),kor (sl) | ||||
| 622 | 949556 | 1.05 | 1.27 | |
| KLEMPLAAT | ||||
| 623 | 322047 | 1.38 | 1.67 | |
| Washer M6 (10 Pcs.) | ||||
| 624 | 949425 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 625 | 323134 | |||
| No information available, not orderable | ||||
| 626 | 322710 | |||
| No information available, not orderable | ||||
| 627 | 322712 | |||
| No information available, not orderable | ||||
| 629 | 319658 | |||
