Here you will find all available parts and drawings of the 'Hikoki C1805DA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

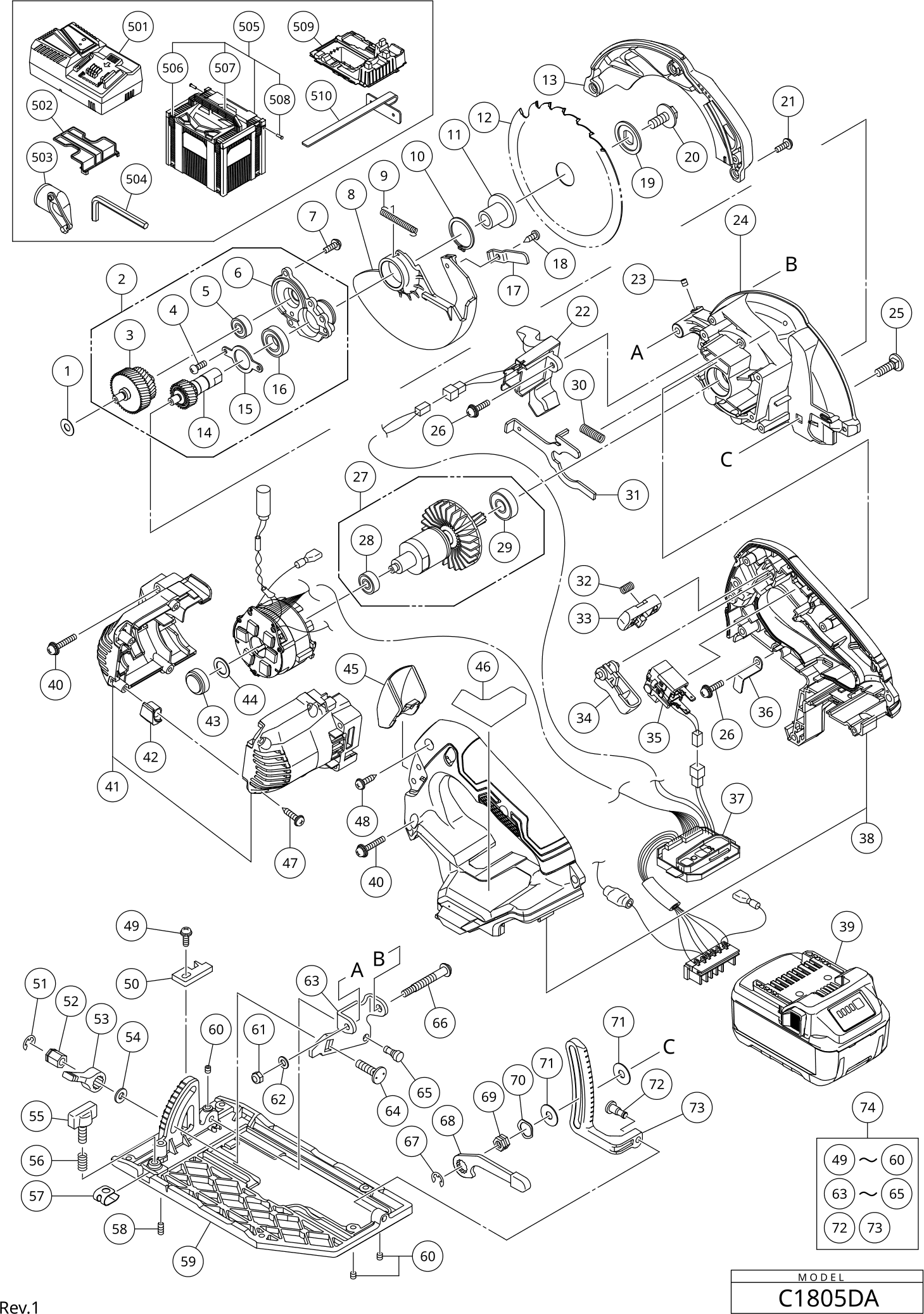

Technical drawing of model Hikoki C1805DA
Spare parts list of model Hikoki C1805DA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Washer (a) | ||||
| 1 | 329975 | 6.45 | 7.80 | |
| LAGERHOUDER | ||||
| 2 | 377675 | 21.01 | 25.42 | |
| No information available, not orderable | ||||
| 2A | 383695 | |||
| TWEEDE TANDWIEL | ||||
| 3 | 377666 | 9.72 | 11.76 | |
| Machine Screw M3x8 (10 Pcs.) Since 9.2012 For Eur | ||||
| 4 | 949203 | 1.05 | 1.27 | |
| Ball Bearing 606vv | ||||
| 5 | 606ZZM | 15.40 | 18.63 | |
| BEARING HOLDER | ||||
| 6 | 374239 | 5.55 | 6.72 | |
| No information available, not orderable | ||||
| 6A | 383696 | |||
| Machine Screw (w/sp. Washer) M4x12 | ||||
| 7 | 951039 | 1.05 | 1.27 | |
| Lower Guard | ||||
| 8 | 374244 | 2.70 | 3.27 | |
| Return Spring | ||||
| 9 | 374253 | 1.04 | 1.26 | |
| Washer Spring | ||||
| 10 | 939548 | 4.65 | 5.63 | |
| WASHER (A) (OLD 374254) | ||||
| 11 | 378281 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 12 | 374351 | |||
| SAW COVER (OLD 336648) | ||||
| 13 | 375360 | 4.65 | 5.63 | |
| TANDWIELAS | ||||
| 14 | 377672 | 6.96 | 8.42 | |
| Bearing Cover | ||||
| 15 | 338922 | 1.04 | 1.26 | |
| Ball Bearing 6901vv-n | ||||
| 16 | 323118 | 6.75 | 8.17 | |
| Knob (1) | ||||
| 17 | 333894 | 1.80 | 2.18 | |
| Tapping Screw D4x10 (black) | ||||
| 18 | 302090 | 1.05 | 1.27 | |
| RING (B) (OUD 374255) | ||||
| 19 | 381477 | 1.00 | 1.21 | |
| Hex Flange Bolt | ||||
| 20 | 338917 | 1.04 | 1.26 | |
| Machine Screw (w/washer) M4x12 (black) | ||||
| 21 | 333781 | 1.20 | 1.45 | |
| LED (A) | ||||
| 22 | 374241 | 4.95 | 5.99 | |
| Seal Lock Hex. Socket Set Screw M5x6 | ||||
| 23 | 319541 | 1.50 | 1.82 | |
| GEAR COVER (A) | ||||
| 24 | 374236 | 17.74 | 21.46 | |
| Bolt (Square) M6X20 | ||||
| 25 | 375031 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M4x14 (black) | ||||
| 26 | 305691 | 1.05 | 1.27 | |
| Rotor Ass'y Includ.23 | ||||
| 27 | 361100 | 34.10 | 41.26 | |
| Ball Bearing 606vv | ||||
| 28 | 606ZZM | 15.40 | 18.63 | |
| Ball bearing 609vvmc2ps2s | ||||
| 29 | 609VVM | 6.00 | 7.26 | |
| Spring | ||||
| 30 | 334225 | 1.80 | 2.18 | |
| LOCK LEVER | ||||
| 31 | 374247 | 1.04 | 1.26 | |
| Spring (f) | ||||
| 32 | 301631 | 1.04 | 1.26 | |
| KNOB NEW | ||||
| 33 | 379531 | 1.00 | 1.21 | |
| Trigger | ||||
| 34 | 338899 | 1.04 | 1.26 | |
| SWITCH NEW | ||||
| 35 | 377414 | 13.53 | 16.37 | |
| GUIDE PLATE NEW | ||||
| 36 | 377230 | 1.00 | 1.21 | |
| VELD FET PCB | ||||
| 37 | 341175 | 84.54 | 102.29 | |
| HANDGREEP SET VOOR MV-BX BAT | ||||
| 38 | 381001 | 10.74 | 13.00 | |
| No information available, not orderable | ||||
| 39 | 378683 | |||
| Machine Screw M4 (w/Washers) | ||||
| 40 | 375104 | 1.80 | 2.18 | |
| HOUSING SET | ||||
| 41 | 374240 | 4.50 | 5.44 | |
| Cushion | ||||
| 42 | 336554 | 1.04 | 1.26 | |
| Rubber Ring | ||||
| 43 | 338928 | 1.04 | 1.26 | |
| Washer (1) | ||||
| 44 | 375110 | 1.04 | 1.26 | |
| COVER NEW | ||||
| 45 | 338914 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 47 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 48 | 307811 | |||
| Machine Screw (w/washer) M4x8 (black) | ||||
| 49 | 315500 | 1.35 | 1.63 | |
| GUIDE PIECE | ||||
| 50 | 374259 | 1.04 | 1.26 | |
| Washer Spring | ||||
| 51 | 942827 | 1.04 | 1.26 | |
| Special Nut M6 | ||||
| 52 | 333660 | 1.80 | 2.18 | |
| Lever | ||||
| 53 | 333659 | 1.80 | 2.18 | |
| Washer M6 (10 Pcs.) | ||||
| 54 | 949425 | 1.05 | 1.27 | |
| Wing Bolt M6x18 | ||||
| 55 | 307898 | 1.65 | 2.00 | |
| Spring | ||||
| 56 | 324876 | 1.80 | 2.18 | |
| Spring Plate (1) | ||||
| 57 | 376621 | 1.04 | 1.26 | |
| HEX. SOCKET SET SCREW M5X10 NEW | ||||
| 58 | 377288 | 1.00 | 1.21 | |
| Base Body | ||||
| 59 | 374237 | 20.90 | 25.29 | |
| Seal Lock Hex. Socket Set Screw M5x6 | ||||
| 60 | 319541 | 1.50 | 1.82 | |
| NYLON MOER M5 | ||||
| 61 | 377291 | 1.00 | 1.21 | |
| Washer D5 | ||||
| 62 | 375105 | 1.80 | 2.18 | |
| BEVEL PLATE | ||||
| 63 | 374245 | 1.20 | 1.45 | |
| Bolt (square) M6x22 | ||||
| 64 | 314623 | 1.80 | 2.18 | |
| Step Pin | ||||
| 65 | 333656 | 1.80 | 2.18 | |
| Adjusting Screw (a) | ||||
| 66 | 325236 | 5.10 | 6.17 | |
| Washer Spring | ||||
| 67 | 942827 | 1.04 | 1.26 | |
| LEVER | ||||
| 68 | 374246 | 2.70 | 3.27 | |
| LOCK NUT | ||||
| 69 | 374248 | 1.20 | 1.45 | |
| WAVE WASHER 12 MM NEW | ||||
| 70 | 375106 | 1.80 | 2.18 | |
| Washer | ||||
| 71 | 320975 | 1.05 | 1.27 | |
| SHOULDER PIN (A) | ||||
| 72 | 374249 | 1.04 | 1.26 | |
| LINK | ||||
| 73 | 374238 | 3.00 | 3.63 | |
| BASE ASS'Y (B) | ||||
| 74 | 374257 | 31.90 | 38.60 | |
| RUBBER PEN | ||||
| 75 | 931701 | 1.05 | 1.27 | |
| Battery Cover | ||||
| 502 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 503 | 329063 | |||
| No information available, not orderable | ||||
| 504 | 944459 | |||
| No information available, not orderable | ||||
| 505 | 337528 | |||
| No information available, not orderable | ||||
| 506 | 336472 | |||
| No information available, not orderable | ||||
| 507 | 336473 | |||
| No information available, not orderable | ||||
| 508 | 336474 | |||
| No information available, not orderable | ||||
| 509 | 381000 | |||
| No information available, not orderable | ||||
| 510 | 302756 | |||
| No information available, not orderable | ||||
| 601 | 374261 | |||
| Special Bolt | ||||
| 602 | 321996 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 603 | 339187 | |||
